Category: Weld Cell

EASOM Ferris Wheel Trunnion w/ 4 Overhead ArcMate 120iC Robots AS-IS

$105,000.00

Availability:

1 in stock

SKU: IGAM0030315

EASOM Trunnion with four overhead ArcMate 120iC robots available. Ideal for weld cell applications. Used condition. Manufacturer: EASOM. Model: Trunnion + ArcMate 120iC. Perfect for enhancing your production line. Act fast!

Trunnion Specs:
Servo Motor: FANUC aif 30/4000 @ 3000 RPM
Rated Current: 39 A
Peak Torque: 82 N-m
Rotation: 180°
Max WT of Part: 2000 Kg

The Trunnion is equipped with (4) Fanuc – ArcMate 120iC with weld package including R-30iA Controls and Lincoln Electric – PowerWave i400 Welders. This system is also complete with its original control panels making integration simple and easy as this system was fully functional before being acquired. **Unit is missing (1) Robot Controller and Welder

View Details

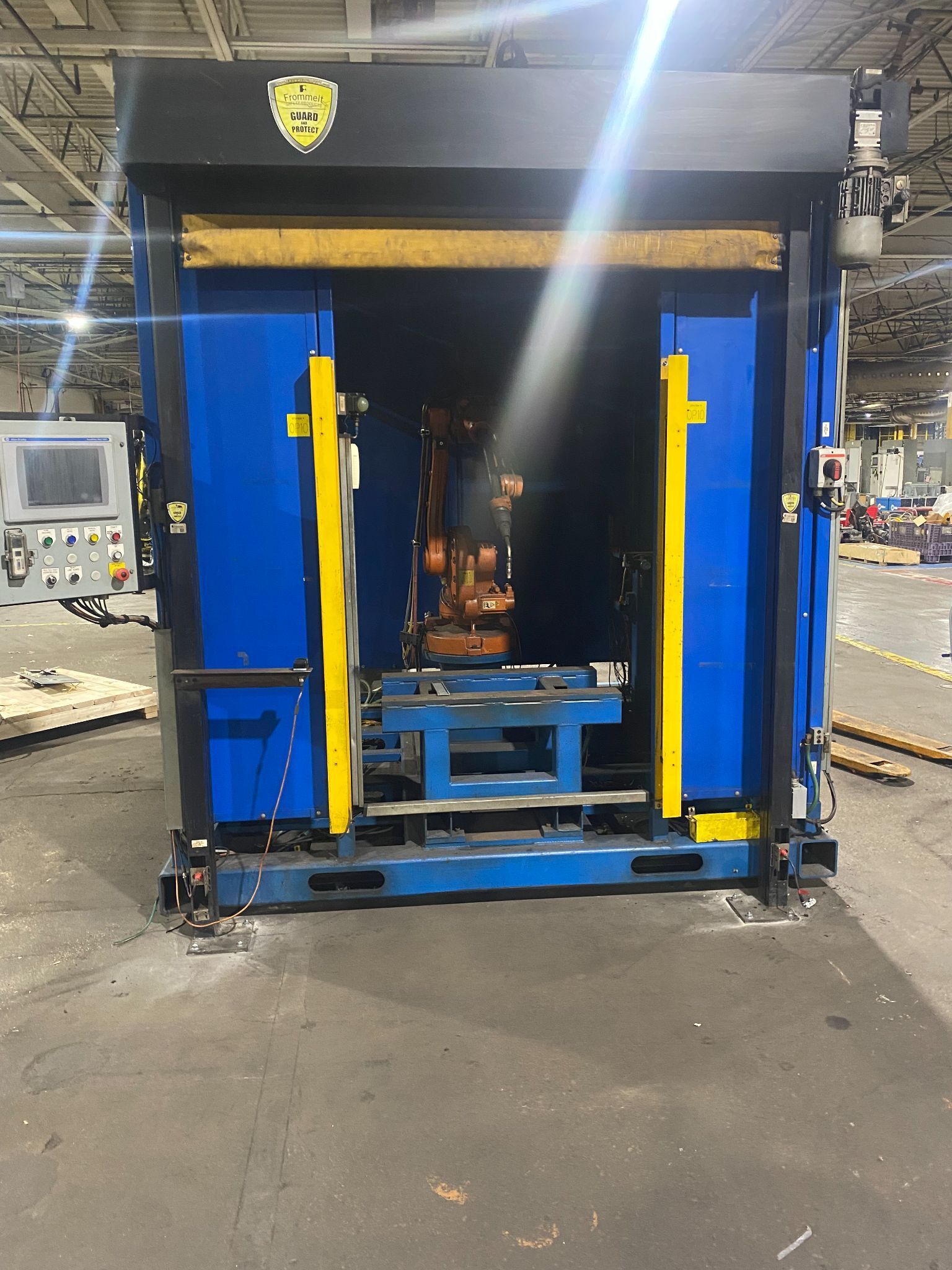

ABB Single IRB1600 Mig Cell w/ IRC5 Controls USED AS-IS

$28,000.00

Availability:

1 in stock

SKU: IGAM1060232

This cell features a ABB – IRB1600 M2004 Robot equipped with a Miller weld package, (**Missing Wire Feeder) The robot is controlled by a ABB – IRC5 Controller while the Logic and Communication are controlled using Allen Bradley – CompactLogix PLC. For the operator there is an HMI mounted on the front side of the cell, and both light screens and gate switches are integrated for safety. This cell also features a roll up door to protect operators during the welding process.

Work Piece Entrance Allowable Width: 43″
Fixture Platform: 36″ x 21″

This cell requires some repairs, such as the wire feeder and the IRC5 Controller Door.

View Details

CENTRELINE RESISTANCE WELDING STATION WITH BOSCH REXROTH WELD INVERTERS USED

$20,000.00

Availability:

1 in stock

SKU: IGAM2260146

This listing is for a used Centreline resistance welding station equipped with Bosch Rexroth weld inverter power supplies and control cabinets. The system appears to be a multi-station automated welding setup designed for industrial resistance welding applications.

See photos for details.

Part No:
R987411794 (Weld Inverter)
R987413801 (Contactor Panel)

Type:
Resistance Welding System / Weld Inverter Power Supply with Contactor Panels

Condition:
USED

Key Specs (from nameplates):
Supply: 480 VAC, 3 Phase, 50/60 Hz
Supply Current: 100 Amps
Max Load Current: 80 Amps
Output: 480 VRMS, 1 Phase, 155 Amps @ 50% Duty Cycle
Control Voltage: 480 VAC, 1 Phase, 50/60 Hz
Manufactured: 2014–2015
