Used Industrial Robot
KUKA
KR 360-2
Ultra-Heavy-Payload 6-Axis Industrial Robot
Overview

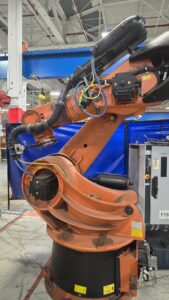

KUKA KR 360-2
The KUKA KR 360-2 is a 360 kg payload 6-axis robot with a 2,826 mm reach from KUKA’s proven KR 2 generation heavy-payload series. Designed for automotive press room transfer, heavy casting handling, and high-payload spot welding, it provides substantial capacity for the heaviest general manufacturing applications without reaching the extreme scale of the KR TITAN series. The KR 360-2 can be floor or ceiling mounted, allowing effective use of overhead space in dense production layouts.
The KR 360-2 is built on the robust KR 2 series mechanical architecture — a proven platform with a large installed base and strong parts availability throughout North America. A foundry variant provides IP67 protection and heat-resistant coating for operation in steel work and high-contamination environments. The sealed joint design handles the press room environment, and the robot’s structural rigidity maintains accuracy under high-inertia 360 kg loads.
Compatible with the KR C2 ed05 controller with KCP teach pendant — a widely understood platform with strong technician familiarity and established parts supply chains across North American automotive facilities. The KRL programming environment is consistent with all KR C2 robots, allowing existing KUKA-trained technicians to work on the KR 360-2 without model-specific retraining.
Every KR 360-2 that passes through iGAM’s Detroit facility is powered on and run through a full axis evaluation before it ships. Our team reviews alarm history and documents controller and cable condition. iGAM also offers reconditioning services for customers who own a KR 360-2 needing maintenance or refurbishment to restore it to peak performance.
Key Specifications
Payload360 kg
Reach2,826 mm
Axes6
Repeatability0.15 mm
Robot Weight2,350 kg
MountingFloor, Inverted
Inventory
Available KUKA KR 360-2 Units
Specifications
Full Technical Specifications
| General Specifications | |
| Controlled Axes | 6 |
| Structure | Articulated |
| Mounting Options | Floor, Inverted |
| Payload | 360 kg |
| H-Reach | 2826 mm |
| Repeatability | ±0.15 mm |
| Robot Weight | 2350 kg |
| Technical Details | |
| Body Protection Class | IP54 (IP67 Foundry optional) |
| Wrist & J3 Protection | IP65 |
| Compatible Controllers | KR C2 |
| Cabinet Size Options | KR C2 standard cabinet |
| Teach Pendant Options | KCP2 |
| Motion Range | |
| J1 Motion Range | ±185° |
| J2 Motion Range | +110°/-40° |
| J3 Motion Range | +60°/-184° |
| J4 Motion Range | ±350° |
| J5 Motion Range | ±118° |
| J6 Motion Range | ±350° |
| Maximum Speed | |
| J1 Max Speed | 89°/s |
| J2 Max Speed | 89°/s |
| J3 Max Speed | 93°/s |
| J4 Max Speed | 109°/s |
| J5 Max Speed | 112°/s |
| J6 Max Speed | 157°/s |
Applications
Common Applications
The KUKA KR 360-2 is well-suited for a range of industrial automation applications. Select the application below most relevant to your production needs.
Material Handling
High-speed pick, place, and transfer of parts between production cells.
Palletizing
High-throughput layer building and pallet stacking for end-of-line operations.
Spot Welding
Precision resistance spot welding in automotive and sheet metal production.
Press Tending
Automated stamping press, forging cell, and hot/cold forming integration.
Assembly
Precision part fitting, fastening, and sub-assembly operations.
Why iGAM
The iGAM Difference
Inspected & Tested
Every robot is powered on and run through full axis testing before it ships. No surprises on arrival.
Warranty Available
90-day standard warranty on reconditioned units. Extended coverage available on select inventory.
Freight Assistance
In-house crating and freight coordination from our Detroit warehouse. We ship nationwide.
Expert Support
Talk directly to a robot specialist — not a call center. We know the equipment we sell.
Ready to source a KUKA KR 360-2?
Our team typically responds within one business day with availability and pricing.
