Used Industrial Robot
FANUC
M-16iB/20
Medium-Payload 6-Axis Industrial Robot
Overview
FANUC M-16iB/20
The FANUC M-16iB/20 is a 20 kg payload 6-axis robot with a 1,667 mm reach from FANUC’s M-16iB series, a versatile general-purpose platform widely used across automotive assembly, machine tending, and light material handling applications throughout North America. Its compact footprint and mid-range payload make it well suited for machine tending cells where the robot must reach into machining centers or presses while occupying minimal floor space alongside the machine.
The M-16iB/20 combines a rigid arm structure with fast wrist axis speeds, making it effective for both positioning-intensive assembly tasks and high-cycle pick-and-place operations. The sealed joint design handles the coolant mist and swarf exposure common in machine tending environments. Its compatibility with the R-J3iB controller — the dominant controller platform in many North American plants from the early-to-mid 2000s — means that facilities with existing R-J3iB infrastructure can integrate an M-16iB/20 without adding a new controller generation.
The M-16iB/20 operates on the R-J3iB controller with iPendant. Programming is consistent with all other FANUC platforms, allowing technicians familiar with FANUC’s TP language to work on the M-16iB/20 without model-specific retraining. FANUC’s ROBOGUIDE supports offline programming for this model. Parts availability for the M-16iB/20 and its R-J3iB controller remains strong in the used market, making long-term maintenance cost-effective.
Buying a M-16iB/20 from iGAM means working with a team that tests the equipment it sells. Every robot is powered on, axes are exercised through their full range of motion, and alarm history is reviewed at our Detroit warehouse before the unit ships. iGAM also operates as a service resource for customers with M-16iB/20 units already in the field — offering maintenance, reconditioning, component-level repair, and full refurbishment for robots that have been underperforming or have come out of a decommissioned cell. Contact us to discuss what level of service your application requires.
Key Specifications
Payload20 kg
Reach1,667 mm
Axes6
Repeatability0.1 mm
Robot Weight250 kg
MountingFloor, Inverted, Angle
Inventory
Available FANUC M-16iB/20 Units

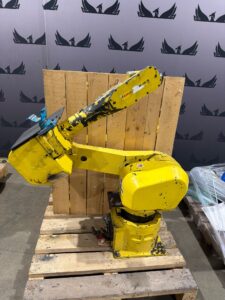

FANUC M-16IB/20 INDUSTRIAL ROBOT ARM A05B-1216-B202 2005 ARM ONLY USED
$1,800.00
SKU: IGAM3540005

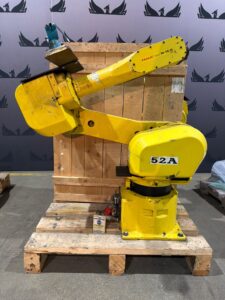

FANUC M-16IB/20 INDUSTRIAL ROBOT ARM A05B-1216-B202 2005 ARM ONLY USED
$1,800.00
SKU: IGAM3540006

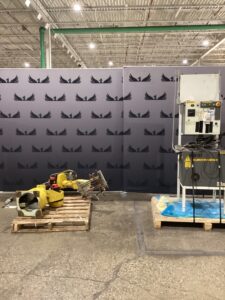

FANUC M-16IB/20 + R-J3IB ROBOT ARM AND CONTROL PANEL NO TEACH PENDANT USED
$4,200.00
SKU: IGAM0270007

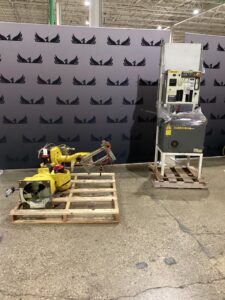

2003 FANUC M-16IB/20 + R-J3IB ROBOT ARM AND CONTROL PANEL NO TEACH PENDANT USED
$4,200.00
SKU: IGAM0270005
Specifications
Full Technical Specifications
| General Specifications | |
| Controlled Axes | 6 |
| Structure | Articulated |
| Mounting Options | Floor, Inverted, Angle |
| Payload | 20 kg |
| H-Reach | 1667 mm |
| Repeatability | ±0.1 mm |
| Robot Weight | 250 kg |
| Technical Details | |
| Body Protection Class | IP54 |
| Wrist & J3 Protection | IP67 |
| Compatible Controllers | R-J3iB |
| Cabinet Size Options | B-cabinet |
| Teach Pendant Options | iPendant |
| Motion Range | |
| J1 Motion Range | ±350° |
| J2 Motion Range | +250°/-90° |
| J3 Motion Range | ±458° |
| J4 Motion Range | ±380° |
| J5 Motion Range | ±380° |
| J6 Motion Range | ±720° |
| Maximum Speed | |
| J1 Max Speed | 170°/s |
| J2 Max Speed | 155°/s |
| J3 Max Speed | 175°/s |
| J4 Max Speed | 350°/s |
| J5 Max Speed | 350°/s |
| J6 Max Speed | 520°/s |
Applications
Common Applications
The FANUC M-16iB/20 is well-suited for a range of industrial automation applications. Select the application below most relevant to your production needs.
Material Handling
High-speed pick, place, and transfer of parts between production cells.
Assembly
Precision part fitting, fastening, and sub-assembly operations.
Machine Tending
Automated load and unload of CNC machining centers, presses, and injection molds.
Pick & Place
High-cycle part transfer between conveyors, fixtures, and packaging stations.
Arc Welding
High-speed continuous weld paths on metal fabrication and structural lines.
