Used Industrial Robot
FANUC
R-2000iA/125L
Long-Reach Medium-Payload Classic Robot
Overview

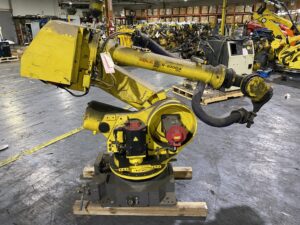

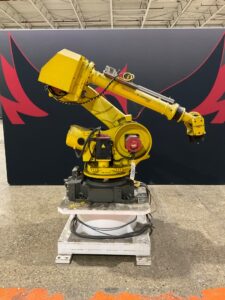

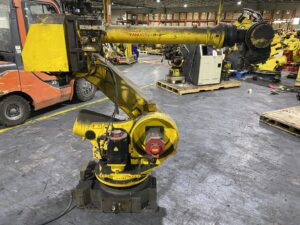

FANUC R-2000iA/125L
The FANUC R-2000iA/125L is the long-arm variant of the first-generation R-2000 family, providing a 125 kg payload over a 3,001 mm reach — the longest in the R-2000iA series. The extended reach allows the robot to span wide press lines and large fixture assemblies without floor tracks, providing the reach advantage of the L-suffix configuration with the cost-effectiveness of the iA platform.
The R-2000iA/125L shares the slim arm profile and robust joint construction of the R-2000iA family. Its large allowable wrist moments and inertias meet the heavy-duty requirements of material handling with extended reach. The elimination of counterweights increases available workspace, and process cables routed through the arm reduce external interference. The iA/125L has a large installed base with strong parts availability.
Operates on the R-J3iB controller with iPendant. For facilities already running R-J3iB infrastructure, the 125L integrates directly without adding a new controller generation. FANUC’s ROBOGUIDE supports offline programming and reach verification for this model — recommended for extended-reach installations to verify path feasibility before commissioning.
iGAM offers the R-2000iA/125L at multiple condition levels. All units are inspected and run prior to shipping. Our reconditioning service brings robots through a documented process covering axis lubrication, servo evaluation, controller servicing, and functional testing. We also work with customers who own R-2000iA/125L units needing maintenance or refurbishment in their existing facilities.
Key Specifications
Payload125 kg
Reach3,001 mm
Axes6
Repeatability0.2 mm
Robot Weight1,230 kg
MountingFloor
Inventory
Available FANUC R-2000iA/125L Units
Specifications
Full Technical Specifications
| General Specifications | |
| Controlled Axes | 6 |
| Structure | Articulated |
| Mounting Options | Floor |
| Payload | 125 kg |
| H-Reach | 3001 mm |
| Repeatability | ±0.2 mm |
| Robot Weight | 1230 kg |
| Technical Details | |
| Body Protection Class | IP54 (IP56 optional) |
| Wrist & J3 Protection | IP67 |
| Compatible Controllers | R-J3iB |
| Cabinet Size Options | B-cabinet |
| Teach Pendant Options | iPendant |
| Motion Range | |
| J1 Motion Range | ±360° |
| J2 Motion Range | ±135° |
| J3 Motion Range | ±352° |
| J4 Motion Range | ±720° |
| J5 Motion Range | ±250° |
| J6 Motion Range | ±720° |
| Maximum Speed | |
| J1 Max Speed | 105°/s |
| J2 Max Speed | 105°/s |
| J3 Max Speed | 105°/s |
| J4 Max Speed | 170°/s |
| J5 Max Speed | 170°/s |
| J6 Max Speed | 260°/s |
Applications
Common Applications
The FANUC R-2000iA/125L is well-suited for a range of industrial automation applications. Select the application below most relevant to your production needs.
Material Handling
High-speed pick, place, and transfer of parts between production cells.
Spot Welding
Precision resistance spot welding in automotive and sheet metal production.
Assembly
Precision part fitting, fastening, and sub-assembly operations.
Palletizing
High-throughput layer building and pallet stacking for end-of-line operations.
Machine Tending
Automated load and unload of CNC machining centers, presses, and injection molds.
