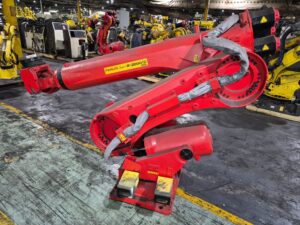

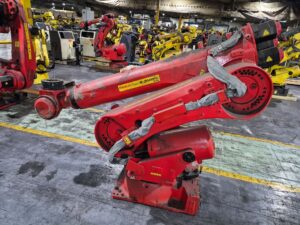

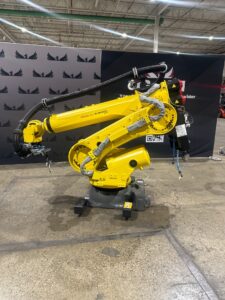

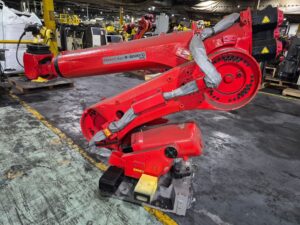

R-2000iC/210L

The FANUC R-2000iC/210L is the extended-reach variant of the R-2000iC/210F, providing a 210 kg payload over a 3,100 mm reach — the longest in the R-2000iC family. The L-suffix long-arm configuration is used in applications where robot reach must span wide press beds, large fixture stations, or extended transfer distances that would require a floor track system with a standard-reach robot. Eliminating the floor track reduces installation cost, maintenance complexity, and the cycle time overhead of track motion.

Despite its extended reach, the R-2000iC/210L retains the ±0.05 mm repeatability of the standard iC platform, making it suitable not just for transfer but for precision gun placement at extended distances. The iC mechanical improvements — faster wrist speeds, improved grease retention, reduced maintenance intervals — all carry through to the L variant. At 1,480 kg, the extended arm adds mass versus the 210F, which should be accounted for in foundation and mounting structure design.

The R-2000iC/210L is compatible with R-30iB and R-30iB Plus controllers in A-size and B-size cabinet configurations. The full FANUC software suite applies, including Collision Guard — particularly important for extended-reach robots operating near press tooling and fixture components at the limits of the work envelope. ROBOGUIDE offline programming is strongly recommended for extended-reach robot installations to verify reach, singularity avoidance, and cable management prior to physical commissioning.

iGAM sources and stocks components for the R-2000iC/210L platform, including common wear items, servo drives, and controller parts. Every unit we sell is inspected and powered on at our Detroit warehouse before it ships. Beyond sales, iGAM provides reconditioning and repair services for customers who have a R-2000iC/210L requiring attention — whether a full refurbishment, targeted component replacement, or a diagnostic evaluation to identify the root cause of a performance issue in a robot already in their facility.
