Used Industrial Robot
FANUC
M-900iB/360
Ultra-High-Payload 6-Axis Industrial Robot
Overview
FANUC M-900iB/360
The FANUC M-900iB/360 delivers a 360 kg payload across a 2,832 mm reach, making it one of the highest-capacity industrial robots available in the used market. Designed for the heaviest automotive press room transfer, large structural steel handling, and industrial foundry applications, it represents the upper boundary of what a single articulated robot can lift and transfer without specialized heavy-lift gantry equipment. The M-900iB platform is the successor to the M-900iA series, bringing updated controls compatibility and mechanical improvements.
The M-900iB/360 is built around the same proven heavy-axis mechanical architecture as the M-900iA series, with engineering refinements that improve grease retention, reduce maintenance intervals, and support higher controller processing speeds. The sealed joint design handles the contamination environments common in stamping plants and foundries. Despite its extreme payload rating, the M-900iB/360 maintains the programming flexibility of FANUC’s standard robot architecture, making it integrable into existing FANUC infrastructure.
The M-900iB/360 is compatible with R-30iA and R-30iB Plus controllers in the A-size cabinet format. The R-30iB Plus platform supports FANUC’s current full software suite including Dual Check Safety, Zero Downtime predictive maintenance, and Collision Guard. iPendant and iPendant Touch are available depending on controller generation. Offline programming through ROBOGUIDE enables simulation of press transfer paths prior to physical installation.
Every M-900iB/360 that passes through iGAM’s Detroit facility is powered on and run through a full axis evaluation before it ships. Our team reviews alarm history, checks battery backup status, and documents the condition of the controller, teach pendant, and cables. What you receive is a robot that has been verified operational — not simply warehoused and resold. iGAM also offers reconditioning services for customers who own a M-900iB/360 in need of maintenance, servo evaluation, or refurbishment to restore it to peak performance.
Key Specifications
Payload360 kg
Reach2,832 mm
Axes6
Repeatability0.3 mm
Robot Weight4,300 kg
MountingFloor
Inventory
Available FANUC M-900iB/360 Units

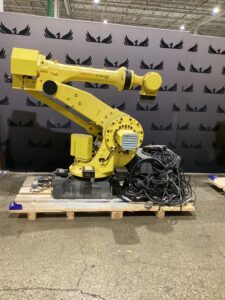

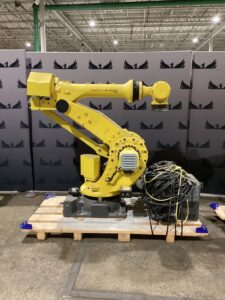

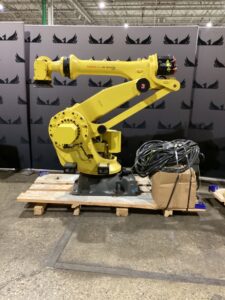

FANUC M-900iB/360 6-AXIS HEAVY PAYLOAD ROBOT W/ R-30iB CONTROLLER USED
$28,500.00
SKU: IGAM2740008
FANUC M-900iB/360 6-AXIS HEAVY PAYLOAD ROBOT W/ R-30iB CONTROLLER USED
$28,500.00
SKU: IGAM2740007

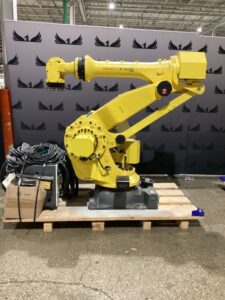

FANUC M-900iB/360 6-AXIS HEAVY PAYLOAD ROBOT W/ R-30iB CONTROLLER USED 2018
$28,500.00
SKU: IGAM2740006
FANUC M-900iB/360 6-AXIS HEAVY PAYLOAD ROBOT W/ R-30iB CONTROLLER USED
$28,500.00
SKU: IGAM2740009

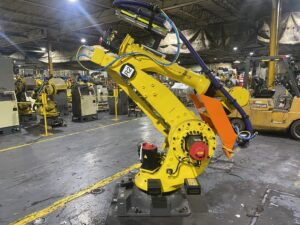

FANUC M‑900iB/360 Robot w/ R‑30iB Plus Controller & LEONI Dress Pack NEW
$34,650.00
SKU: IGAM0030225
Specifications
Full Technical Specifications
| General Specifications | |
| Controlled Axes | 6 |
| Structure | Articulated |
| Mounting Options | Floor |
| Payload | 360 kg |
| H-Reach | 2832 mm |
| Repeatability | ±0.3 mm |
| Robot Weight | 4300 kg |
| Technical Details | |
| Body Protection Class | IP54 (IP55 optional) |
| Wrist & J3 Protection | IP67 |
| Compatible Controllers | R-30iA, R-30iB Plus |
| Cabinet Size Options | A-cabinet |
| Teach Pendant Options | iPendant, iPendant Touch |
| Motion Range | |
| J1 Motion Range | ±185° |
| J2 Motion Range | +75°/-55° |
| J3 Motion Range | +190°/-80° |
| J4 Motion Range | ±360° |
| J5 Motion Range | ±125° |
| J6 Motion Range | ±720° |
| Maximum Speed | |
| J1 Max Speed | 75°/s |
| J2 Max Speed | 75°/s |
| J3 Max Speed | 75°/s |
| J4 Max Speed | 110°/s |
| J5 Max Speed | 110°/s |
| J6 Max Speed | 150°/s |
Applications
Common Applications
The FANUC M-900iB/360 is well-suited for a range of industrial automation applications. Select the application below most relevant to your production needs.
Material Handling
High-speed pick, place, and transfer of parts between production cells.
Palletizing
High-throughput layer building and pallet stacking for end-of-line operations.
Press Tending
Automated stamping press, forging cell, and hot/cold forming integration.
