Used Industrial Robot
FANUC
M-6iB
Compact 6-Axis General Purpose Robot
Overview

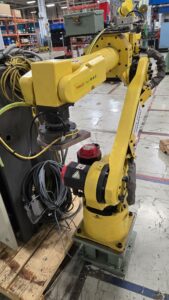

FANUC M-6iB
The FANUC M-6iB is a compact 6-axis robot with a 6 kg payload and 1,373 mm reach, sharing the same mechanical architecture as the Arc Mate 100iB arc welding robot. This commonality means the M-6iB can be converted into a welding configuration, making it highly versatile across material handling, assembly, machine tending, and arc welding applications. Its modular construction and standard capabilities provide dexterity and high speeds suited for light industrial automation.
The M-6iB features a slim wrist design for access into tight spaces and the ability to flip over backward for an extended work envelope. High axis speeds — up to 520°/s at the J6 wrist — enable fast cycle times on pick-and-place and assembly tasks. The robot is compatible with standard grippers or custom EOAT, with pneumatic and electrical connections built into the J3 axis for simplified tool integration.
Operates on the R-J3iB controller with iPendant — a well-understood platform with strong parts availability throughout North America. The M-6iB has a large installed base across machine shops, medical device manufacturing, electronics, and food production environments. FANUC’s ROBOGUIDE supports offline programming for this model.
iGAM inspects and runs every M-6iB at our Detroit facility before shipping. Our team verifies axis function and alarm history. iGAM also offers reconditioning and repair services for M-6iB units already in service — whether a full refurbishment or targeted component replacement to address a specific failure mode.
Key Specifications
Payload6 kg
Reach1,373 mm
Axes6
Repeatability0.08 mm
Robot Weight138 kg
MountingFloor, Inverted, Angle
Inventory
Available FANUC M-6iB Units
Specifications
Full Technical Specifications
| General Specifications | |
| Controlled Axes | 6 |
| Structure | Articulated |
| Mounting Options | Floor, Inverted, Angle |
| Payload | 6 kg |
| H-Reach | 1373 mm |
| Repeatability | ±0.08 mm |
| Robot Weight | 138 kg |
| Technical Details | |
| Body Protection Class | IP54 |
| Wrist & J3 Protection | IP67 |
| Compatible Controllers | R-J3iB |
| Cabinet Size Options | B-cabinet |
| Teach Pendant Options | iPendant |
| Motion Range | |
| J1 Motion Range | ±170° |
| J2 Motion Range | +160°/-90° |
| J3 Motion Range | +145°/-170° |
| J4 Motion Range | ±190° |
| J5 Motion Range | ±140° |
| J6 Motion Range | ±360° |
| Maximum Speed | |
| J1 Max Speed | 150°/s |
| J2 Max Speed | 160°/s |
| J3 Max Speed | 170°/s |
| J4 Max Speed | 400°/s |
| J5 Max Speed | 400°/s |
| J6 Max Speed | 520°/s |
Applications
Common Applications
The FANUC M-6iB is well-suited for a range of industrial automation applications. Select the application below most relevant to your production needs.
Assembly
Precision part fitting, fastening, and sub-assembly operations.
Machine Tending
Automated load and unload of CNC machining centers, presses, and injection molds.
Material Handling
High-speed pick, place, and transfer of parts between production cells.
Pick & Place
High-cycle part transfer between conveyors, fixtures, and packaging stations.
Arc Welding
High-speed continuous weld paths on metal fabrication and structural lines.
