Used Industrial Robot
FANUC
M-900iA/350
Ultra-High-Payload 6-Axis Robot
Overview
FANUC M-900iA/350
The FANUC M-900iA/350 is a 350 kg payload robot with a 2,832 mm reach from the M-900iA series, designed for the heaviest material handling and press room applications in automotive and heavy industrial manufacturing. At 350 kg payload capacity, it handles the largest automotive stampings, heavy casting transfers, and structural components that exceed the capability of the R-2000 family. The M-900iA platform was purpose-built for high-shock press room environments where structural rigidity and long-term durability are paramount.
The M-900iA/350 operates on a 6-axis architecture optimized for heavy transfer motion — lower axis speeds than general-purpose robots, but with the mechanical strength to control 350 kg loads through the full work envelope without structural deflection. The sealed joint design resists the stamping plant environment: coolant, press oil mist, metal particulate, and temperature cycling. The robust construction of the M-900iA series is reflected in the number of units that remain in active production service well beyond original design life projections.
Compatible with R-J3iB and R-30iA controllers in the A-size cabinet format, the M-900iA/350 supports FANUC’s software ecosystem including iRVision for part guidance and Collision Guard for tooling protection. iPendant and iPendant Touch are available depending on controller generation. Programming through FANUC’s standard TP language means technicians familiar with other FANUC platforms can work on the M-900iA/350 without model-specific retraining.
Buying a M-900iA/350 from iGAM means working with a team that tests the equipment it sells. Every robot is powered on, axes are exercised through their full range of motion, and alarm history is reviewed at our Detroit warehouse before the unit ships. iGAM also operates as a service resource for customers with M-900iA/350 units already in the field — offering maintenance, reconditioning, component-level repair, and full refurbishment for robots that have been underperforming or have come out of a decommissioned cell. Contact us to discuss what level of service your application requires.
Key Specifications
Payload350 kg
Reach2,832 mm
Axes6
Repeatability0.3 mm
Robot Weight4,000 kg
MountingFloor
Inventory

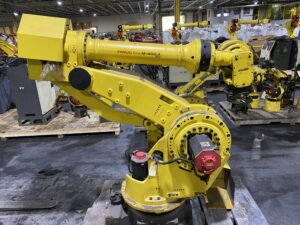

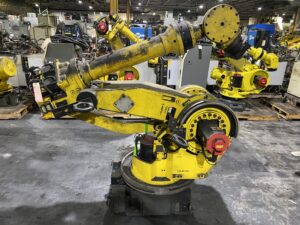

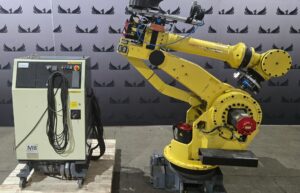

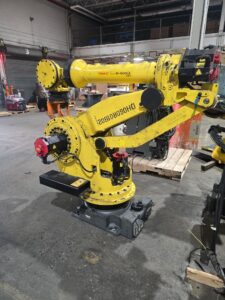

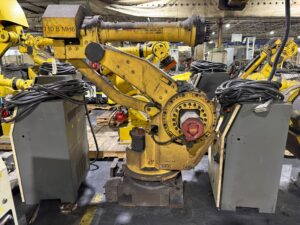

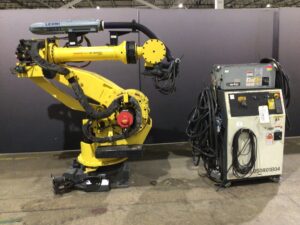

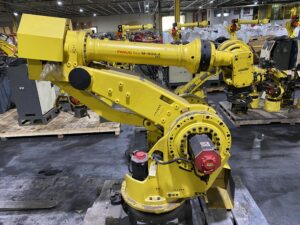

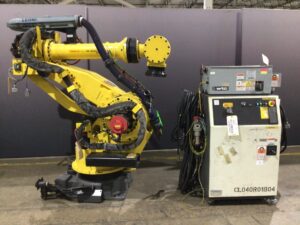

Available FANUC M-900iA/350 Units
Specifications
Full Technical Specifications
| General Specifications | |
| Controlled Axes | 6 |
| Structure | Articulated |
| Mounting Options | Floor |
| Payload | 350 kg |
| H-Reach | 2832 mm |
| Repeatability | ±0.3 mm |
| Robot Weight | 4000 kg |
| Technical Details | |
| Body Protection Class | IP54 (IP55 optional) |
| Wrist & J3 Protection | IP67 |
| Compatible Controllers | R-J3iB, R-30iA |
| Cabinet Size Options | A-cabinet |
| Teach Pendant Options | iPendant, iPendant Touch |
| Motion Range | |
| J1 Motion Range | ±185° |
| J2 Motion Range | +75°/-55° |
| J3 Motion Range | +190°/-80° |
| J4 Motion Range | ±360° |
| J5 Motion Range | ±125° |
| J6 Motion Range | ±720° |
| Maximum Speed | |
| J1 Max Speed | 75°/s |
| J2 Max Speed | 75°/s |
| J3 Max Speed | 80°/s |
| J4 Max Speed | 110°/s |
| J5 Max Speed | 110°/s |
| J6 Max Speed | 150°/s |
Applications
Common Applications
The FANUC M-900iA/350 is well-suited for a range of industrial automation applications. Select the application below most relevant to your production needs.
Material Handling
High-speed pick, place, and transfer of parts between production cells.
Palletizing
High-throughput layer building and pallet stacking for end-of-line operations.
Press Tending
Automated stamping press, forging cell, and hot/cold forming integration.
Why iGAM
The iGAM Difference
Inspected & Tested
Every robot is powered on and run through full axis testing before it ships. No surprises on arrival.
Warranty Available
90-day standard warranty on reconditioned units. Extended coverage available on select inventory.
Freight Assistance
In-house crating and freight coordination from our Detroit warehouse. We ship nationwide.
Expert Support
Talk directly to a robot specialist — not a call center. We know the equipment we sell.
Ready to source a FANUC M-900iA/350?
Our team typically responds within one business day with availability and pricing.
