CHS PS-350-18 HDX Coil Feed Line System – USED

Name: CHS PS-350-18 HDX Coil Feed Line System – USED
Brand: CHS AUTOMATION
SKU: IGAM3160018
Availability: InStock

CALL FOR PRICE

Availability:

1 in stock

BRAND: CHS AUTOMATION MODEL: PS-350-18 HDX CONDITION: used

SKU: IGAM3160018 Weight: 999 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer

Get Shipping Quote

Overview

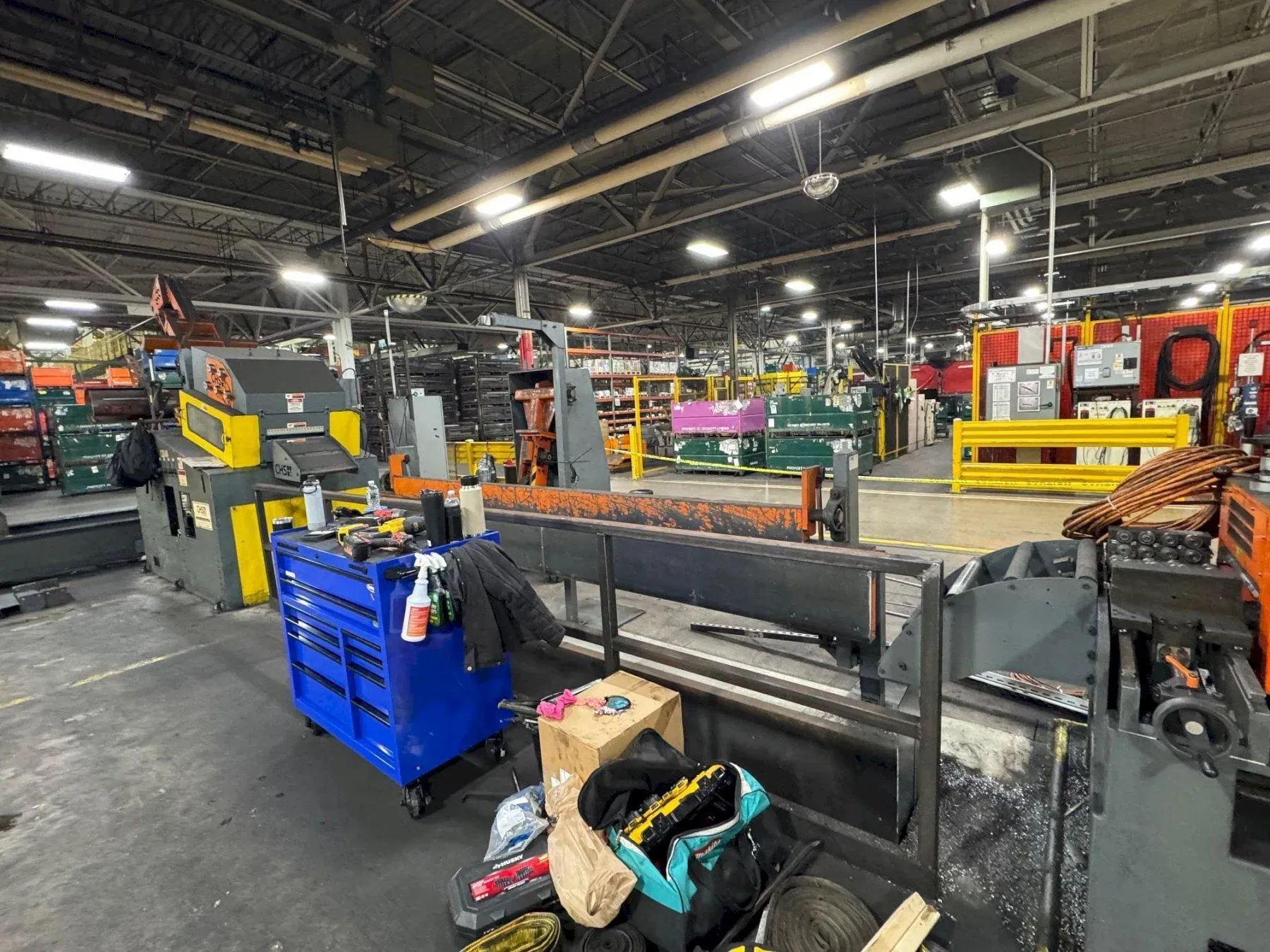

This listing is for a USED CHS PS-350-18 HDX Coil Feed Line System. It is designed for handling and straightening HSLA and similar coil stock in stamping and forming operations. This unit is categorized as a heavy‑duty coil feed line and includes capabilities such as 20,000 lb coil handling, 18 inch stock width capacity, and powered straightening with advanced loop and control systems.

Description
Tags

Specification Table

Manufacturer: CHS / NIDEC‑CHS Model: PS-350-18 HDX Type: Coil Feed Line Condition: USED Year: 2017 Serial Number: 25984 Max Coil Weight: 20,000 lbs Max Coil Width: 18 inches Max Stock Thickness: 0.100 inches @ 130 KSI Stock Width Capacity:18 inches Expansion Range: 20" – 24" Coil OD Capacity: 72 inches Straightener Rolls: 11 rolls, 3.5" diameter Control System: AC VFD with laser loop control Included Components: Coil Reel, Load Car, Straightener, Exit Thread Table

▸ Key Features:

• Rated for coils up to 20,000 lbs capacity
• Handles material up to 18 inches wide
• Heavy‑duty powered straightener with eleven 3.5″ diameter rolls
• Hydraulic expansion coil reel with three‑leaf mandrel
• Integrated laser loop control system

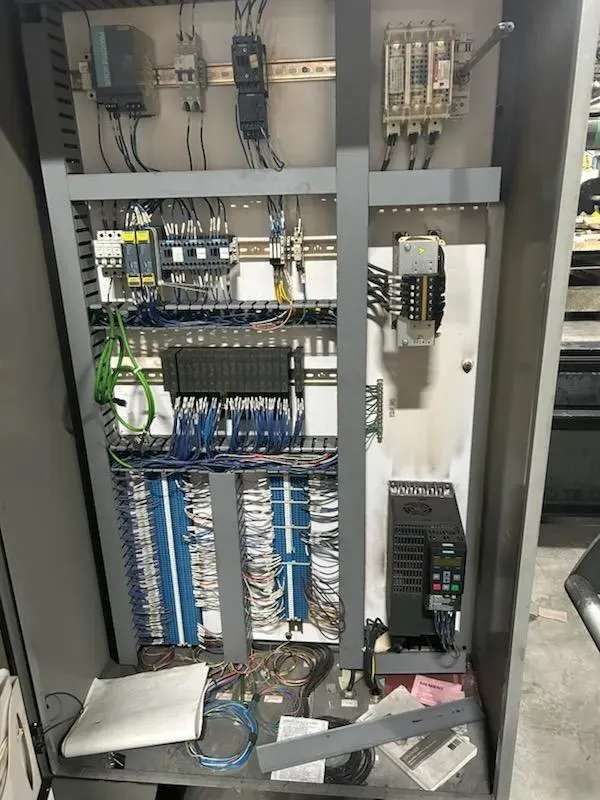

• AC VFD‑based control architecture
• Automatic straightener lubrication system
• Entry and exit pinch rolls for controlled material flow

▸ Applications:

• Metal stamping press lines
• HSLA and high‑strength steel processing
• Automotive and appliance component manufacturing
• Progressive die and forming operations
• OEM coil‑fed production systems

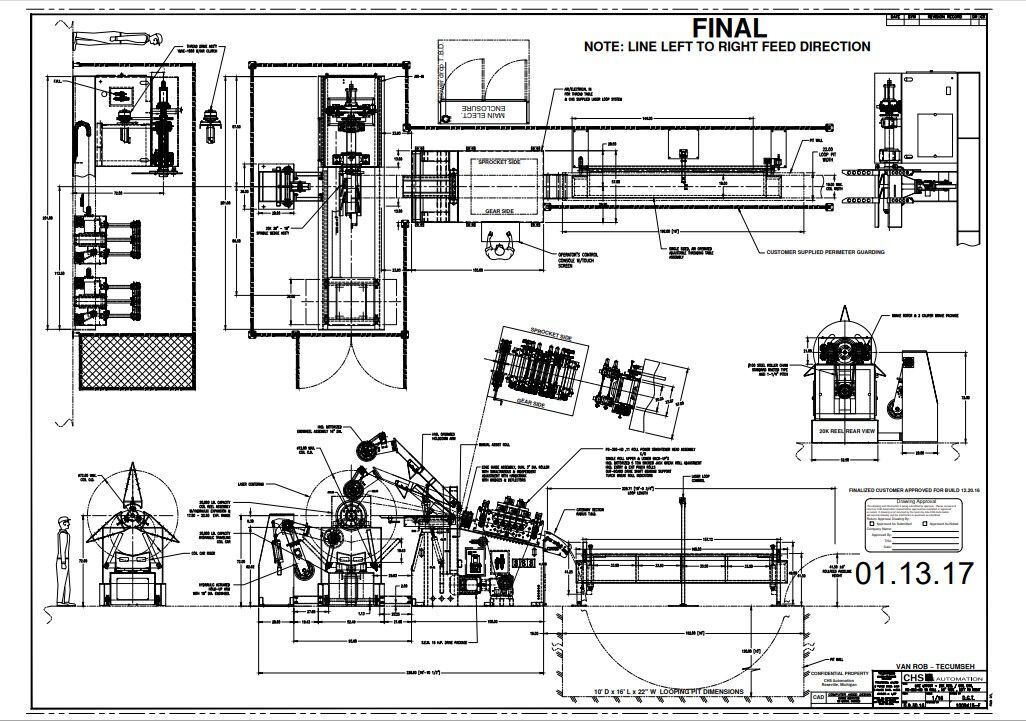

▸ System Components Included:

NIDEC‑CHS Coil Reel – Model R200
• Three‑leaf mandrel with hydraulic expansion
• Adjustable coil keeper arm
• Jog drive for coil threading
• Air brake mounted on main spindle

NIDEC‑CHS Coil Load Car – Model TLC‑200
• Powered lift and travel
• Narrow coil supports

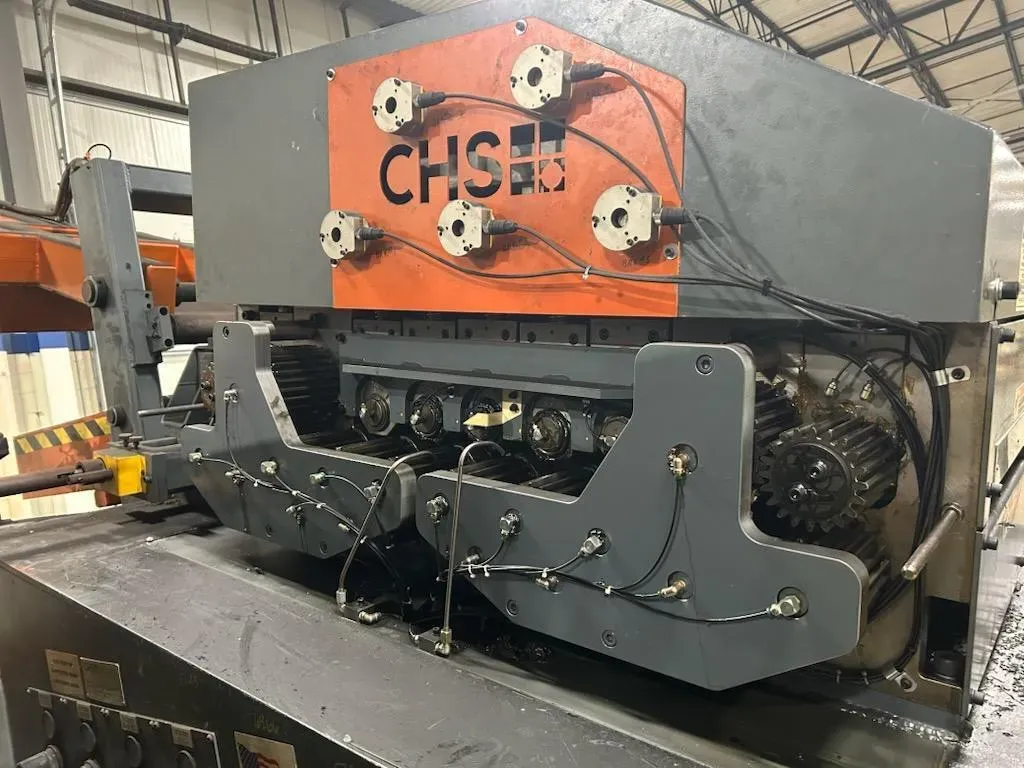

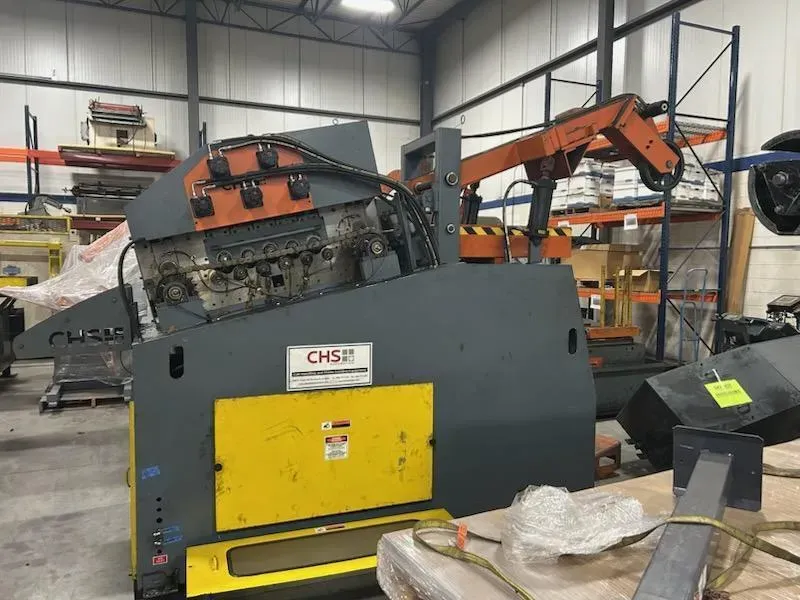

NIDEC‑CHS Powered Straightener – Model PS‑350‑18 HDX (Super Duty Head)

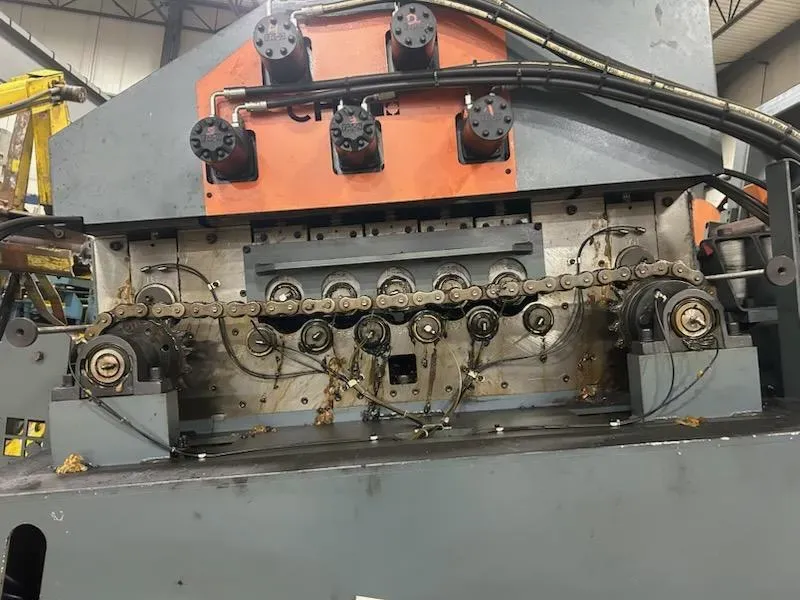

• Eleven straightening rolls, 3.5″ diameter
• Upper roll position readouts
• Entry and exit pinch rolls
• Motorized coil hold‑down and hold‑up arms
• Adjustable stock width edge guides
• Operator control station

NIDEC‑CHS Exit Thread Table – Model ETT‑118
• Bomb bay door style actuation

▸ Optional Equipment:

• New NIDEC‑CHS Servo Roll Feed available at additional cost (consult sales)
