▸ Key Features:
• Rated for coils up to 20,000 lbs capacity
• Handles material up to 18 inches wide
• Heavy‑duty powered straightener with eleven 3.5″ diameter rolls
• Hydraulic expansion coil reel with three‑leaf mandrel
• Integrated laser loop control system
• AC VFD‑based control architecture
• Automatic straightener lubrication system
• Entry and exit pinch rolls for controlled material flow
▸ Applications:
• Metal stamping press lines
• HSLA and high‑strength steel processing
• Automotive and appliance component manufacturing
• Progressive die and forming operations
• OEM coil‑fed production systems

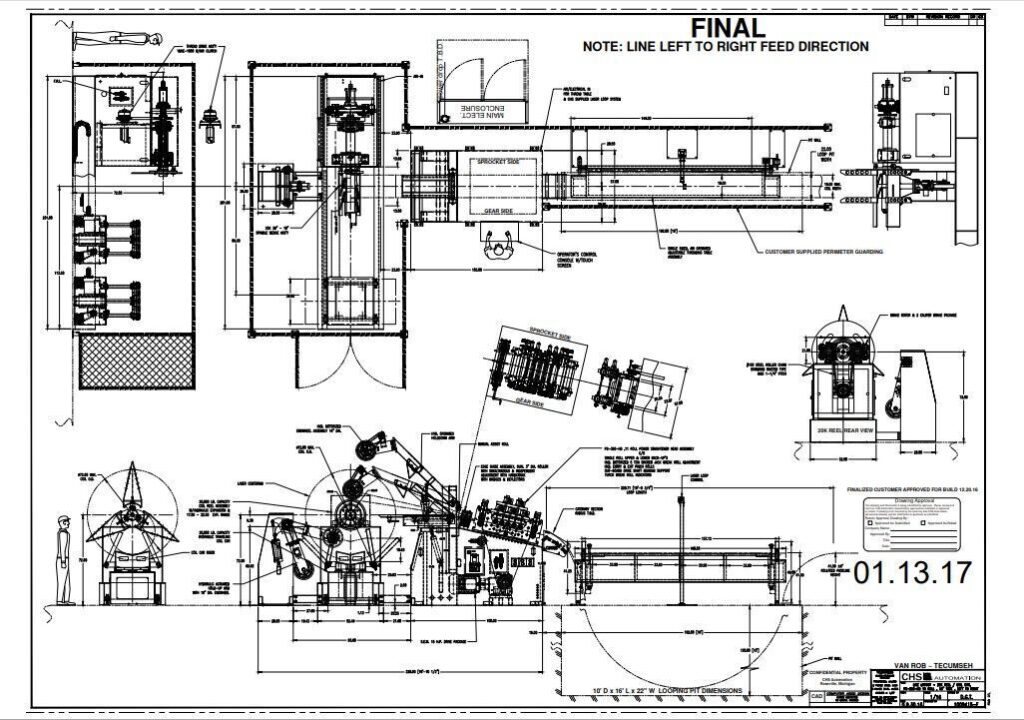

▸ System Components Included:
NIDEC‑CHS Coil Reel – Model R200
• Three‑leaf mandrel with hydraulic expansion
• Adjustable coil keeper arm
• Jog drive for coil threading
• Air brake mounted on main spindle
NIDEC‑CHS Coil Load Car – Model TLC‑200
• Powered lift and travel
• Narrow coil supports
NIDEC‑CHS Powered Straightener – Model PS‑350‑18 HDX (Super Duty Head)
• Eleven straightening rolls, 3.5″ diameter
• Upper roll position readouts
• Entry and exit pinch rolls
• Motorized coil hold‑down and hold‑up arms
• Adjustable stock width edge guides
• Operator control station
NIDEC‑CHS Exit Thread Table – Model ETT‑118
• Bomb bay door style actuation
▸ Optional Equipment:
• New NIDEC‑CHS Servo Roll Feed available at additional cost (consult sales)
