T.J. SNOW 300KVA SEAM WELDER

Overview

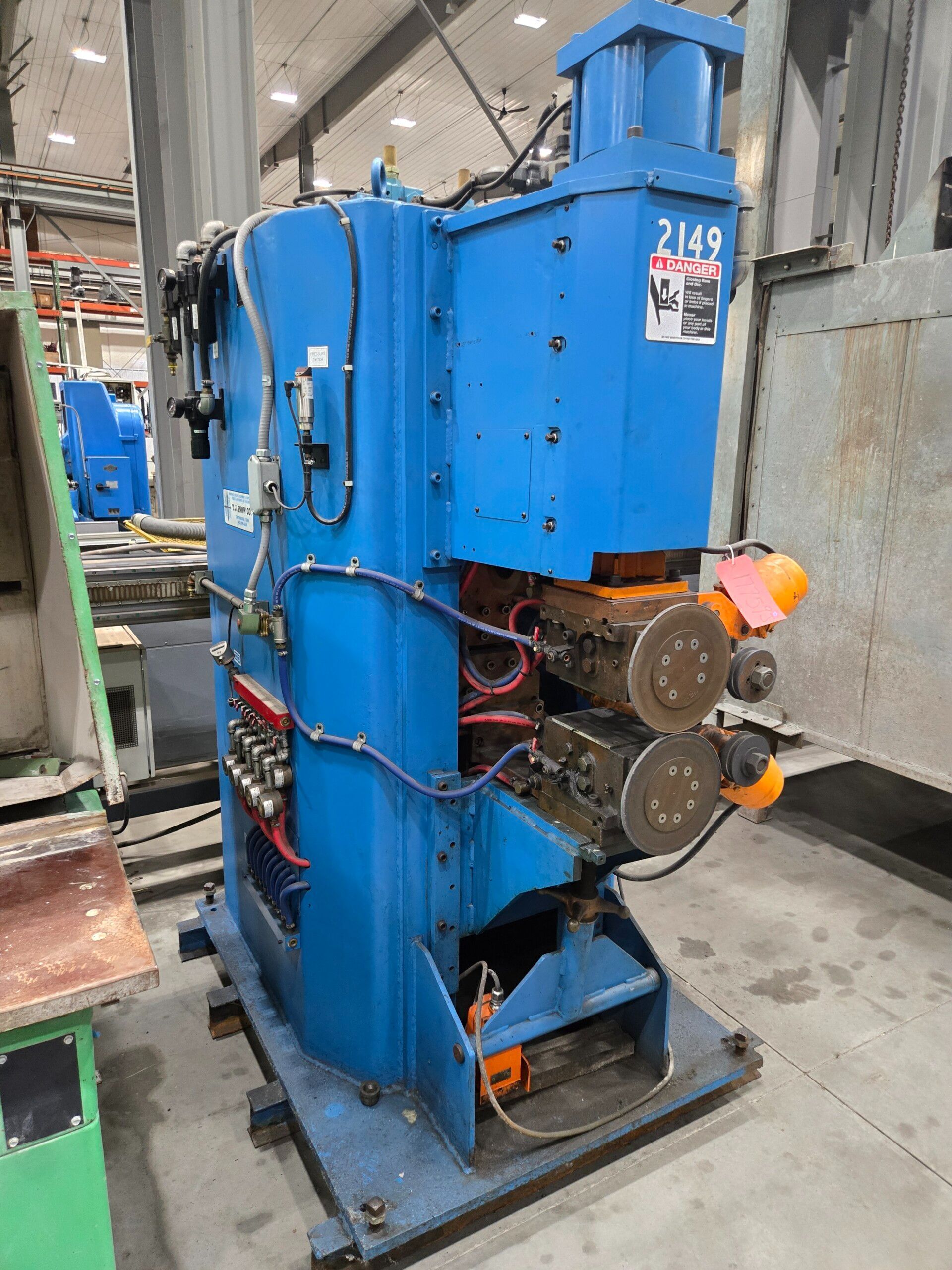

This listing is for a T.J. Snow 300 KVA Seam Welder.

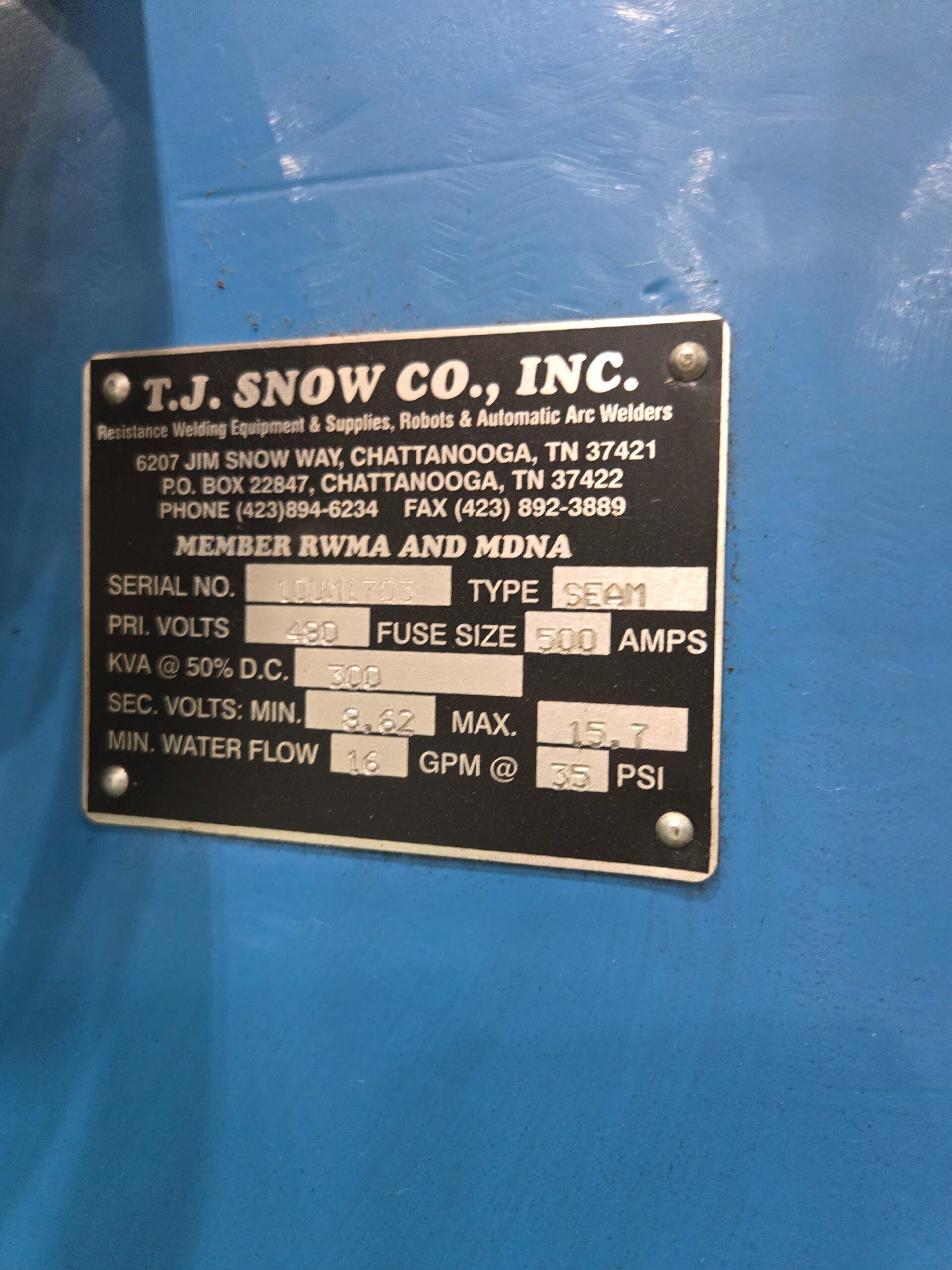

Serial #10UM1703
300 KVA at 50% Duty Cycle
Primary Voltage 480 Volts
Fuse Size 500 Amps
Secondary Volts 8.62 – 15.7
Wheel Size 9 1/4″
Cylinder sizes of (6″ – 2,060 lbs. @ 80 psi) up to (12″ – 9,000 lbs. @ 80 psi)
Throat Depth 19.5″
Min Water Flow 16 GPM @ 35 PSI
Control Entron EN100

Features:
T. J. Snow designed and built weld heads
Oil-filled, silver-contactor style with roller bearings and a traditional wiper seal design
Internally water-cooled body and shaft
Knurling and belt-drive options
Equipped with a new microprocessor-type programmable weld control
Preliminary specifications — subject to verification

LOCATION: GRAND RAPIDS MI
