ROBINSON 18″ Stainless Steel Cutter With Hopper 25 HP Baldor Drive USED

Specification Table

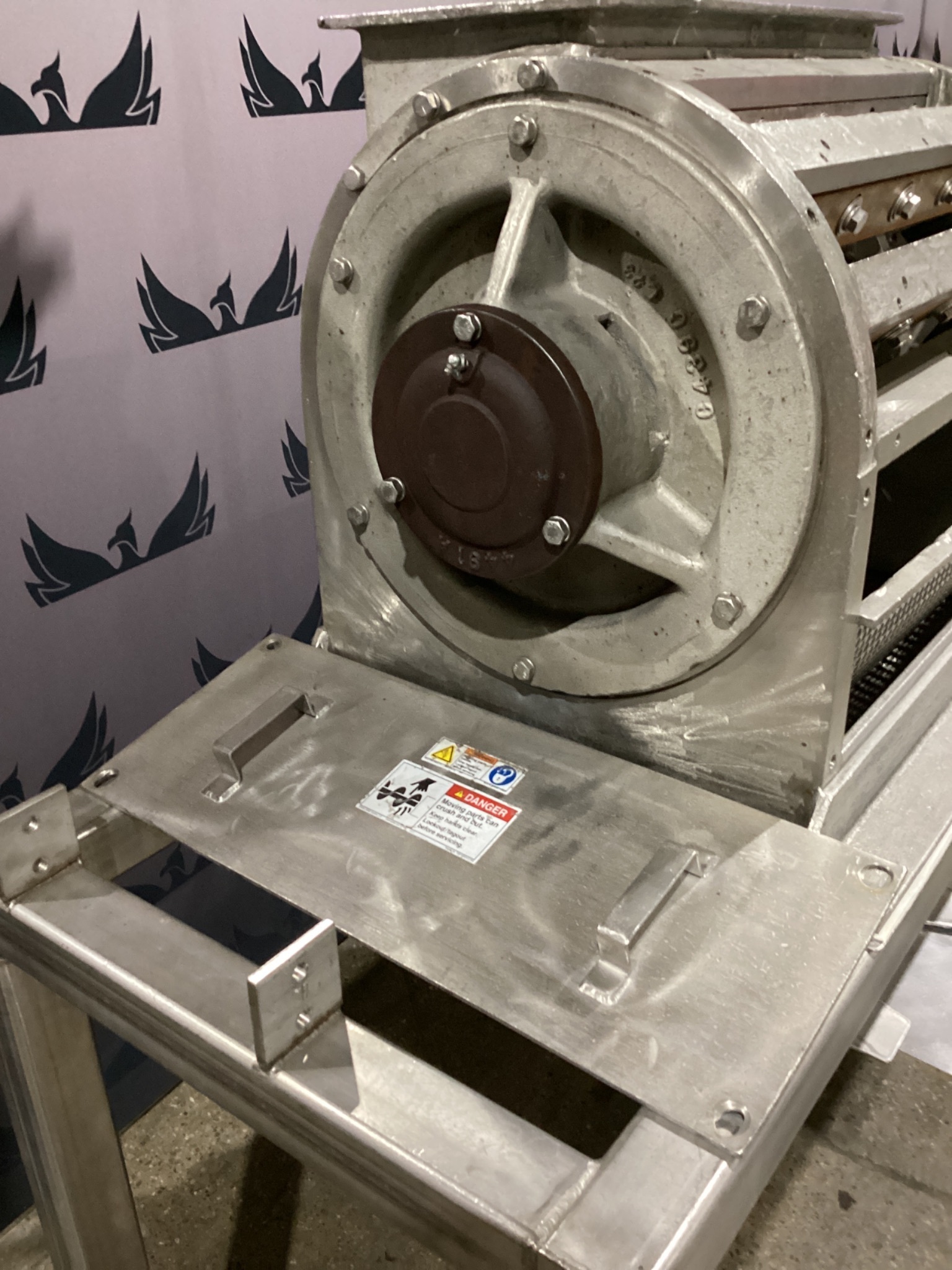

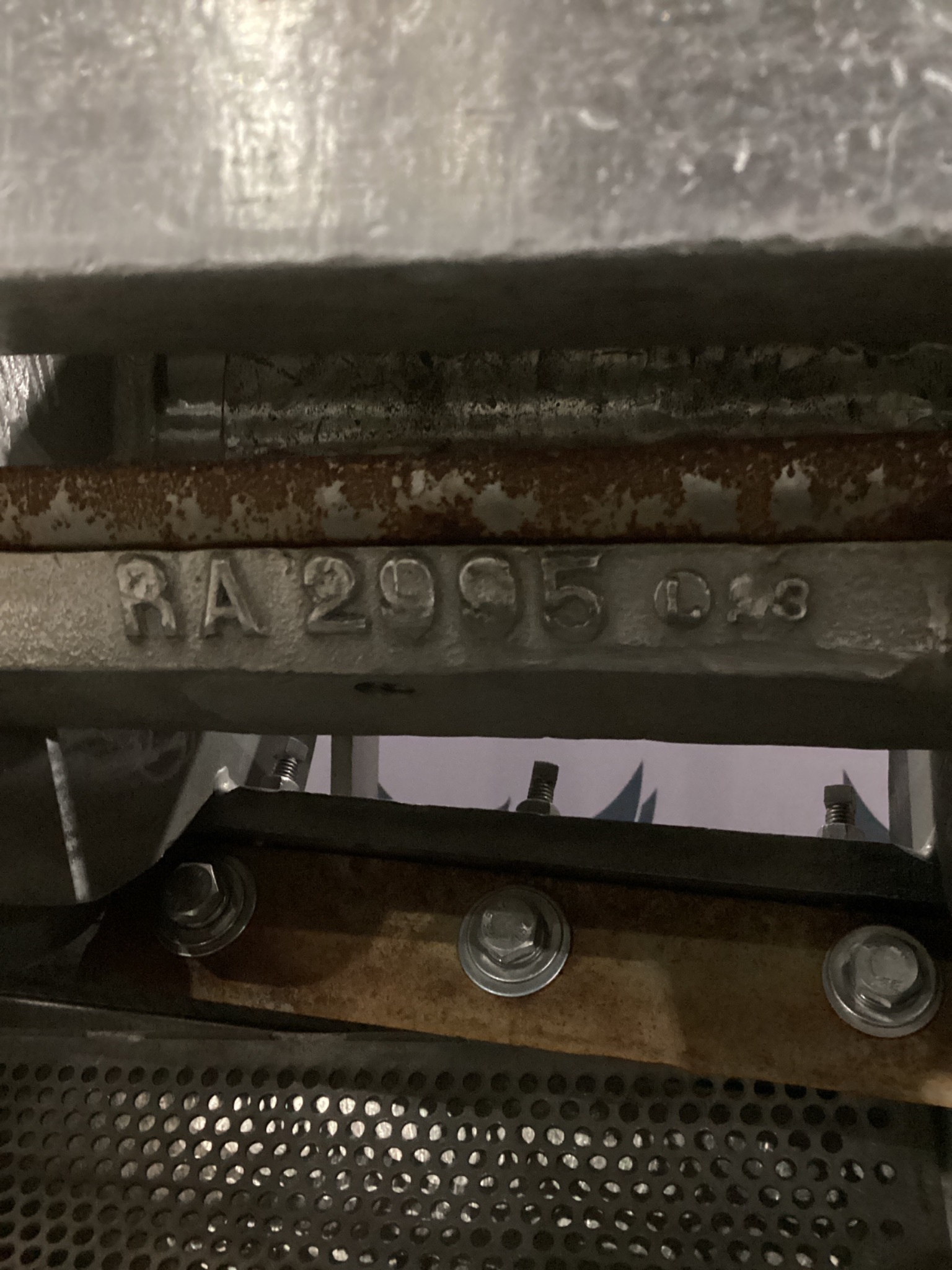

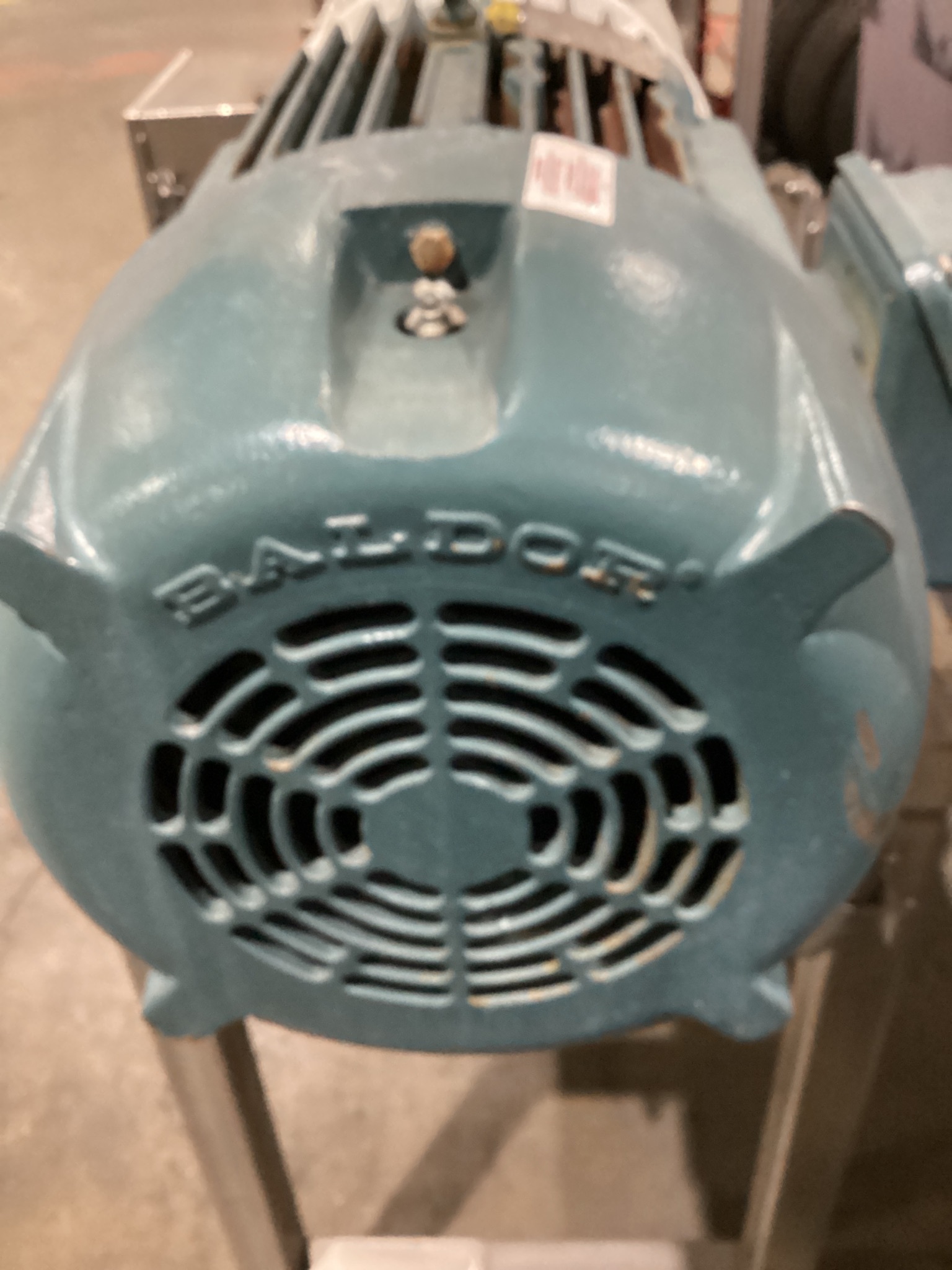

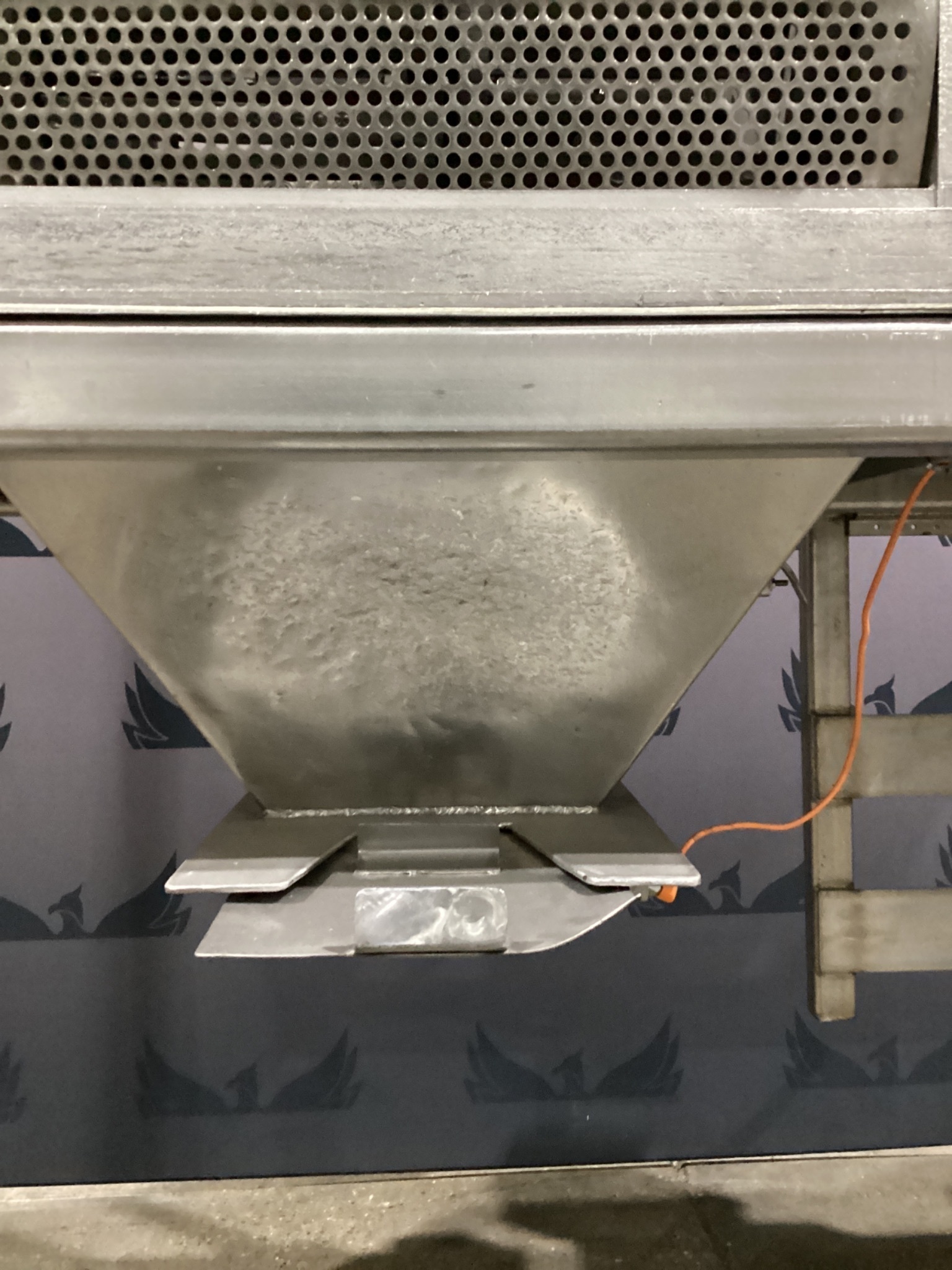

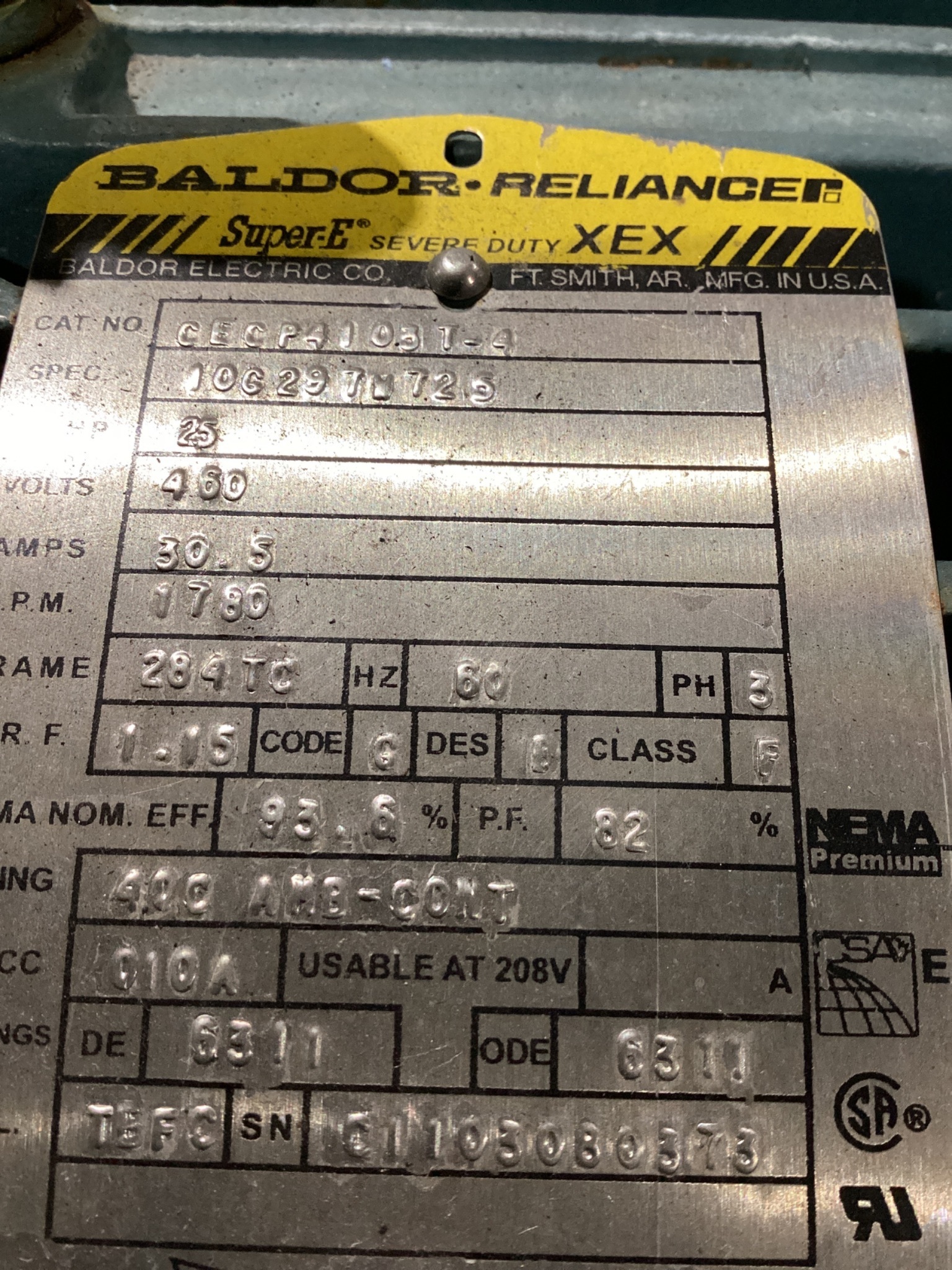

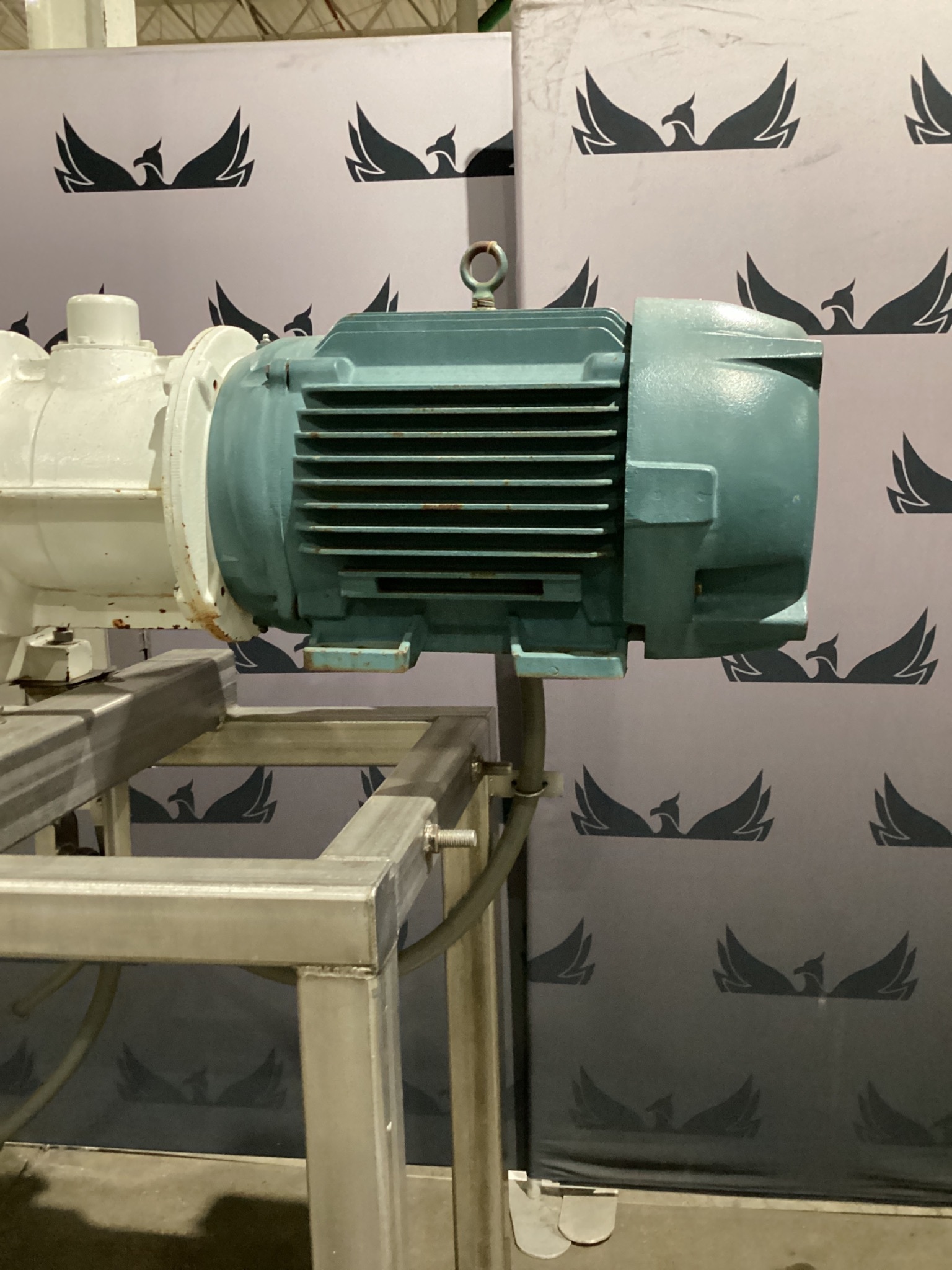

IDENTIFICATION Manufacturer: Robinson Model / Part Number: Not specified Product Type: Industrial rotary cutter Nominal Cutter Size: 18 in Condition: USED YOM: n/a   CUTTING / PROCESSING Primary Function: Product cutting / size reduction Cutter Configuration: Rotary Cutting Chamber: Enclosed Rotor / Cutting Elements: Present Rotor Access: Guarded / service accessible Feed Method: Gravity Discharge Configuration: Bottom hopper Throughput: Not specified Rotor Speed: Not specified   CUTTER CONSTRUCTION Cutter Housing: Heavy cast construction End Bearing Housing: Present Bolted Housing Components: Present Perforated Guard: Present Safety Access Cover: Present Access Cover Handles: 2 Internal Component Marking: RA 2995 L33   HOPPER / DISCHARGE Discharge Hopper: Included Hopper Construction: Stainless steel Hopper Configuration: Tapered Discharge Gate / Chute: Present Discharge Opening: Bottom Hopper Capacity: Not specified   DRIVE Drive Configuration: Direct coupled Drive Guard: Enclosed Motor Orientation: Horizontal   MOTOR Manufacturer: Baldor-Reliance Series: Super-E Severe Duty XEX Catalog Number: CECP4108T-4 Specification: 10C2970723 Motor Power: 25 HP Voltage: 460 VAC Current: 30.5 A Speed: 1780 RPM Phase: 3 Frequency: 60 Hz Frame: 284TC Service Factor: 1.15 NEMA Design: B Insulation Class: F Enclosure: TEFC Duty Rating: Continuous Ambient Rating: 40 °C NEMA Nominal Efficiency: 93.6% Power Factor: 82% Drive-End Bearing: 6311 Opposite-End Bearing: 6311   CONTROL Local Control Enclosure: Present Start Pushbutton: Present Stop Pushbutton: Present Selector Switch: Present   CONSTRUCTION / INSTALLATION Main Frame: Stainless steel Machine Configuration: Floor standing Machine Base: Welded structural frame Product Discharge: Below cutter chamber
