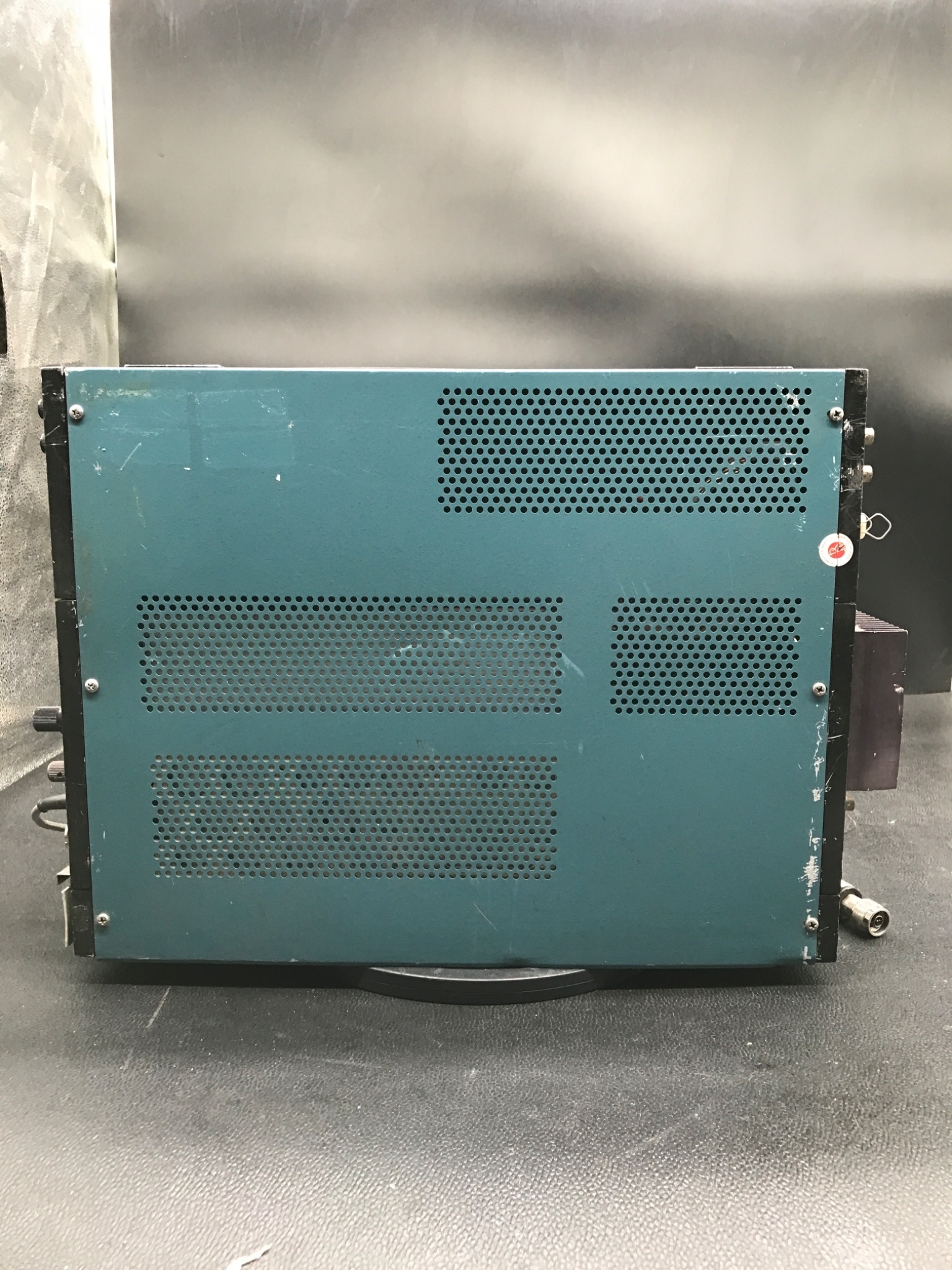

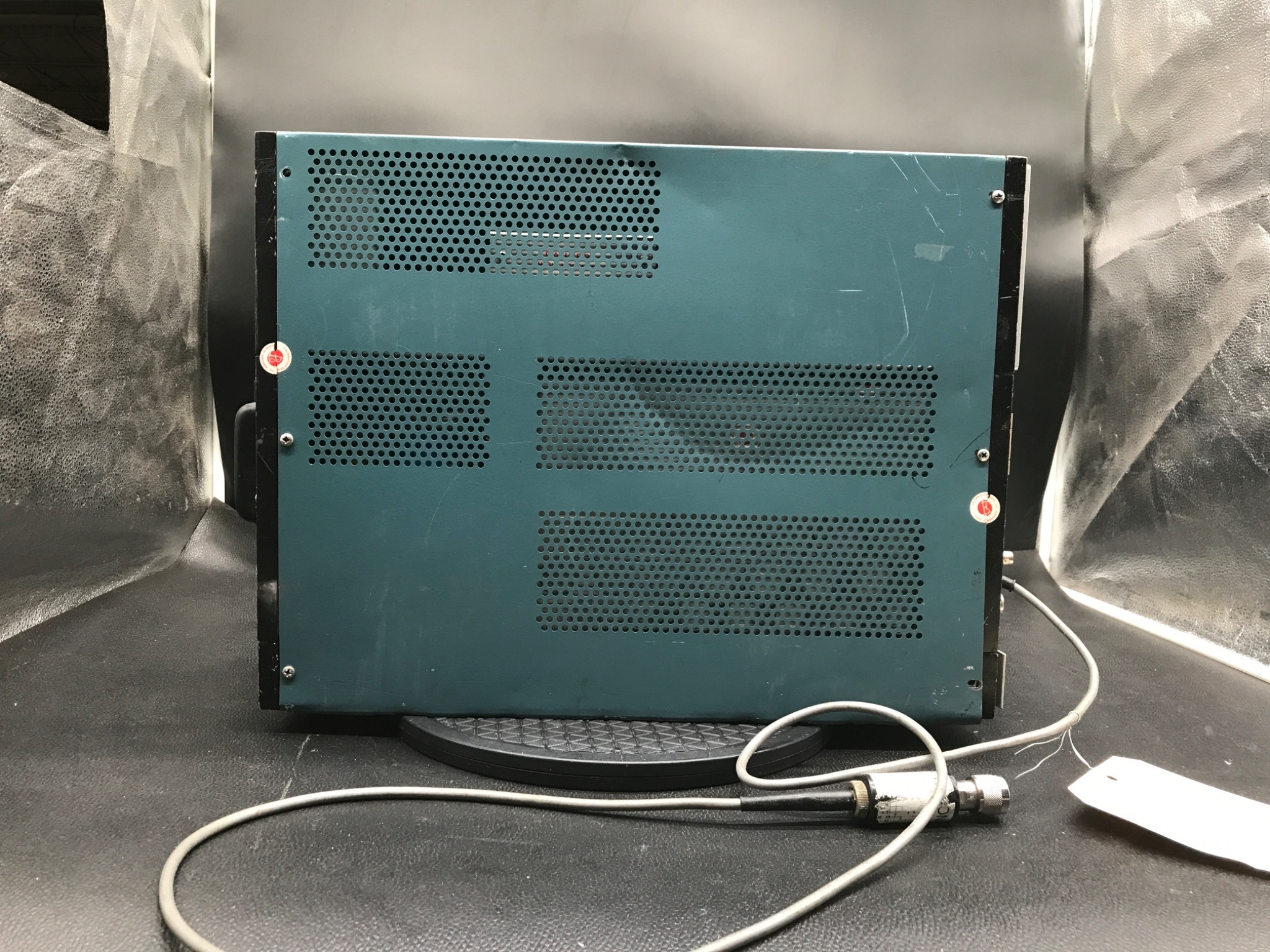

Pacific Measurements Inc. 1038 Series Log Amplifier Display System USED

Specification Table

Manufacturer: Pacific Measurements Inc. Series: 1038 Condition: USED System Configuration Display Module: 1038-D14 Horizontal/Memory Module: 1038-H13 Log Amplifier Module A: 1038-V12 Log Amplifier Module B: 1038-V12 Display CRT Display: Present Intensity Control: Present Focus Control: Present Trace Rotation: Present Memory Functions Memory On: Present Save Function: Present Find Beam Function: Present Channel Functions A Channel Display: Present B Channel Display: Present Ratio A/B: Present Ratio B/A: Present Signal Processing Log Amplifier: Dual Channel Channel Offset Controls: Present dB Reference Controls: Present Polarity Selection: Present Smoothing Controls: Present Connections Detector Input A: Present Detector Input B: Present Response Recorder Output: Present Channel A Output: 0.1 V/Div Channel B Output: 0.1 V/Div Horizontal Output: 0.1 V/Div Blanking Input: TTL Input/Output Connector: Present Construction Modular Chassis: Yes Bench Top Configuration: Yes
