Specification Table
| Swing |
28.7" |
| Bar Capacity |
3.1" |
| Spindle RPM |
4000 |
| X-Axis Travel |
29.5" |
| Z-Axis Travel |
64.9" |
| Turret Capacity |
12 Stations Lower Turret |
CNC Control: Yes
Control Type: Mitsubishi MSX-711IV
Axis:9
Swing: 28.7"
Turning Diameter: 25.9"
Turning Diameter Lower Turret: 13.7"
Center Distance: 61.4"
Bar Capacity: 3.1"
X Axis Travel: 29.5"
X2 Axis Travel: 7.7"
Y Axis Travel: 8.3"
Z Axis Travel: 64.9"
Z2 Axis Travel: 60"
B Axis Indexing: +/- 120°, 1-Degree
C1/C2 Axis Index: 0.0001°
Spindle Nose: A2-8
Spindle Speed: 4,000 rpm
Main Motor: 30 HP
Tailstock: No
Y Axis: Yes
Live Tooling: Yes
Milling Spindle Taper: KM63

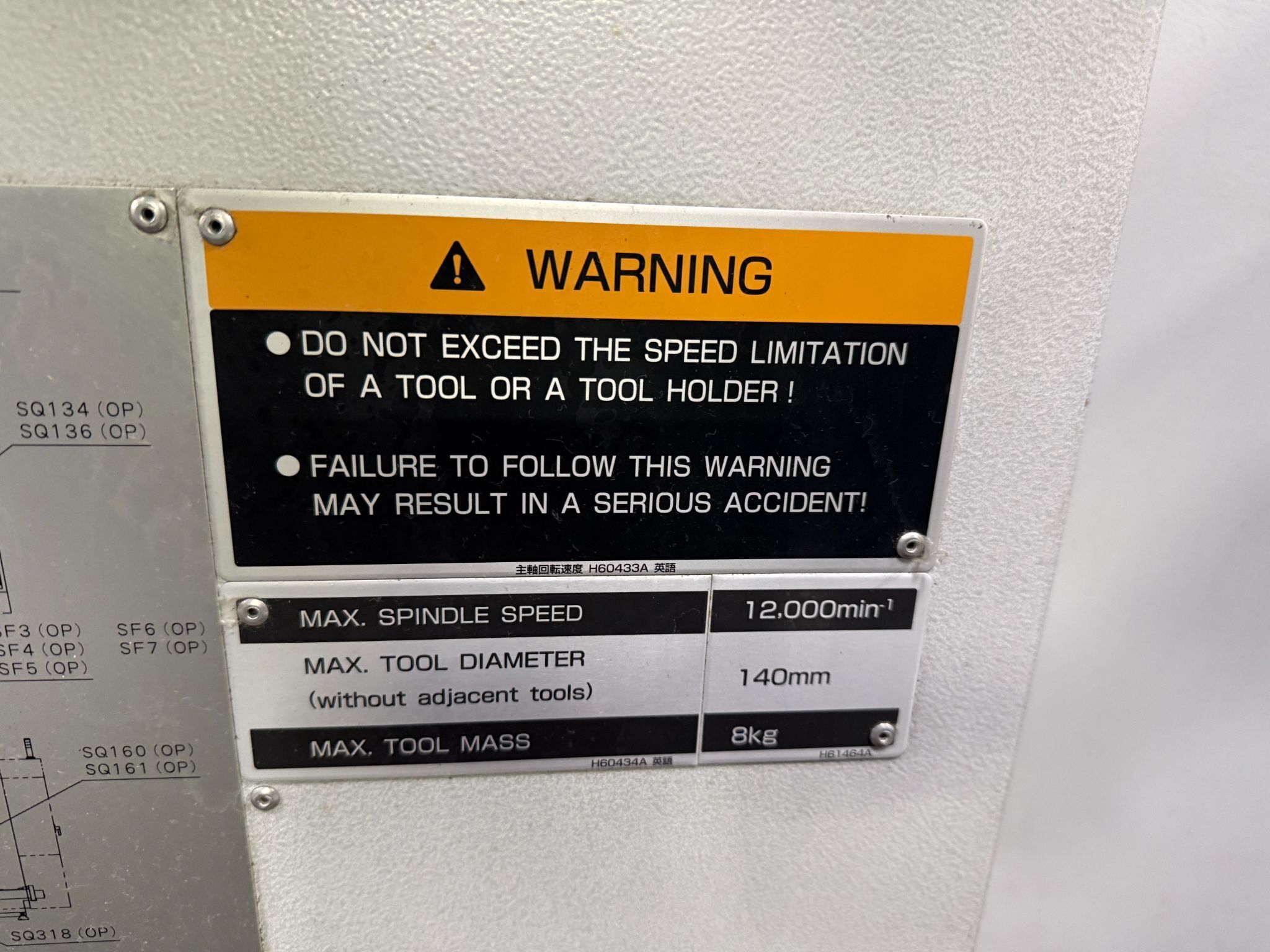

Live Tooling Speed: 12,000 rpm - Milling Spindle
Live Tooling Motor: 25 HP
Sub Spindle: Yes
Sub Spindle Bar Capacity: 3.1"
Sub Spindle Nose: A2-8
Sub Spindle Speed: 4,000 rpm
Sub Spindle Motor (HP): 30 HP
Turret Capacity: 12 Stations Lower Turret
ATC Capacity: 40 Stations
Equipped With

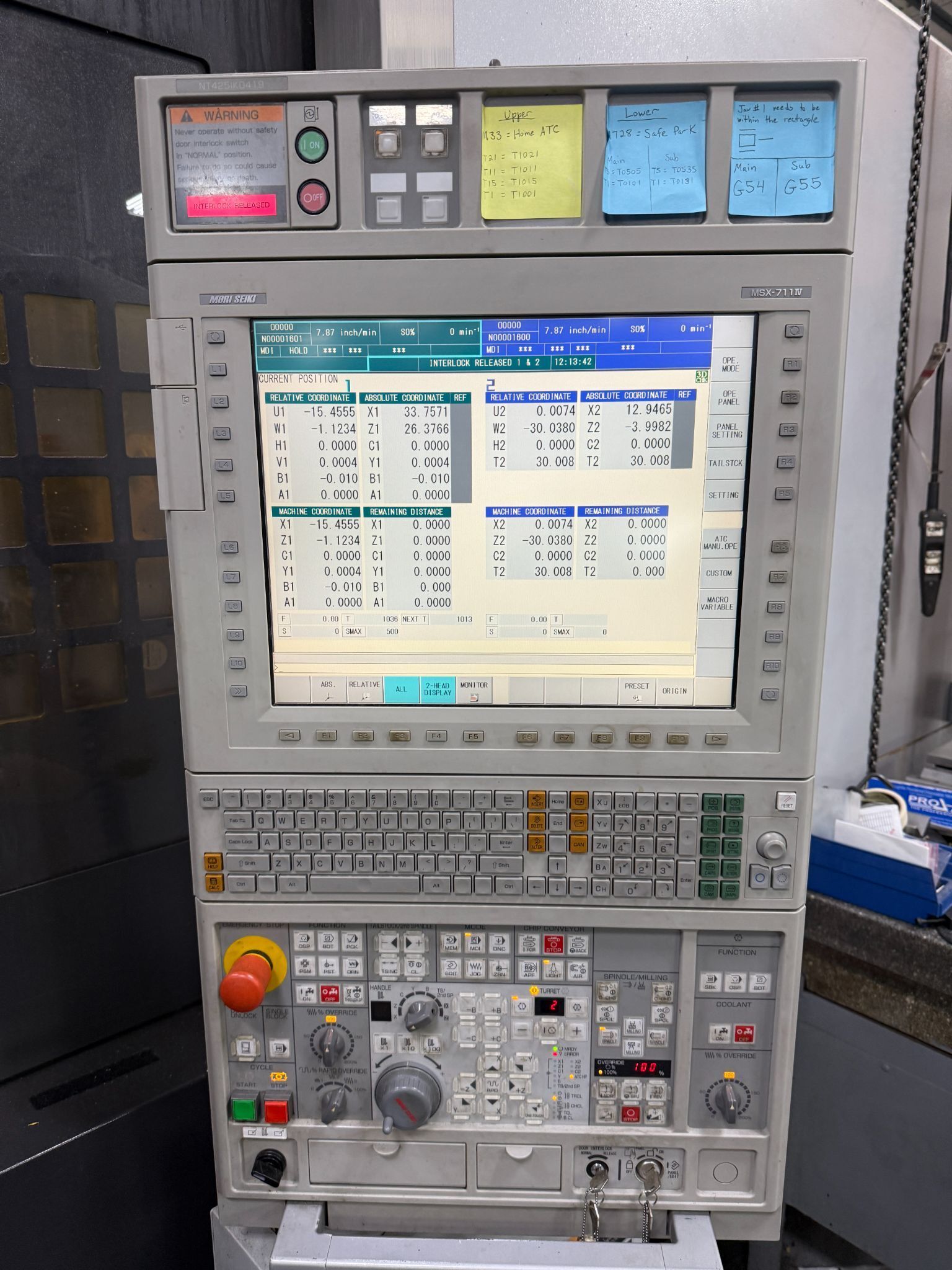

Mitsubishi MSX-711IV Control
- MAPPS Conversational Programing
- Chip Conveyor
- Coolant Tank & Pump

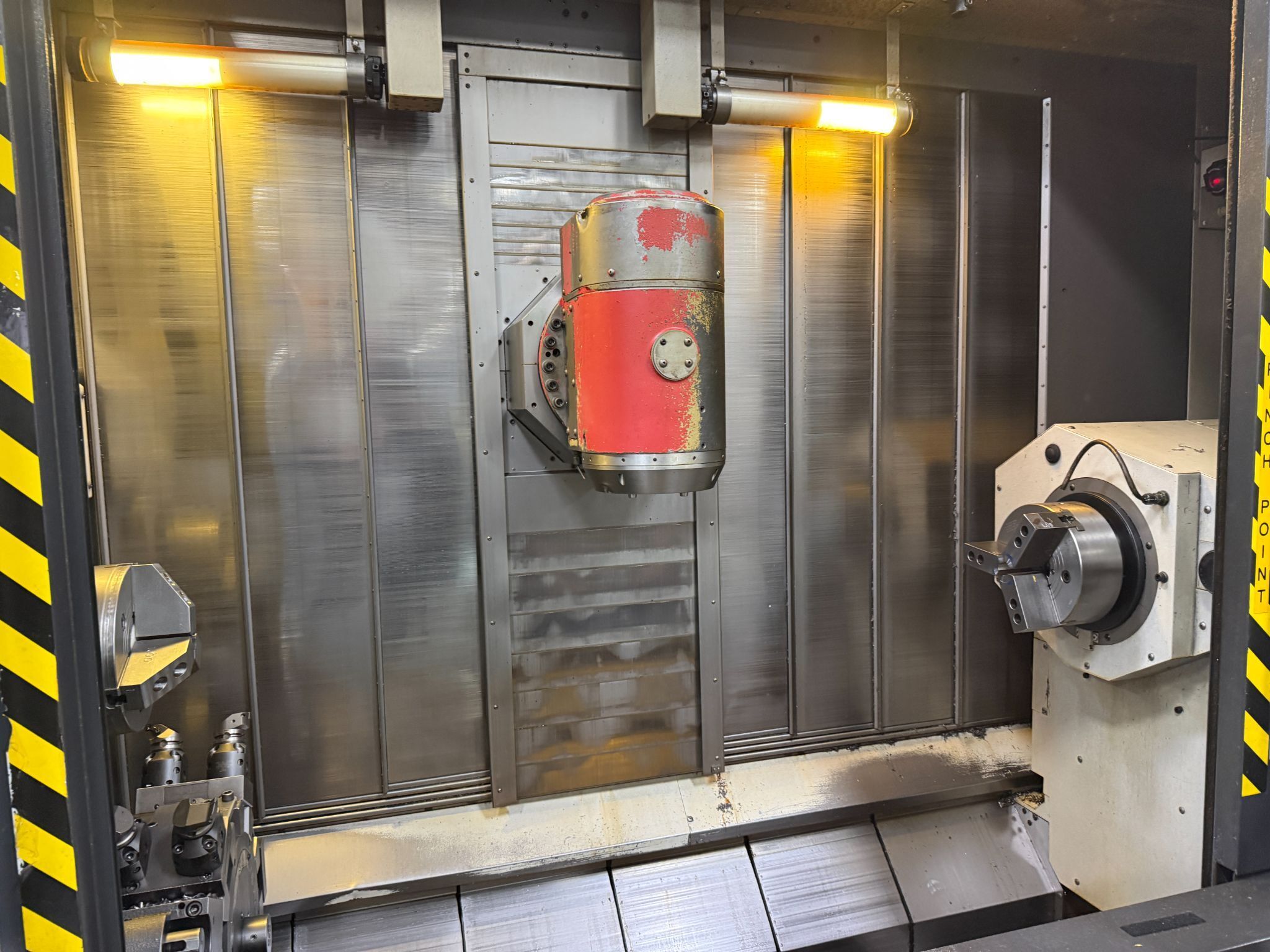

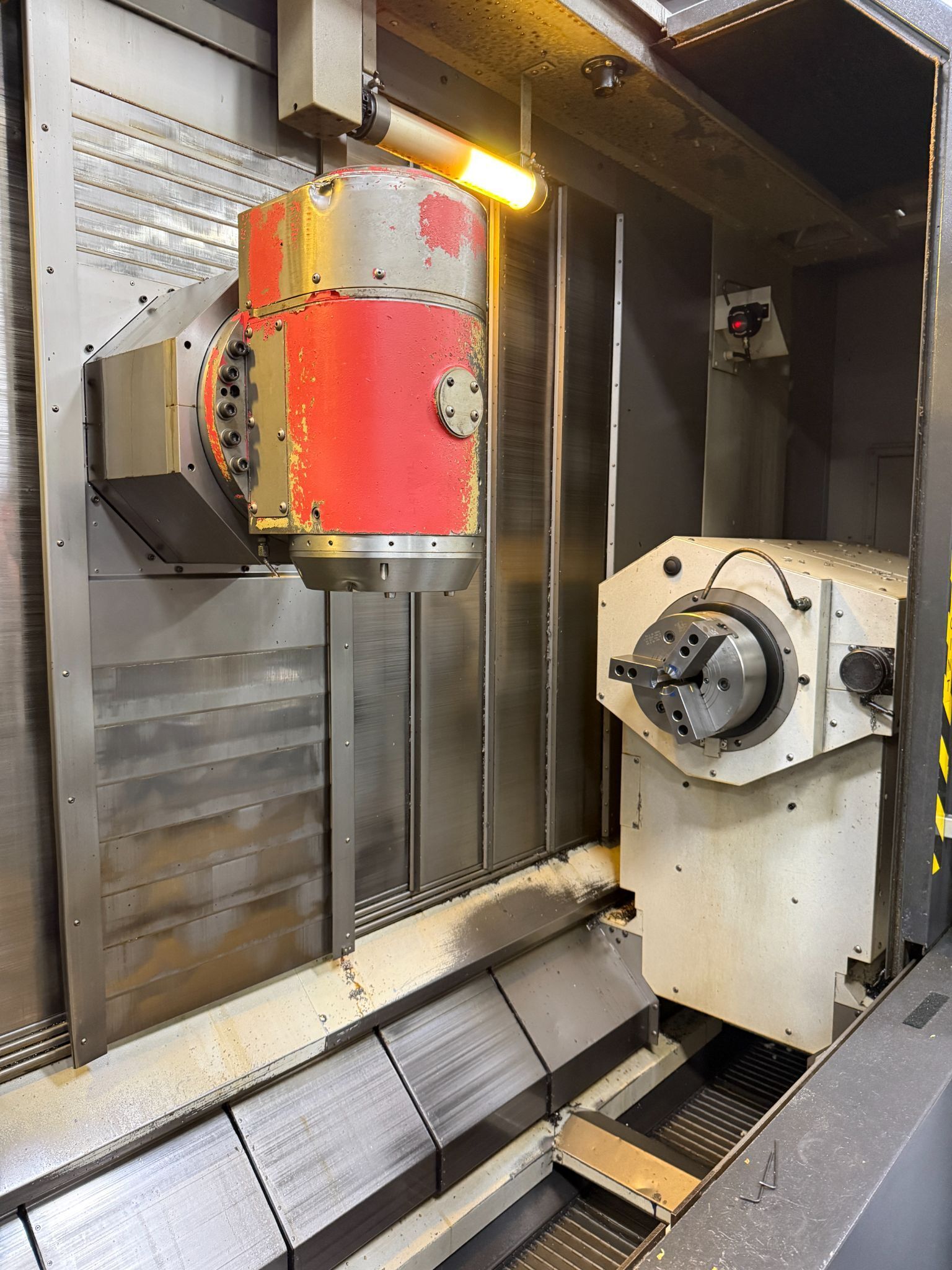

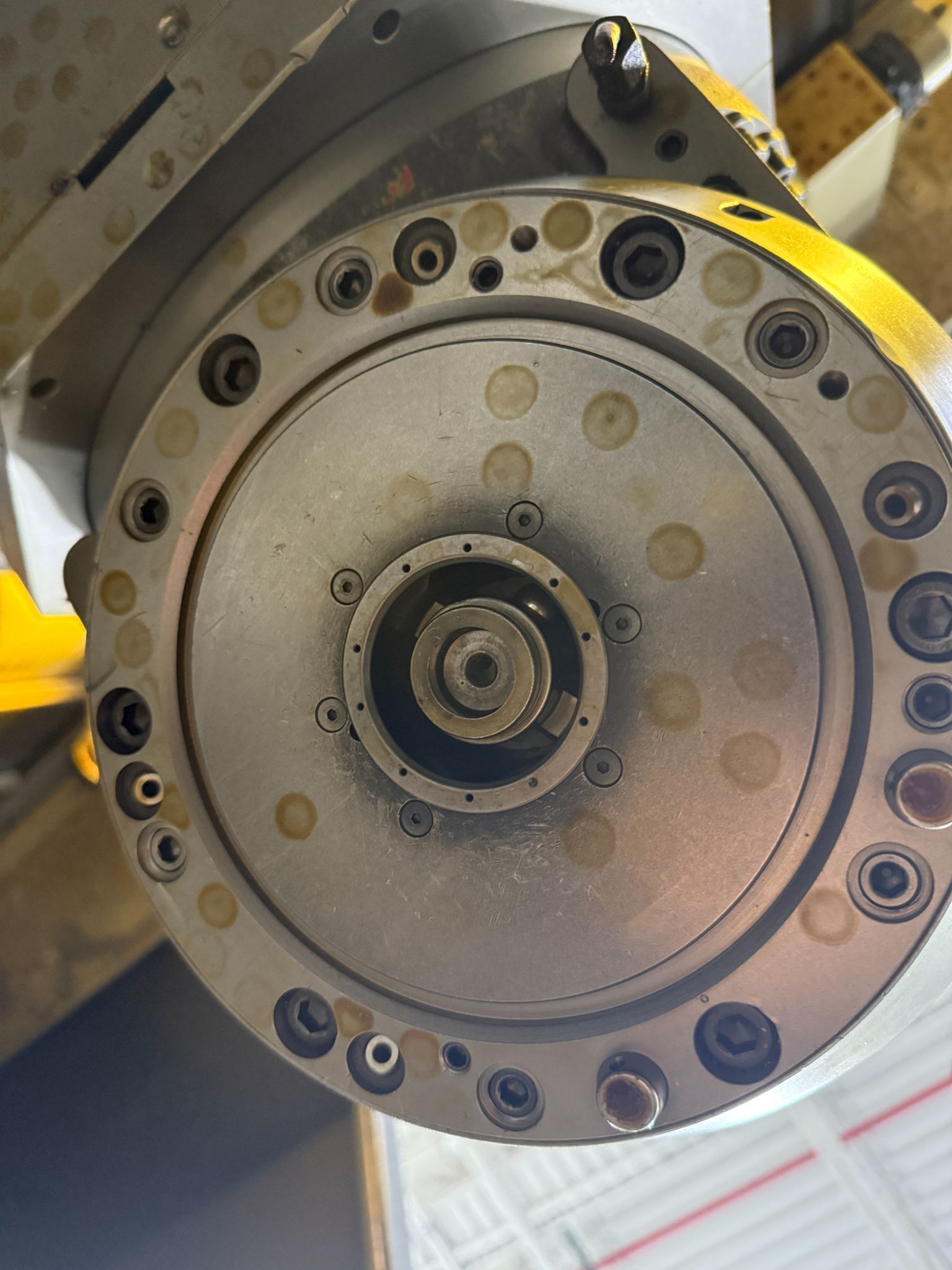

- Milling Spindle

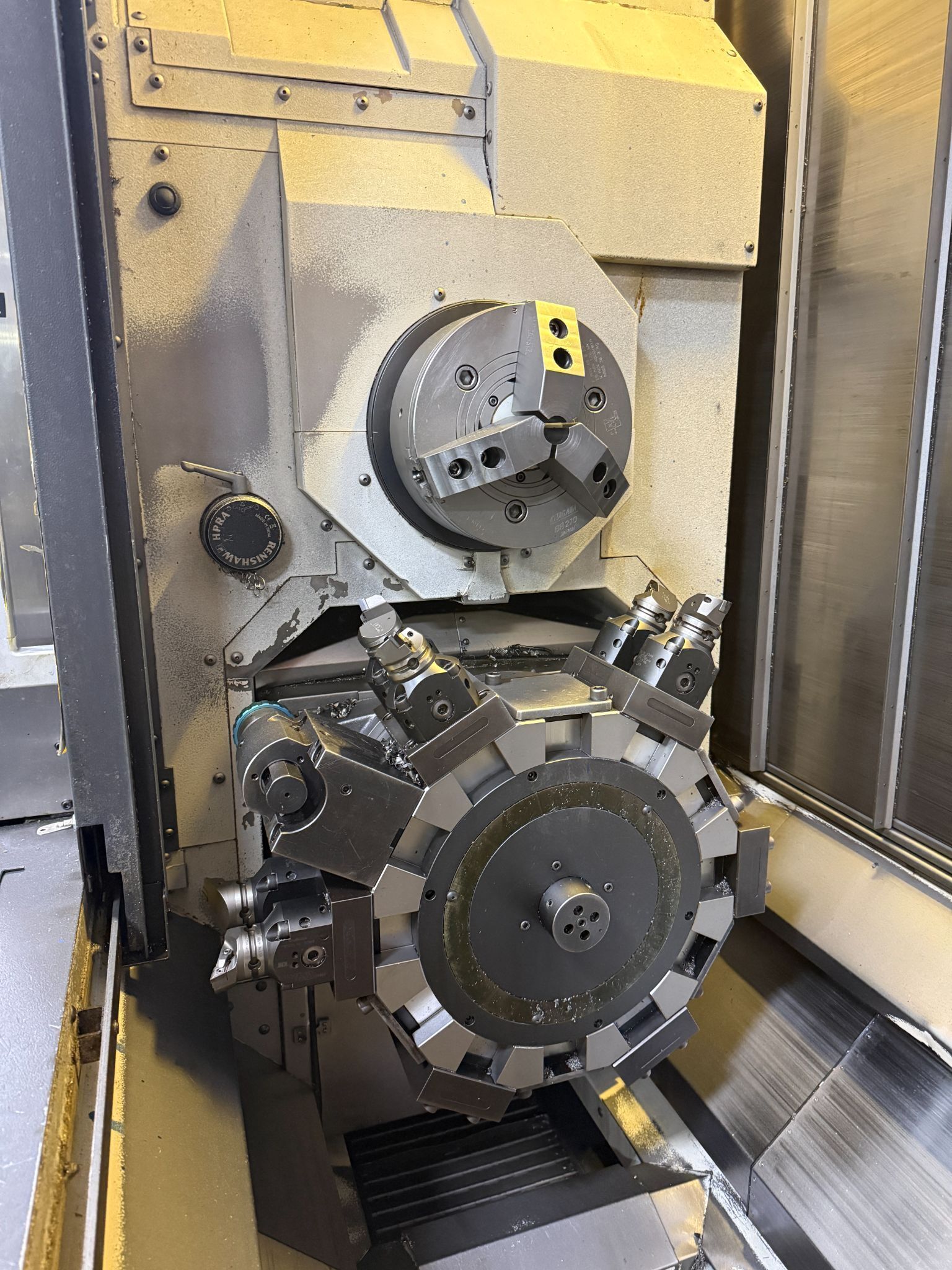

- Lower Turret

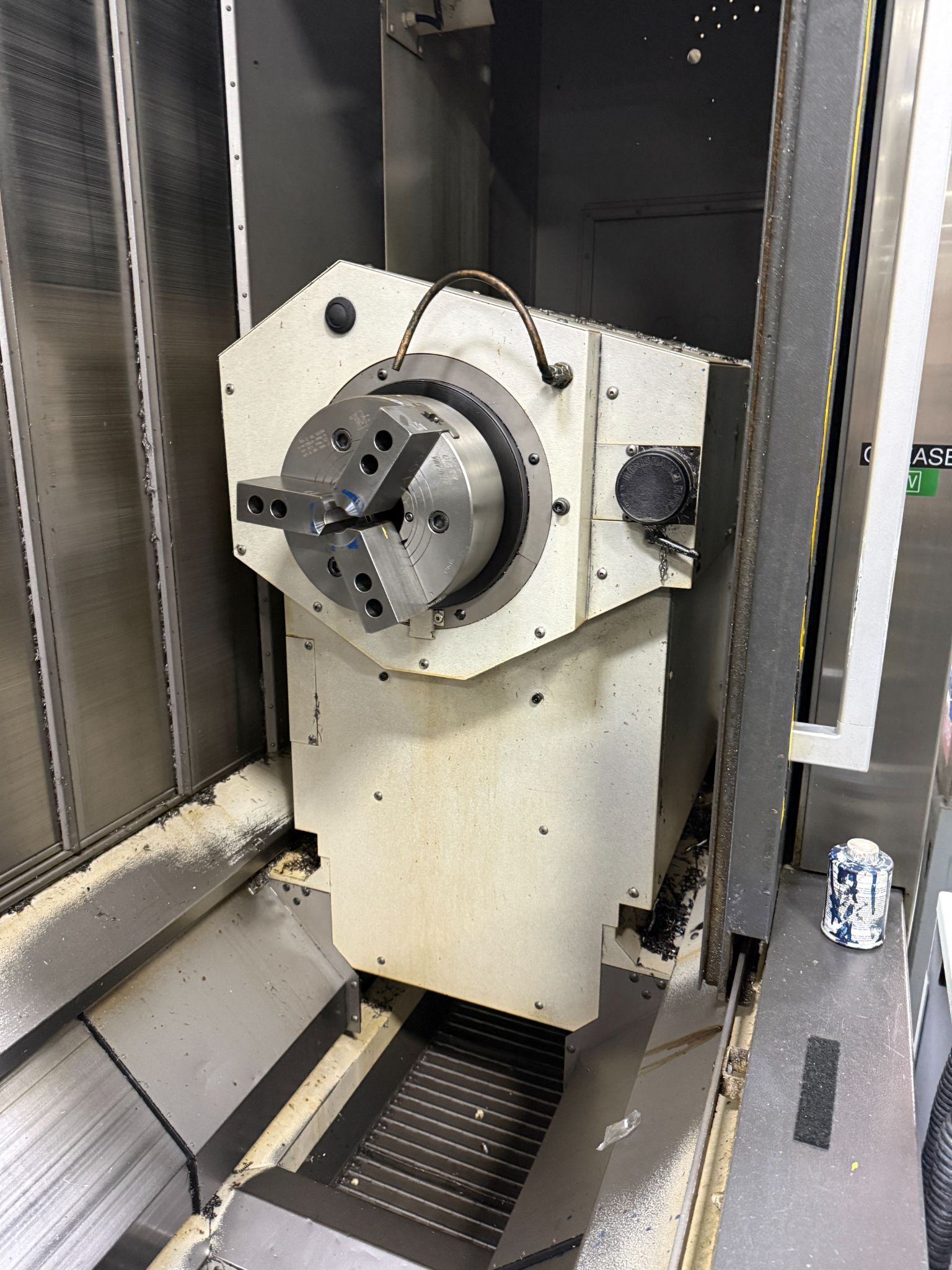

- Sub Spindle
- Y Axis

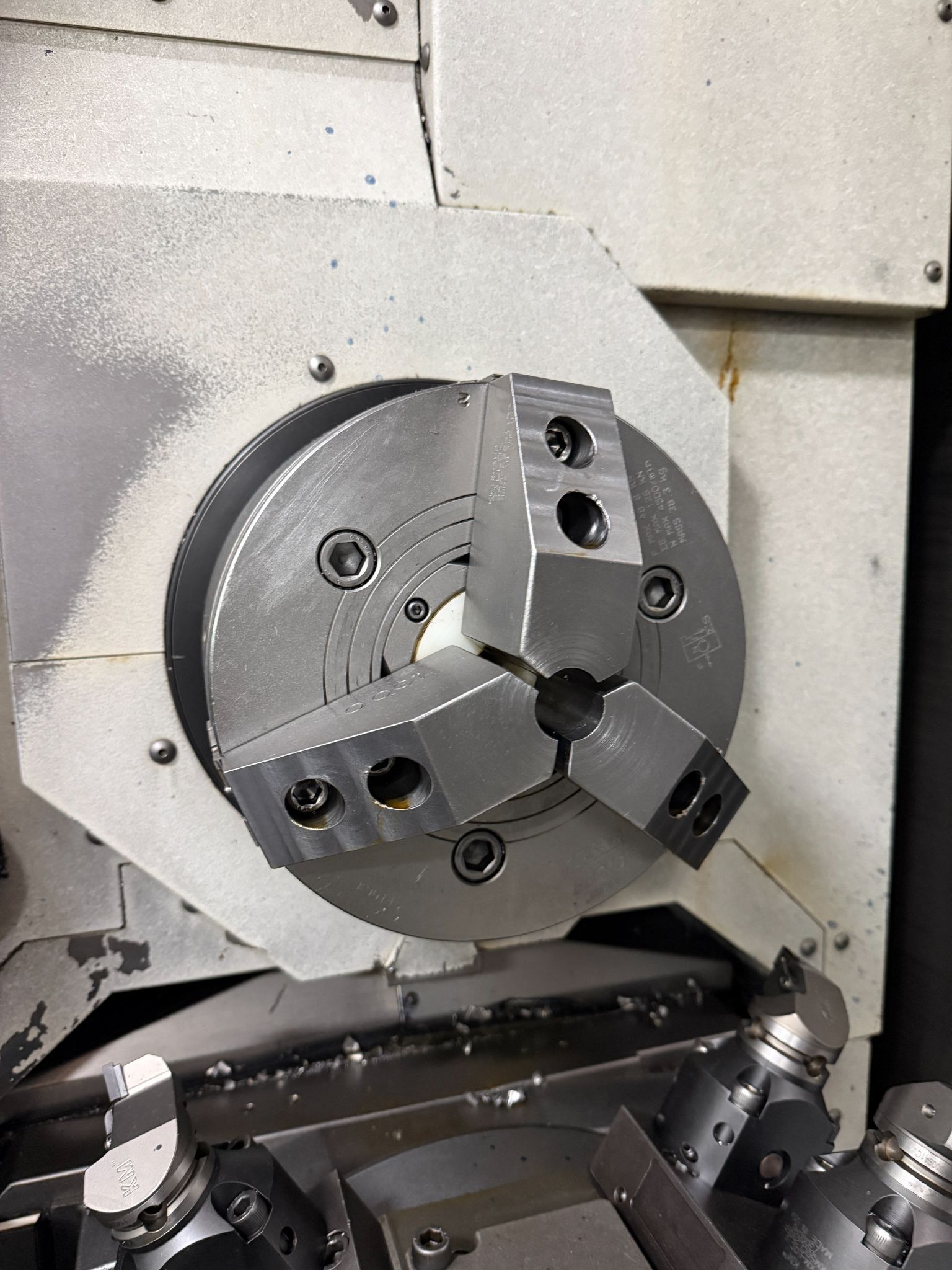

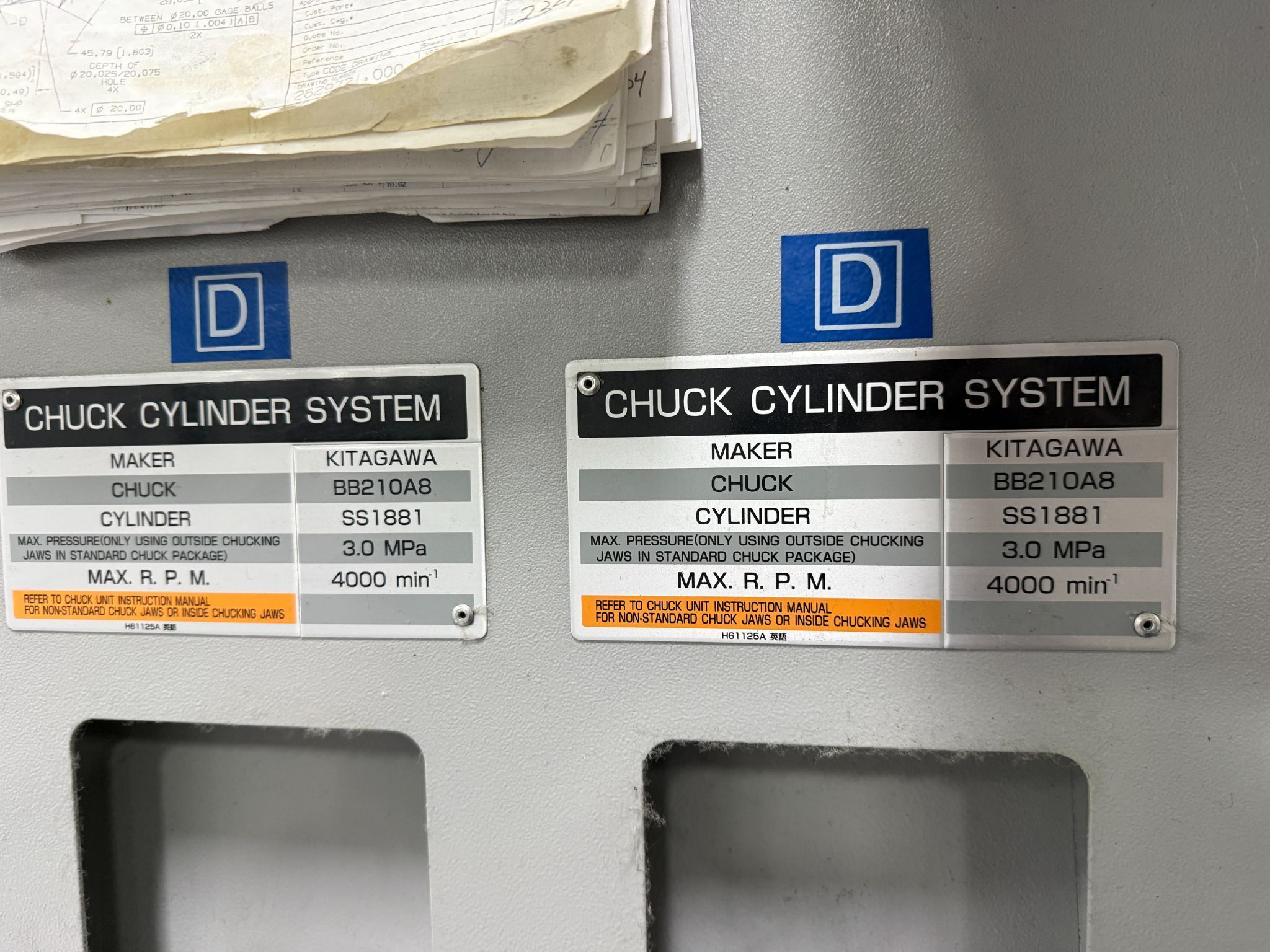

- 10" Chuck on Main Spindle
- 10" Chuck on Sub Spindle
- Renishaw Probing
- Tool Presetter
- Coolant Thru Spindle - High Pressure

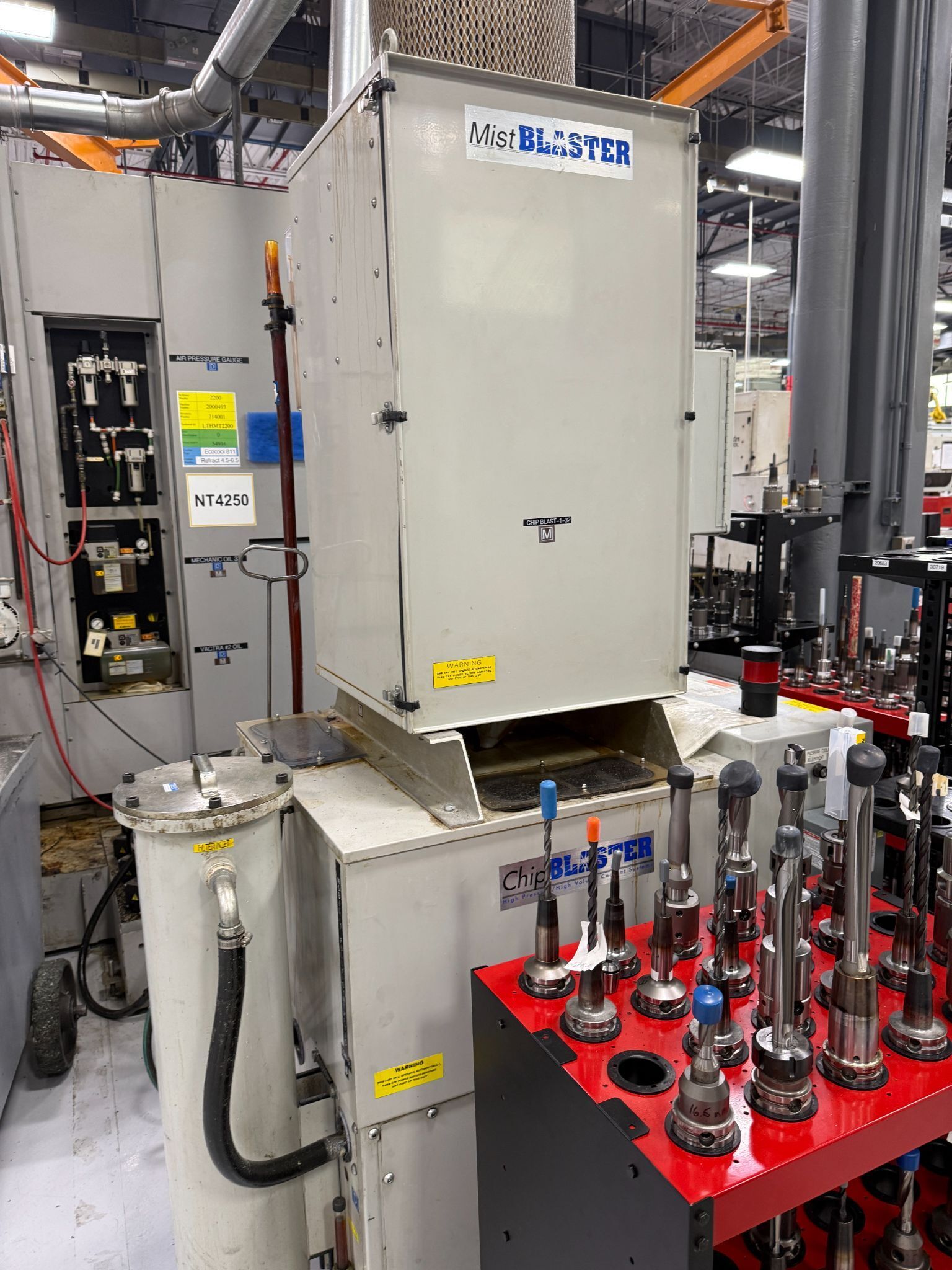

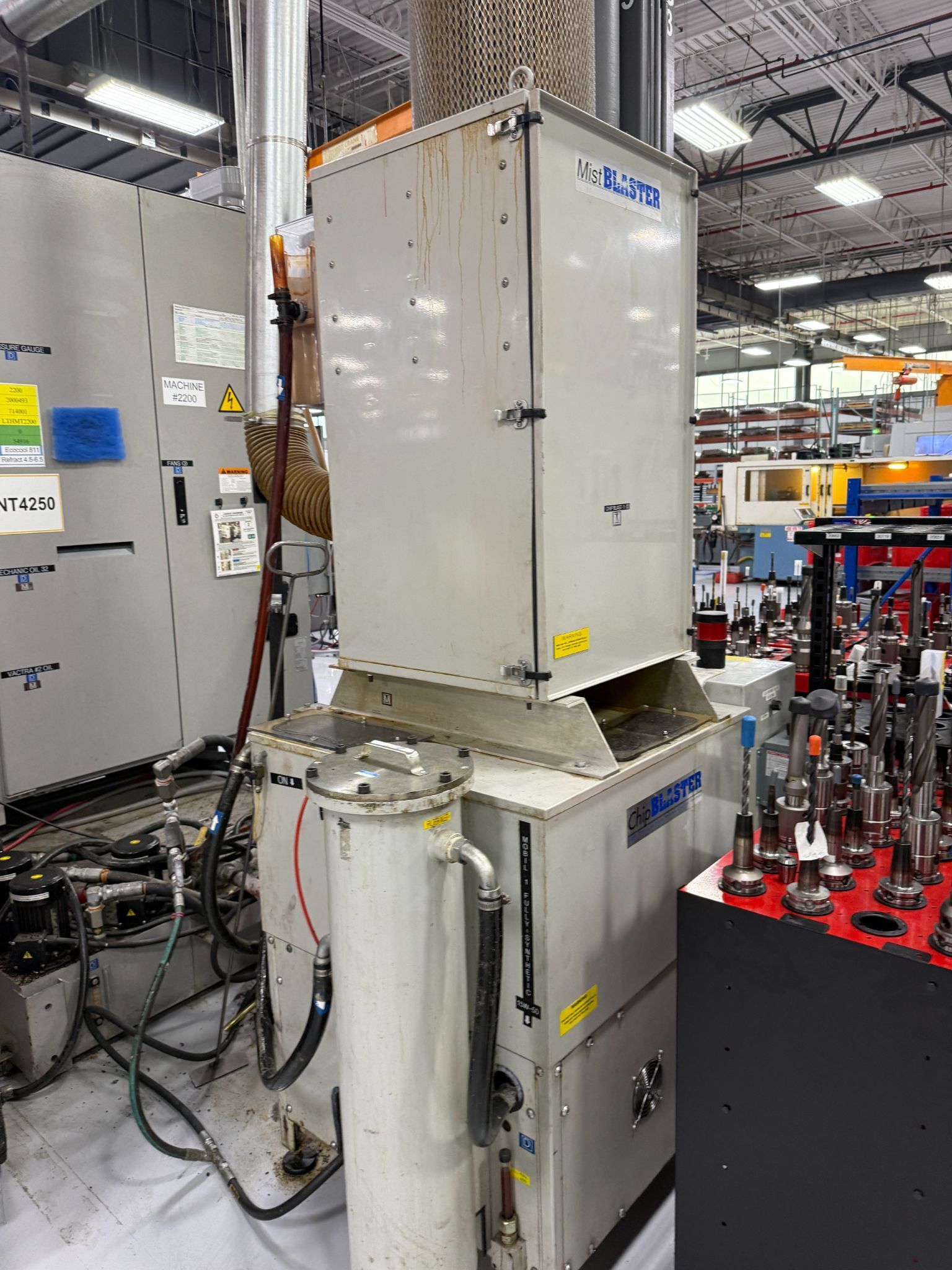

- Chip Blaster Unit

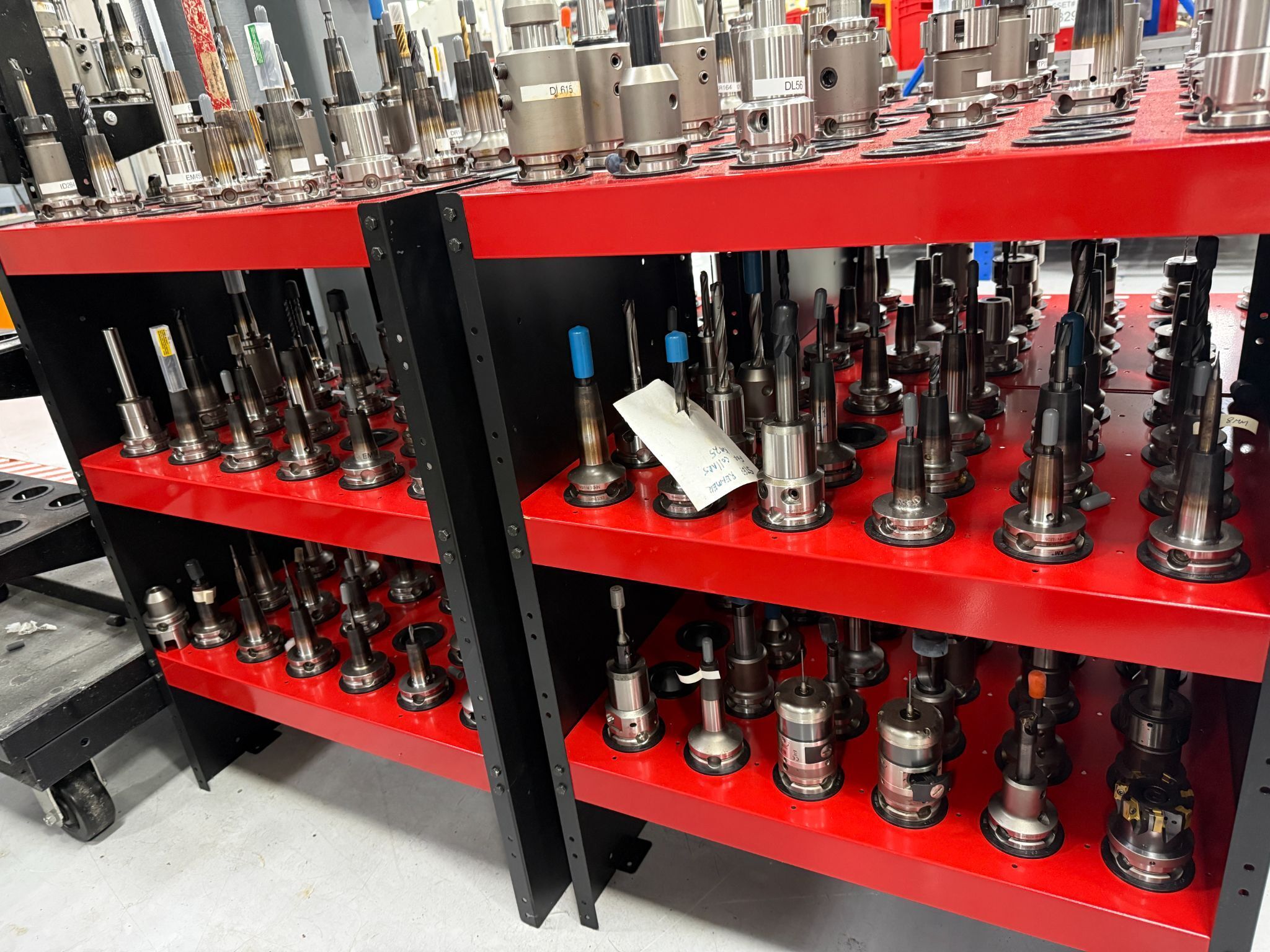

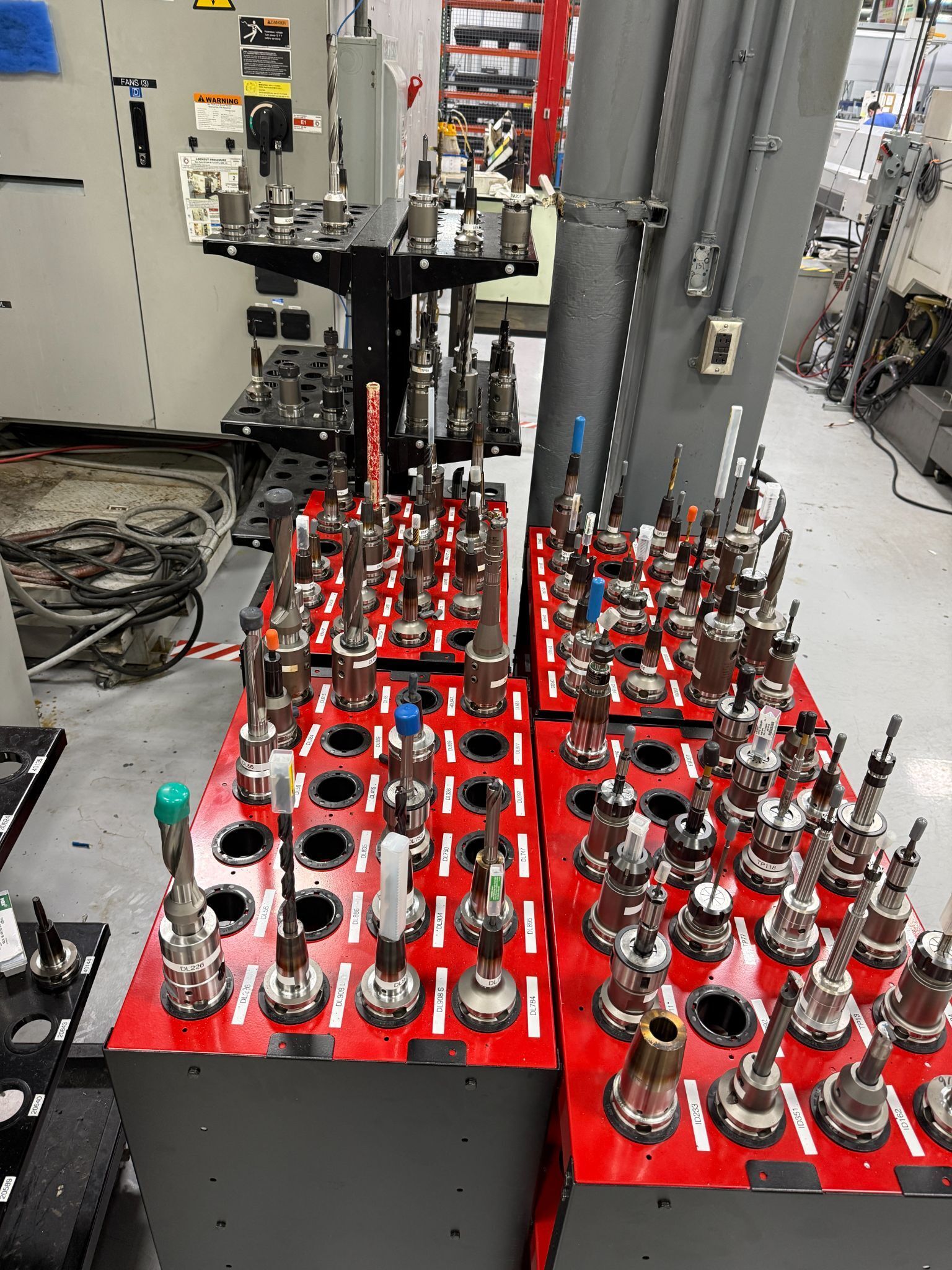

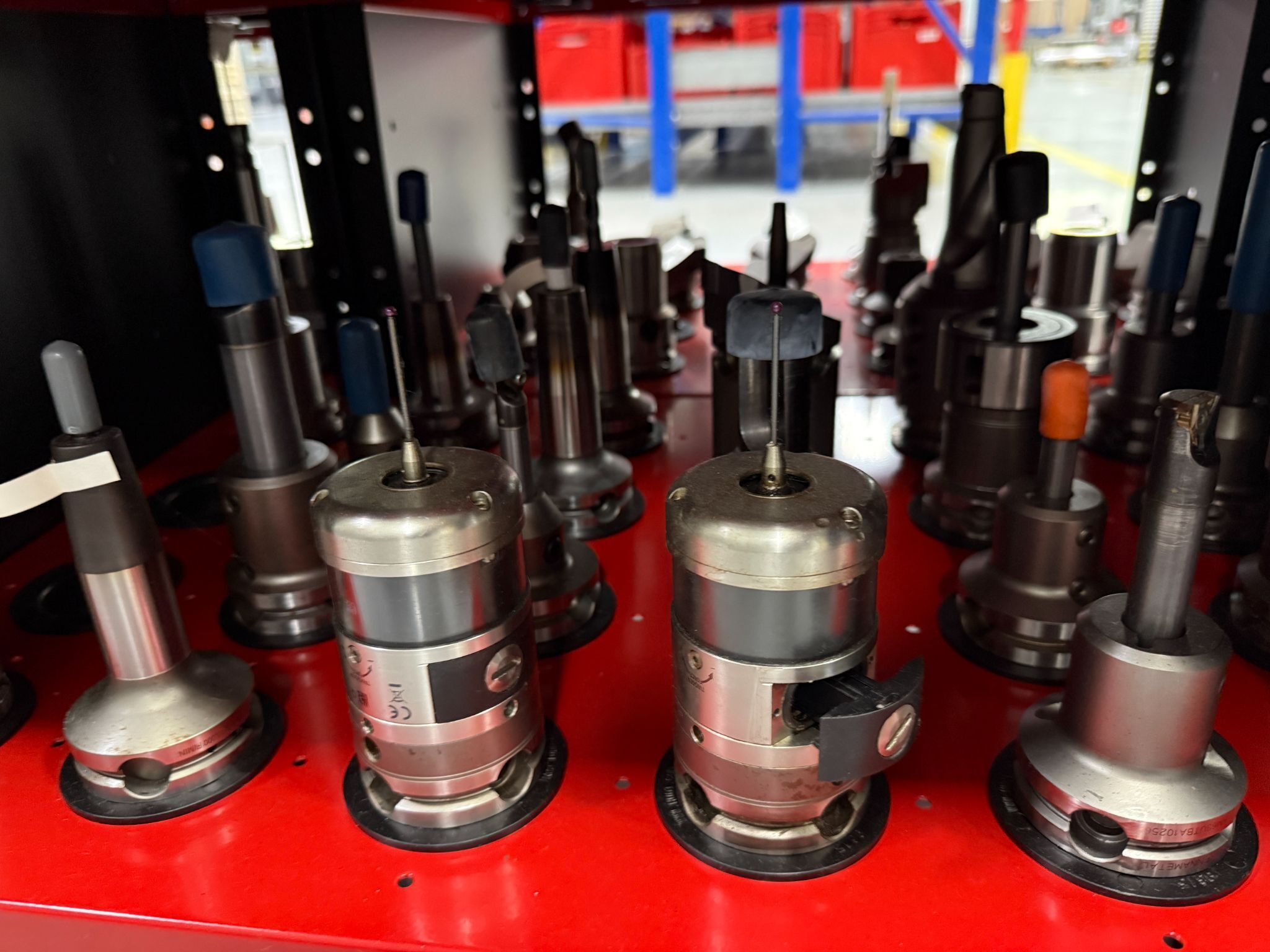

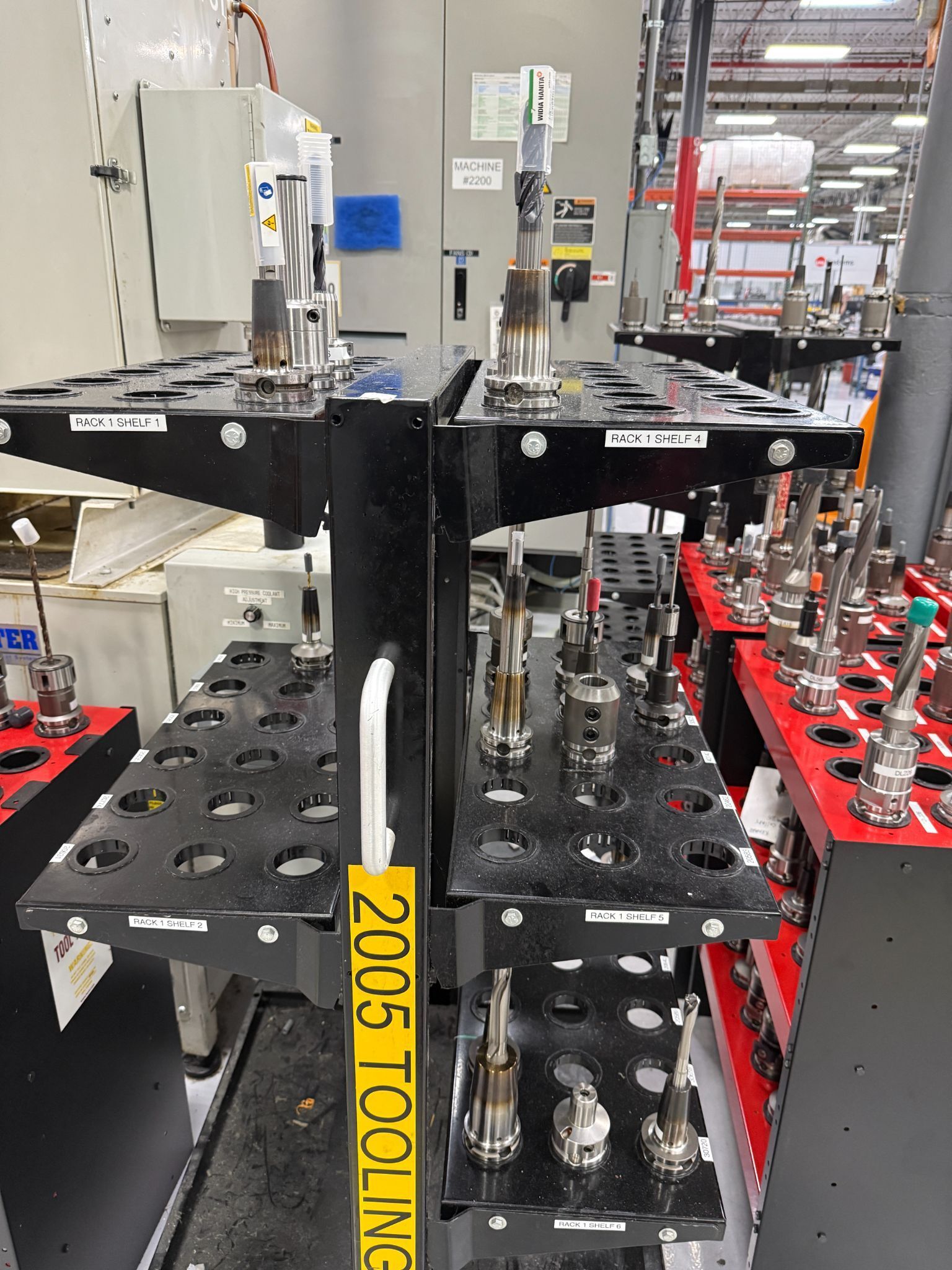

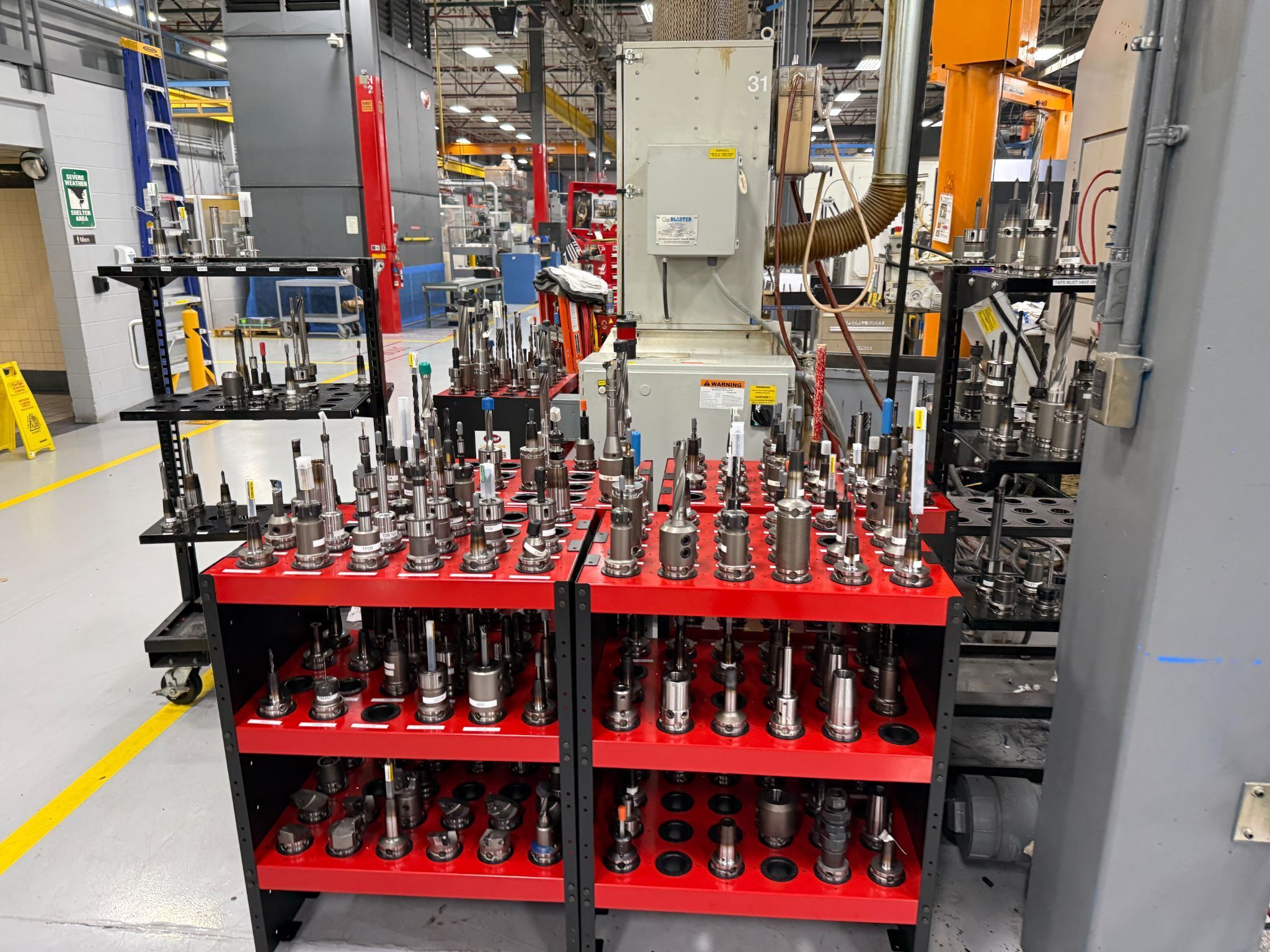

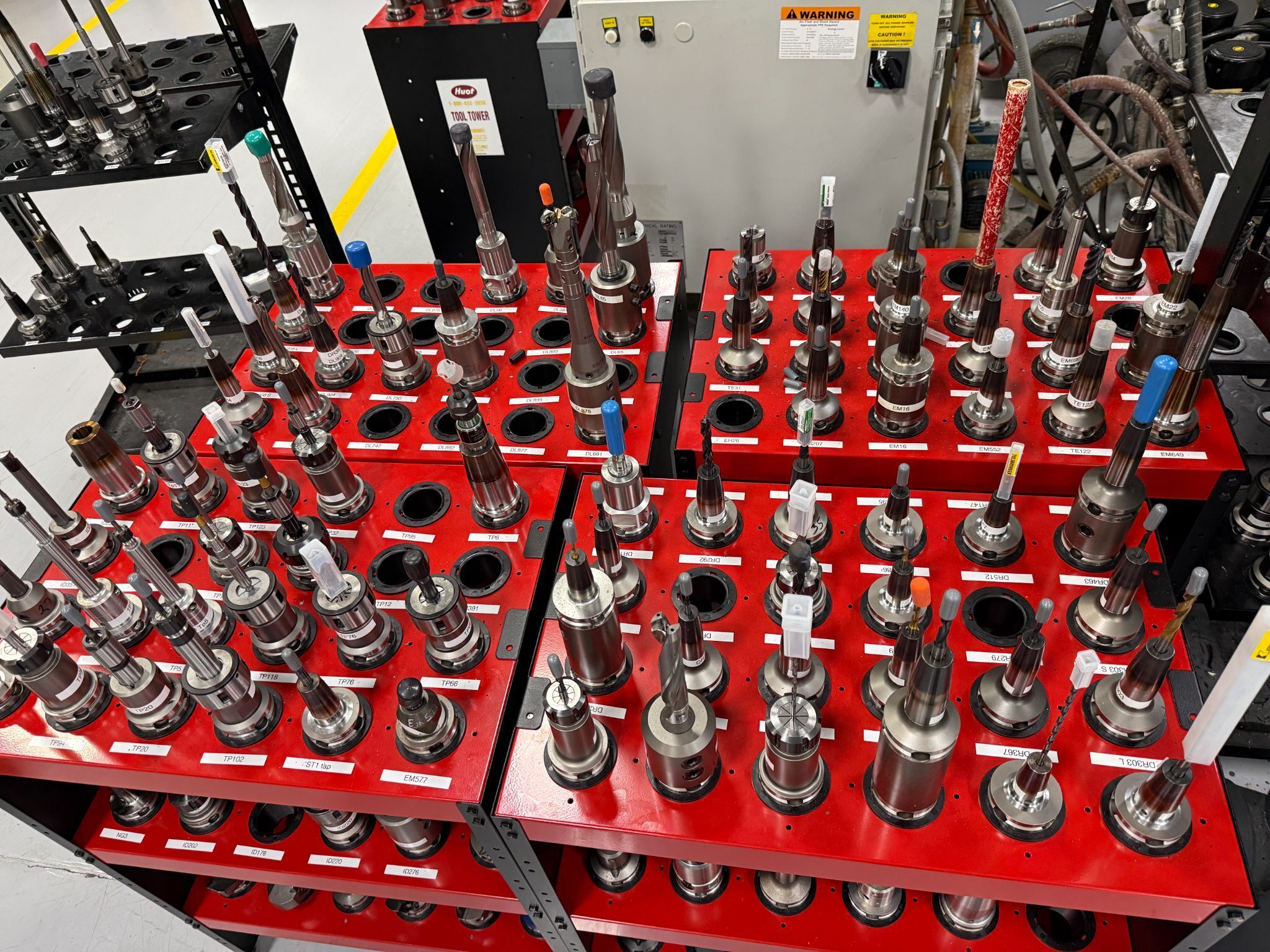

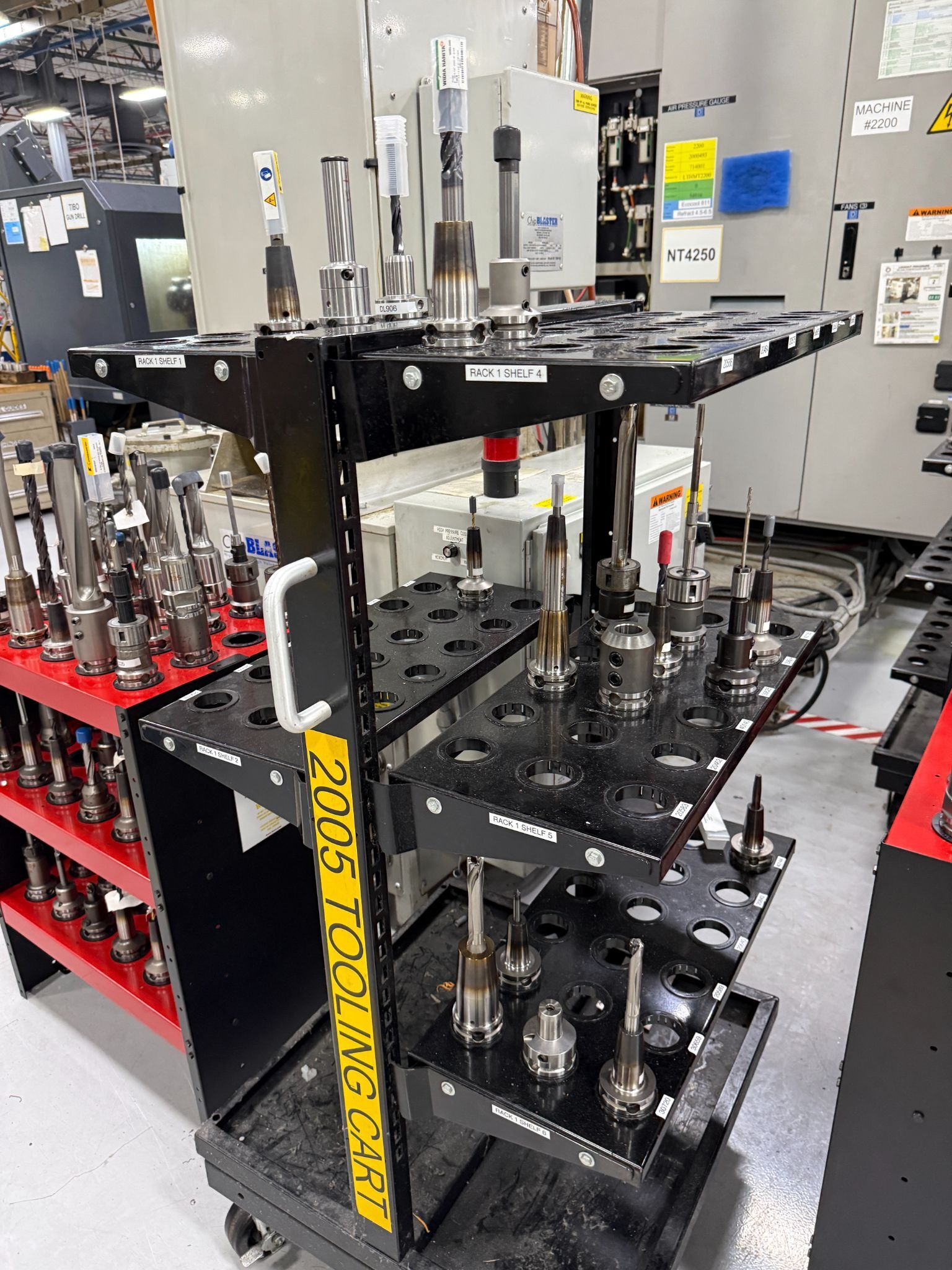

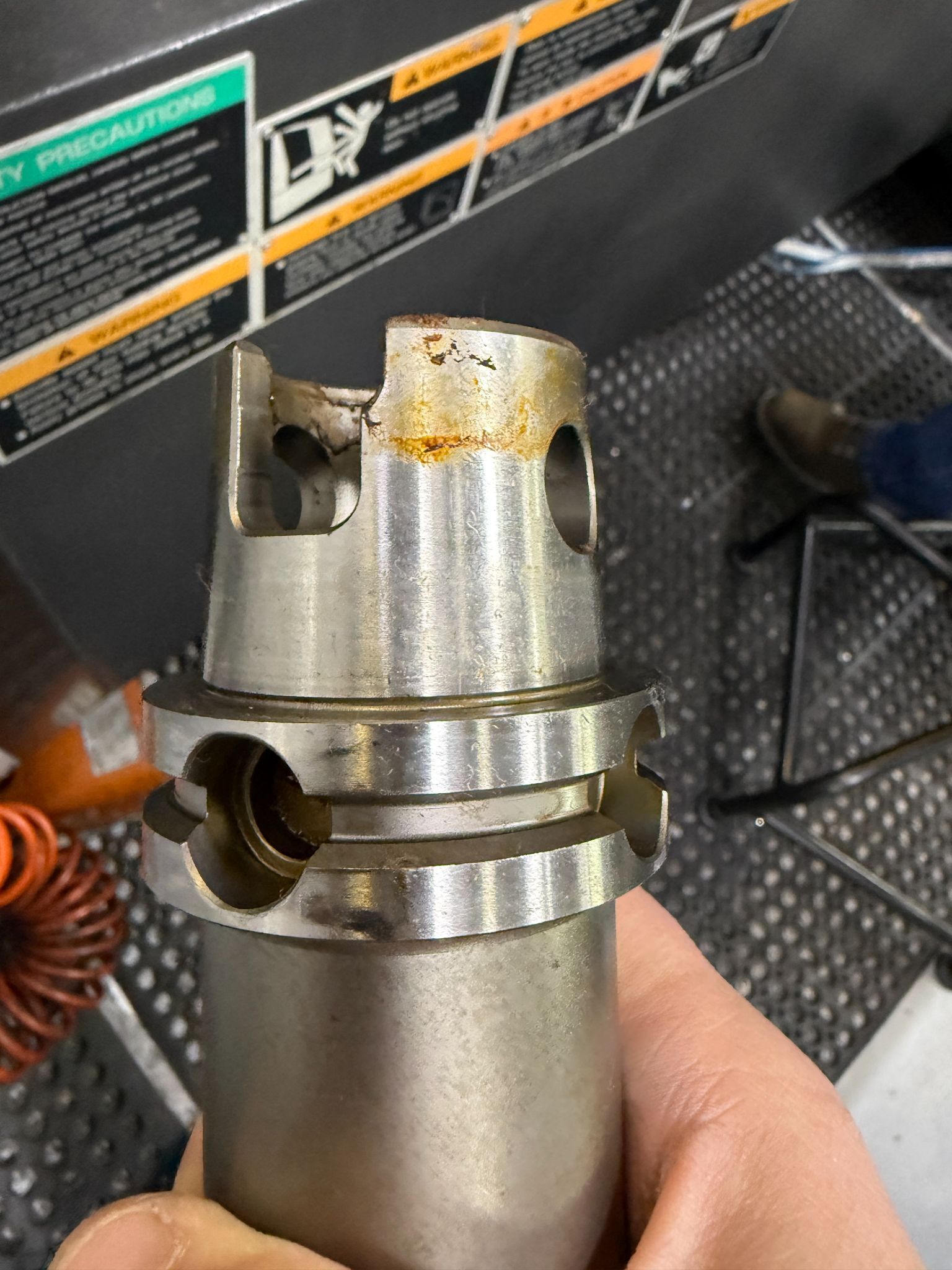

-Comes with 200+ Tool Holders

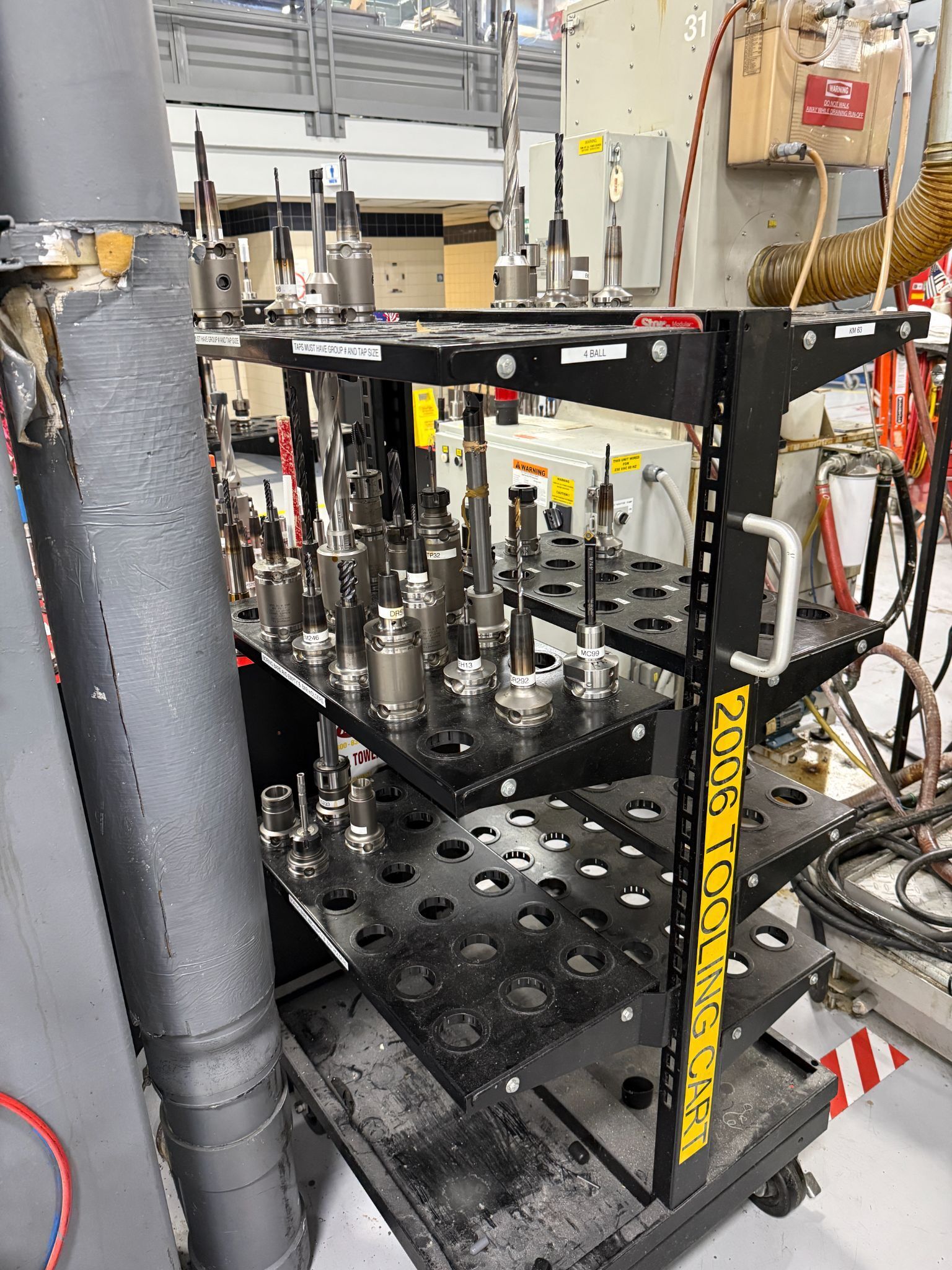

****COMES WITH ALL THE PICTURED TOOL HOLDERS-NO COSUMABLES****
▸ Key Features:
• Mori Seiki NT4250DCG/1500SZ Multi-Tasking CNC Turning Center
• MSX-711IV CNC Control (Mitsubishi)
• 12,000 RPM Milling Spindle with KM63 tooling interface
• Full Y-Axis machining capability
• 1 Degree B-Axis Head positioning
• Integrated Sub-Spindle for complete part machining
• Lower Turret configuration
• High Pressure Coolant Through Spindle system
• Renishaw probing system installed

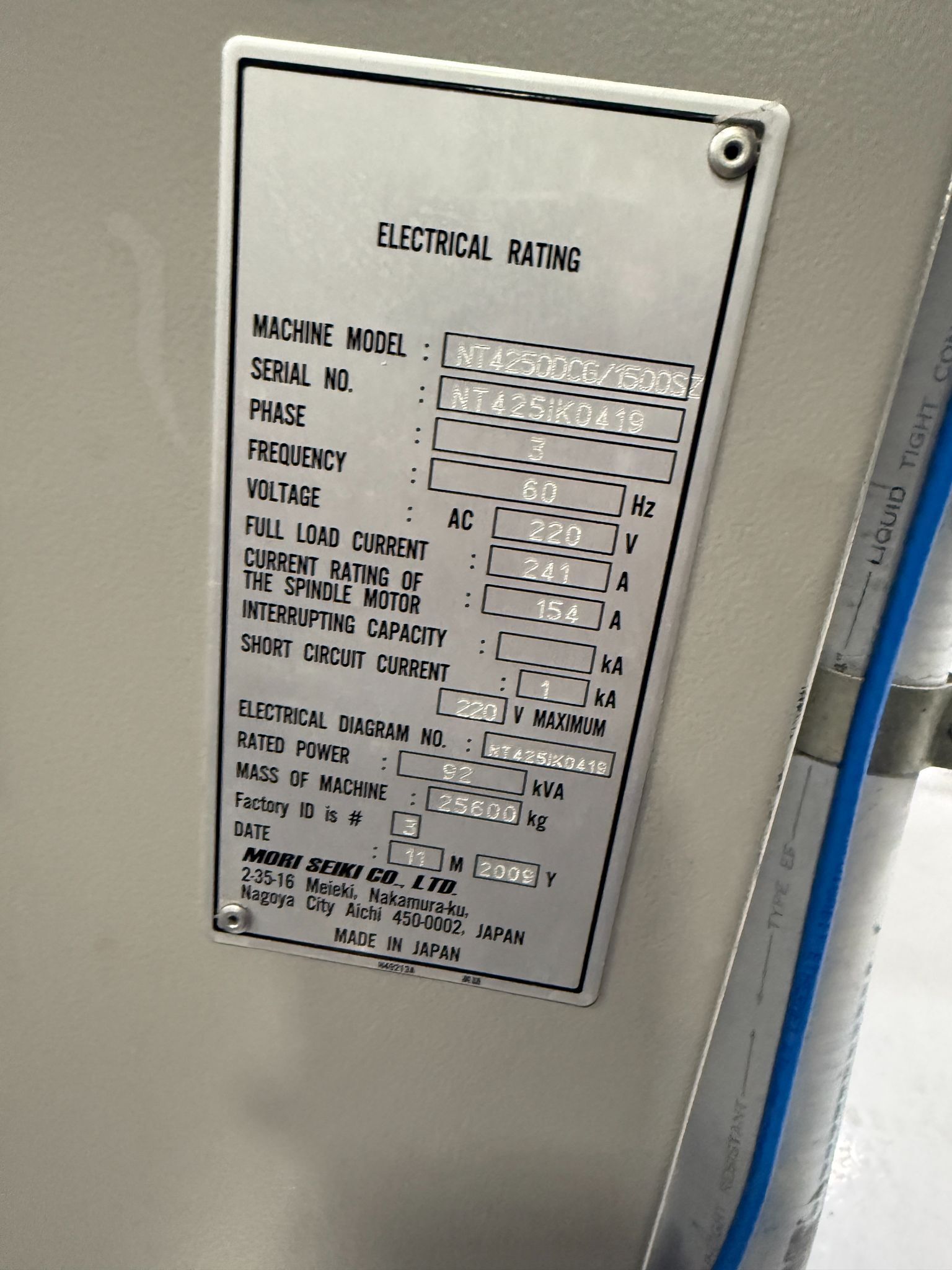

• 3 Phase, 60 Hz electrical configuration
• Includes more than 200 tool holders
• Designed for turning, milling, drilling, tapping and complex contour machining
▸ Applications:
• Aerospace component manufacturing
• Medical device machining
• Automotive precision components
• Oil & gas shaft and valve production
• High-mix, low-volume production environments
• Multi-operation machining in a single setup
• Precision turning and milling operations
• Complex multi-axis manufacturing applications
▸ Alternative Model Numbers:
NT4200/1500SZ
NT4300/1500SZ
NT4250DCG
NT4250SZ
NT Series Multi-Tasking Machines
