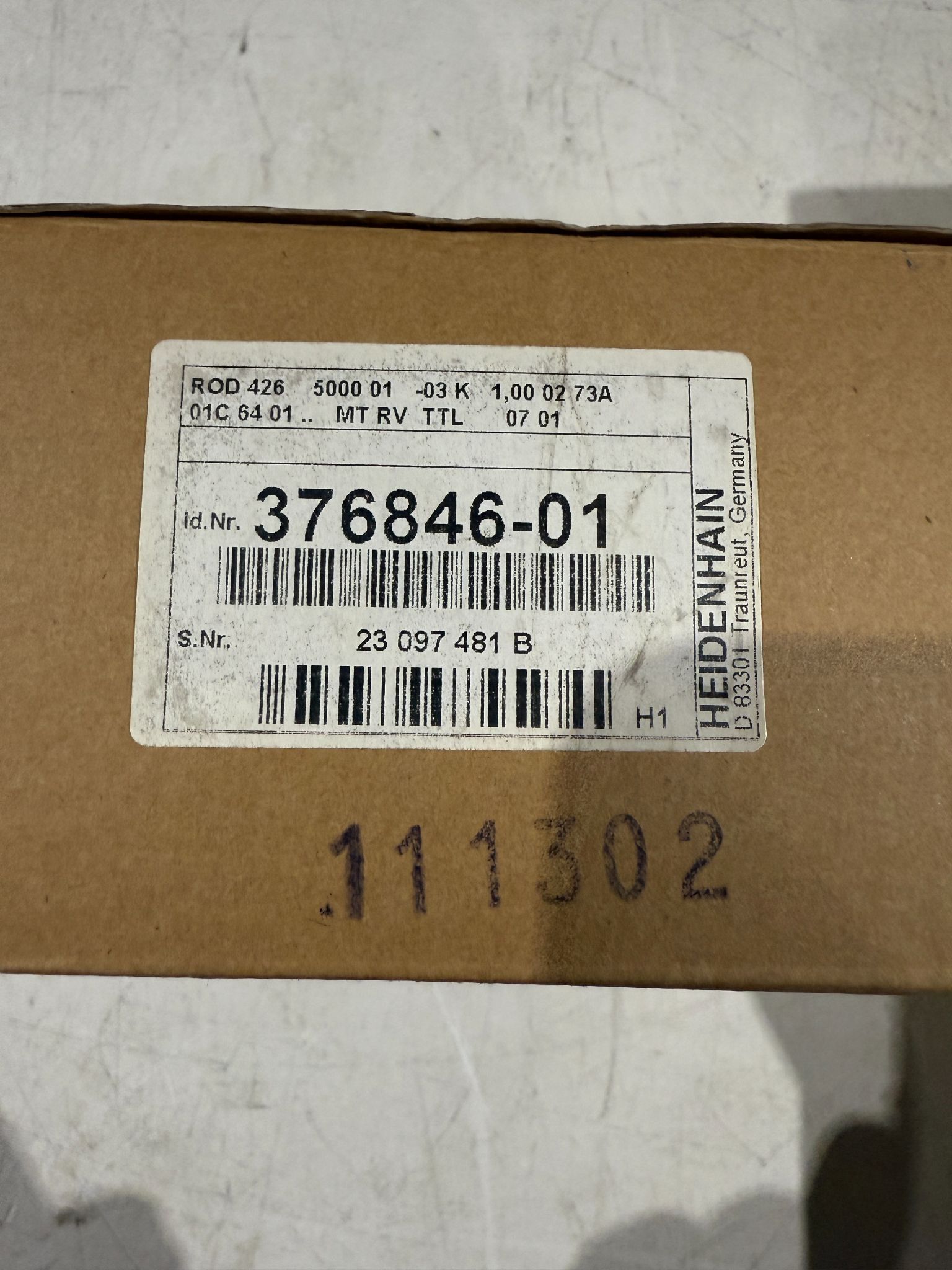

HEIDENHAIN ROD 426 5000 01 -03 ENCODER NEW WITH BOX 1

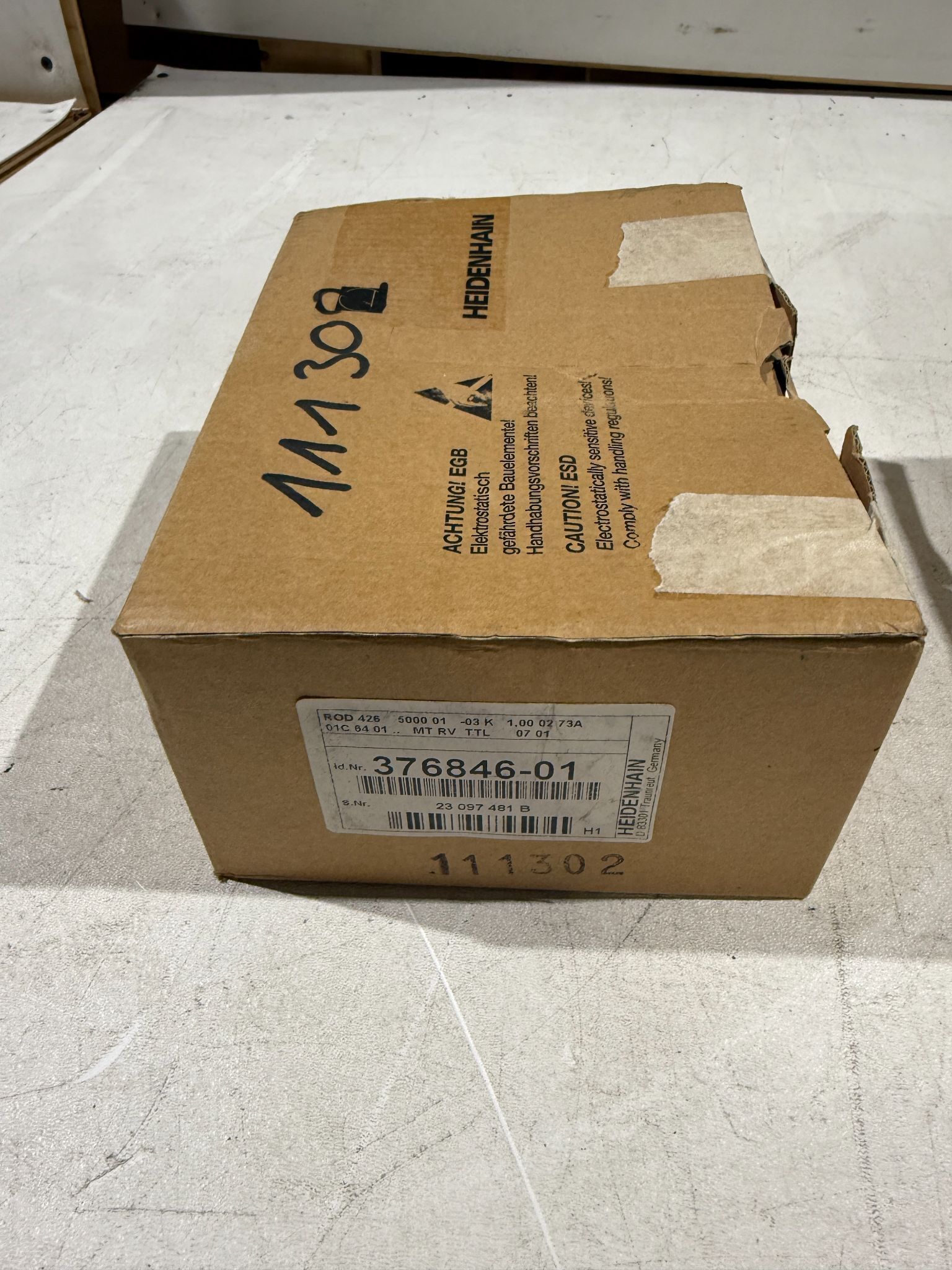

HEIDENHAIN ROD 426 5000 01 -03 ENCODER NEW WITH BOX 2

SOLD!

HEIDENHAIN ROD 426 5000 01 -03 ENCODER NEW WITH BOX

$500.00
Availability:

1 in stock
BRAND: HEIDENHAIN MODEL: ROD 426 5000 01 -03 CONDITION: new
SKU: IGAM0450058 Weight: 2 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

The HEIDENHAIN ROD 426 5000 01-03 is a brand-new rotary encoder supplied in its original packaging, ready for immediate integration into high-precision motion control systems. Engineered for demanding industrial and automation environments, this optical rotary encoder delivers 5000 increments per revolution, making it ideal for accurate feedback in positioning and speed control. As part of HEIDENHAIN’s respected ROD 426 series, this model combines rugged construction with advanced signal quality and long-term reliability.

Product Specifications

  • Model Number: ROD 426 5000 01-03

  • Manufacturer: HEIDENHAIN

  • Resolution: 5000 pulses per revolution (PPR)

  • Signal Output: TTL (with differential line driver)

  • Shaft Type: Solid shaft

  • Shaft Diameter: 10 mm

  • Housing Diameter: 58 mm

  • Connection: Axial connector with mating cable interface

  • Power Supply: 5V DC

  • Mounting Type: Clamp flange



Key Features

  • High-resolution 5000 PPR for precise speed and position feedback

  • Durable and compact 58 mm housing suitable for tight installation spaces

  • Solid shaft design for high mechanical stability

  • TTL output with differential signaling for noise immunity

  • Designed for seamless integration into CNC machines, robotics, and servo motors



Applications

  • CNC machine tool feedback systems

  • Robotics and automation controls

  • Servo drive positioning

  • Industrial motion control

  • Printing and textile machinery requiring high-accuracy feedback



Alternative model numbers include: ROD426-5000-01-03, HEIDENHAIN-ROD-426-5000, 426-5000-01-03-ENC, ROD4265000-HEIDENHAIN, HEIDENHAIN-ENCODER-426
Common misspellings include: HEIDENHEIN ROD 426, HEIDNHAN ROD 426, HEIDENHAIN RDO 426, HEIDENHAIN ROD426, HEIDENHAIN ROD 462
