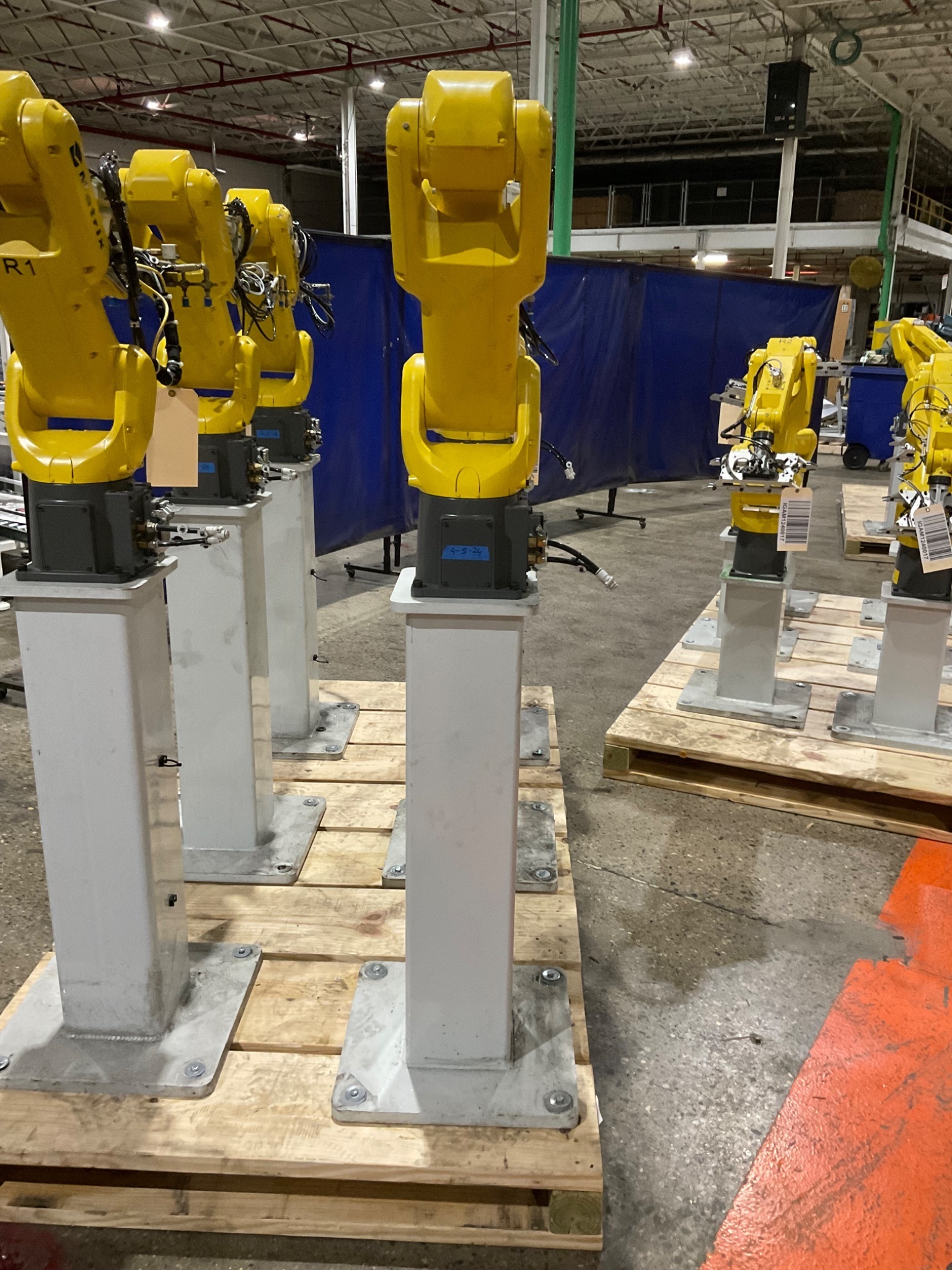

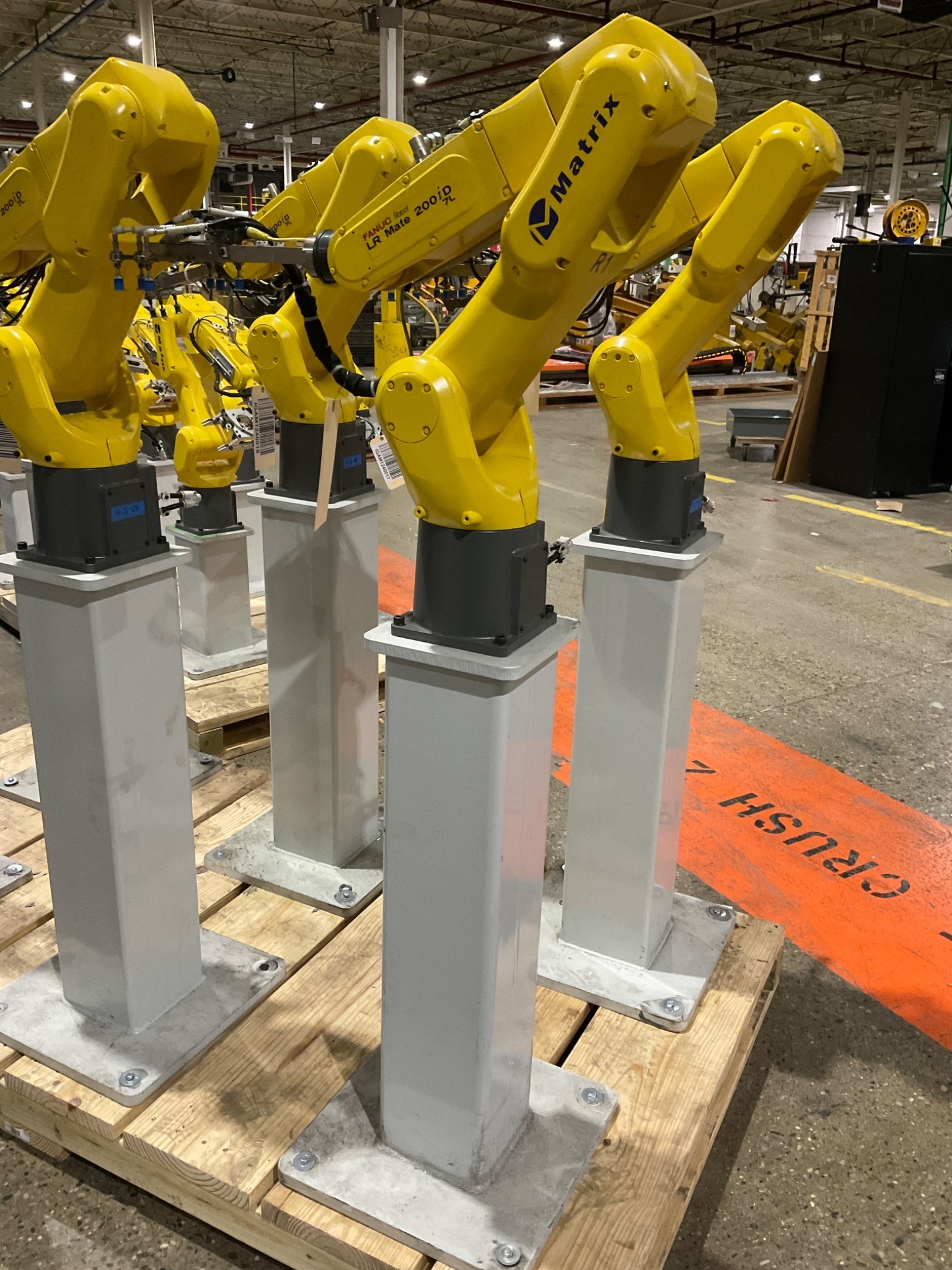

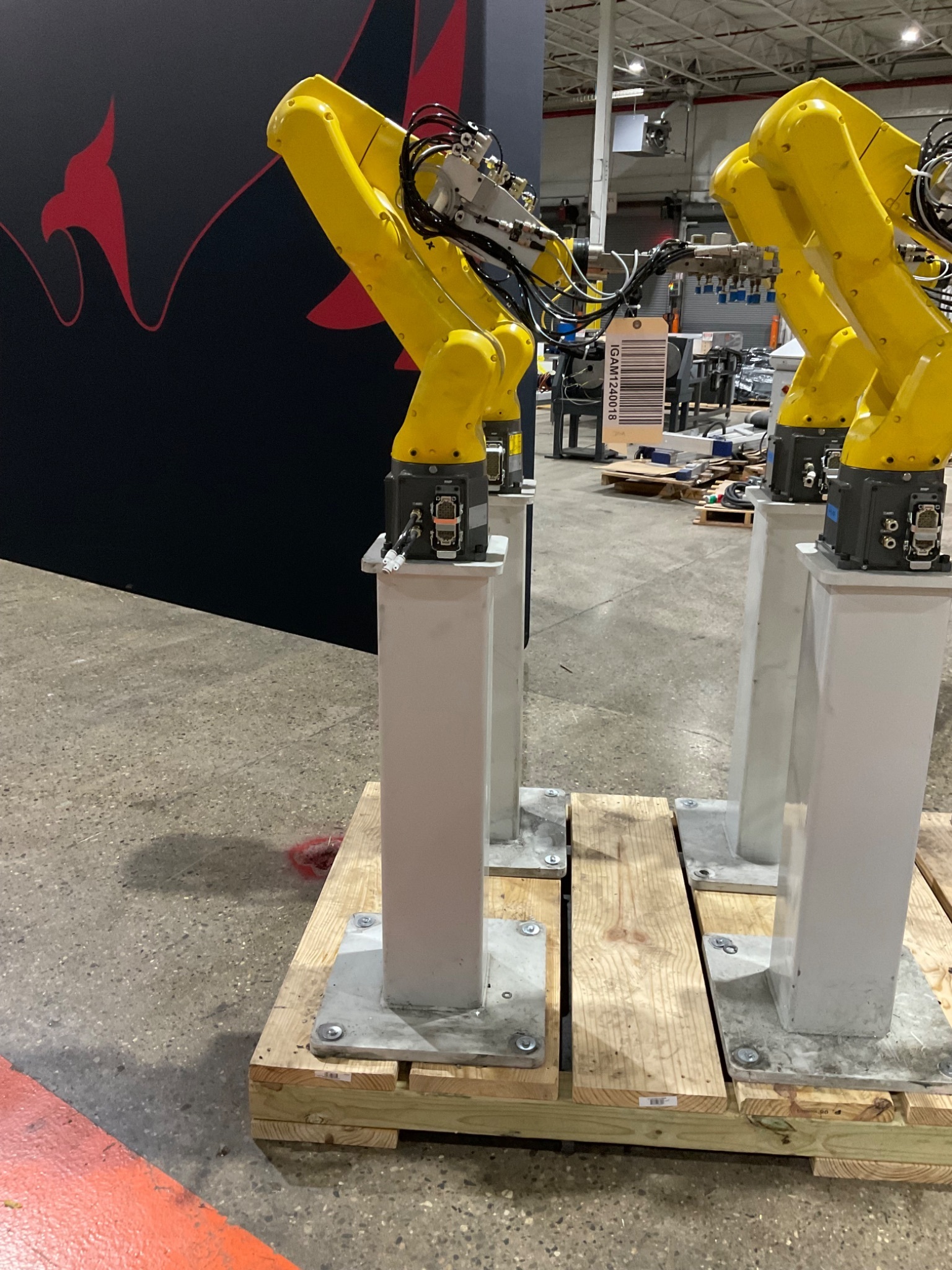

FANUC LR MATE 200iD/7L ROBOT w/ R30iB Plus CONTROLLER & 38-IN RISER

Product Specifications

• Robot Model: FANUC LR Mate 200iD/7L

• Controller: FANUC R-30iB Plus

• Axes: 6-axis articulated robot

• Payload Capacity: 7 kg (15.4 lbs)

• Reach: 911 mm (35.9 in)

• Repeatability: ±0.01 mm

• Mounting Options: Floor, ceiling, wall

• Riser Height: 38 inches

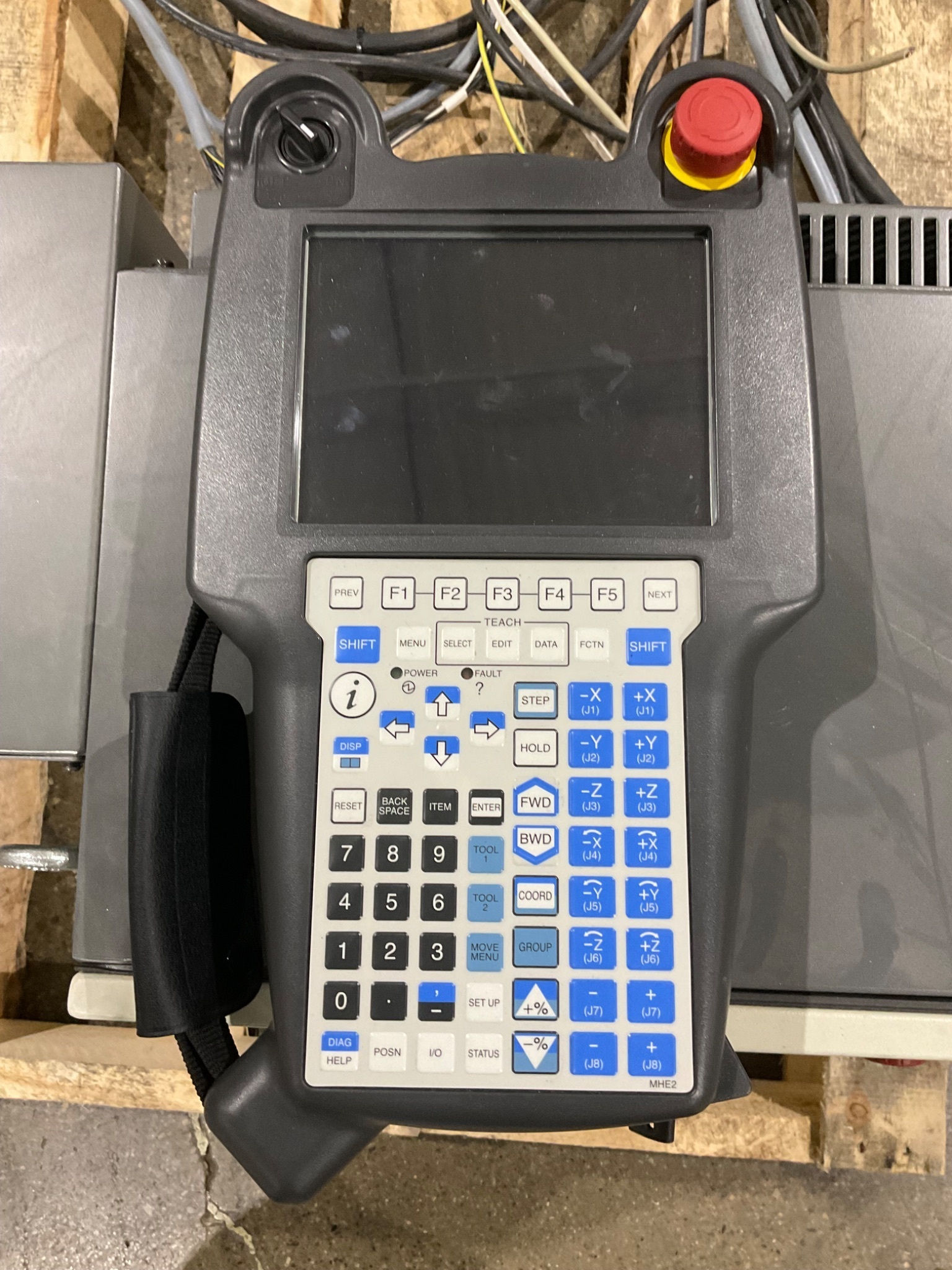

• Control Pendant: iPendant Touch with user-friendly interface

• Communication: Ethernet/IP and standard fieldbus compatibility

Key Features

• Extended arm design (7L) provides a longer reach for broad workspaces

• 38-inch riser increases operational height for greater vertical flexibility

• Compact footprint ideal for tight industrial cells or lab setups

• R-30iB Plus controller enhances user interface, memory capacity, and processing speed

• Supports iRVision, force sensors, and coordinated motion control

• Low-maintenance servo motors contribute to energy efficiency and reliability

• Multi-mounting capability allows seamless integration in varied configurations

Applications

• Machine tending for CNCs, injection molders, or die casting stations

• Material loading and unloading in automated cells

• Precision assembly in electronics and medical device manufacturing

• Vision-guided inspection and quality control systems

• Educational use in robotics training and R&D environments

Alternative model numbers include: FANUC 200iD/7L with R30iB Plus Controller, LR Mate 200iD 7L with 38″ Riser, FANUC Robot 200ID/7L Long Reach, FANUC R30iB+ with LR Mate 7L, 200iD/7L Robot Extended Mount

Common misspellings include: FANUC LRMate 2001D, Fanuc 200ID7L, LR Mate 200id/7L Plus, R30 B Plus Controller, FANUC LRMATE 200 D
