Product Specifications
-
Robot Model: FANUC LR Mate 200iD/7L
-

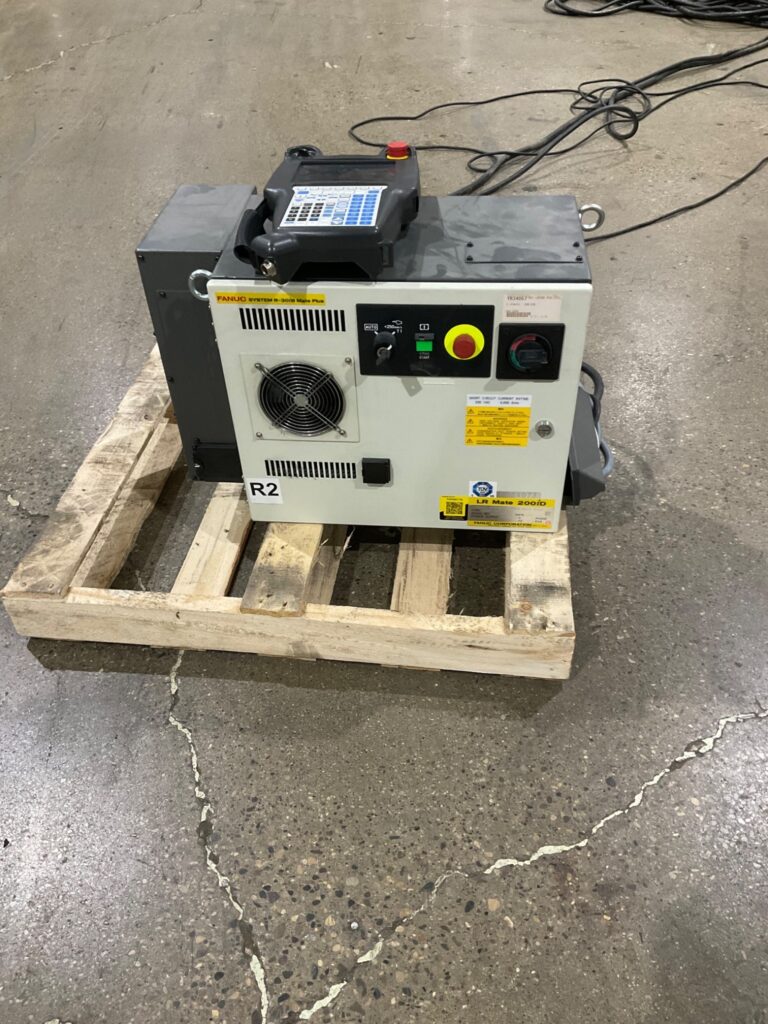

Controller: FANUC R-30iB Plus
-
Axes: 6-axis articulated robot
-
Payload Capacity: 7 kg (15.4 lbs)
-
Reach: 911 mm (35.9 in)
-
Repeatability: ±0.01 mm
-
Mounting Options: Floor, ceiling, wall
-
Riser Height: 38 inches
-
Control Pendant: iPendant Touch with user-friendly interface
-
Communication: Ethernet/IP and standard fieldbus compatibility
Key Features
-
Extended arm design (7L) provides a longer reach for broad workspaces
-

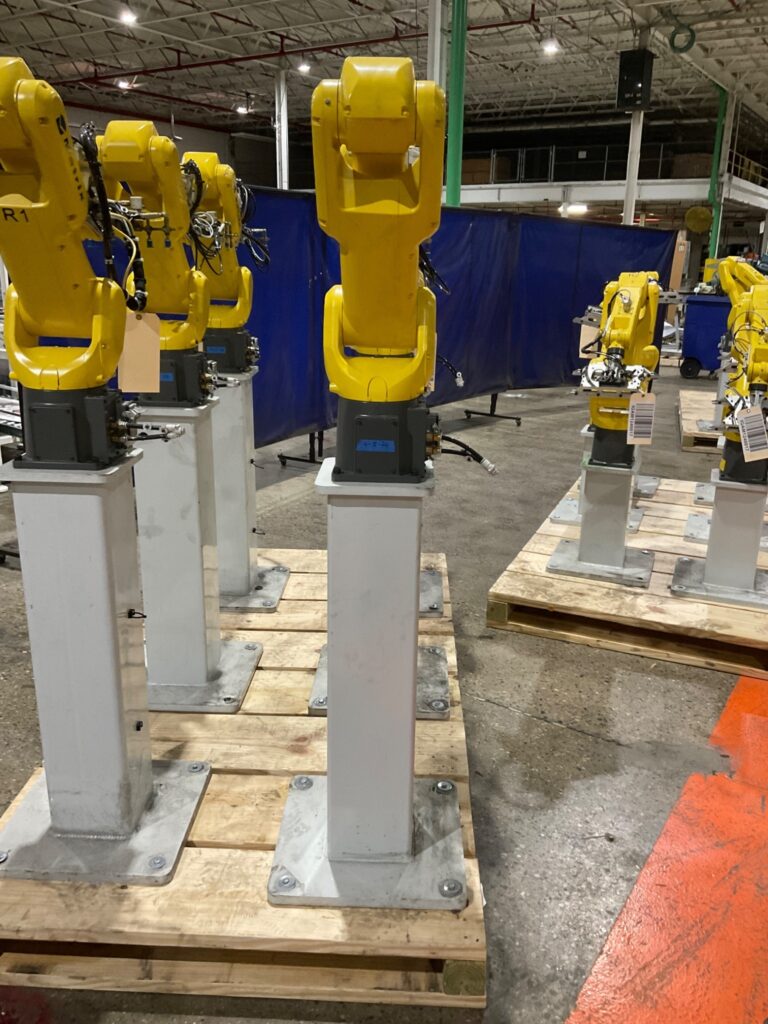

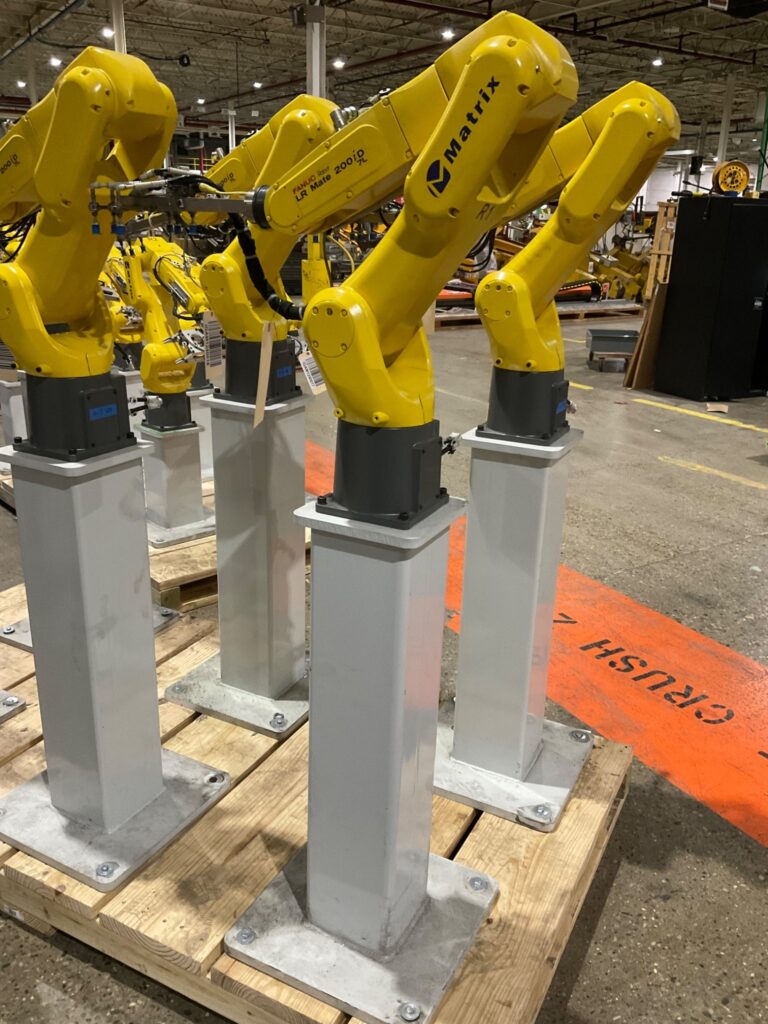

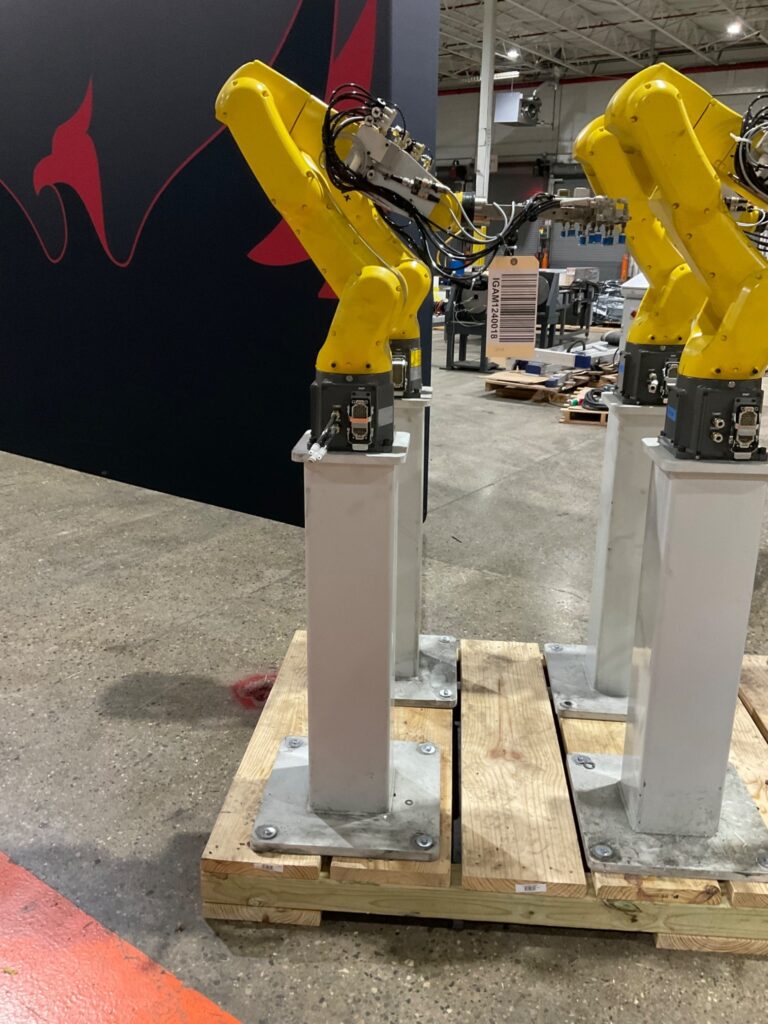

38-inch riser increases operational height for greater vertical flexibility
-
Compact footprint ideal for tight industrial cells or lab setups
-
R-30iB Plus controller enhances user interface, memory capacity, and processing speed
-
Supports iRVision, force sensors, and coordinated motion control
-
Low-maintenance servo motors contribute to energy efficiency and reliability
-
Multi-mounting capability allows seamless integration in varied configurations
Applications
-
Machine tending for CNCs, injection molders, or die casting stations
-
Material loading and unloading in automated cells
-
Precision assembly in electronics and medical device manufacturing
-
Vision-guided inspection and quality control systems
-
Educational use in robotics training and R&D environments
Alternative model numbers include: FANUC 200iD/7L with R30iB Plus Controller, LR Mate 200iD 7L with 38″ Riser, FANUC Robot 200ID/7L Long Reach, FANUC R30iB+ with LR Mate 7L, 200iD/7L Robot Extended Mount
Common misspellings include: FANUC LRMate 2001D, Fanuc 200ID7L, LR Mate 200id/7L Plus, R30 B Plus Controller, FANUC LRMATE 200 D
