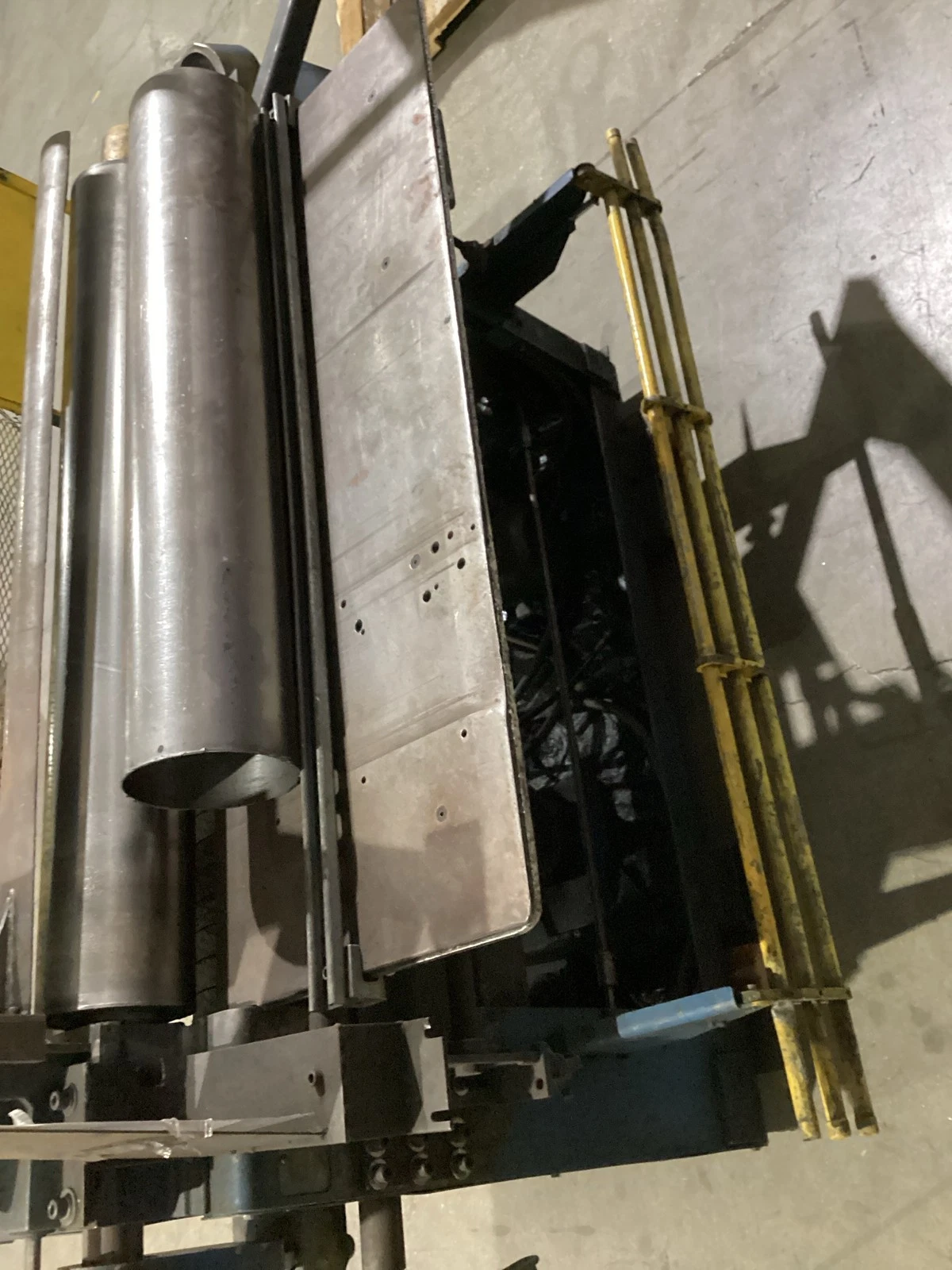

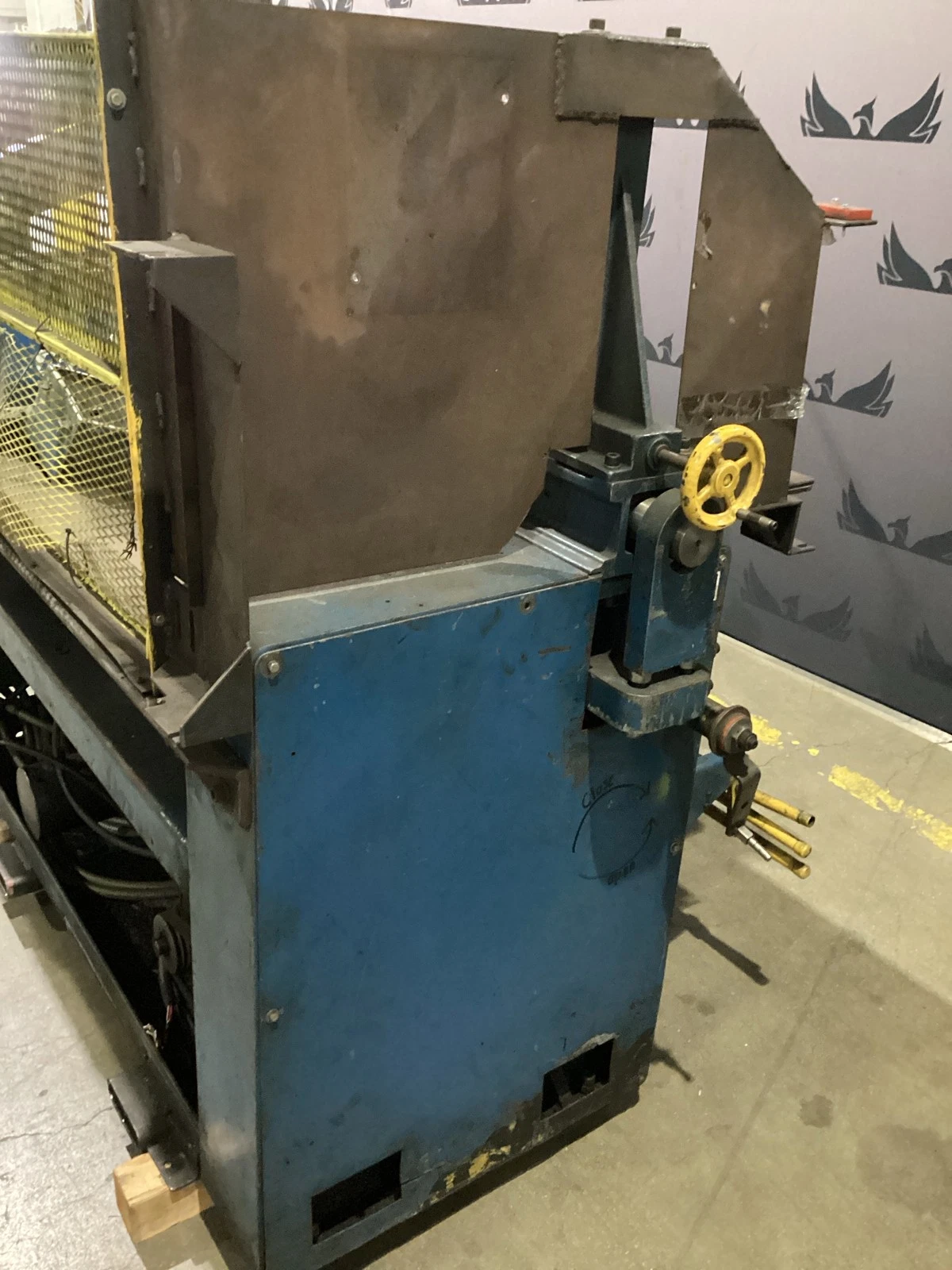

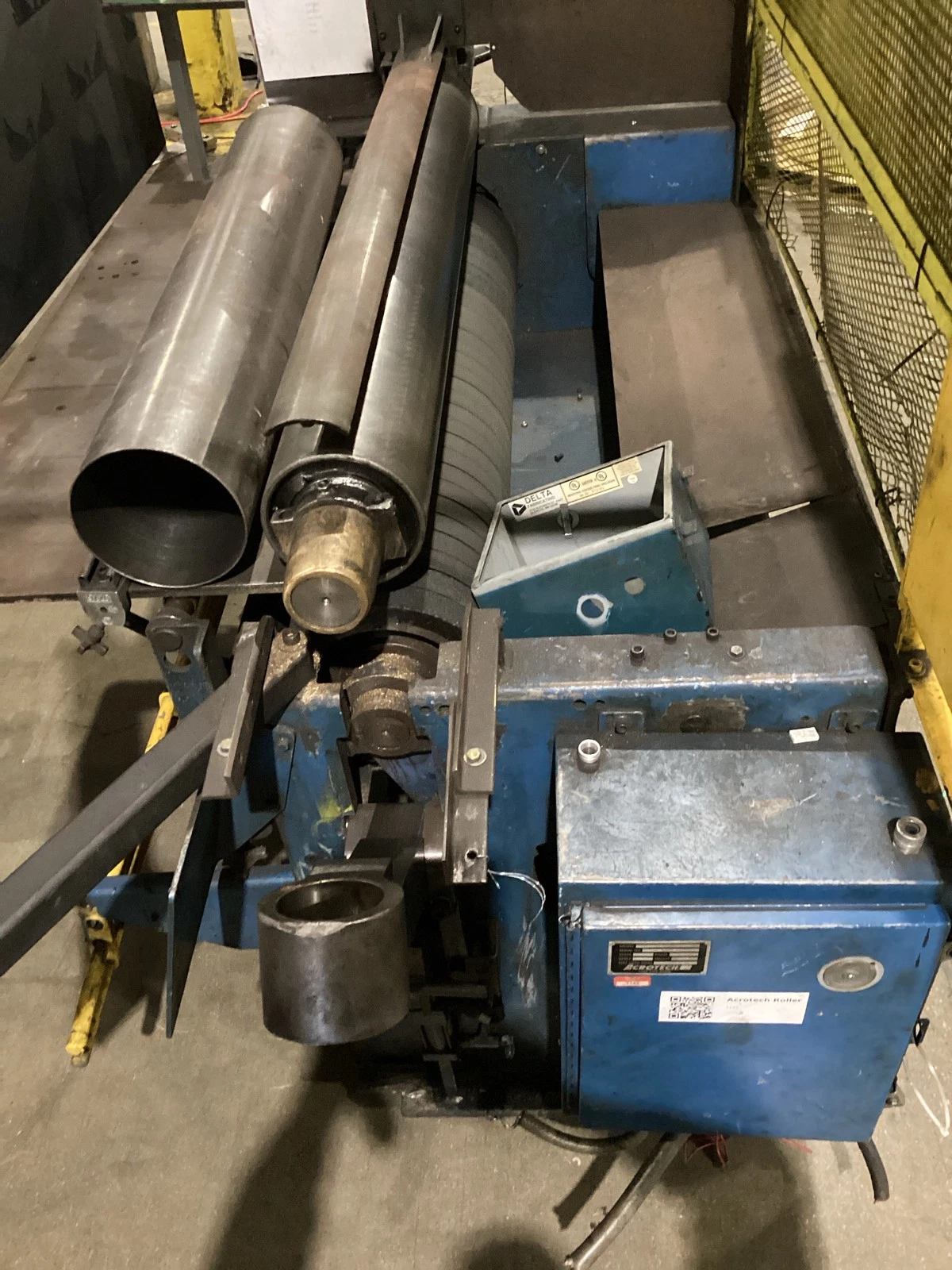

This listing is for a USED Acrotech HD-1248. This heavy-duty powered roll provides a 48″ working length for forming sheet material, with 12-gauge mild-steel capacity, a 7″ top roll, and a 12″ bottom roll. The unit operates on 480V, 3-phase power with a 5 HP motor.

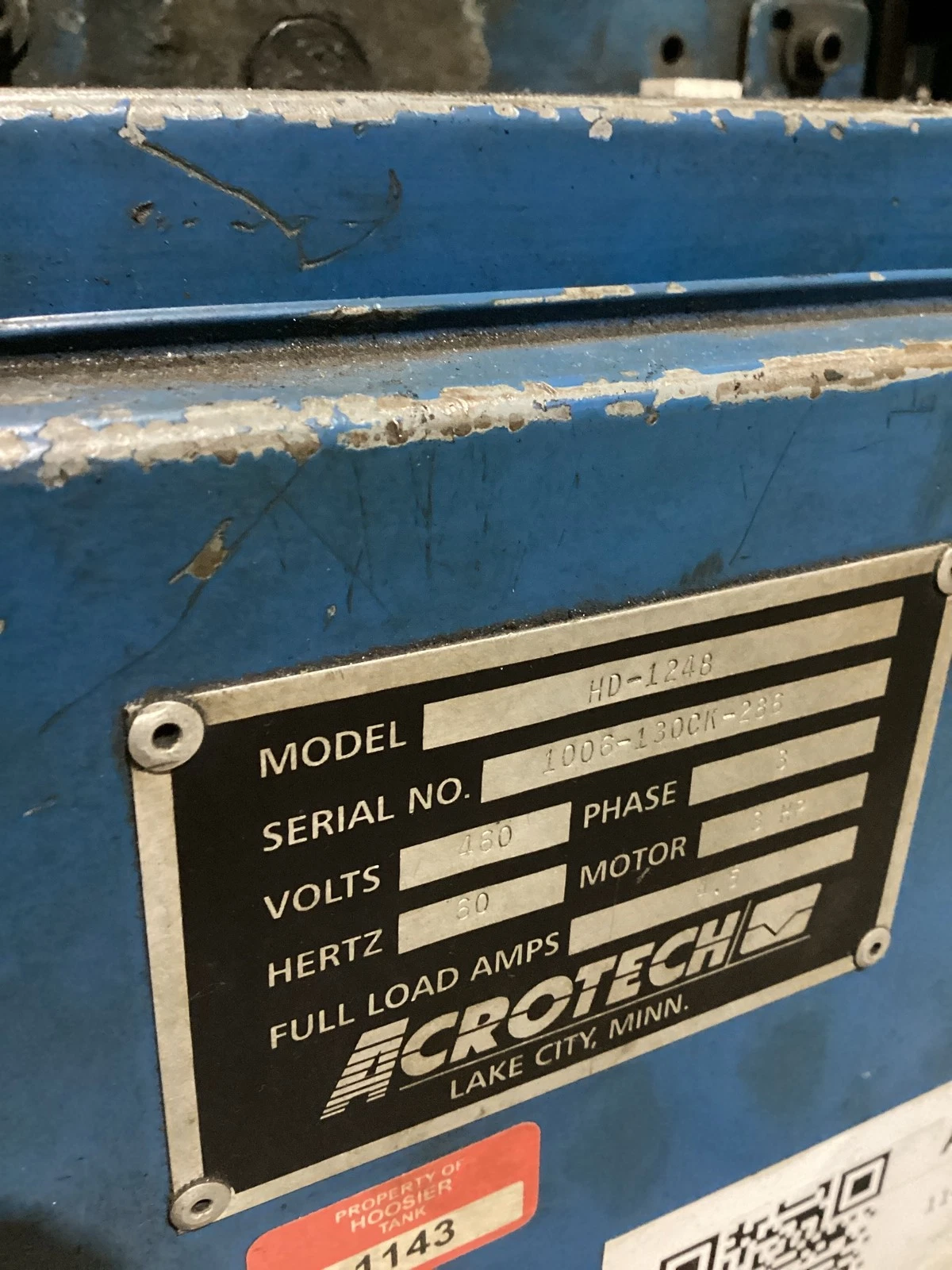

IDENTIFICATION
Manufacturer: Acrotech
Model: HD-1248
Di-Acro Model: B4870
Product Type: Heavy Duty Powered Roll
Serial Number: 1000S-1300K-285
Condition: USED
YOM: n/a
FORMING CAPACITY
Mild Steel Capacity: 12 ga.
Metric Capacity: 2.7 mm
Working Length: 48 in.
Metric Working Length: 1220 mm
ROLL CONFIGURATION
Top Roll Diameter: 7 in.
Top Roll Diameter Metric: 178 mm
Bottom Roll Diameter: 12 in.
Bottom Roll Diameter Metric: 305 mm
Rolling Speed: 19.5 fpm
Metric Rolling Speed: 594.4 CPM

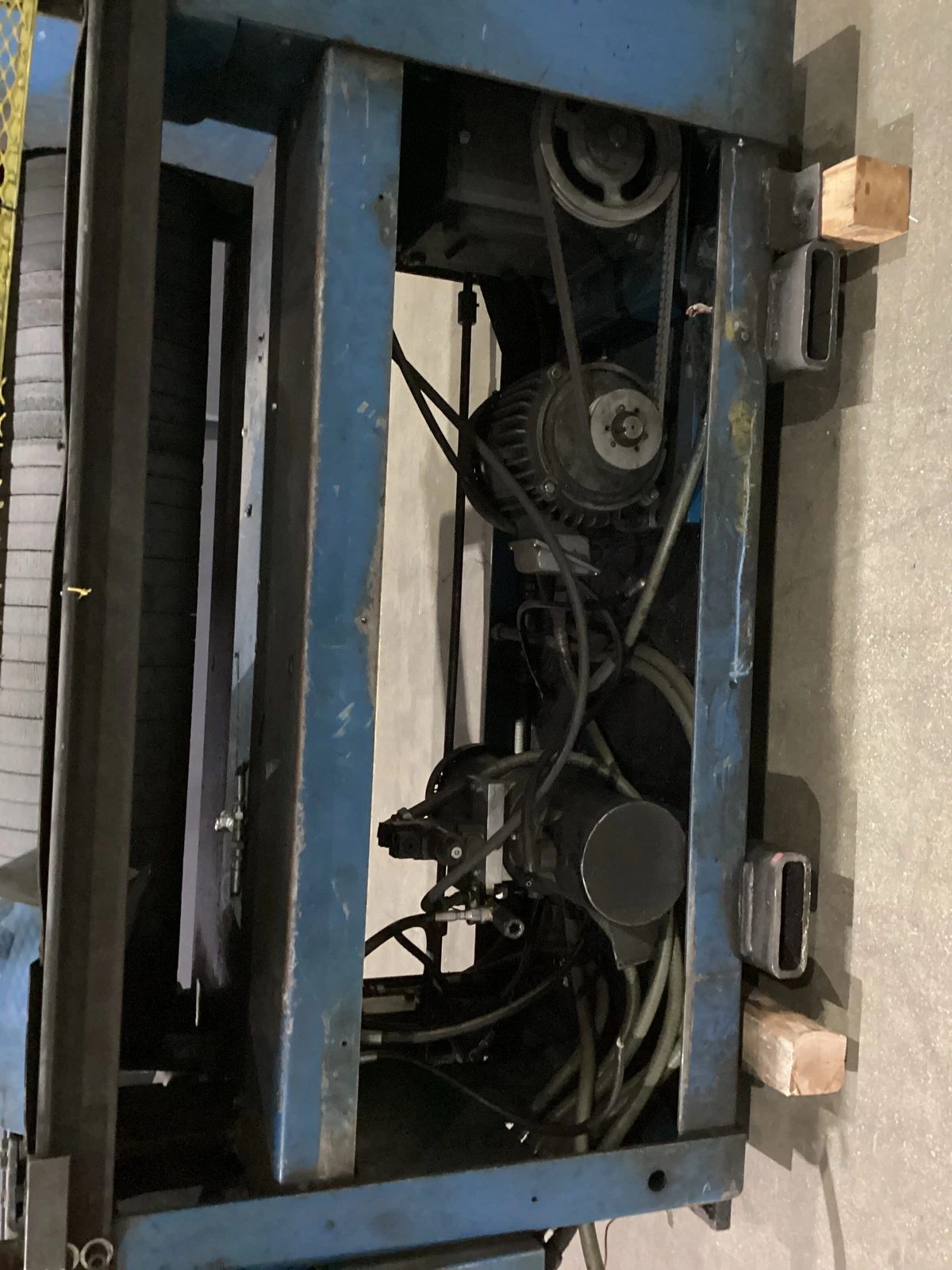

DRIVE
Drive Type: Powered
Motor Rating: 5 HP
ELECTRICAL
Supply Voltage: 480 VAC
Phase: 3 Phase
Frequency: 60 Hz
Full Load Amps: Not specified
Control Voltage: Not specified
INSTALLATION / OPERATION
Machine Configuration: Floor-Standing
Working Area Guarding: Present
Electrical Service: 480 VAC, 3 Phase, 60 Hz
