2009 3/8″ T&H LEMONT MODEL #WU11-9 STAINLESS TUBE MILL USED

Overview

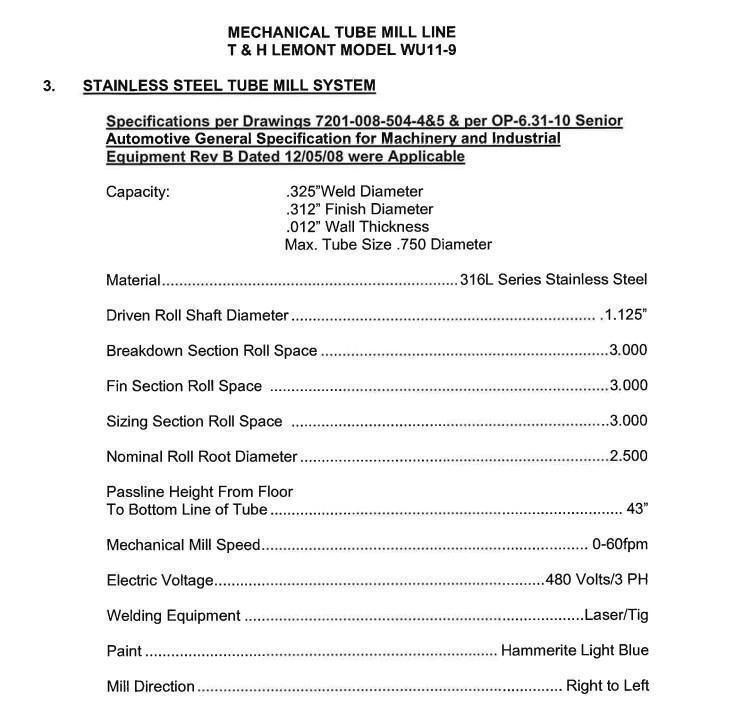

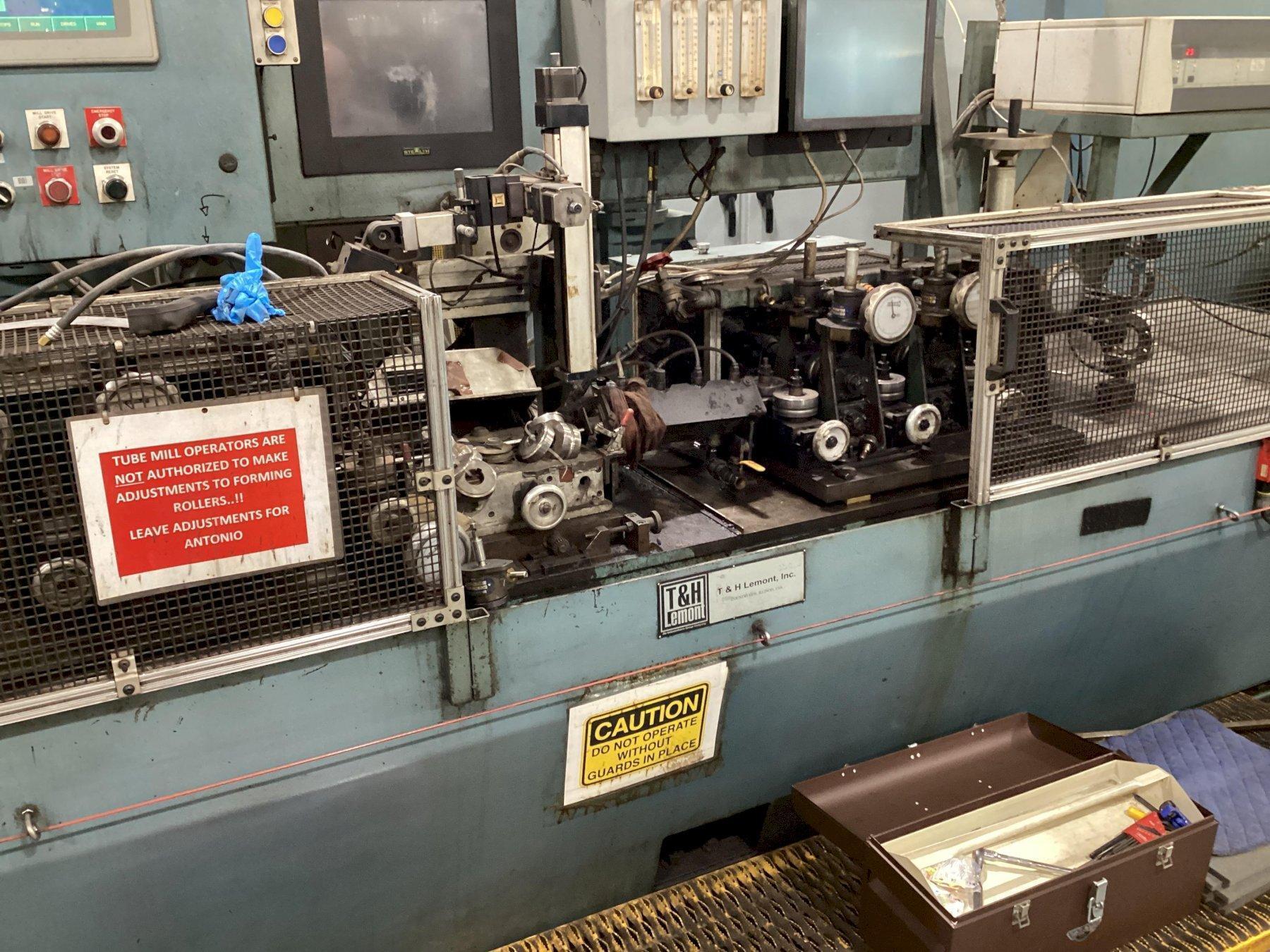

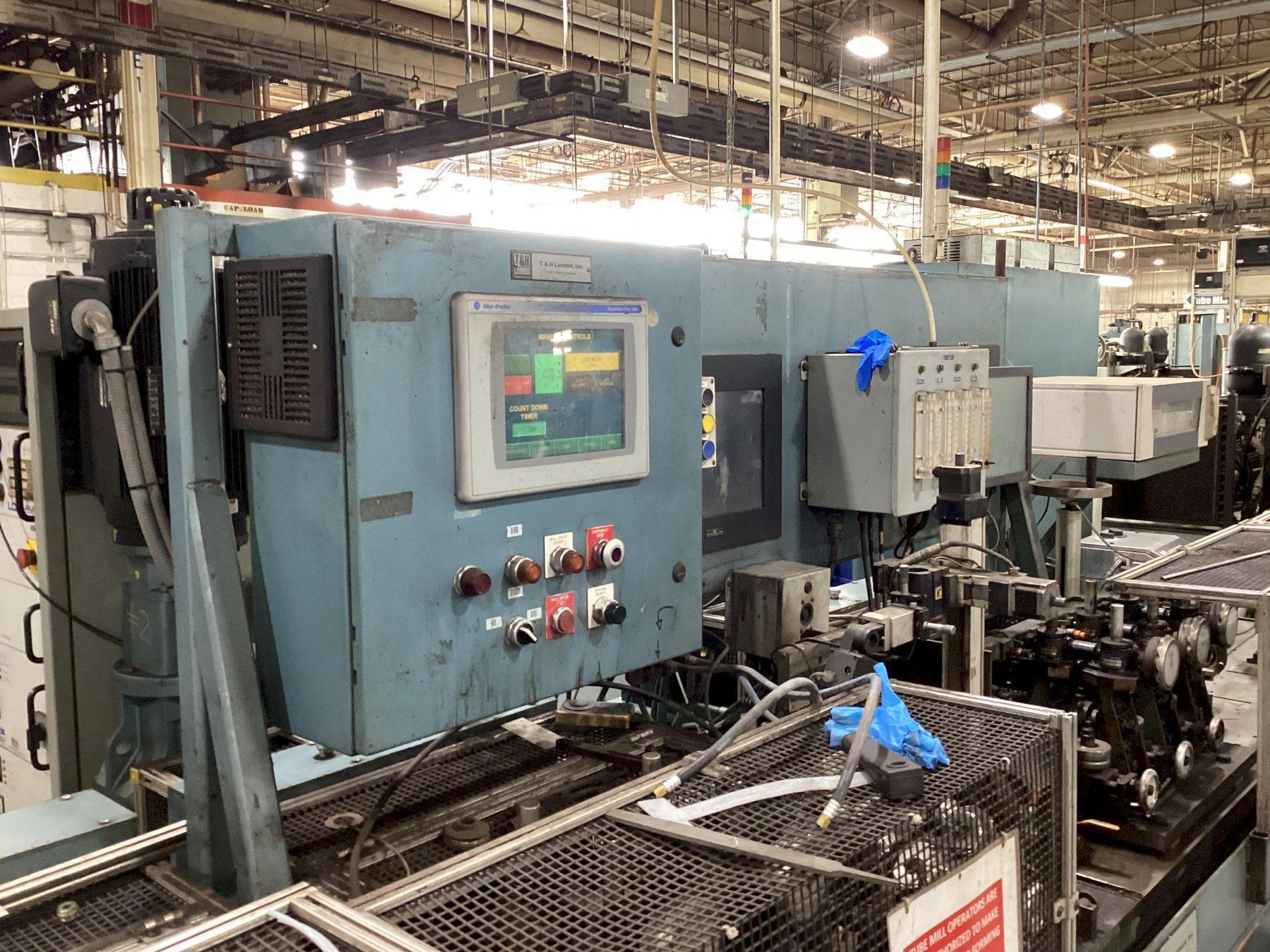

This listing is for a 3/8″ T&H Lemont WU11-9 Tube Mill.

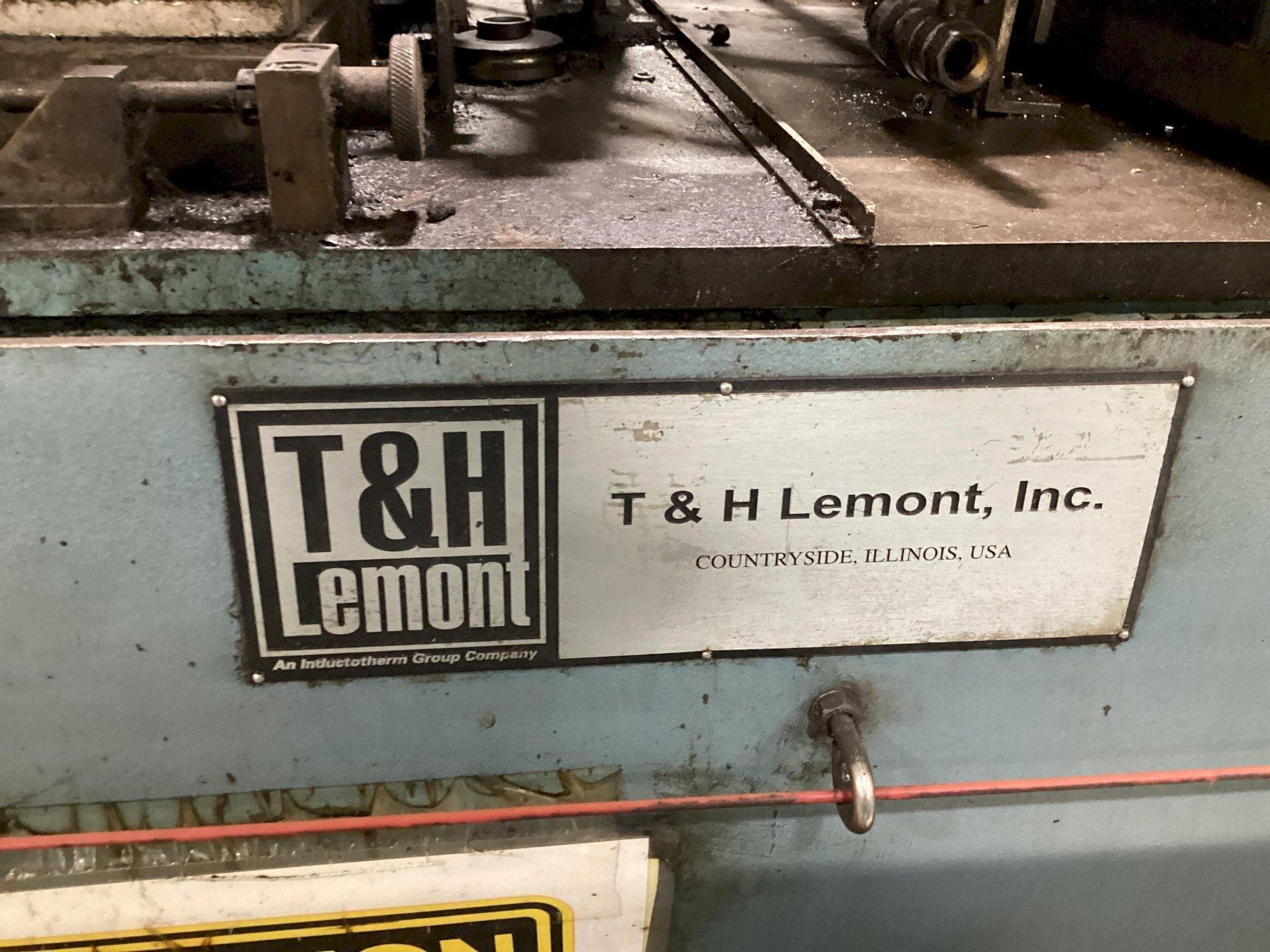

Manufacturer: T & H Lemont
Model: WU11-9

Tube OD Range: .236″ – 1.000″
Finished Tube Diameter: .312″
Wall Thickness Range: .012″ – .030″
Maximum Tube Diameter: .750″
Material Capability: 316L Stainless Steel

Mill Speed: 0–60 FPM
Passline Height: 43″
Mill Direction: Right to Left
Voltage: 480V / 3 Phase

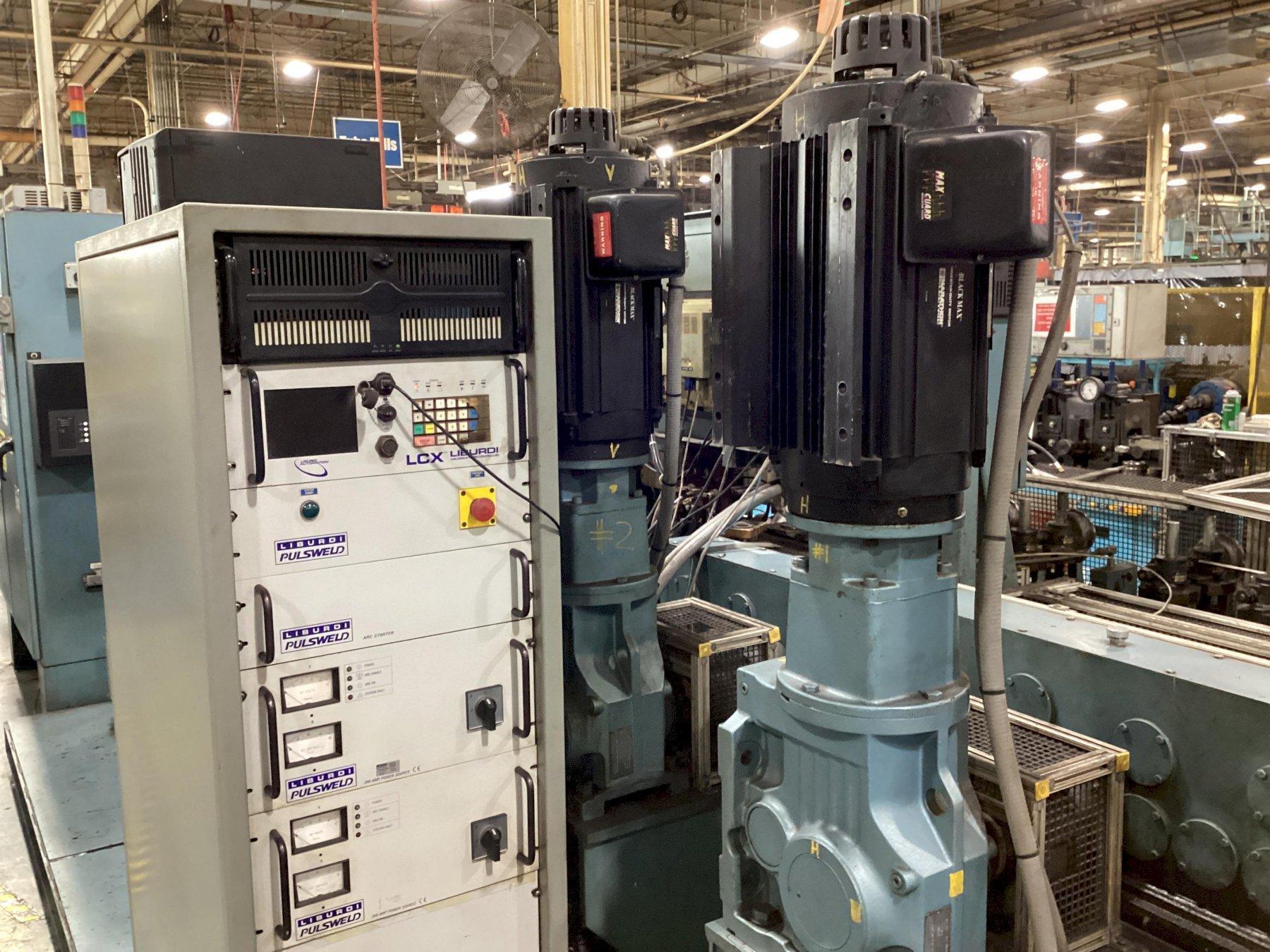

Welding: Laser / TIG

Driven Roll Shaft Diameter: 1.125″

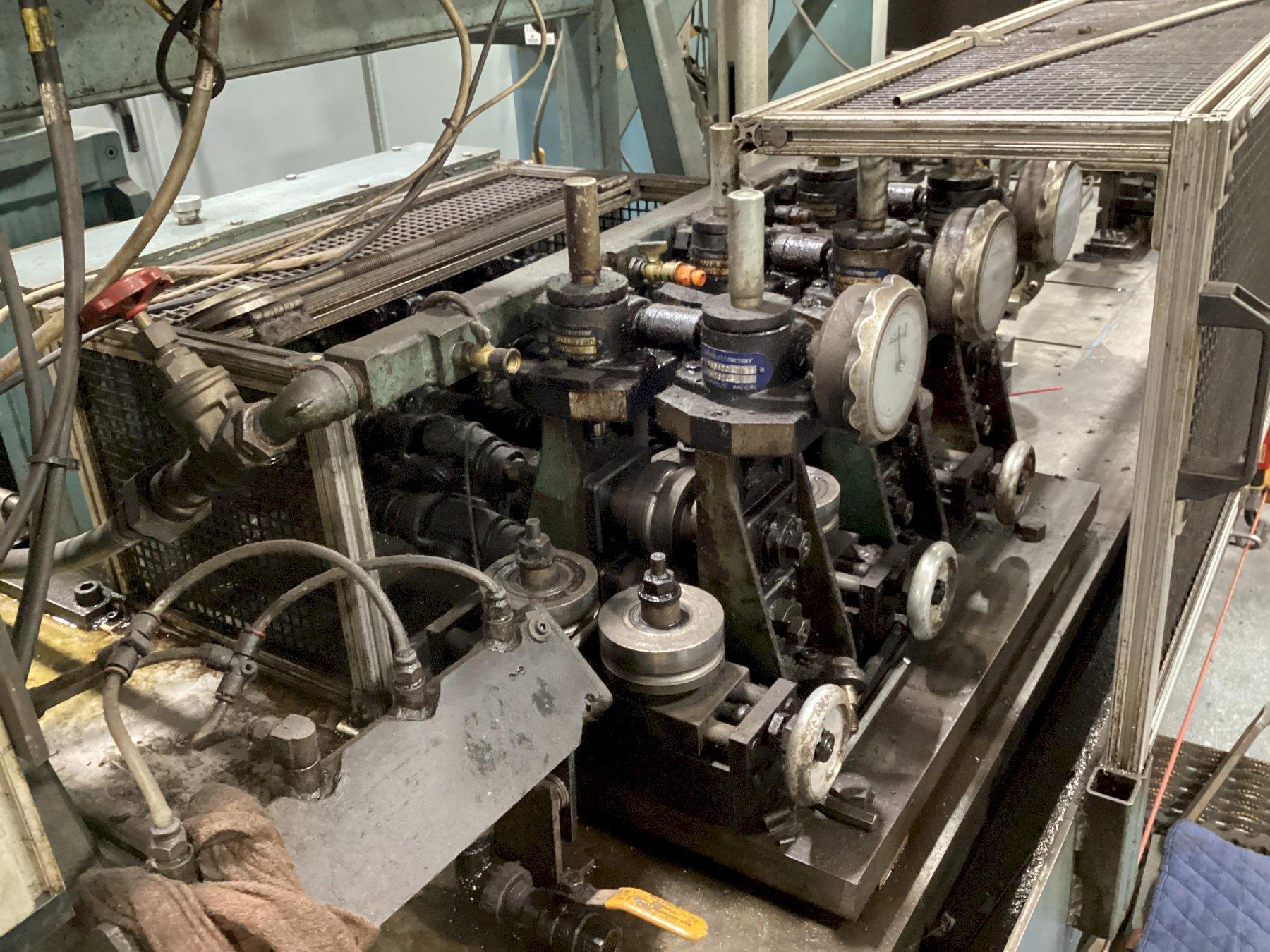

Roll Space (Breakdown / Fin / Sizing): 3.000″
Nominal Roll Root Diameter: 2.500″

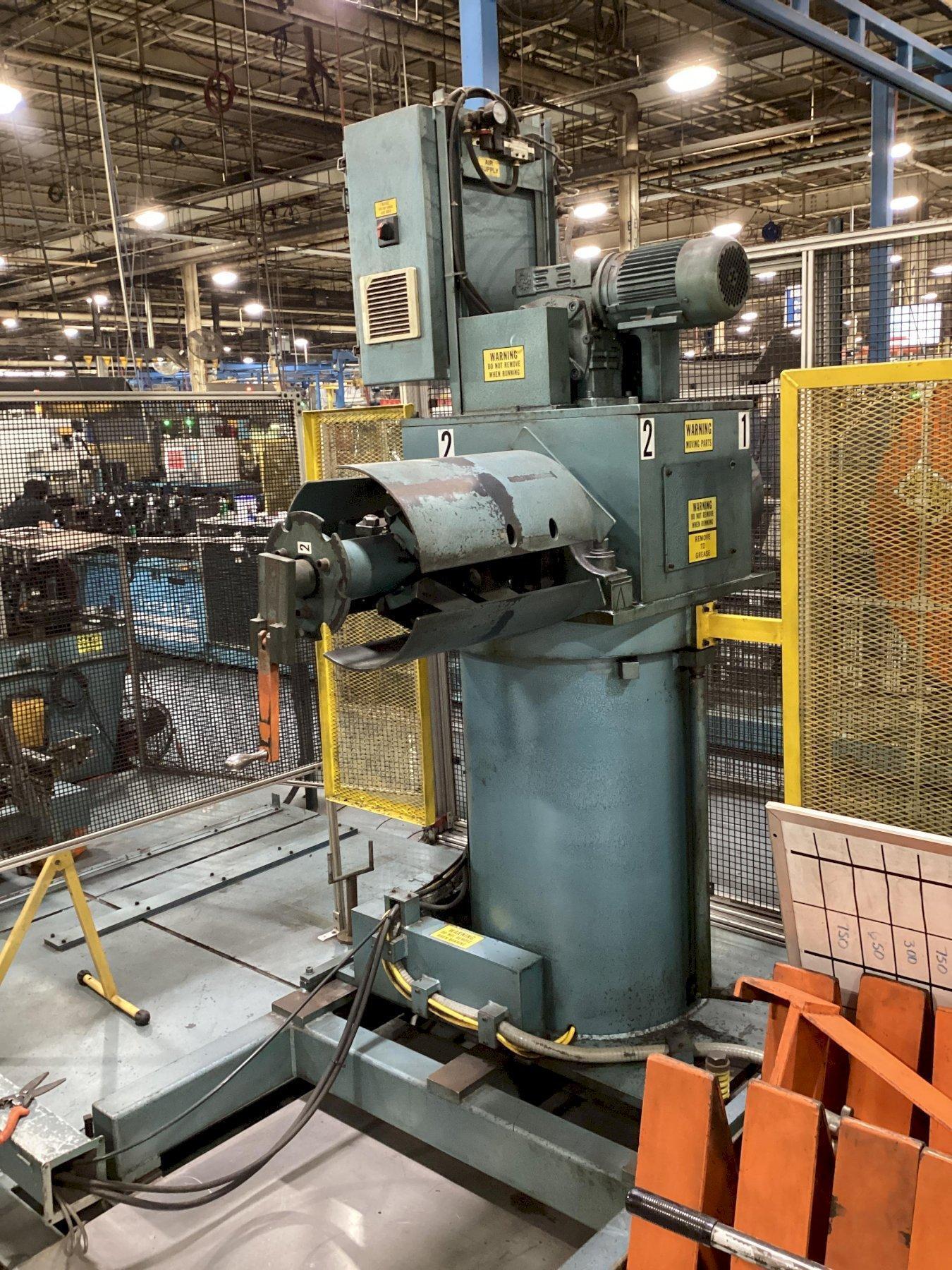

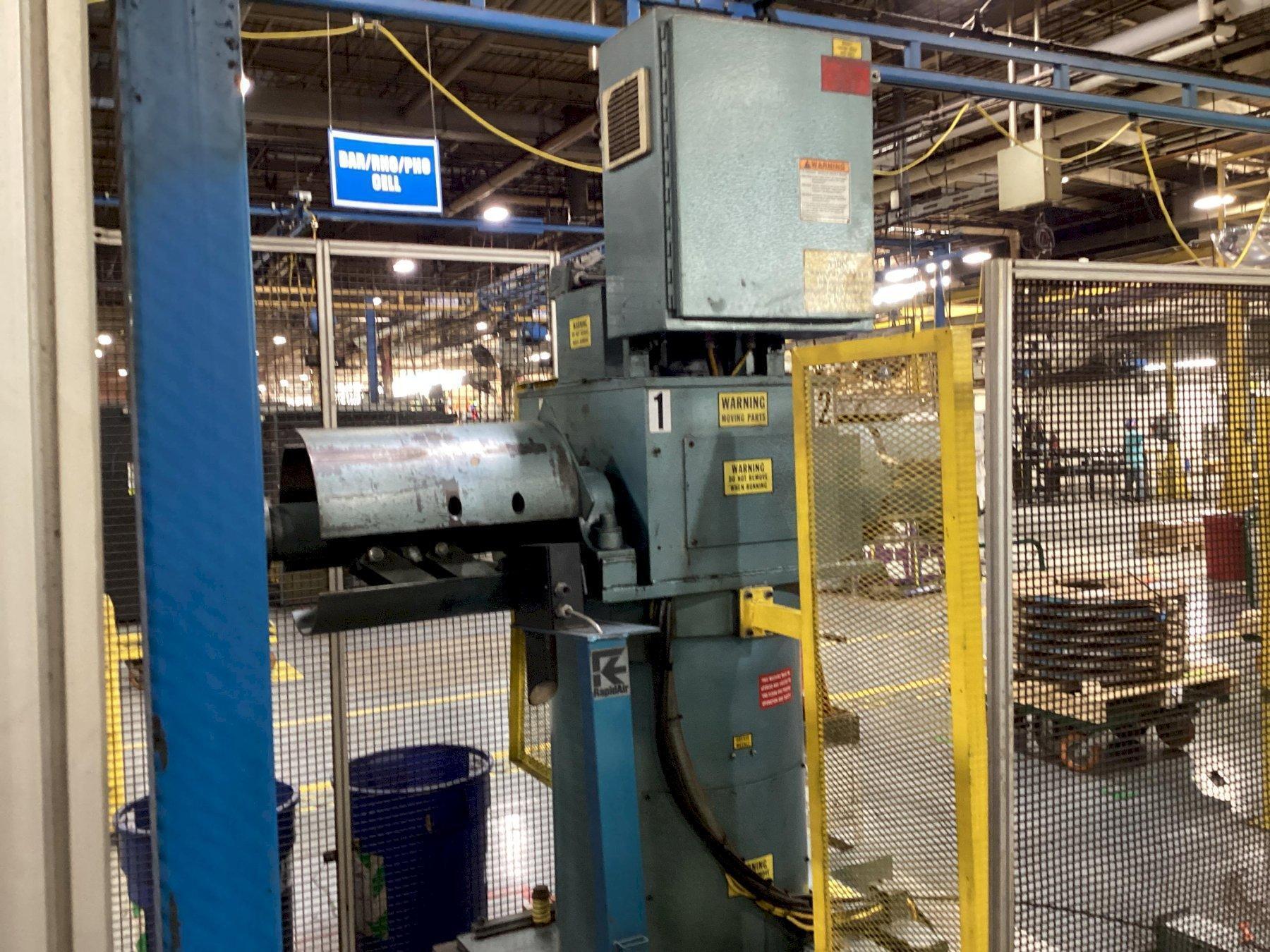

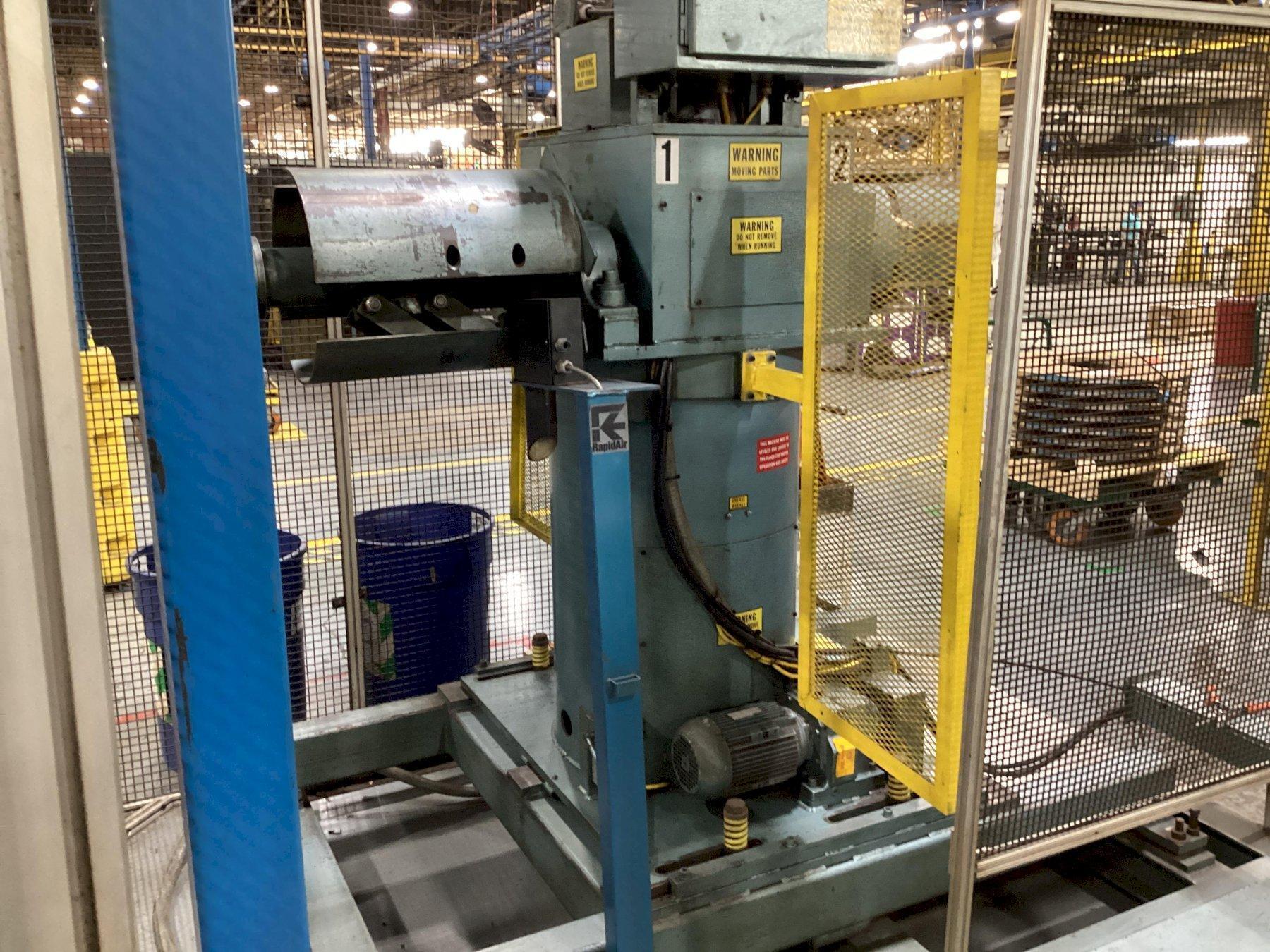

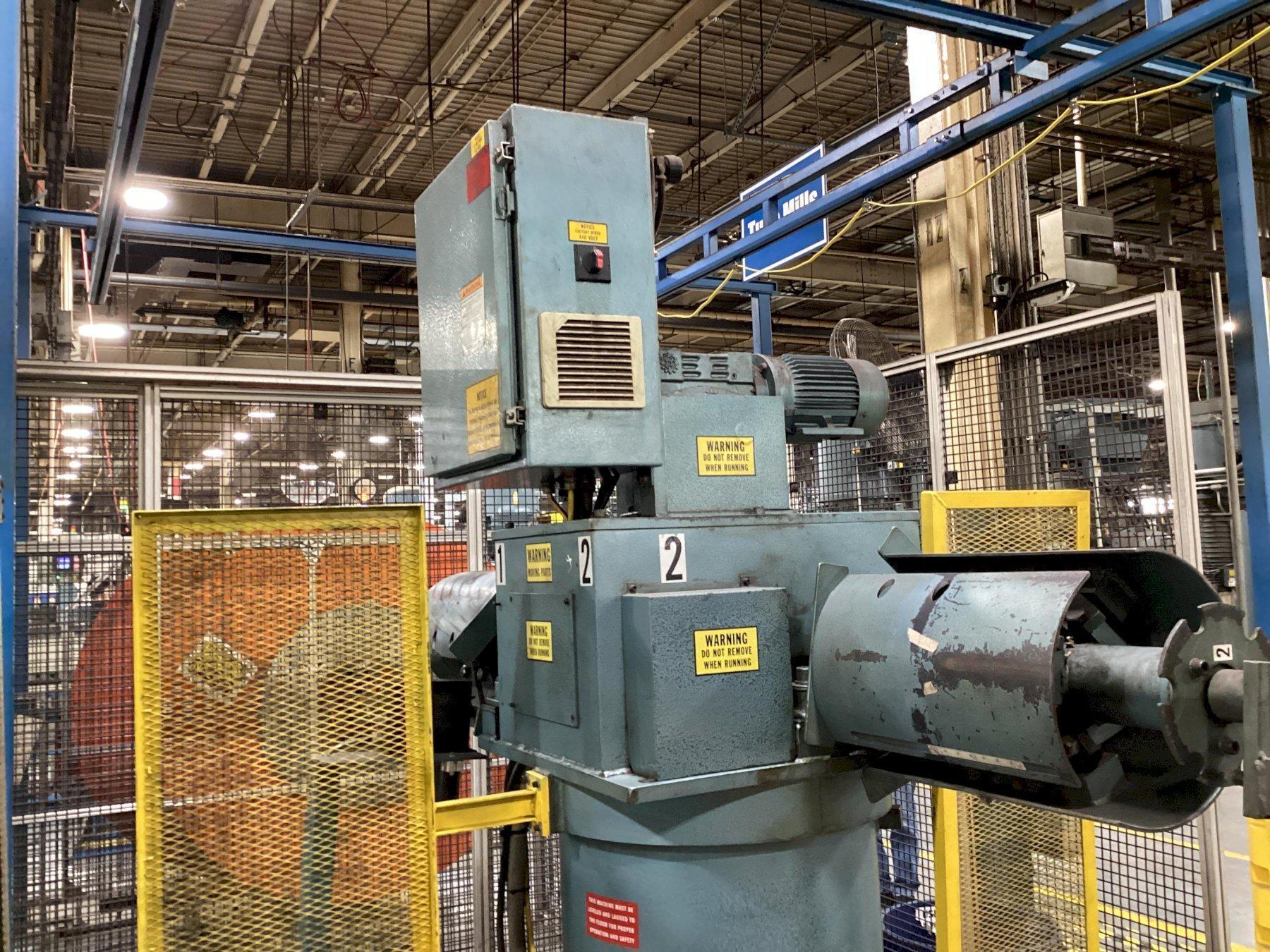

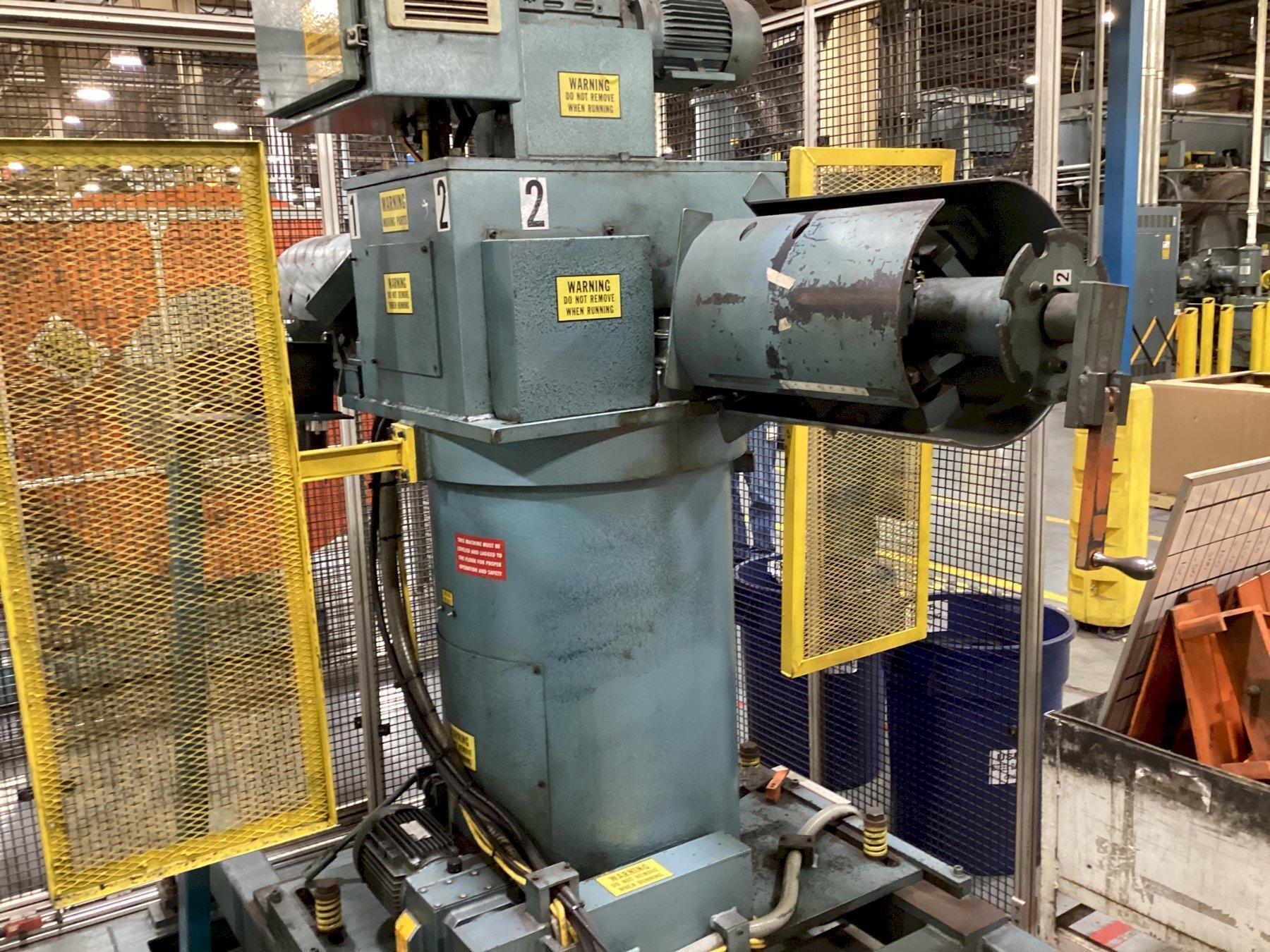

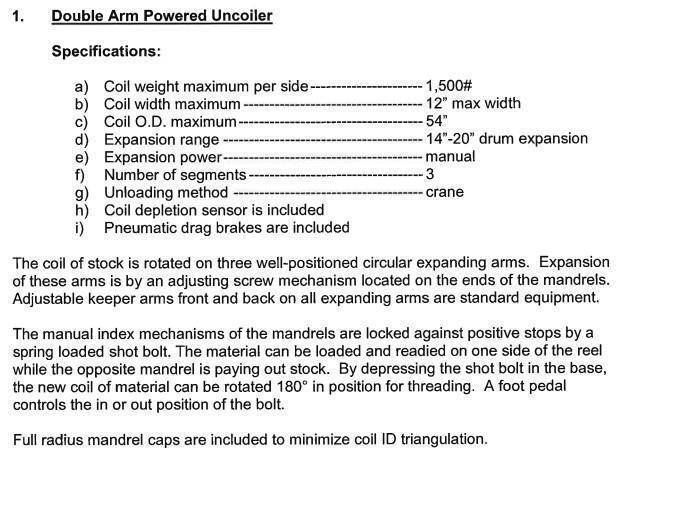

Uncoiler Capacity: 1,500 lbs per side
Maximum Coil Width: 12″
Maximum Coil OD: 54″
Drum Expansion: 14″–20″ Manual
Segments: 3

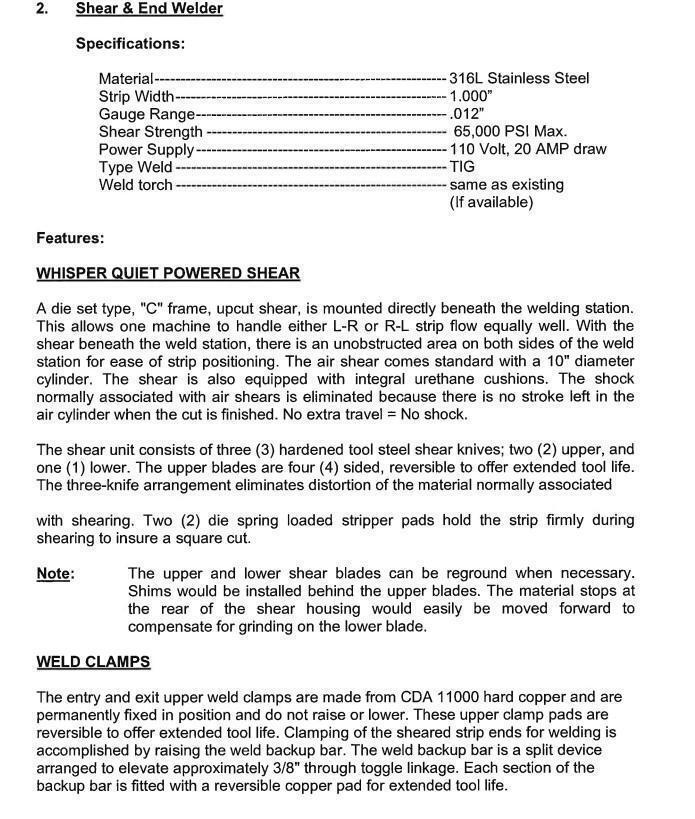

Shear & End Welder Material: 316L Stainless
Strip Width: 1.000″
Gauge Capacity: .012″
Maximum Shear Strength: 65,000 PSI
Power Supply: 110V, 20 Amp
Weld Type: TIG

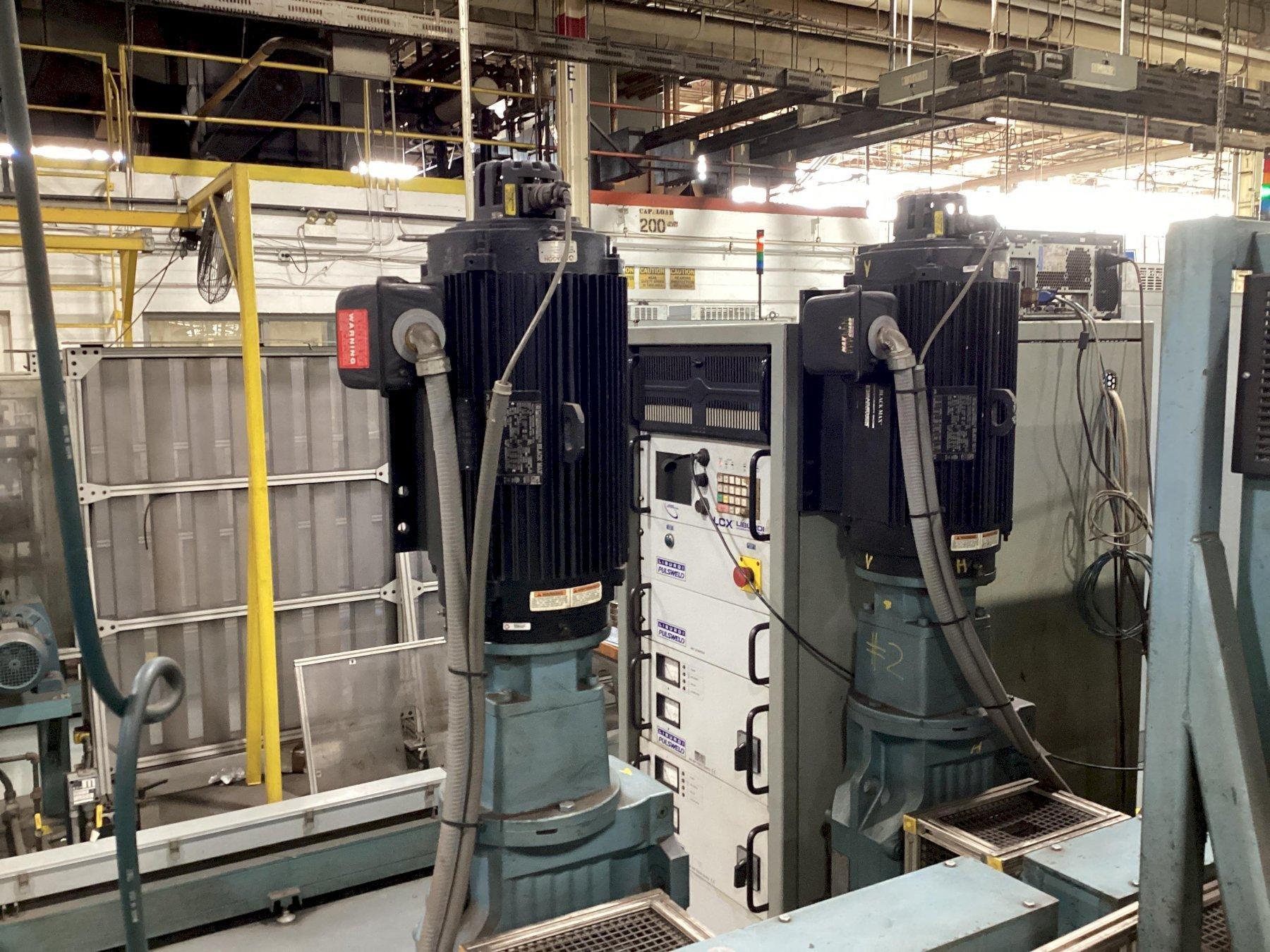

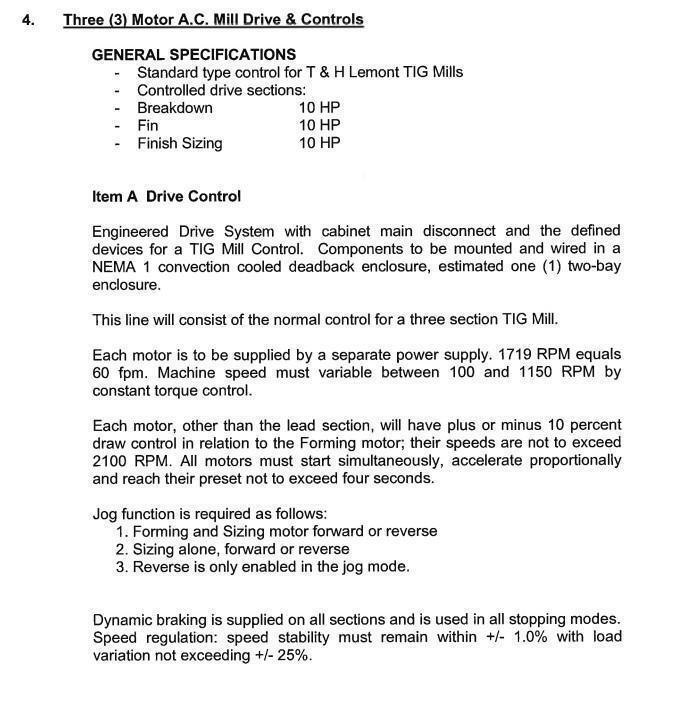

Drive Motors: (3) 10 HP
Variable Motor Speed: 100–1150 RPM (2100 RPM Max)
Dynamic Braking: All Sections
Speed Stability: ±1%

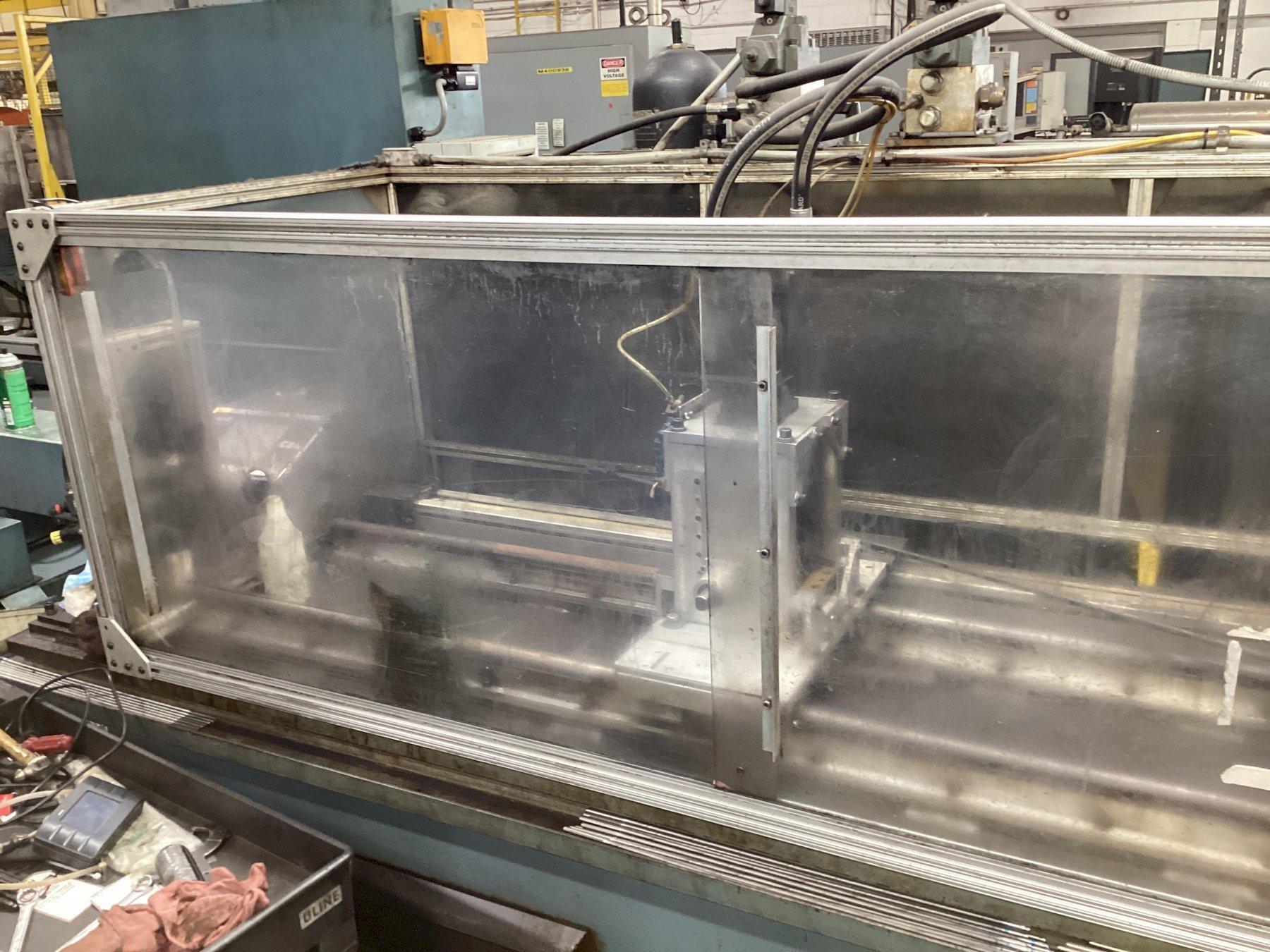

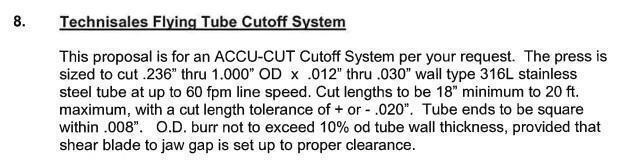

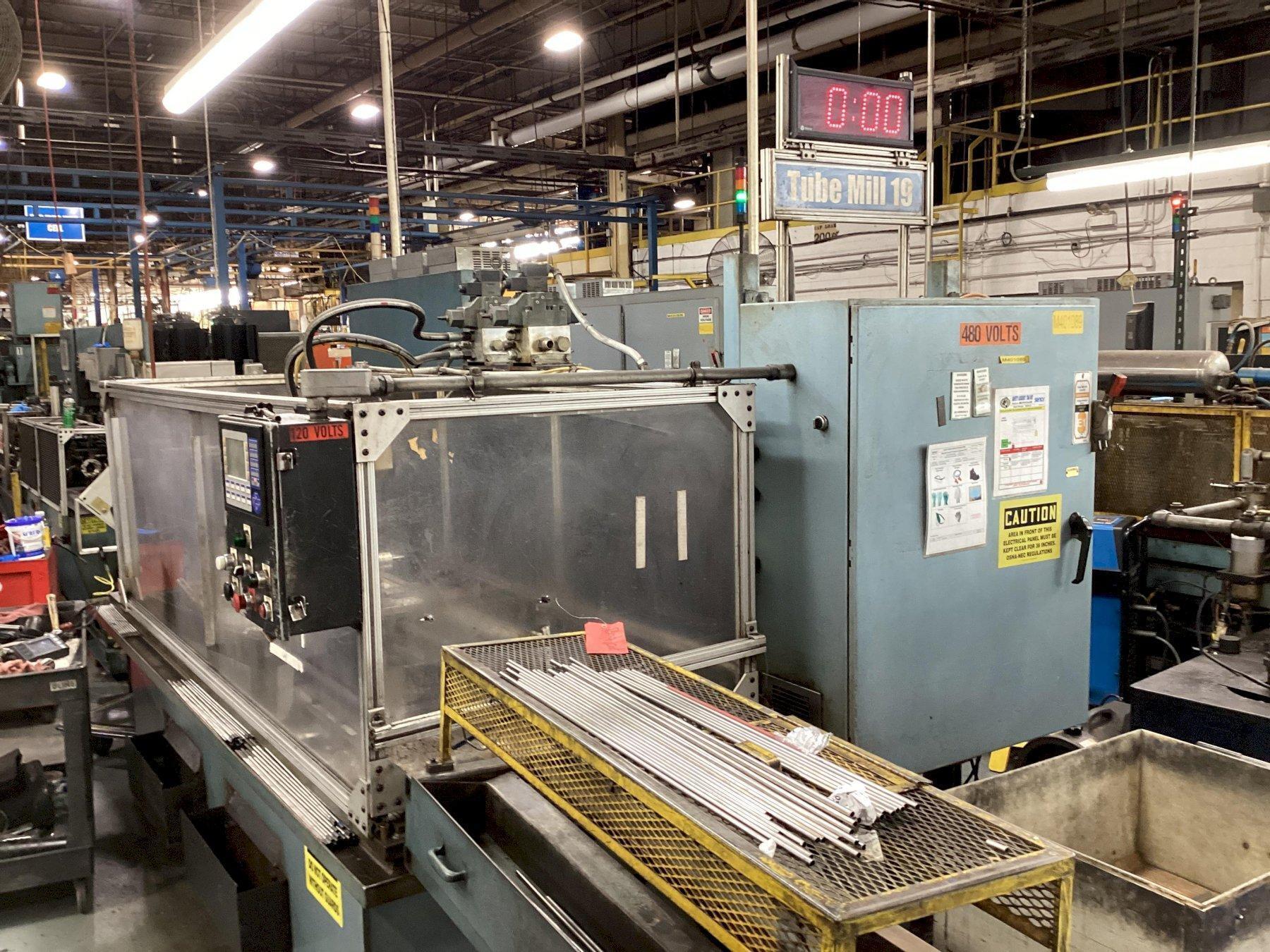

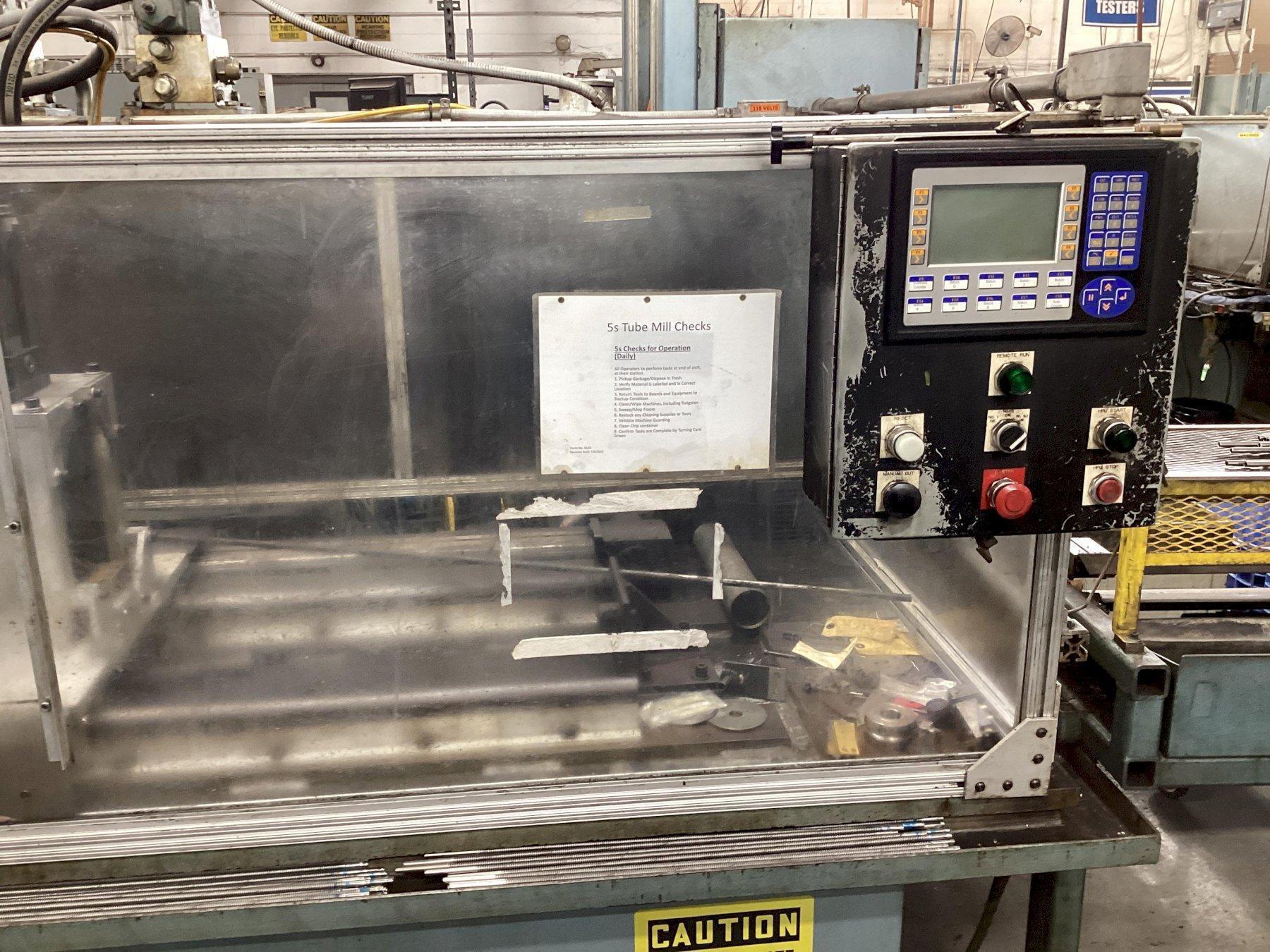

Flying Cutoff System: Technisales ACCU-CUT
Cut Capacity: .236″ – 1.000″ OD x .012″ – .030″ Wall
Maximum Line Speed: 60 FPM
Cut Length Range: 18′ – 20′
Length Tolerance: ±.020″
Tube End Squareness: .008″
Maximum OD Burr: 10% of Wall Thickness

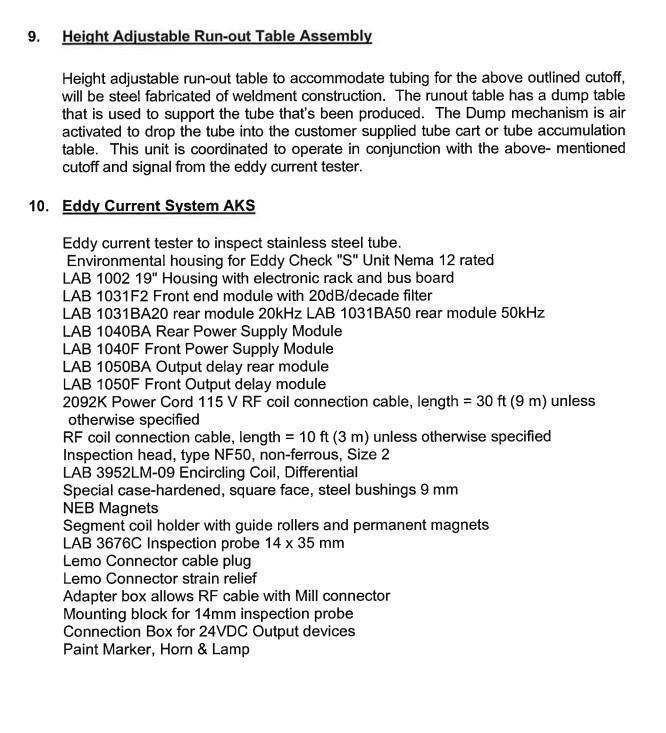

Run-Off Table: Height Adjustable Steel Weldment with Air-Activated Dump

Eddy Current Inspection System: Eddy Check “S” NEMA 12 with Inspection Head, Differential Encircling Coil, Probes, RF Cables, Electronic Rack, Power Supplies, Connector Box, Paint Marker, Horn & Lamp

Location: Holland, OH
