ZAYTRAN LSA-95-G-50-SEN-R-SL Pneumatic Actuator USED
ZAYTRAN LSA-95-G-50-SEN-R-SL Pneumatic Actuator USED - Image 2
ZAYTRAN LSA-95-G-50-SEN-R-SL Pneumatic Actuator USED - Image 3

SOLD!

ZAYTRAN LSA-95-G-50-SEN-R-SL Pneumatic Actuator USED

$150.00
Availability:

4 in stock
BRAND: ZAYTRAN MODEL: LSA-95-G-50-SEN-R-SL CONDITION: Used
SKU: IGAM3220439 Weight: 12 lbs Shipping Calculated at Checkout

4 in stock

Make an offer

Overview

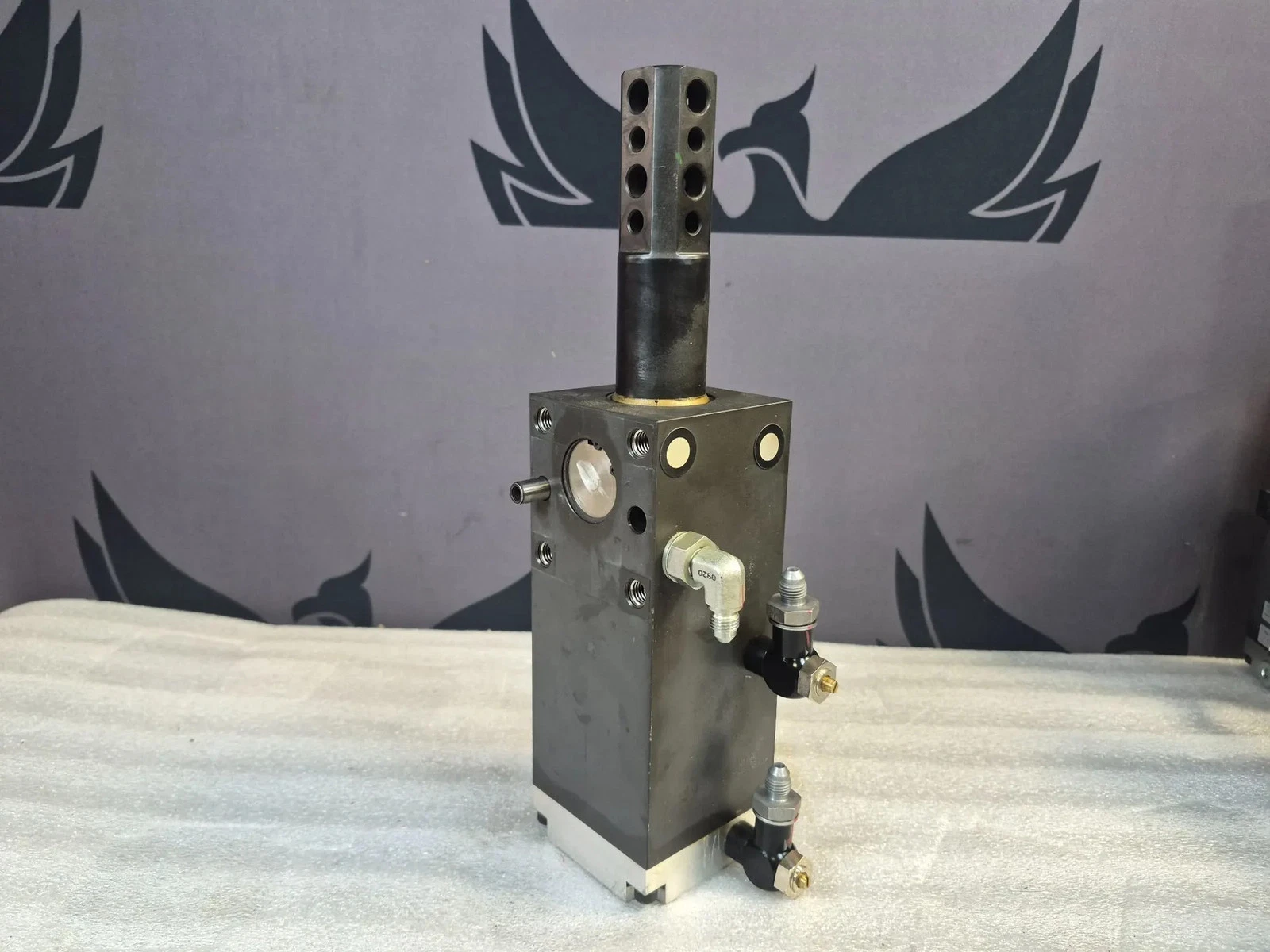

This listing is for a USED Zaytran LSA-95-G-50-SEN-R-SL. It is designed for precision positioning and locking in industrial automation systems using a pneumatic shot pin mechanism. This unit is categorized as a pneumatic actuator and includes the following capabilities shot pin locking function, operation up to 8 bar pressure, and torque-rated M10 insert interface for repeatable fixture positioning and alignment applications.

Specification Table

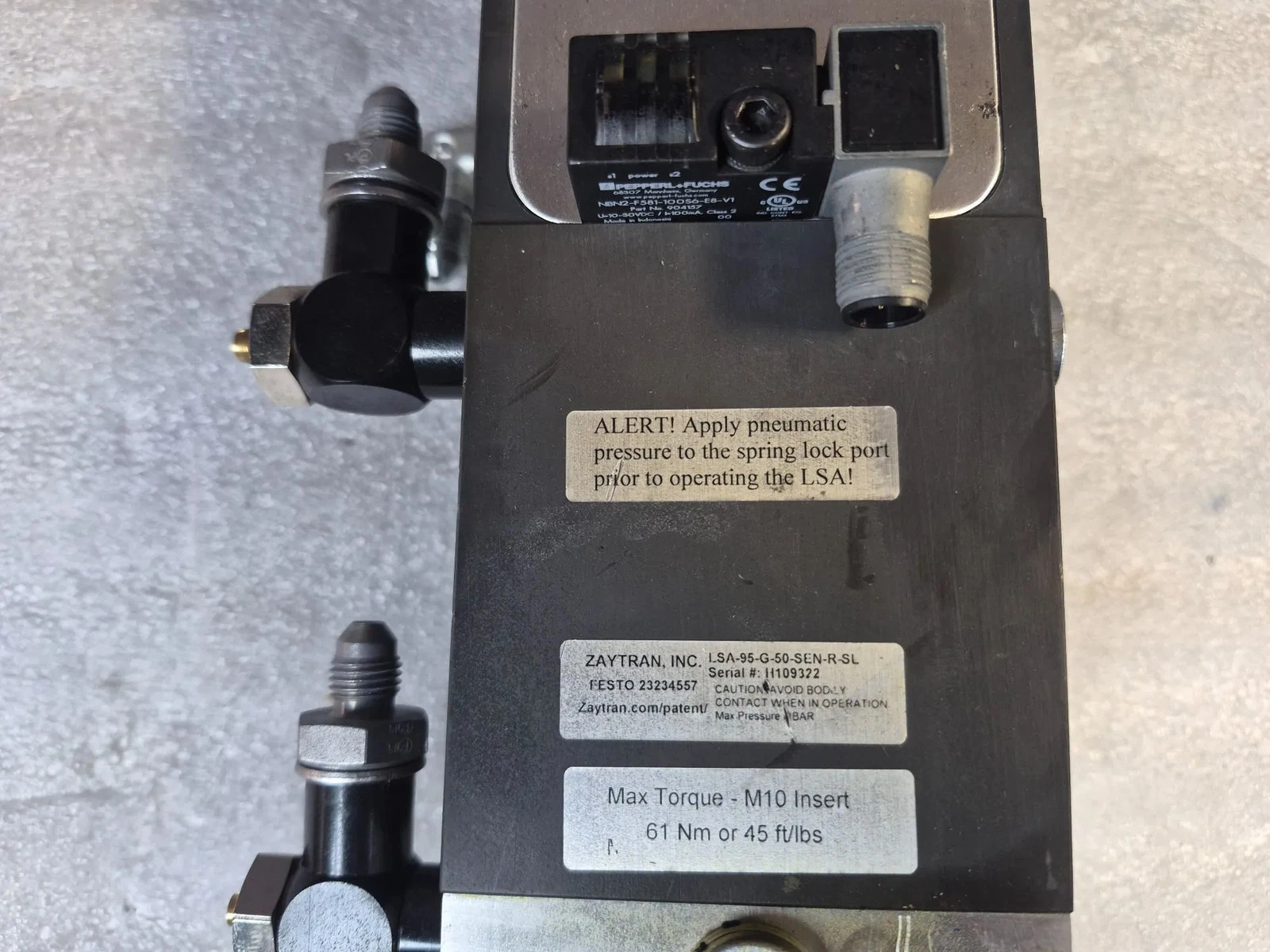

IDENTIFICATION Manufacturer: Zaytran Model / Part Number: LSA-95-G-50-SEN-R-SL Product Family: LSA Product Type: Pneumatic Linear Slide Actuator Serial Number: H109322 Condition: USED YOM: n/a PNEUMATIC Actuation: Pneumatic Motion Type: Linear Maximum Pressure: 8 bar Spring Lock: Yes Spring Lock Release: Pneumatic Pneumatic Ports: Present Stroke: Not specified Bore Size: Not specified MOTION / MECHANICAL Slide Configuration: Guided Output Configuration: Extended Linear Member Tooling Attachment: Multiple Mounting Holes M10 Insert Max. Torque: 61 Nm M10 Insert Max. Torque: 45 ft-lb Load Capacity: Not specified Thrust: Not specified Repeatability: Not specified SENSING / CONTROL Position Sensing: Present Sensor Manufacturer: Pepperl+Fuchs Sensor Type: Proximity Sensor Sensor Supply: 10-30 VDC Sensor Output Current: 100 mA Sensor Protection Class: II Sensor Model: Not specified CONNECTION / INSTALLATION Pneumatic Fittings: Installed Sensor Connector: Present Base Mounting: Provided Tooling Mounting: Threaded Installation Orientation: Not specified CONSTRUCTION Body Configuration: Guided Slide Body Material: Metal Output Member Material: Metal Spring Lock Mechanism: Integrated Sensor Hardware: Installed
▸ Key Features:
• Pneumatic shot pin actuator for precision positioning and locking

• Designed for industrial automation and fixture alignment systems

• Max operating pressure up to 8 bar

• Integrated locking pin mechanism for repeatable positioning

• M10 insert interface for secure mounting applications

• Heavy-duty metal construction for industrial environments

• Compact form factor suitable for machine integration
▸ Applications:
• Automated fixture and tooling positioning systems

• Machine indexing and alignment applications

• Assembly line locating and workholding setups

• Robotic cell positioning and repeatable accuracy operations
▸ Alternative Model Numbers:
LSA-95-G-50-SEN-R-SL

LSA95G50SENRSL

Zaytran LSA Series Shot Pin Actuator

LSA-95 Series

Festo 23234557 (reference component, per label style)
▸ Common Misspellings or Phrasing:
Zaytran LSA95 actuator

LSA 95 G 50 SEN R SL

Zaytran shot pin cylinder

Zaytran pneumatic locking actuator

Zaytran positioning actuator
