ZAYTRAN LSA-95-G-50-SEN Pneumatic Shot Pin Actuator USED

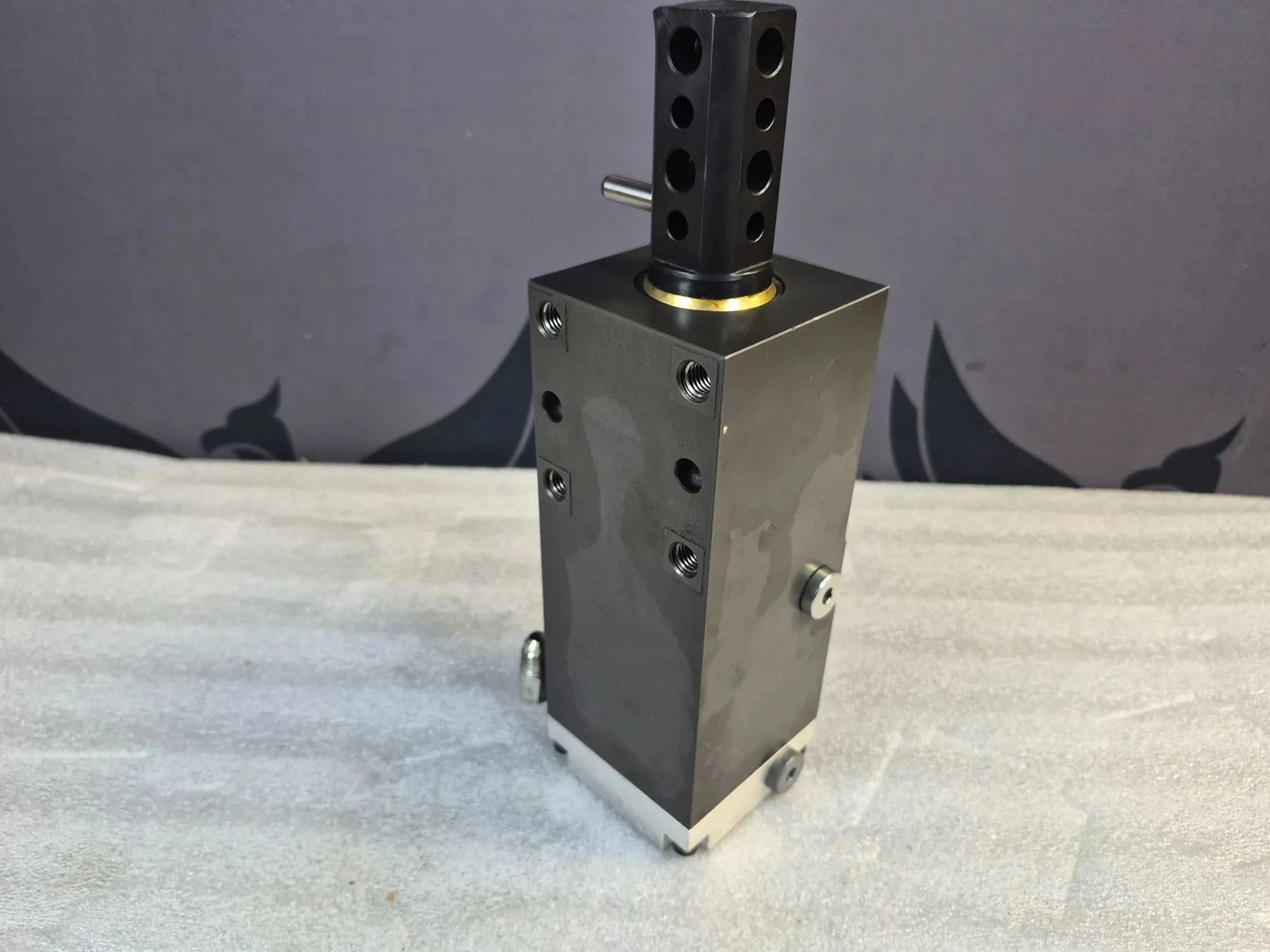

ZAYTRAN LSA-95-G-50-SEN Pneumatic Shot Pin Actuator USED - Image 2

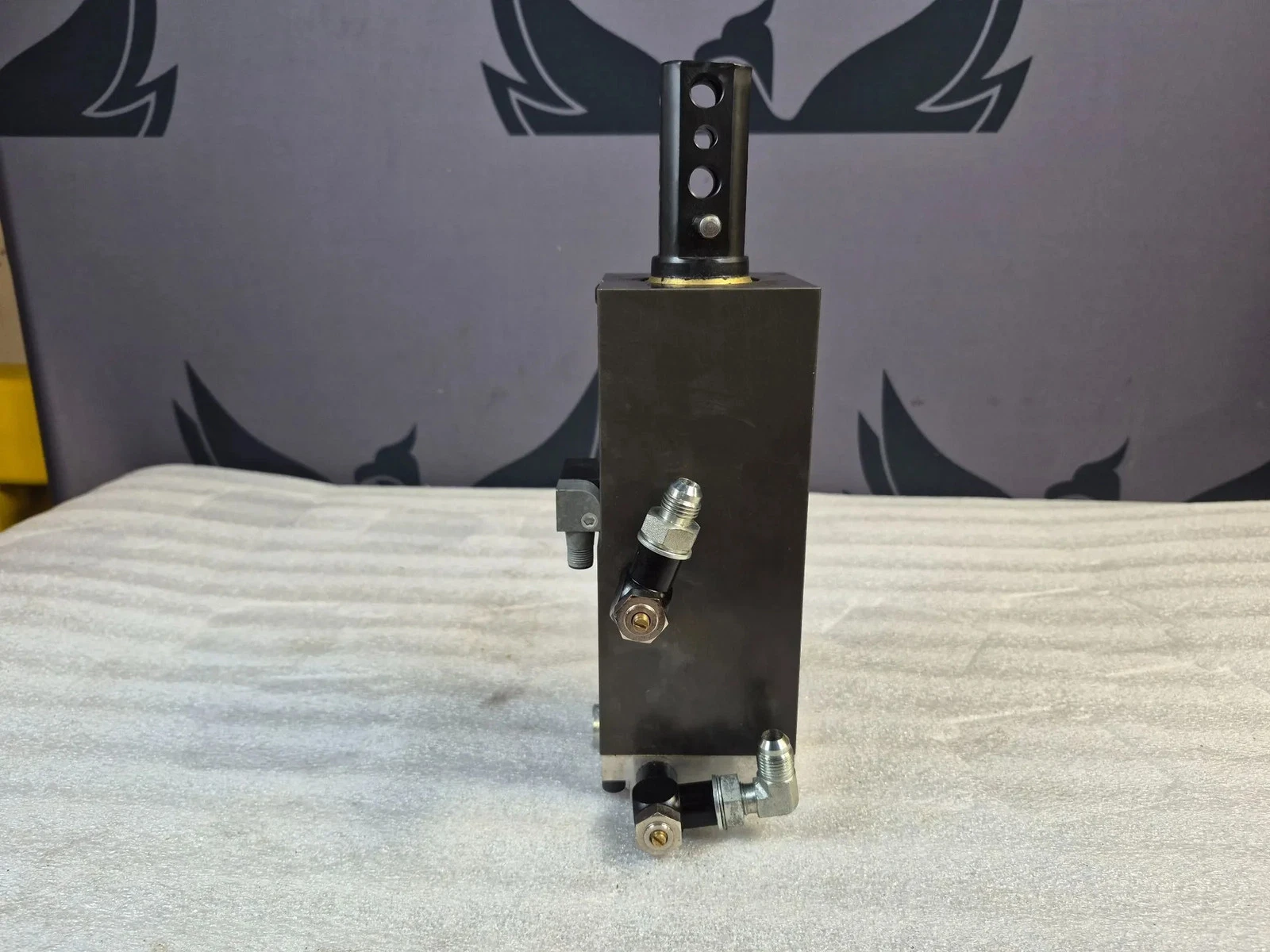

ZAYTRAN LSA-95-G-50-SEN Pneumatic Shot Pin Actuator USED - Image 3

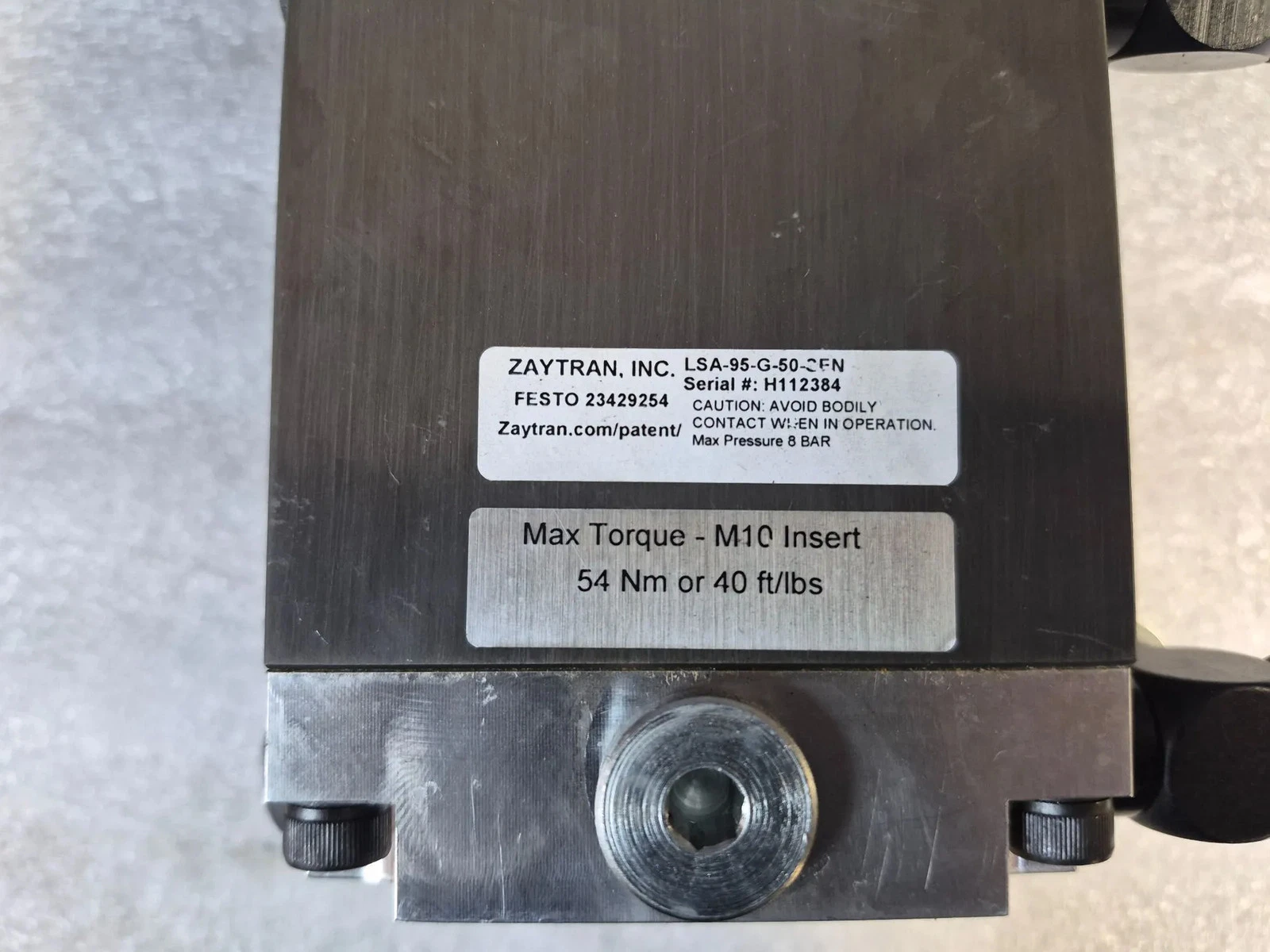

ZAYTRAN LSA-95-G-50-SEN Pneumatic Shot Pin Actuator USED - Image 4

SOLD!

ZAYTRAN LSA-95-G-50-SEN Pneumatic Shot Pin Actuator USED

$150.00
Availability:

14 in stock
BRAND: ZAYTRAN MODEL: LSA-95-G-50-SEN CONDITION: Used
SKU: IGAM3220438 Weight: 12 lbs Shipping Calculated at Checkout

14 in stock

Make an offer

Overview

This listing is for a USED Zaytran LSA-95-G-50-SEN. It is designed for precision positioning and locking applications using a pneumatic shot pin mechanism in industrial automation systems. This unit is categorized as a pneumatic actuator and includes the following capabilities shot pin locking function, pneumatic operation up to 8 bar pressure, and torque-rated assembly interface for secure engagement in fixturing and machine tooling setups.

Specification Table

IDENTIFICATION Manufacturer: Zaytran Model / Part Number: LSA-95-G-50-SEN Product Family: LSA Product Type: Pneumatic Linear Slide Actuator Serial Number: H112384 Condition: USED YOM: n/a PNEUMATIC Actuation: Pneumatic Motion Type: Linear Maximum Pressure: 8 bar Pneumatic Ports: Present Flow Controls: Installed Stroke: Not specified Bore Size: Not specified MOTION / MECHANICAL Slide Configuration: Guided Output Configuration: Linear Tooling Attachment: Multiple Mounting Holes M10 Insert Max. Torque: 54 Nm / 40 ft-lb Load Capacity: Not specified Thrust: Not specified Repeatability: Not specified SENSING / CONTROL Position Sensing: Present Sensor Configuration: Integrated Sensor Type: Not specified Sensor Supply Voltage: Not specified Sensor Output: Not specified CONNECTION / INSTALLATION Pneumatic Fittings: Installed Base Mounting: Provided Tooling Mounting: Threaded Installation Orientation: Not specified CONSTRUCTION Body Configuration: Guided Slide Body Material: Metal Output Member Material: Metal
▸ Key Features:
• Pneumatic shot pin actuator for precision locking and positioning

• Designed for industrial automation and fixture alignment systems

• Maximum operating pressure rated up to 8 bar

• Integrated locking pin mechanism for repeatable positioning accuracy

• Compact design suitable for machine integration and tooling applications
▸ Applications:
• Automated fixture and tooling alignment systems

• Machine positioning and indexing applications

• Assembly line locating and clamping operations

• Robotic workholding and repeatable positioning setups
▸ Alternative Model Numbers:
LSA-95-G-50-SEN

LSA95G50SEN

Zaytran LSA Series Shot Pin Actuator

LSA-95 Series

Festo 23429254 (associated component reference)
▸ Common Misspellings or Phrasing:
Zaytran LSA95 actuator

Zaytran shot pin cylinder

LSA 95 G 50 SEN

Zaytran pneumatic locking pin

Zaytran positioning actuator
