Weiss TC0220T 8 Station Rotary Indexing Table USED

$1,000.00
Availability:

1 in stock
BRAND: WEISS GMBH MODEL: TC0220T CONDITION: used
SKU: IGAM4270016 Weight: 165 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

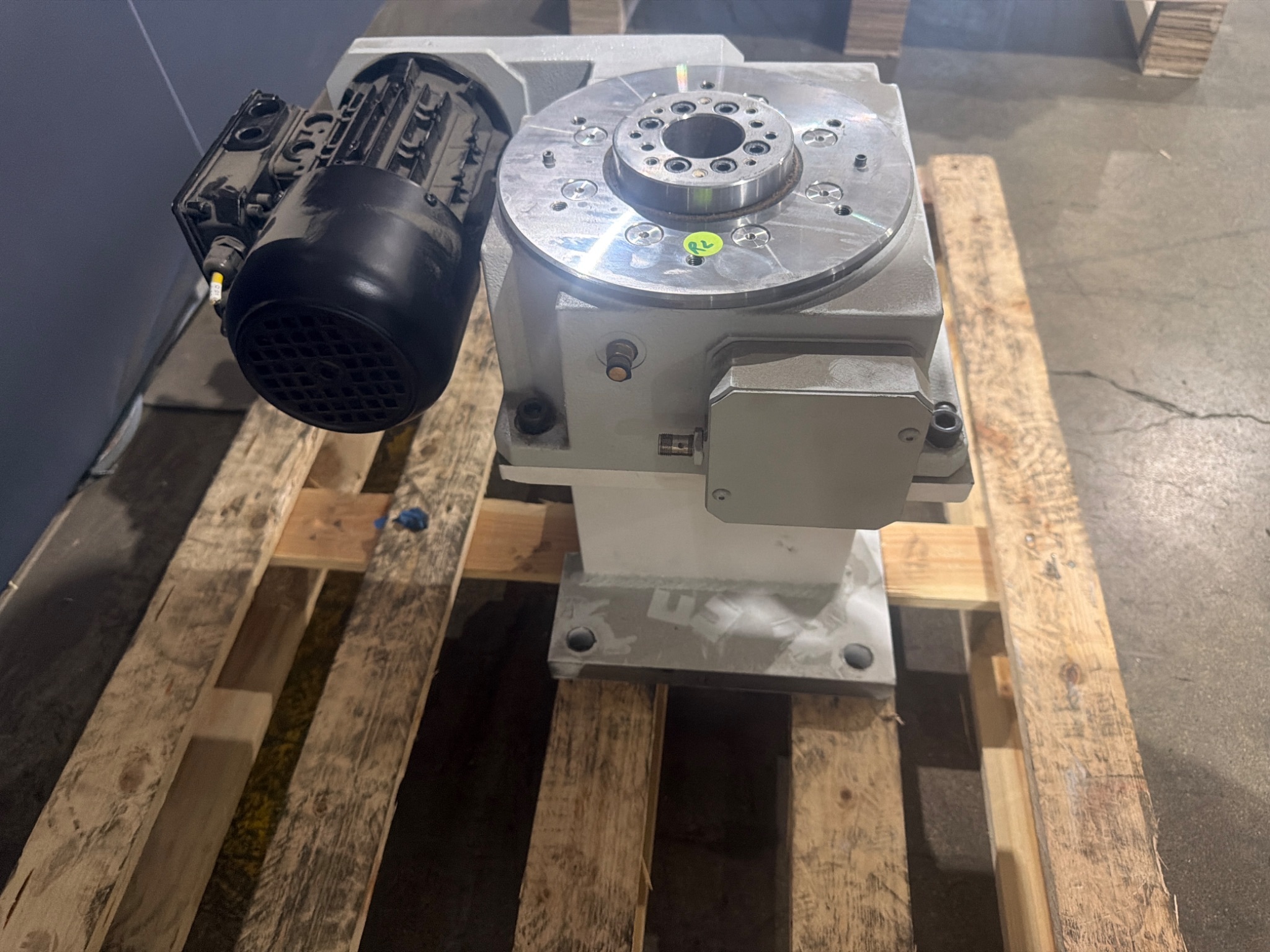

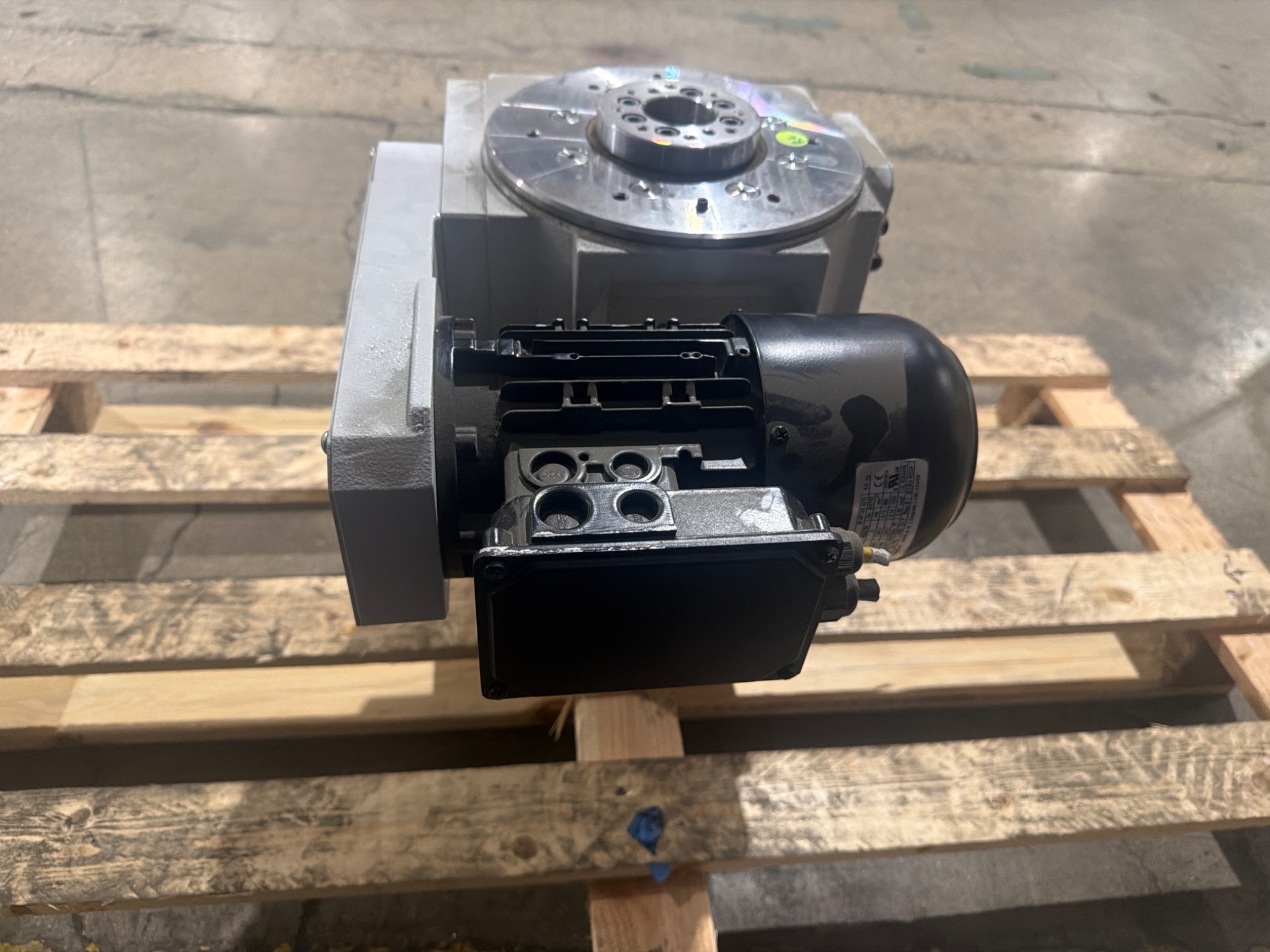

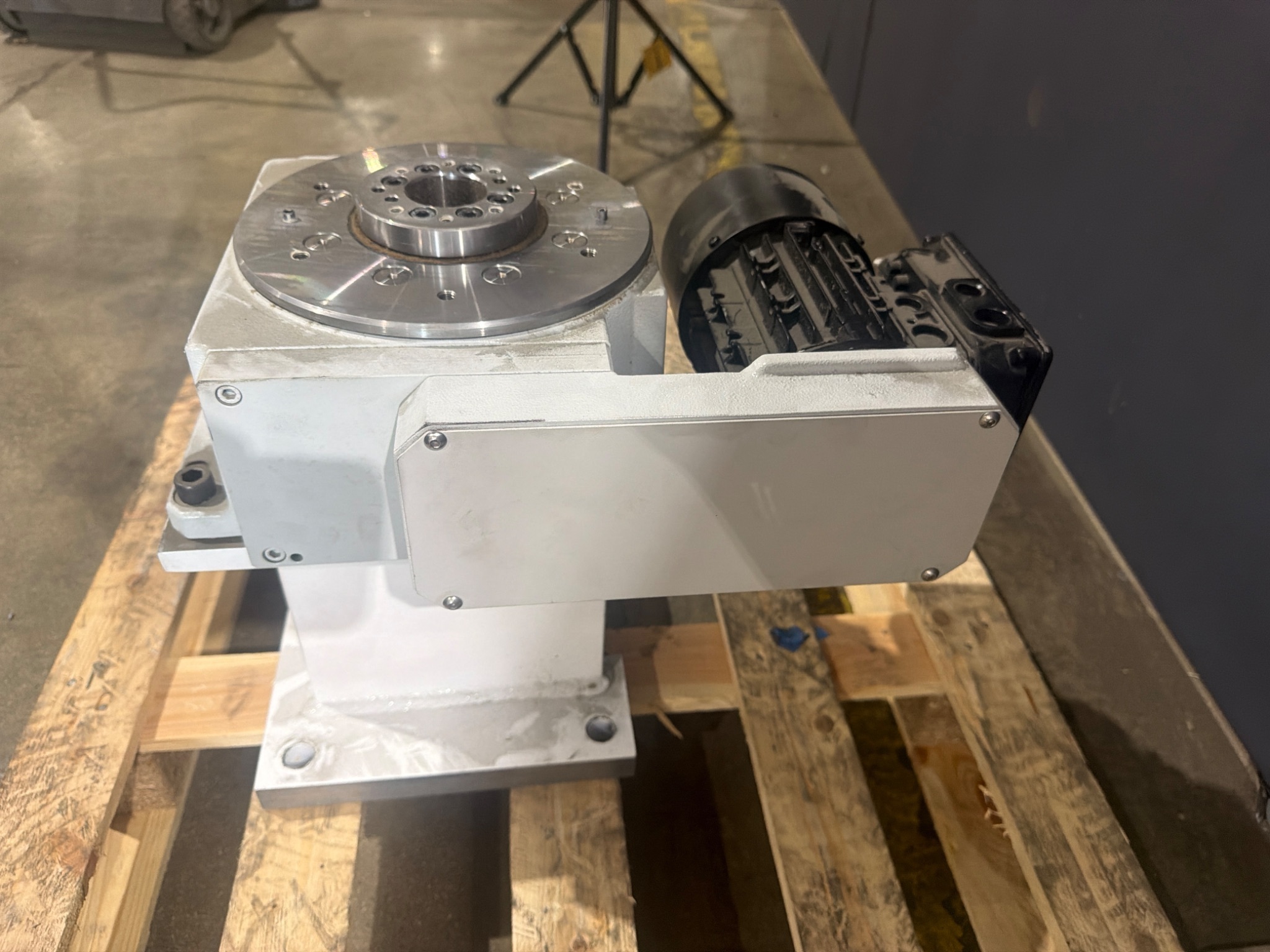

This listing is for a USED Weiss TC0220T rotary indexing table. Configured with eight indexing positions, the unit provides intermittent rotary positioning for assembly automation, transfer systems, inspection stations, and other machine-building applications requiring repeatable positioning. The assembly includes an integrated gearmotor and brake-equipped drive package for controlled indexing operation.

Specification Table

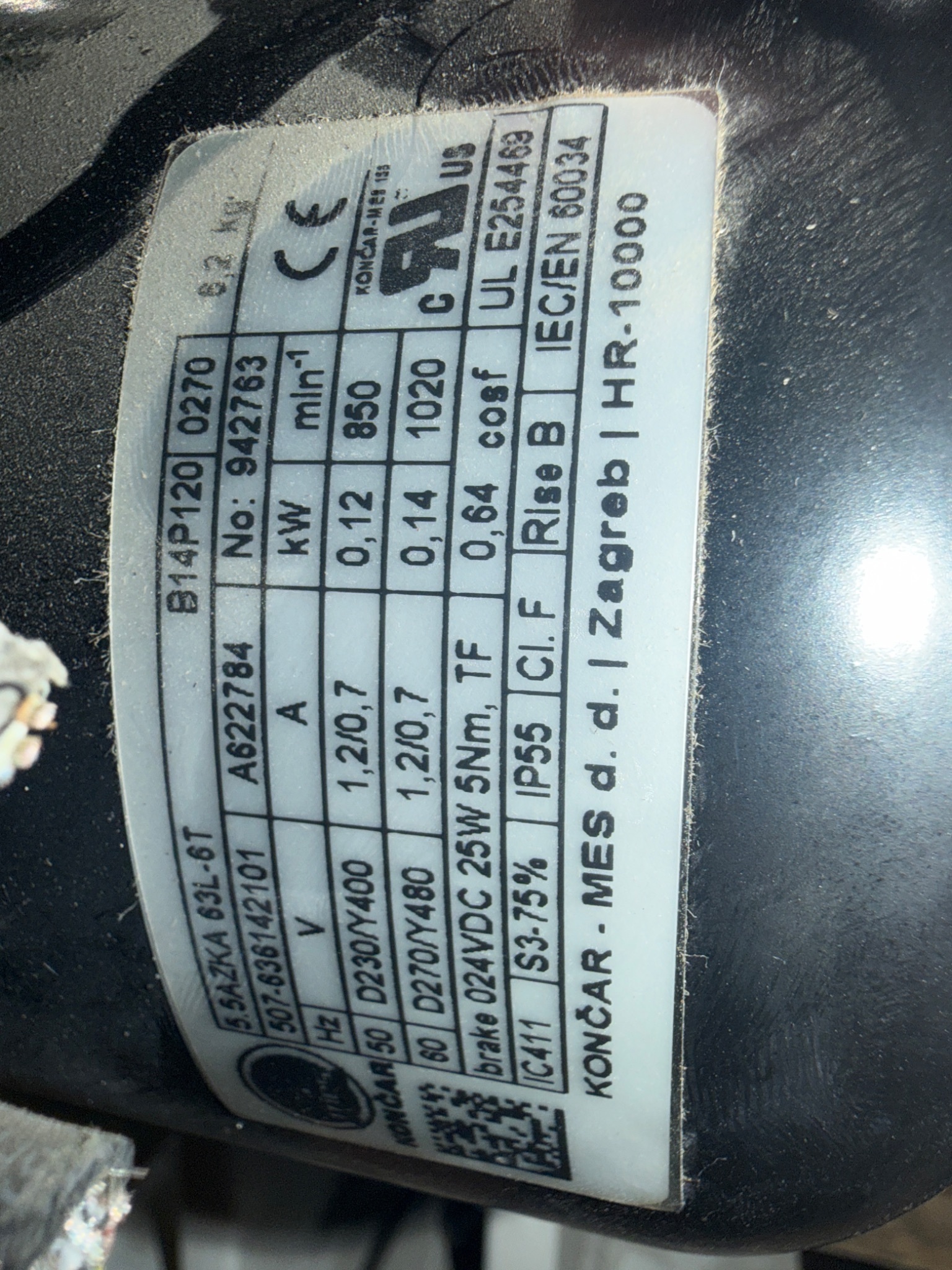

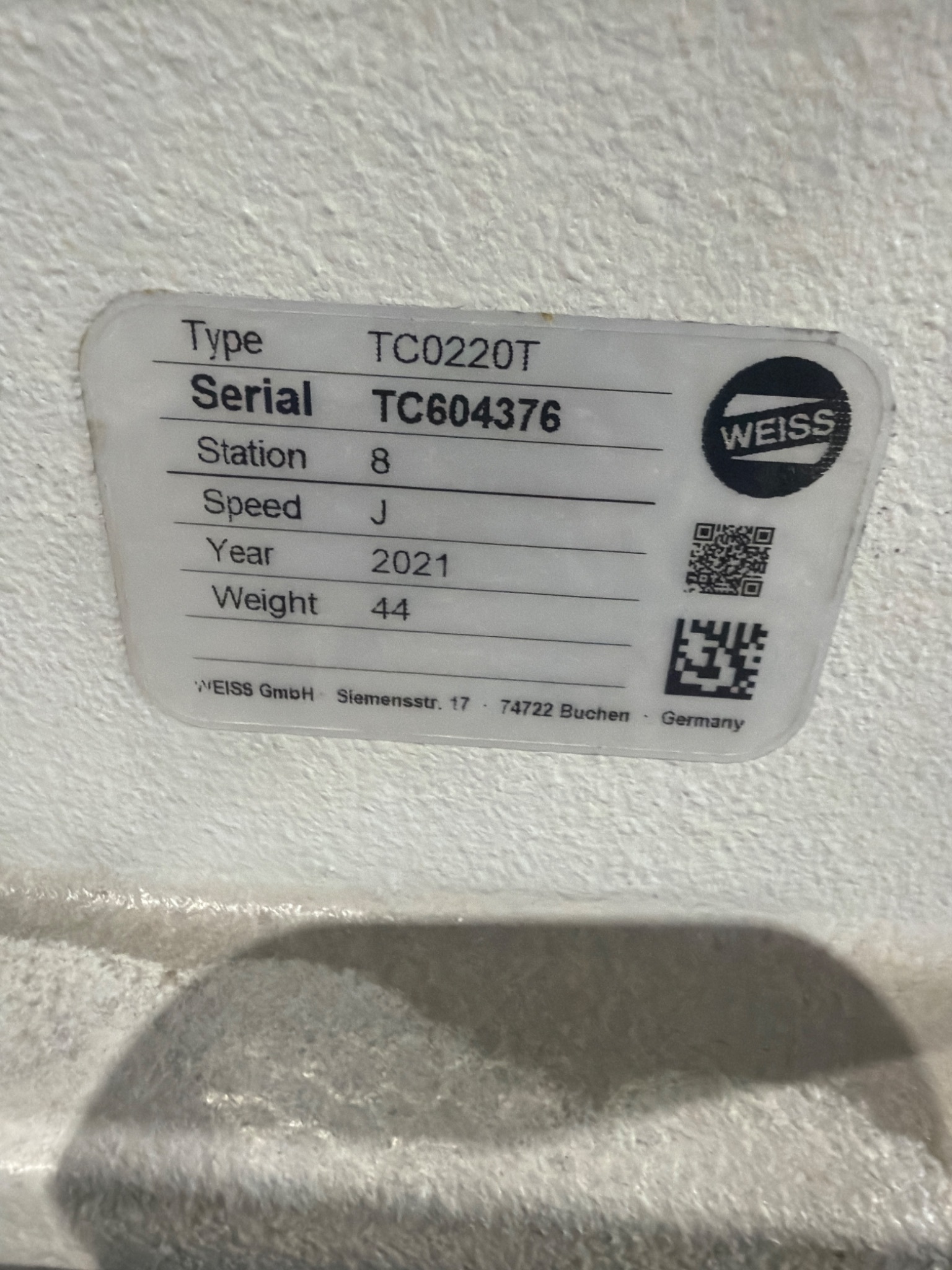

Manufacturer: Weiss GmbH Series: TC Type: TC0220T Condition: USED Equipment Type: Rotary Indexing Table Serial Number: TC604376 YOM: 2021 Station Count: 8 Index Angle: 45° Speed Class: J Weight: 44 kg 97 lb Drive Configuration: Integrated Gearmotor Motor Manufacturer: KONCAR-MES d.d. Motor Model: B14P120 Motor Serial Number: 942763 Motor Type: IC411 Motor Power: 0.12 kW @ 50 Hz 0.14 kW @ 60 Hz Motor Voltage: 230/400 VAC @ 50 Hz 270/480 VAC @ 60 Hz Motor Current: 1.2/0.7 A @ 50 Hz 1.2/0.7 A @ 60 Hz Motor Speed: 850 RPM @ 50 Hz 1020 RPM @ 60 Hz Brake Voltage: 24 VDC Brake Power: 25 W Brake Torque: 5 Nm Duty Rating: S3 75% Enclosure Rating: IP55 Insulation Class: F Power Factor: 0.64 @ 50 Hz Motor Weight: 8.3 kg Country of Manufacture: Germany
