Weiss TC0220T 4 Station Rotary Indexing Table USED

$1,000.00
Availability:

1 in stock

BRAND: WEISS GMBH MODEL: TC0220T CONDITION: used
SKU: IGAM4270014 Weight: 150 lbs Freight (Item Must Ship Freight)

1 in stock

Overview

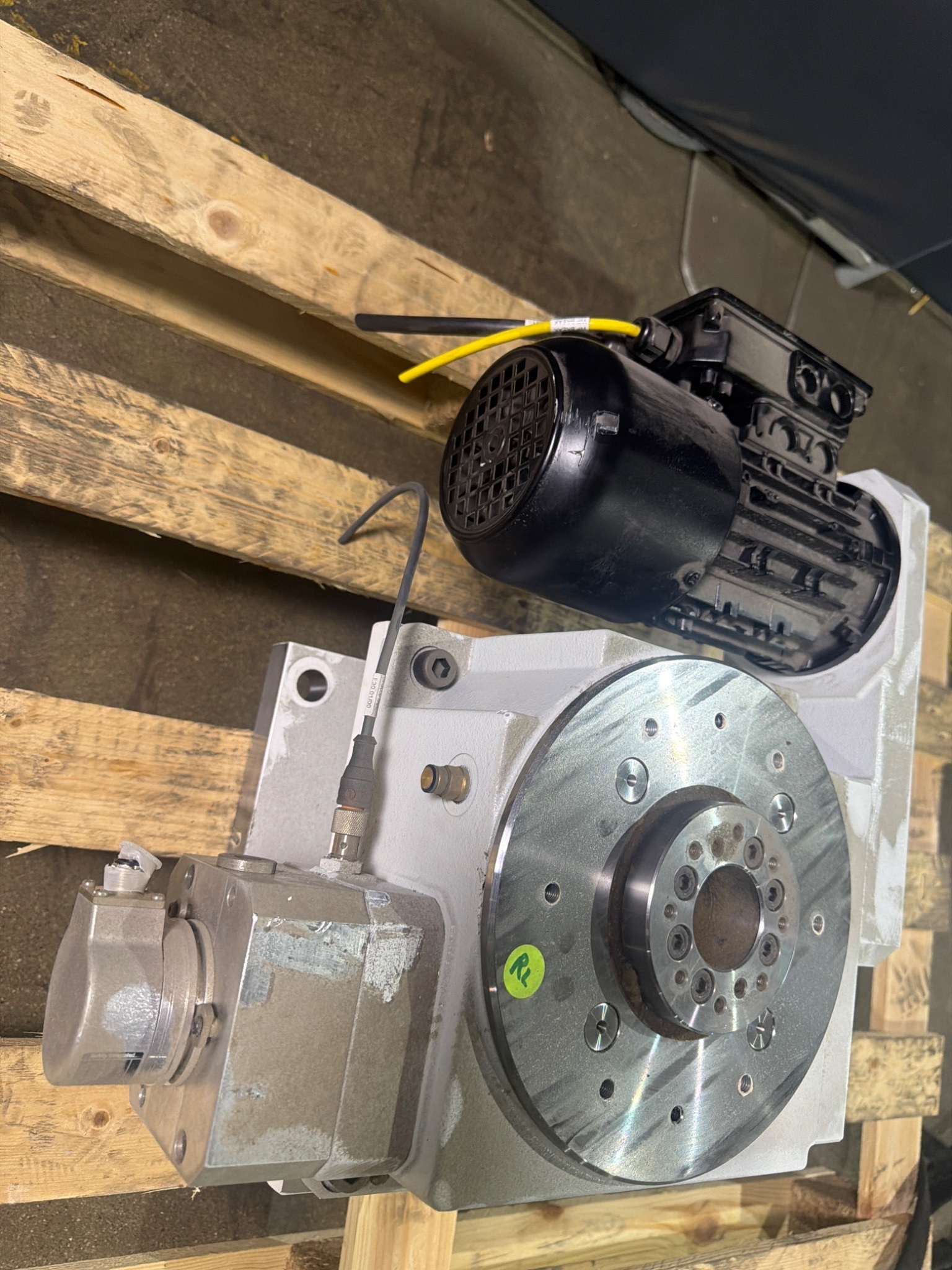

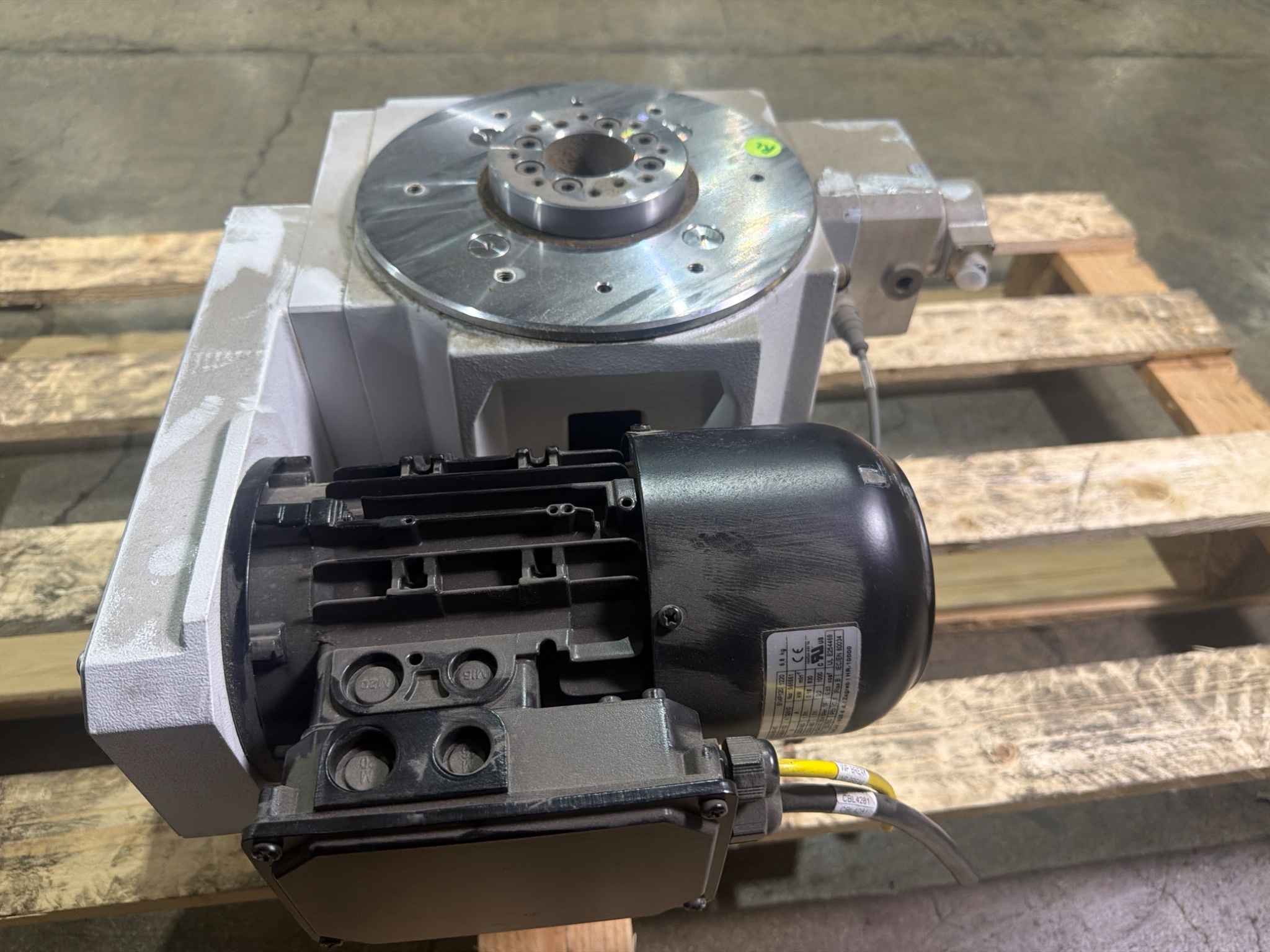

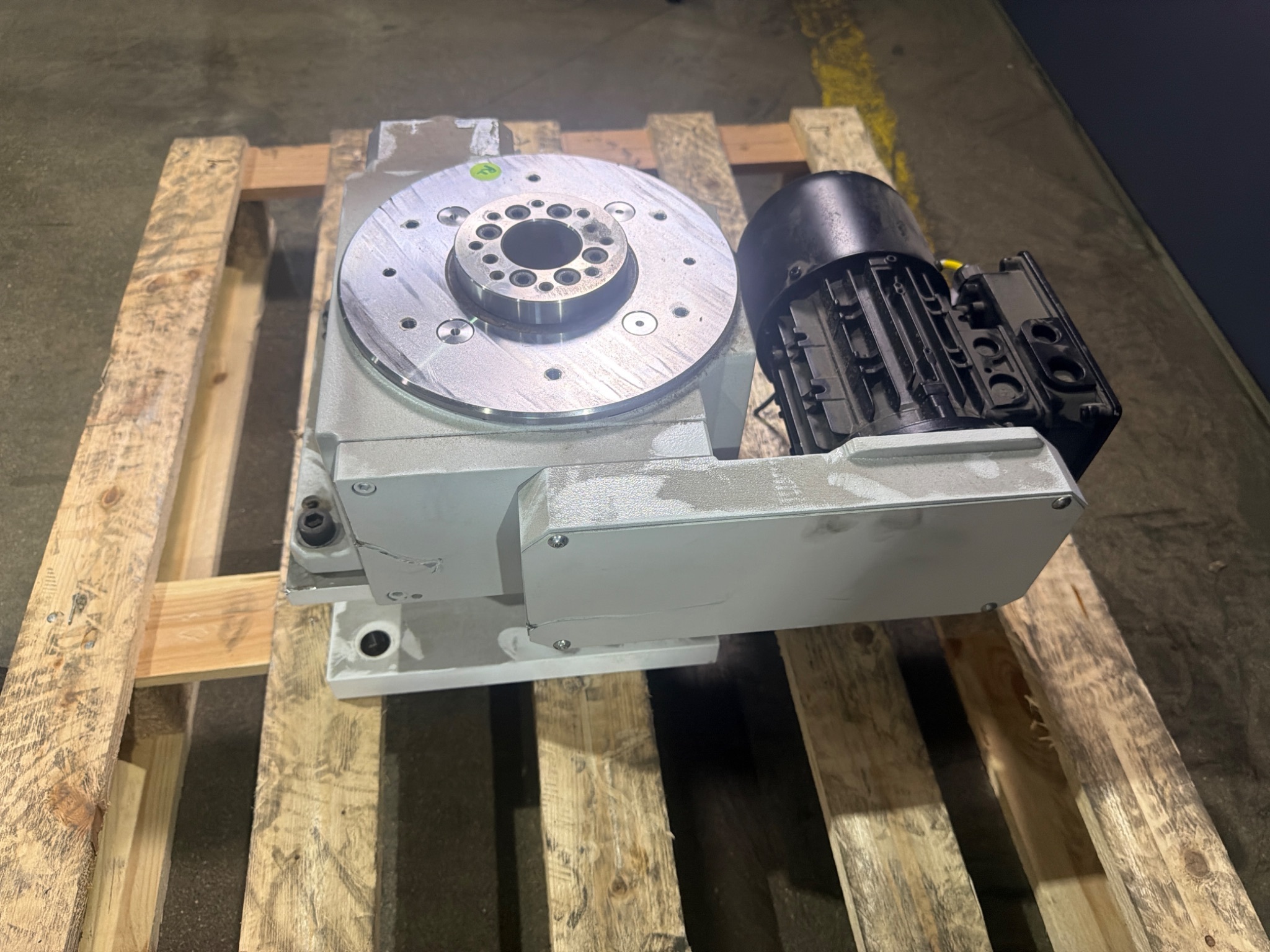

This listing is for a USED Weiss TC0220T rotary indexing table. Configured with four indexing stations, the unit provides intermittent rotary positioning for automated assembly, transfer, inspection, and material handling systems. The installed gearmotor and integrated brake assembly support repeatable indexing performance in machine-building and factory automation applications.

Specification Table

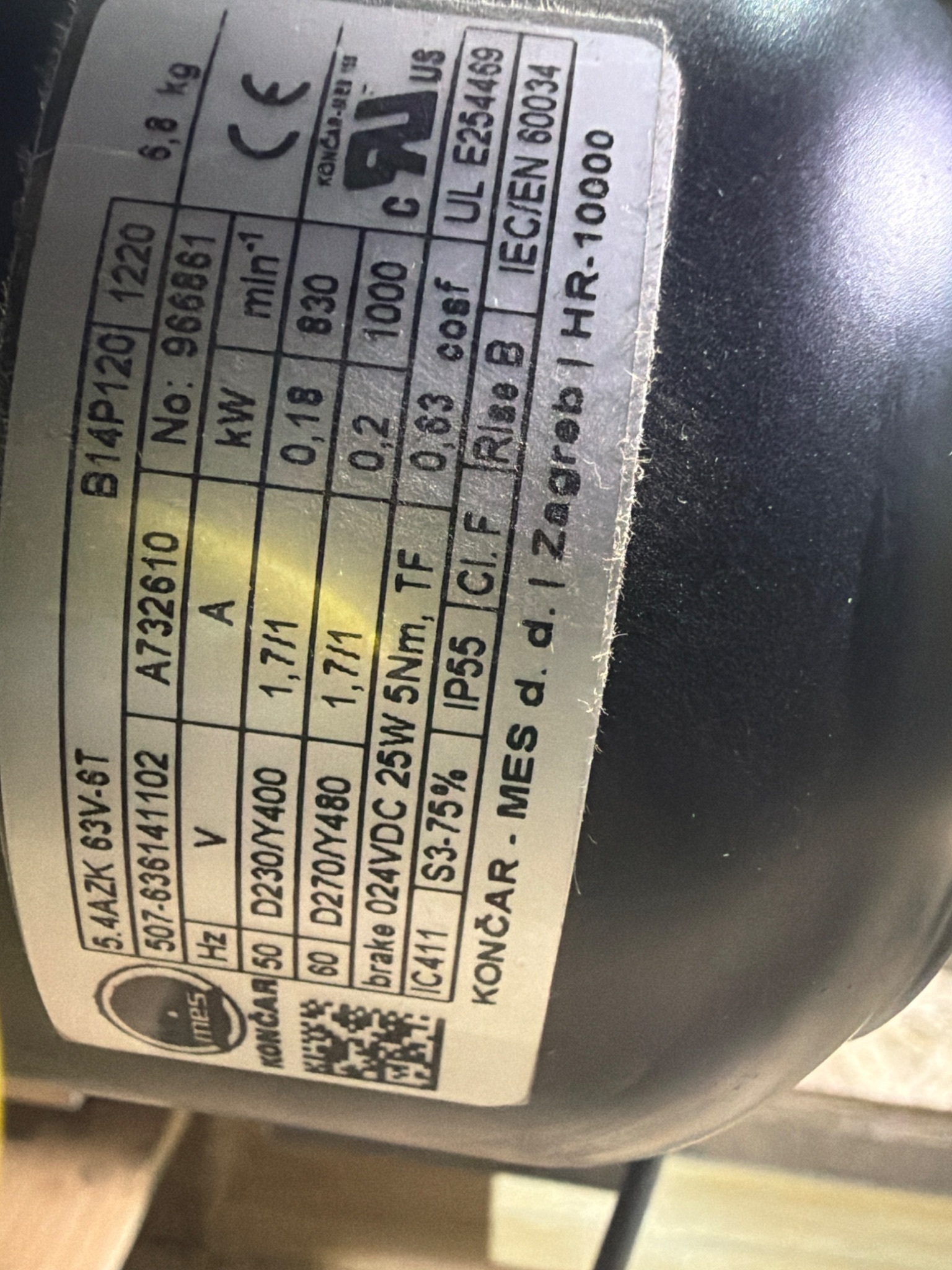

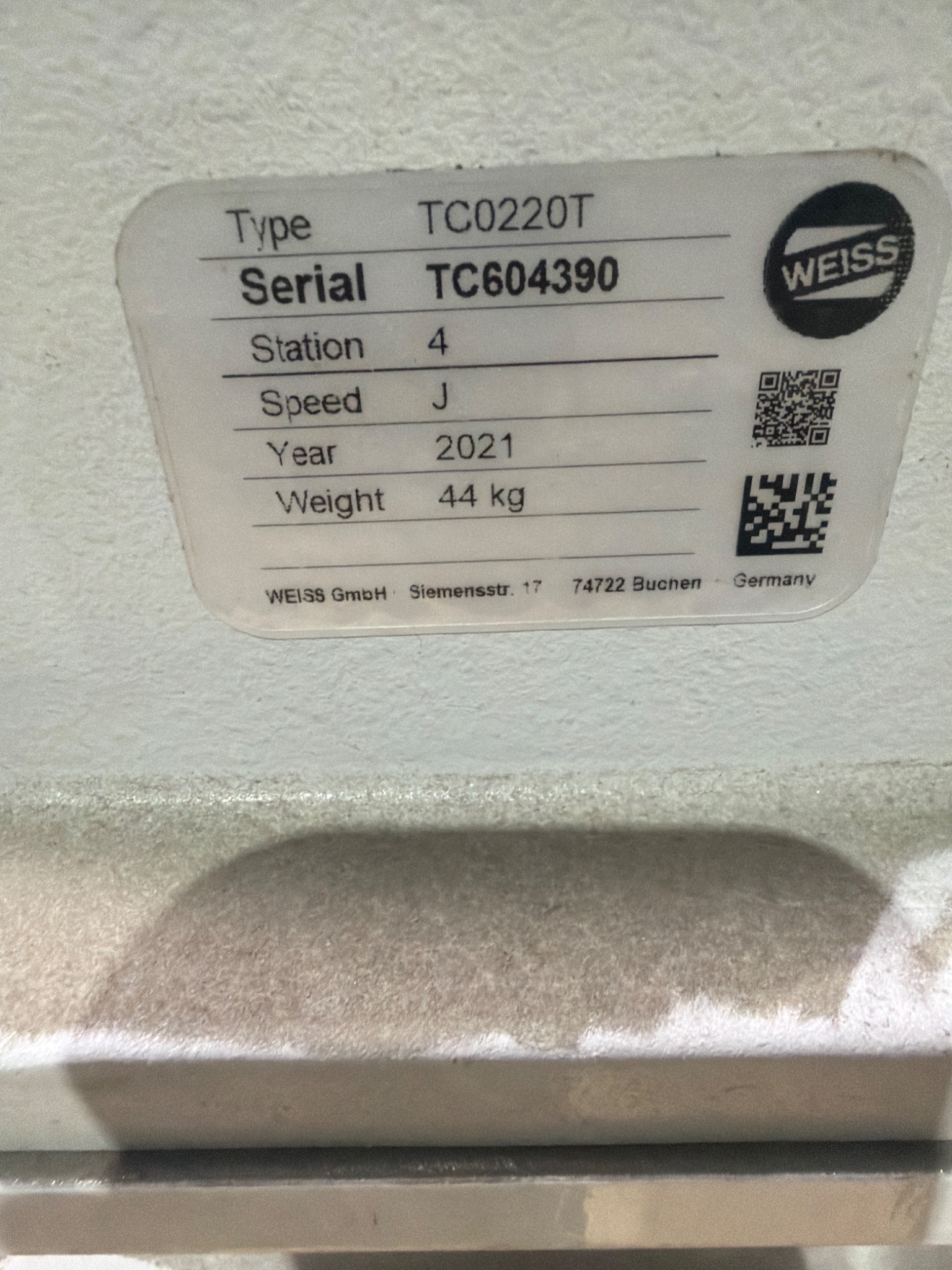

Manufacturer: Weiss GmbH Series: TC Type: TC0220T Condition: USED Equipment Type: Rotary Indexing Table Serial Number: TC604390 Year of Manufacture: 2021 Station Count: 4 Index Angle: 90° Speed Class: J Weight: 44 kg 97 lb Table Configuration: Vertical Rotary Table Drive Configuration: Integrated Gearmotor Motor Manufacturer: MSELEC / Končar Motor Model: B14P120/1220 Motor Type: IC411 Motor Serial Number: 968861 Motor Power: 0.18 kW Motor Voltage: 230/400 VAC @ 50 Hz 270/480 VAC @ 60 Hz otor Current: 1.1/0.71 A Motor Speed: 830 RPM @ 50 Hz 1000 RPM @ 60 Hz Brake Voltage: 24 VDC Brake Power: 25 W Brake Torque: 5 Nm Duty Rating: S3 75% Enclosure Rating: IP55 Insulation Class: F Motor Weight: 6.8 kg Approval Marks: CE cURus Manufacturer Location: Buchen, Germany Country of Manufacture: Germany
