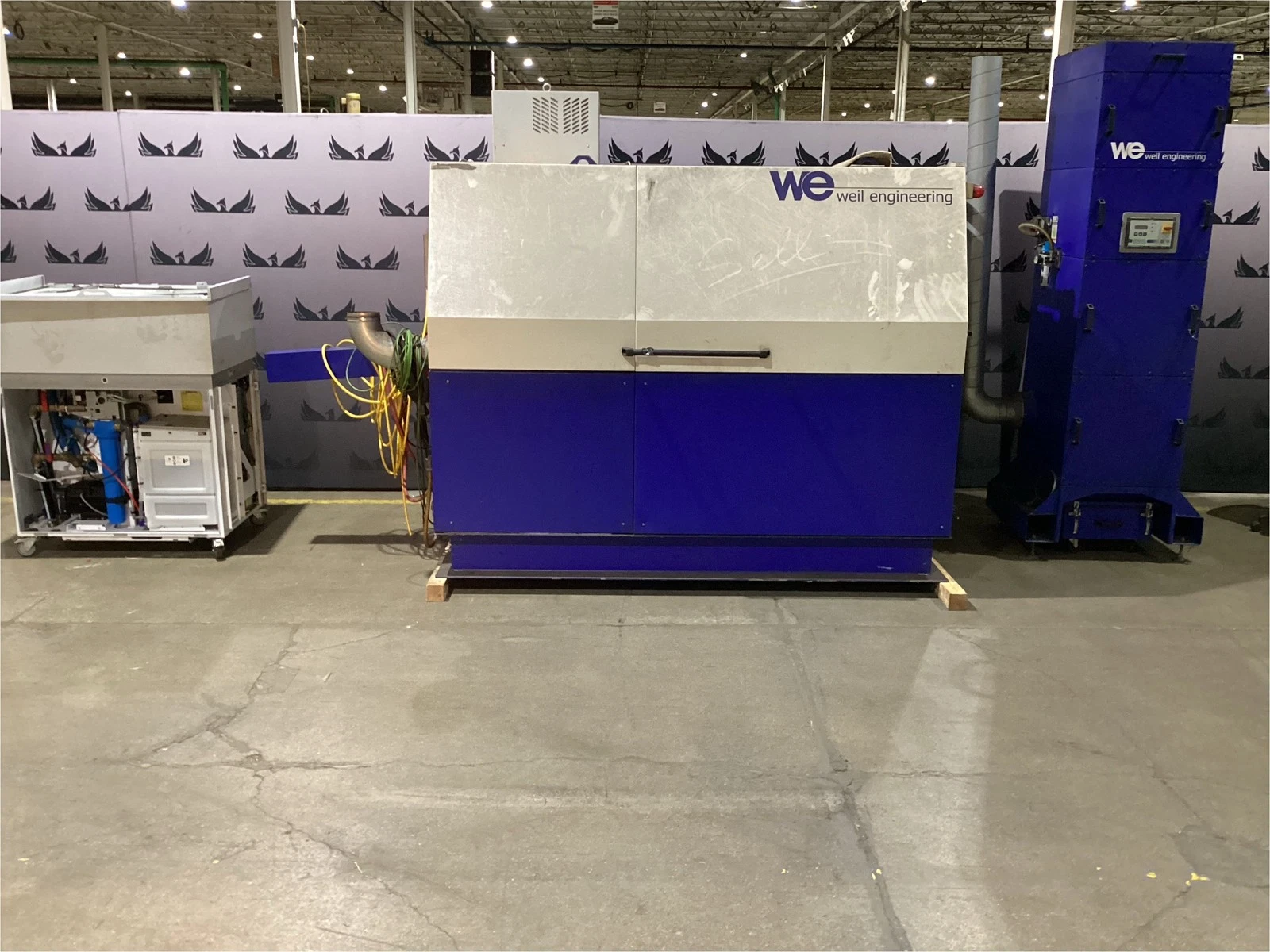

Weil Engineering FLEXMASTER w/ TRUMPF TruDisk 4001 Laser System USED

Specification Table

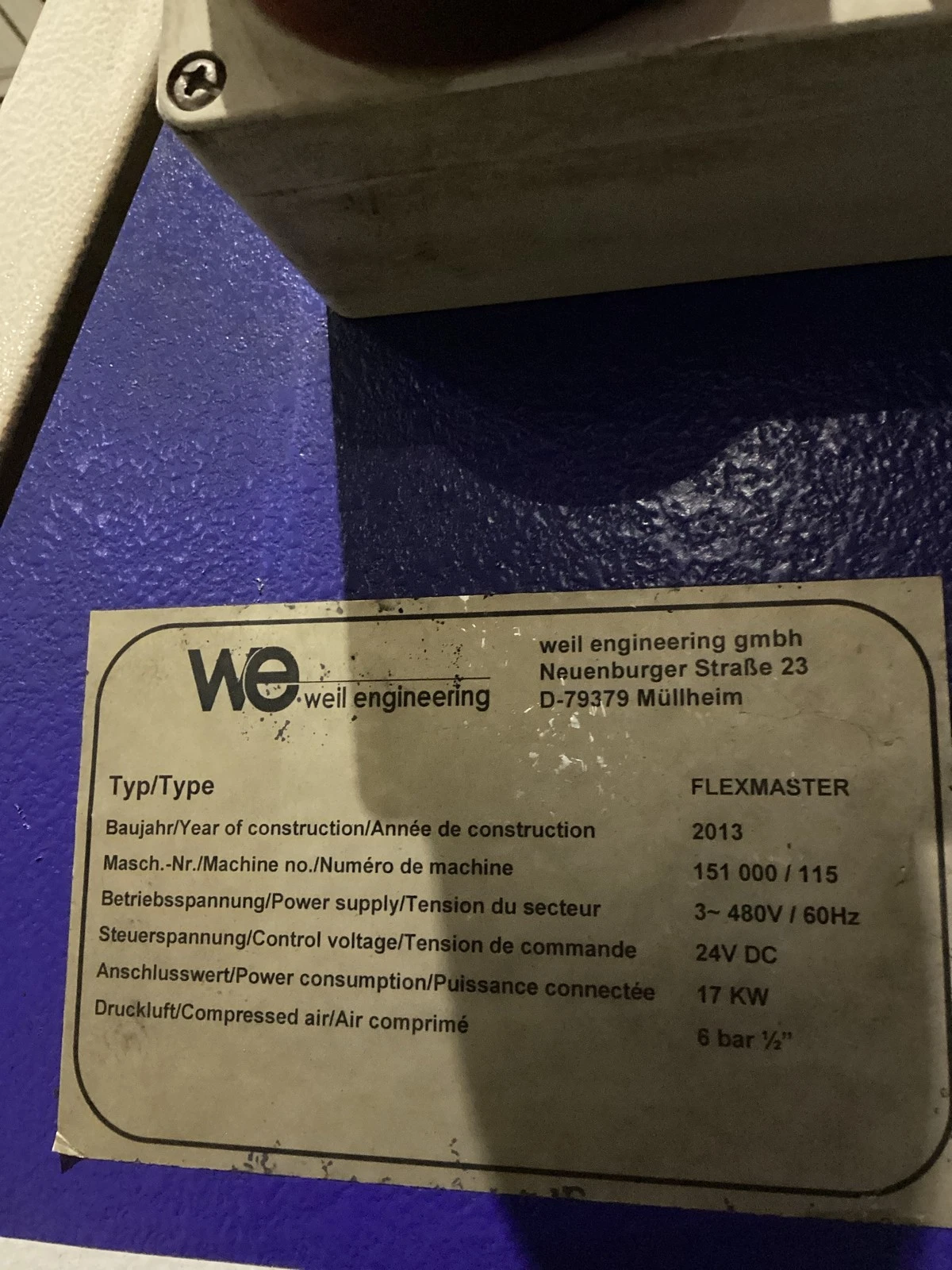

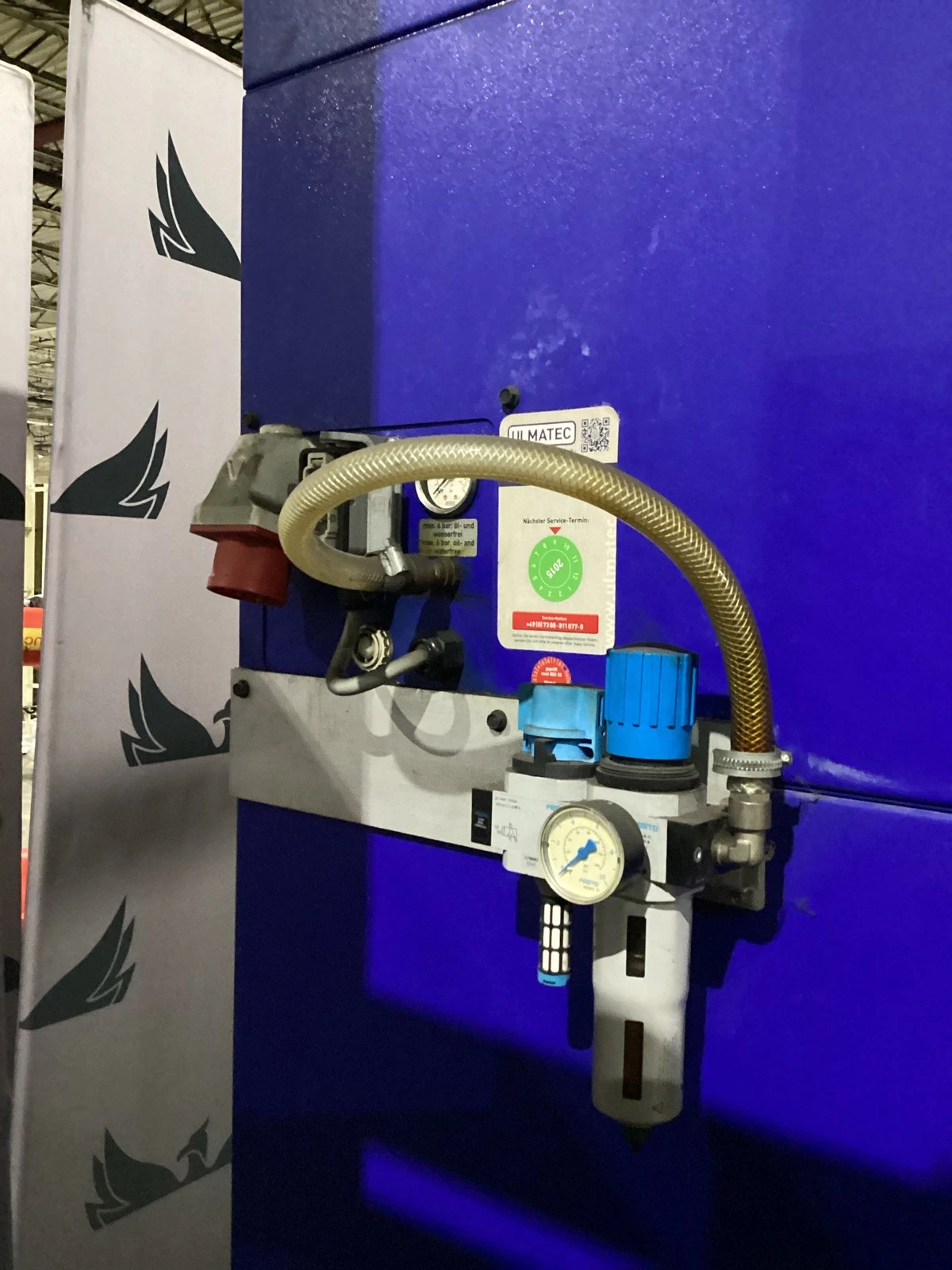

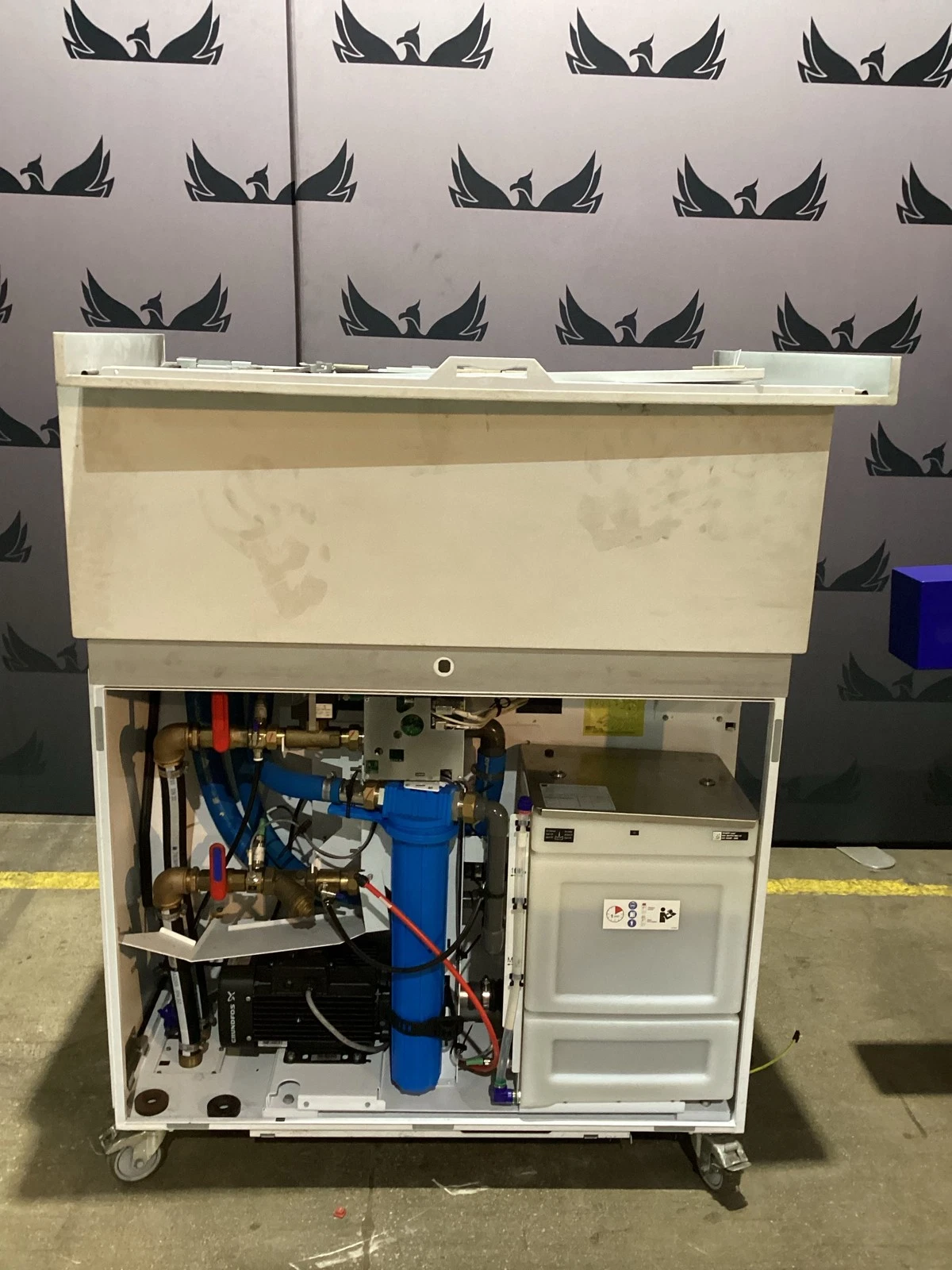

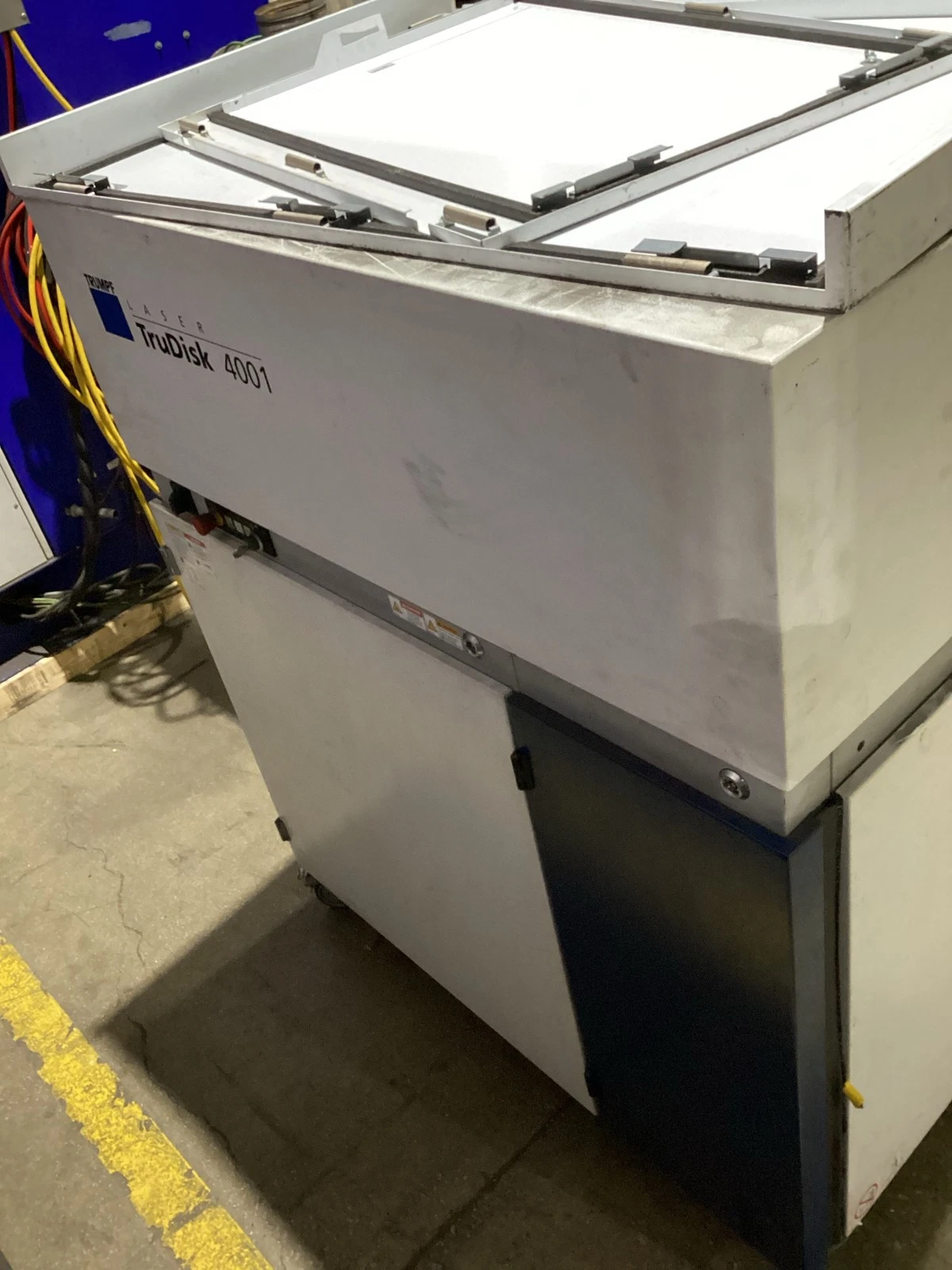

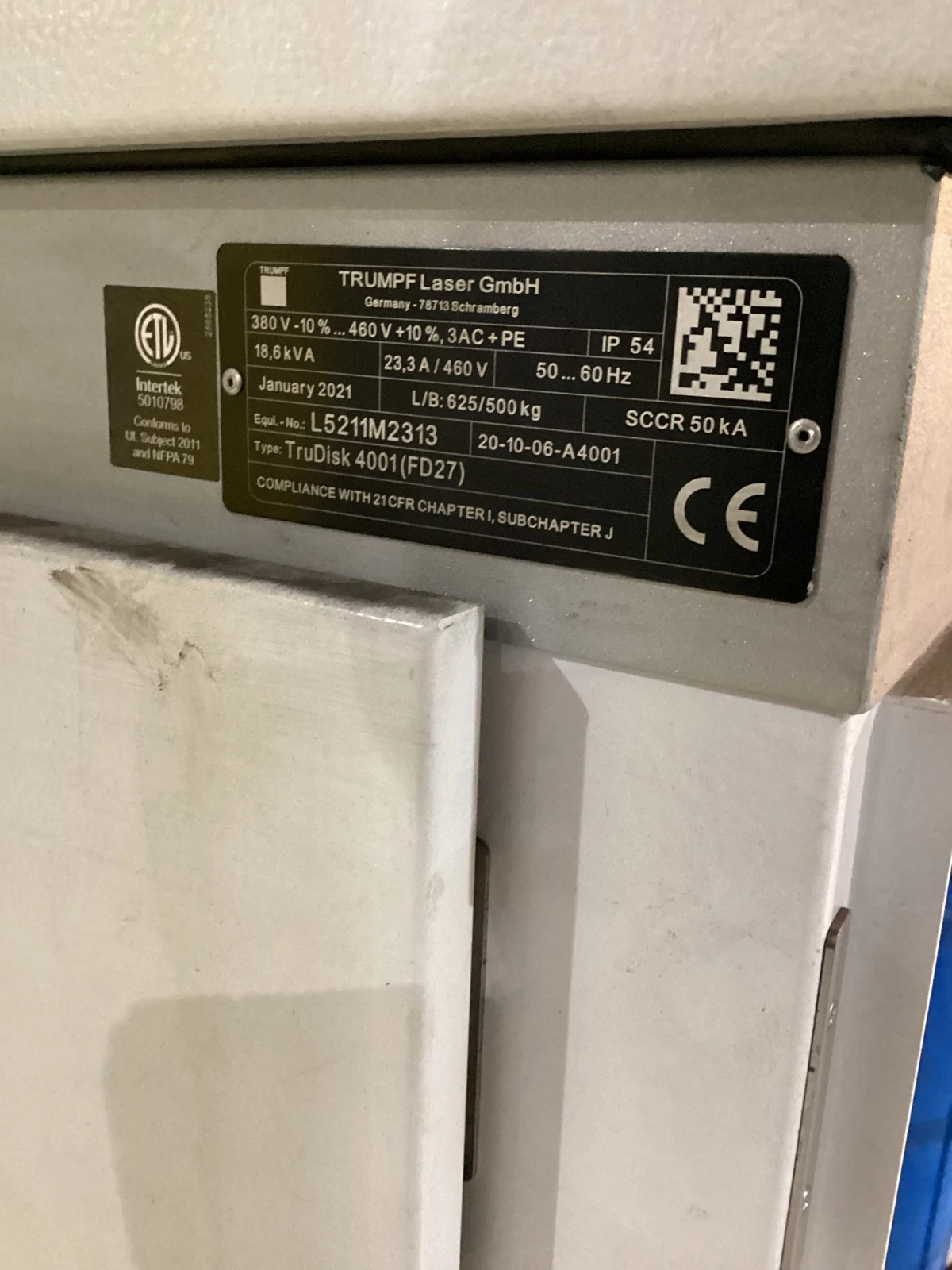

SYSTEM IDENTIFICATION System Manufacturer: Weil Engineering GmbH System Type: FLEXMASTER Machine Number: 151 000 / 115 Product Type: Laser Processing System Condition: USED YOM: 2013   FLEXMASTER ELECTRICAL Supply Voltage: 480 VAC Phase: 3 Phase Frequency: 60 Hz Power Consumption: 17 kW Control Voltage: 24 VDC   PNEUMATIC Compressed Air Supply: 6 bar Air Connection: 1/2 in. Air Preparation: Integrated Pressure Regulation: Included Pressure Indication: Included Filter / Regulator: Included   LASER SOURCE Manufacturer: TRUMPF Laser GmbH Model / Type: TruDisk 4001 (FD27) Equipment Number: L5211M2313 Configuration Number: 20-10-06-A4001 YOM: 2021 Laser Type: Solid-State Disk Laser   TRUDISK ELECTRICAL Supply Voltage Range: 380 V -10% to 460 V +10% Supply Configuration: 3 AC + PE Frequency: 50 / 60 Hz Apparent Power: 18.6 kVA Rated Current at 460 V: 23.3 A Short-Circuit Rating: 50 kA   TRUDISK PROTECTION / COMPLIANCE Ingress Protection: IP54 21 CFR Compliance: Chapter I, Subchapter J CE: Marked ETL: Listed   PROCESSING SYSTEM Processing Configuration: Enclosed Laser Source: Included Machine Controls: Integrated Operator Controls: Integrated Pneumatic Controls: Integrated Process Cabling: Present Process Hoses: Present Service Connections: Integrated   EXTRACTION / FILTRATION Manufacturer: Weil Engineering Product Type: Extraction / Filtration Unit Configuration: Floor-Standing Extraction Ducting: Included Operator Interface: Integrated Filter Access: Multiple Service Panels Collection Section: Lower Access Airflow Rating: Not specified Filter Type: Not specified Filter Media: Not specified Filtration Efficiency: Not specified   INSTALLATION / INTEGRATION Machine Configuration: Floor-Standing Laser Source Configuration: Separate Cabinet Extraction Configuration: Separate Cabinet Extraction Connection: Ducted Compressed Air: Required Electrical Service: 480 VAC, 3 Phase, 60 Hz
