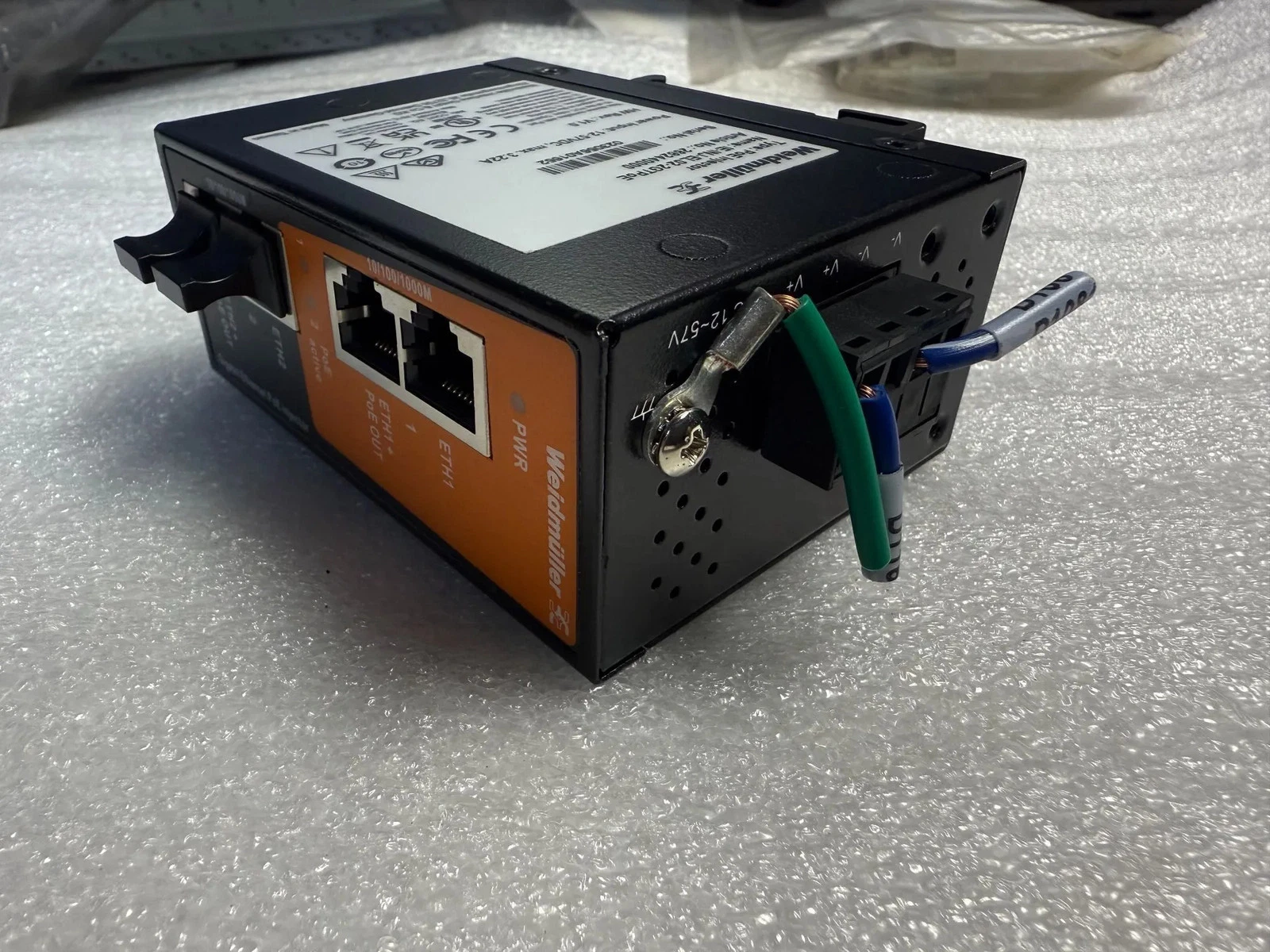

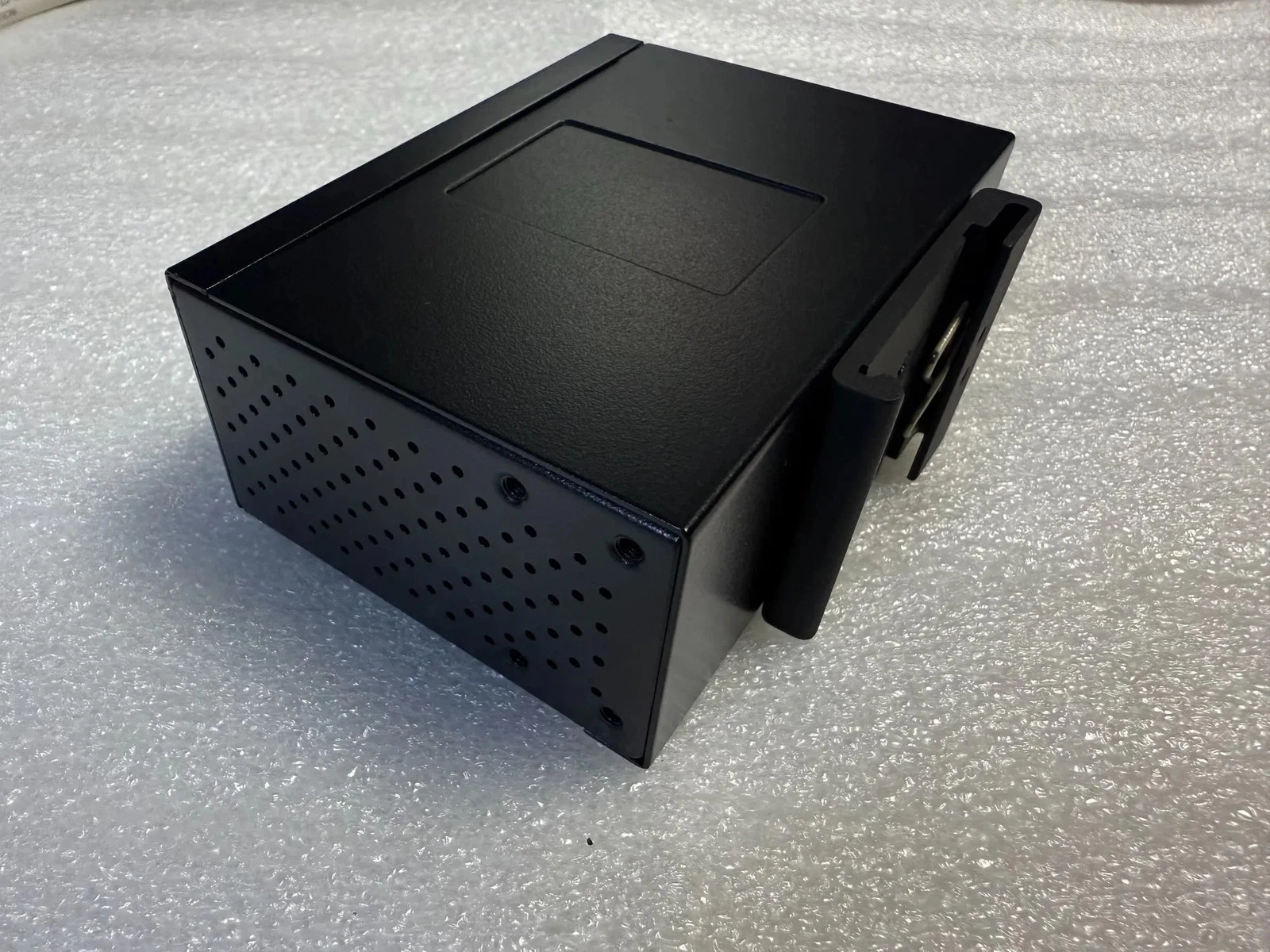

WEIDMULLER 2682440000 IE-INJ-EL02-2GTPOE Ethernet Switch USED

Specification Table

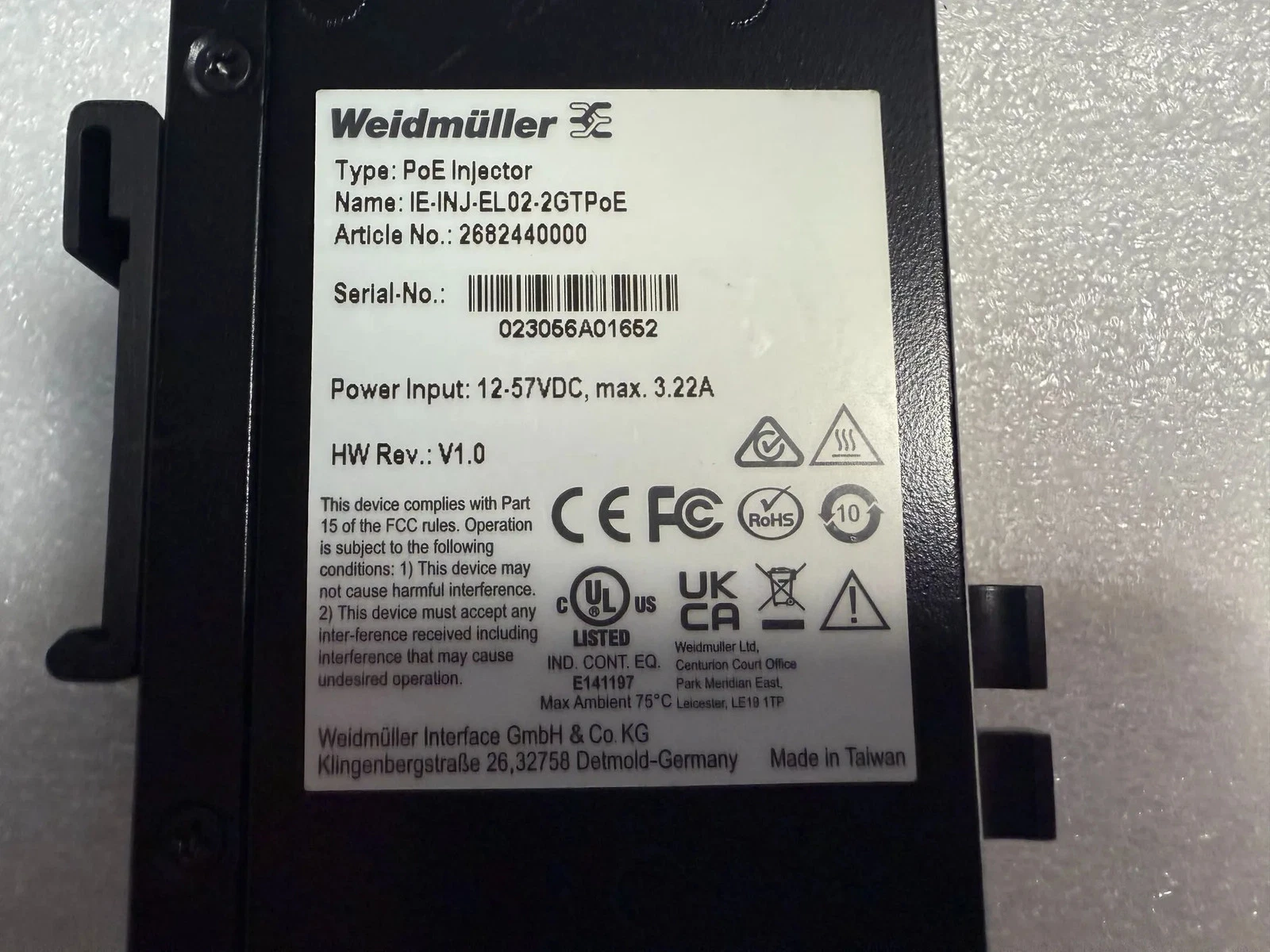

IDENTIFICATION Manufacturer: Weidmüller Manufacturer Article No.: 2682440000 Model / Name: IE-INJ-EL02-2GTPoE Device Type: PoE Injector Network Type: Industrial Ethernet Condition: USED Serial Number: 023056A01662 Hardware Revision: V1.0 YOM: n/a Country of Manufacture: Taiwan NETWORK / POE Ethernet Standard/Speed: 10/100/1000M Network Class: Gigabit Ethernet Numbered Channels: 2 Channel 1: ETH1 Channel 1 PoE Output: ETH1 + PoE OUT Channel 2: ETH2 Channel 2 PoE Output: ETH2 + PoE OUT PoE Activity Indication: Channels 1 and 2 Ethernet Connector Type: RJ45 PoE Output Rating: Not specified PoE Standard: Not specified PoE Power Budget: Not specified ELECTRICAL Power Input: 12-57 VDC Maximum Input Current: 3.22 A Input Connection: Removable terminal block Protective Earth: Chassis grounding connection Power Status Indication: PWR indicator INTERFACE / INDICATION ETH1 Interface: Present ETH1 PoE Output: Present ETH2 Interface: Present ETH2 PoE Output: Present PWR Indicator: Present PoE Active Indicators: 1 and 2 CONSTRUCTION / INSTALLATION Housing Type: Enclosed industrial housing Mounting Provision: Integrated mounting hardware Terminal Connection: Removable terminal block Maximum Ambient Temp.: 75 °C Dimensions: Not specified Weight: Not specified COMPLIANCE / APPROVALS FCC: Marked FCC Requirement: Part 15 CE: Marked UKCA: Marked RoHS: Marked UL: cULus Listed UL Classification: Industrial Control Equipment UL File / Reference: E141197 RCM: Marked
