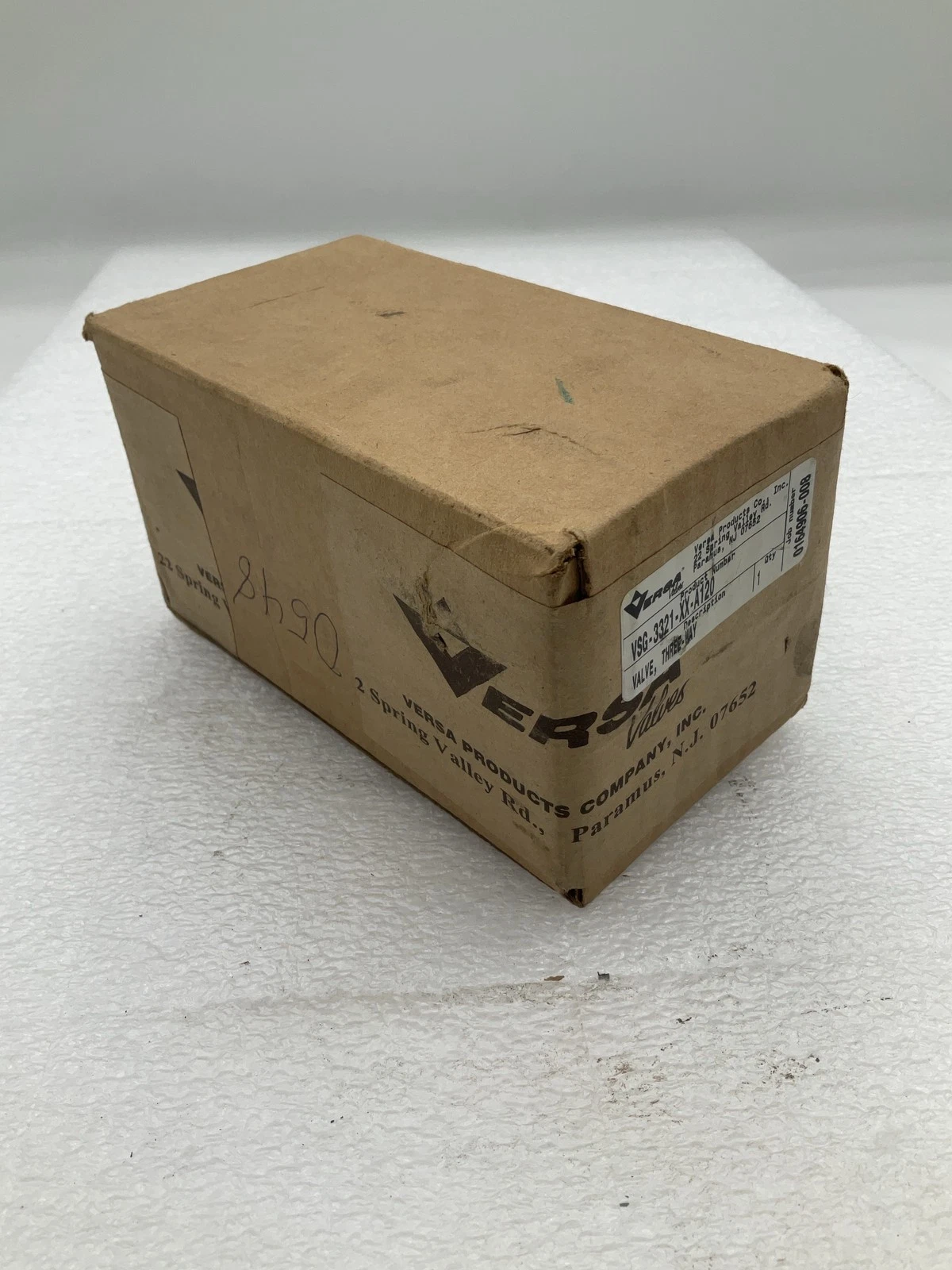

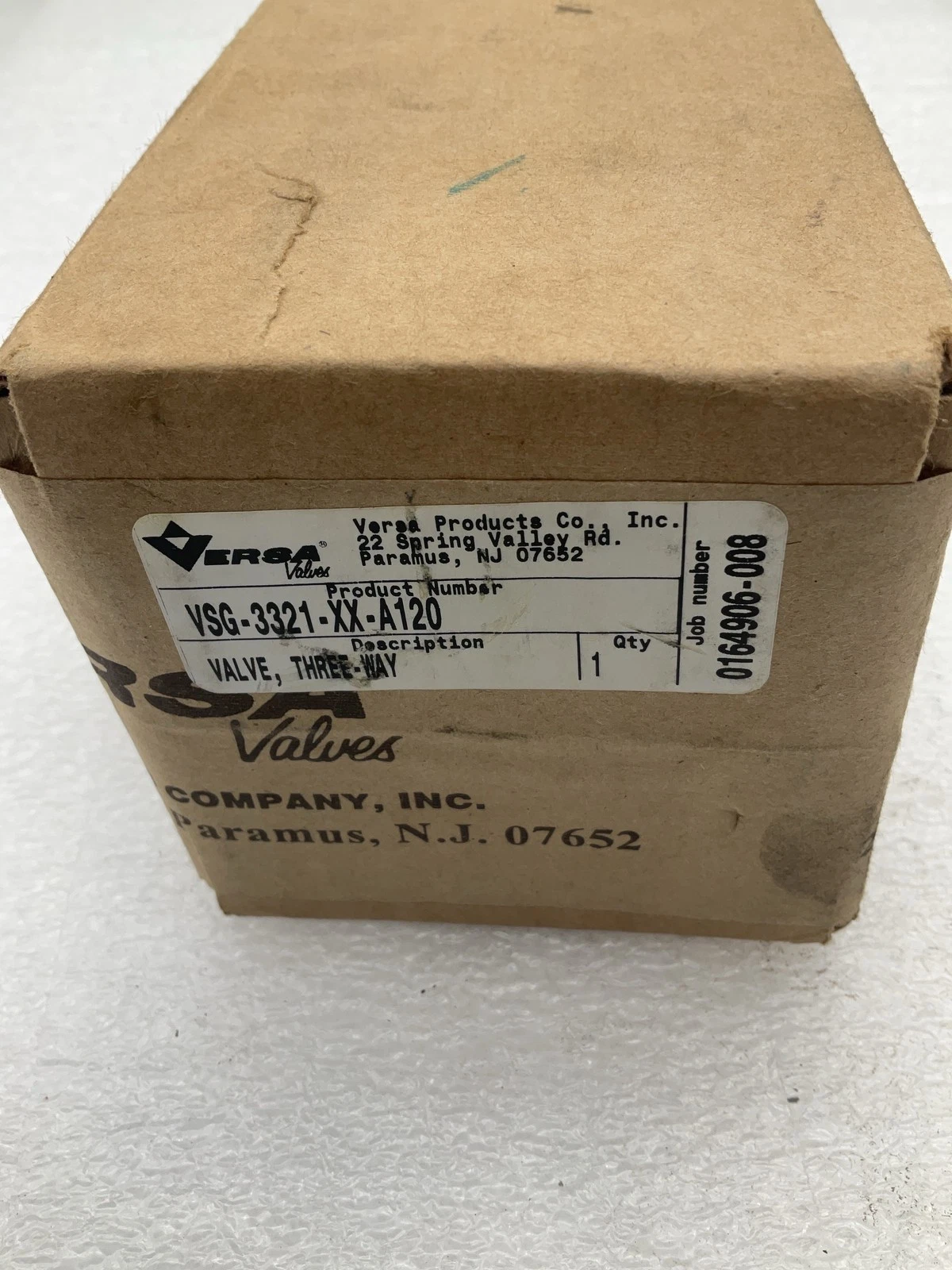

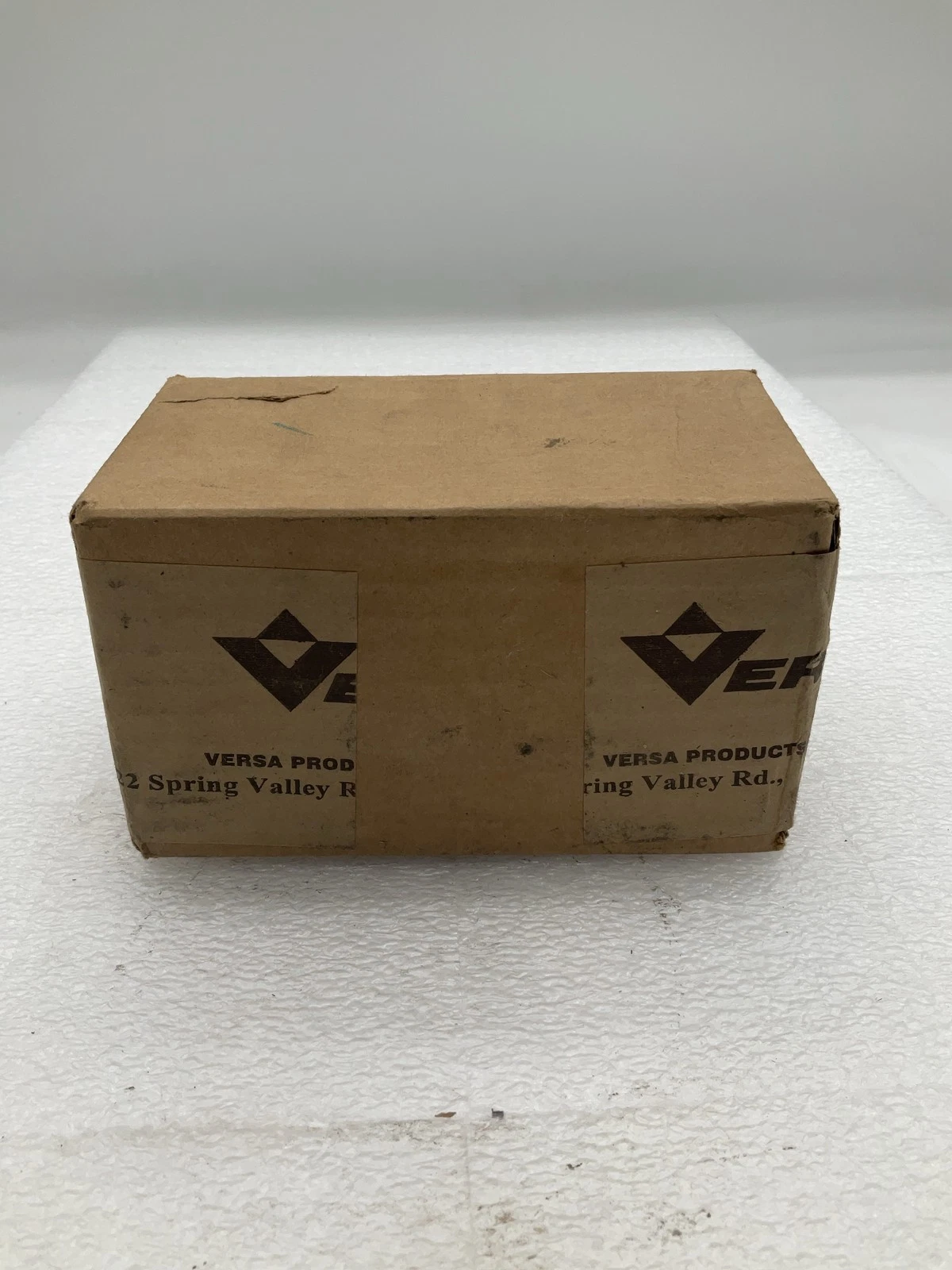

VERSA VSG-3321-XX-A120 Three-Way Solenoid Valve NEW

Specification Table

IDENTIFICATION Manufacturer: VERSA Model: VSG-3321-XX-A120 Device Type: Three-Way Pneumatic Valve Condition: NEW FUNCTION Valve Function: 3-Way, 2-Position, Normally Closed Actuation Type: Solenoid Pilot Return Type: Spring Return FLOW DATA Flow Coefficient (Cv): 1.8 Flow Capacity: 100 SCFM PRESSURE DATA Operating Pressure Range: 20-175 PSI Operating Pressure Range: 1.4-12 Bar PORT CONFIGURATION Port Size: 1/4 in. NPT Body Style: Side Ported MEDIA COMPATIBILITY Compressed Air: Yes Inert Gas: Yes Natural Gas: Yes TEMPERATURE DATA Operating Temperature: 20°F to 120°F Operating Temperature: -5°C to 50°C ELECTRICAL Coil Code: A120 Coil Voltage: 120 VAC Frequency: 60 Hz Power Consumption: 6 W CONSTRUCTION Body Material: Forged Brass Internal Components: Brass and Stainless Steel Seal Material: NBR (Nitrile) HAZARDOUS LOCATION RATINGS Class I Division 1: Groups C & D Class II Division 1: Groups E, F & G Class I Division 2: Groups A, B, C & D Class II Division 2: Groups E, F & G Temperature Classification: T3C Enclosure Classification: NEMA 7 & 9 CERTIFICATIONS UL Listed: Yes CSA Certified: Yes
