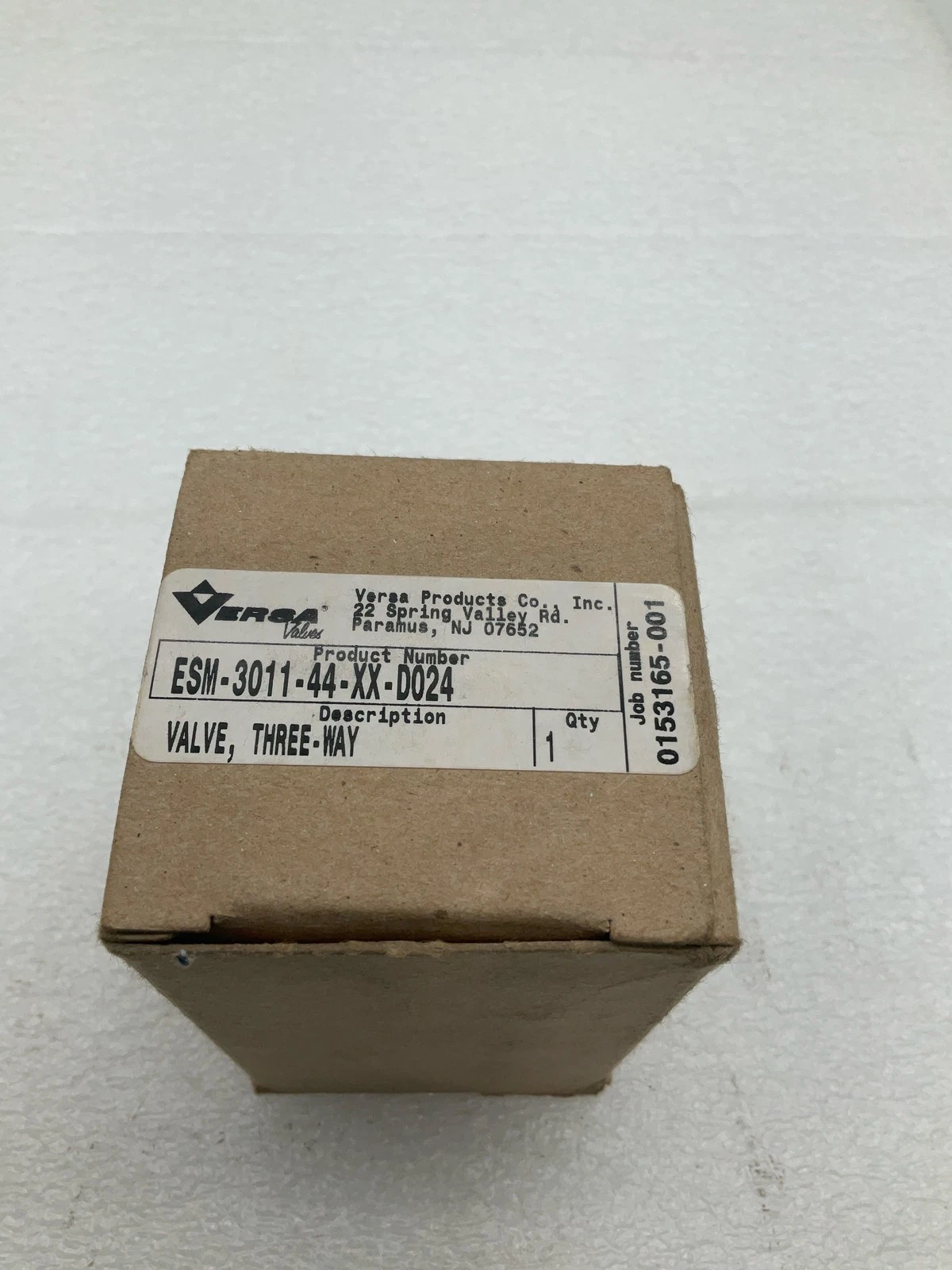

VERSA ESM-3011-44-XX-D024 Three-Way Solenoid Valve NEW

Specification Table

IDENTIFICATION Manufacturer: VERSA Model: ESM-3011-44-XX-D024 Device Type: Three-Way Solenoid Valve Condition: NEW FUNCTION Valve Function: 3-Way, 2-Position, Normally Closed Actuation Type: Direct-Acting Solenoid FLOW DATA Flow Coefficient (Cv): 1.4 PRESSURE DATA Operating Pressure Range: Vacuum to 200 PSI Operating Pressure Range: Vacuum to 13.8 Bar PORT CONFIGURATION Port Size: 1/8 in. NPT Port Style: Body Ported MEDIA COMPATIBILITY Compressed Air: Yes Inert Gas: Yes Natural Gas: Yes TEMPERATURE DATA Operating Temperature: -40°F to 200°F Operating Temperature: -40°C to 93°C ELECTRICAL Coil Code: D024 Coil Voltage: 24 VDC Power Consumption: 7.2 W CONSTRUCTION Body Material: Forged Brass Internal Components: Brass and Stainless Steel Seal Material: Low Temperature NBR (-44) HAZARDOUS LOCATION RATINGS Class I Division 1: Groups C & D Class II Division 1: Groups E, F & G Class I Division 2: Groups A, B, C & D Class II Division 2: Groups E, F & G Temperature Classification: T3C Enclosure Classification: NEMA 7 & 9 CERTIFICATIONS UL Listed: Yes CSA Certified: Yes
