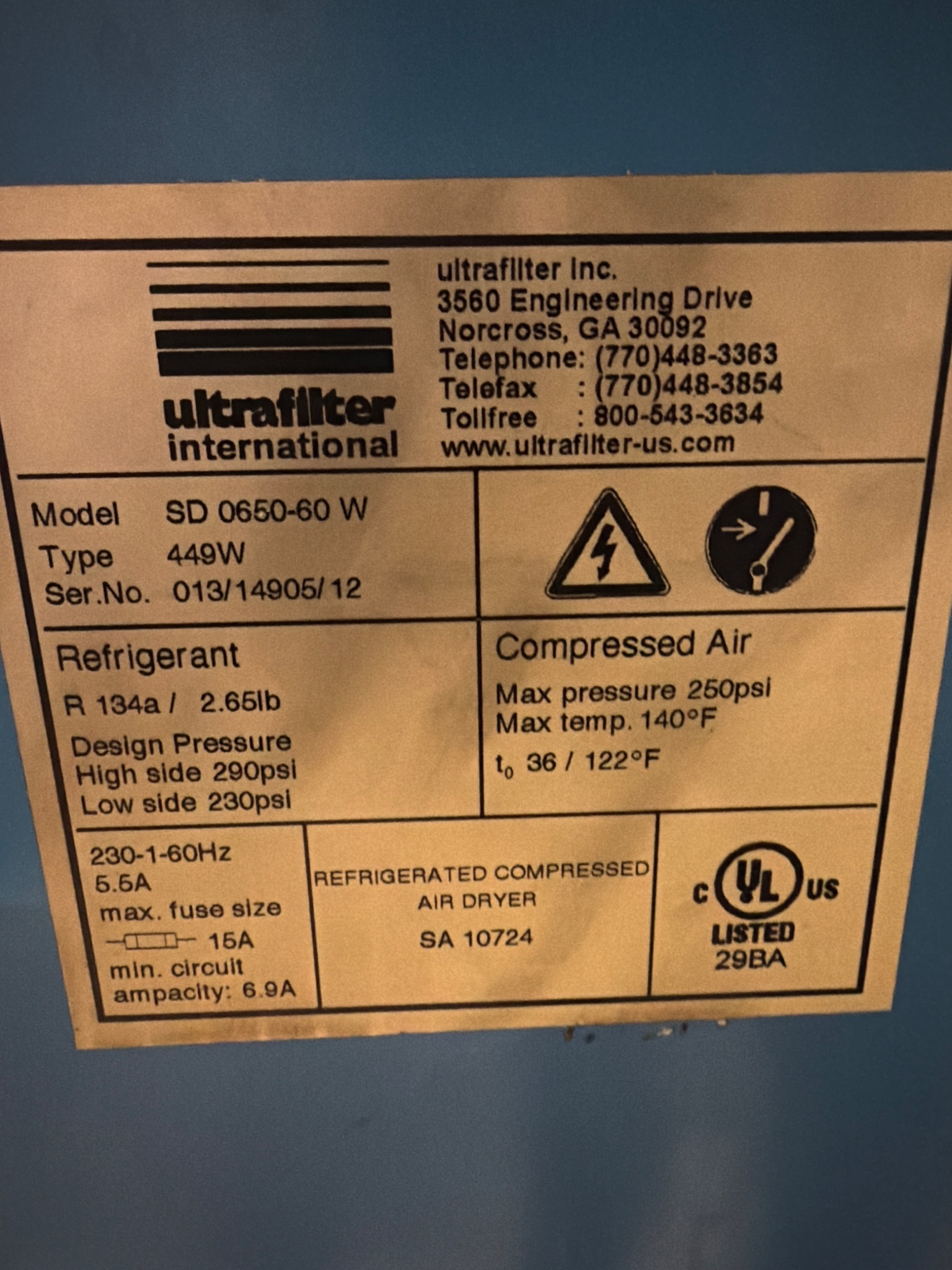

Specification Table
Manufacturer: Ultrafilter International
Model: SD 0650-60 W
Type: 449W
Condition: USED
Function: Refrigerated Compressed Air Dryer
Refrigerant: R134a / 2.65 lb
Design Pressure (High Side): 290 psi
Design Pressure (Low Side): 230 psi
Compressed Air Rating: Max 250 psi
Max Air Temperature: 140°F
Operating Temperature Range: 36°F to 122°F
Voltage: 230V, 1-Phase, 60 Hz
Current: 5.5 A (min. circuit ampacity 6.9 A)
Max Fuse Size: 15 A
UL Classification: Listed 29BA
Serial Number: 013/14905/12
Manufacturer Location: Norcross, GA, USA (Ultrafilter Inc.)
▸ Key Features:
• Industrial refrigerated compressed air dryer for moisture removal
• Supports compressed air systems up to 250 psi
• Operates with R134a refrigerant (2.65 lb charge)
• Rated for 230V, 1-phase, 60 Hz electrical supply
• Reduces moisture to protect pneumatic tools, valves, and downstream equipment
• Designed to maintain consistent dew point performance
• UL listed refrigerated air dryer suitable for industrial applications
▸ Applications:
• Industrial air compressor systems
• Manufacturing and machining facilities
• Pneumatic equipment and air‑powered tools
• Packaging, automation, and process control systems
• Any system requiring dry, moisture‑free compressed air
▸ Alternative Model Numbers:
SD 0650‑50 W
SD 0650‑60
SD 0650 Series
Ultrafilter 449W Type Variants
Comparable R134a refrigerated dryers
▸ Common Misspellings or Phrasing:
SD0650‑60W
Ultra Filter SD650
Ultrafilter 0650‑60
0650‑60W Air Dryer
SD‑650‑60‑W
