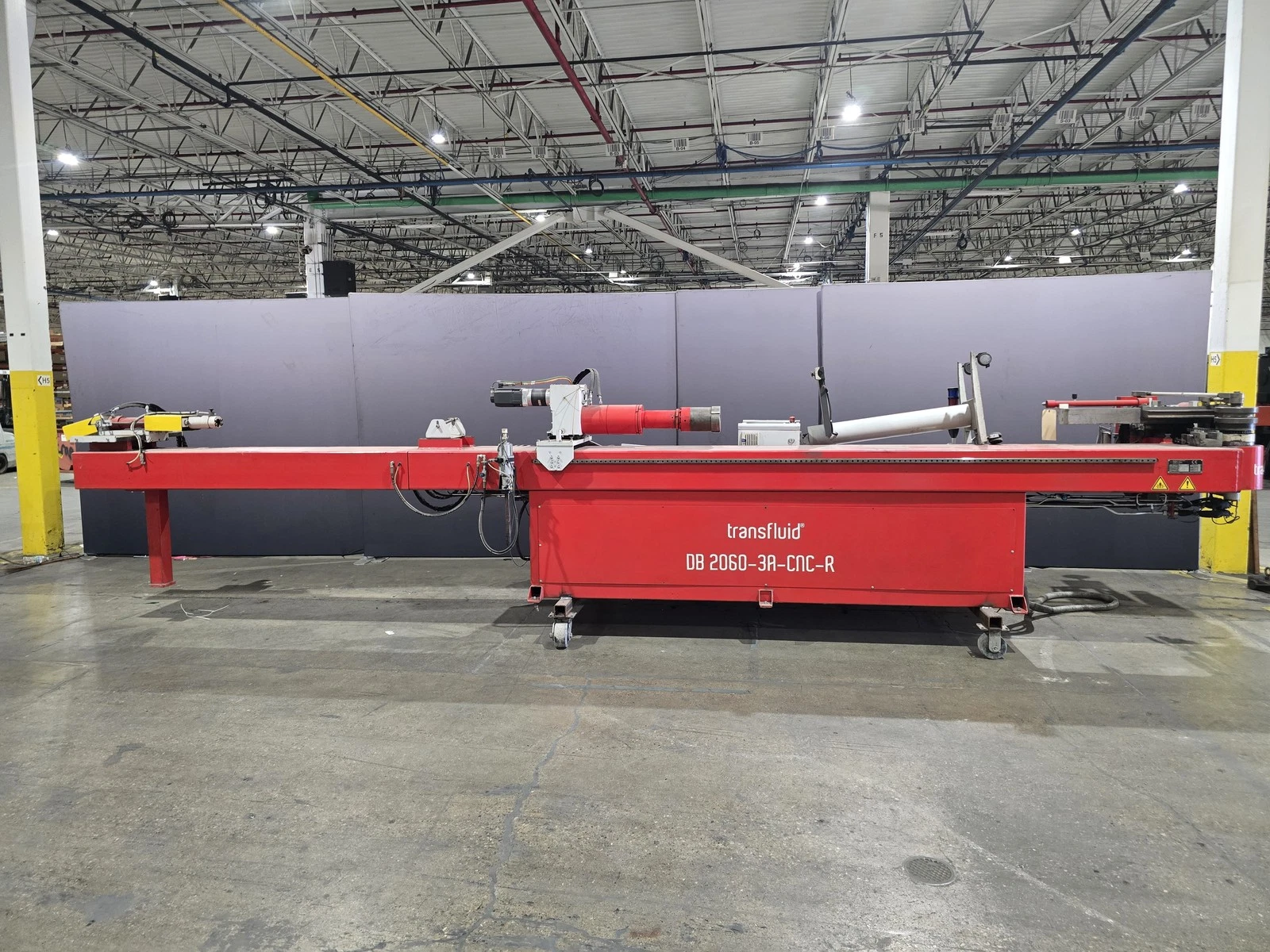

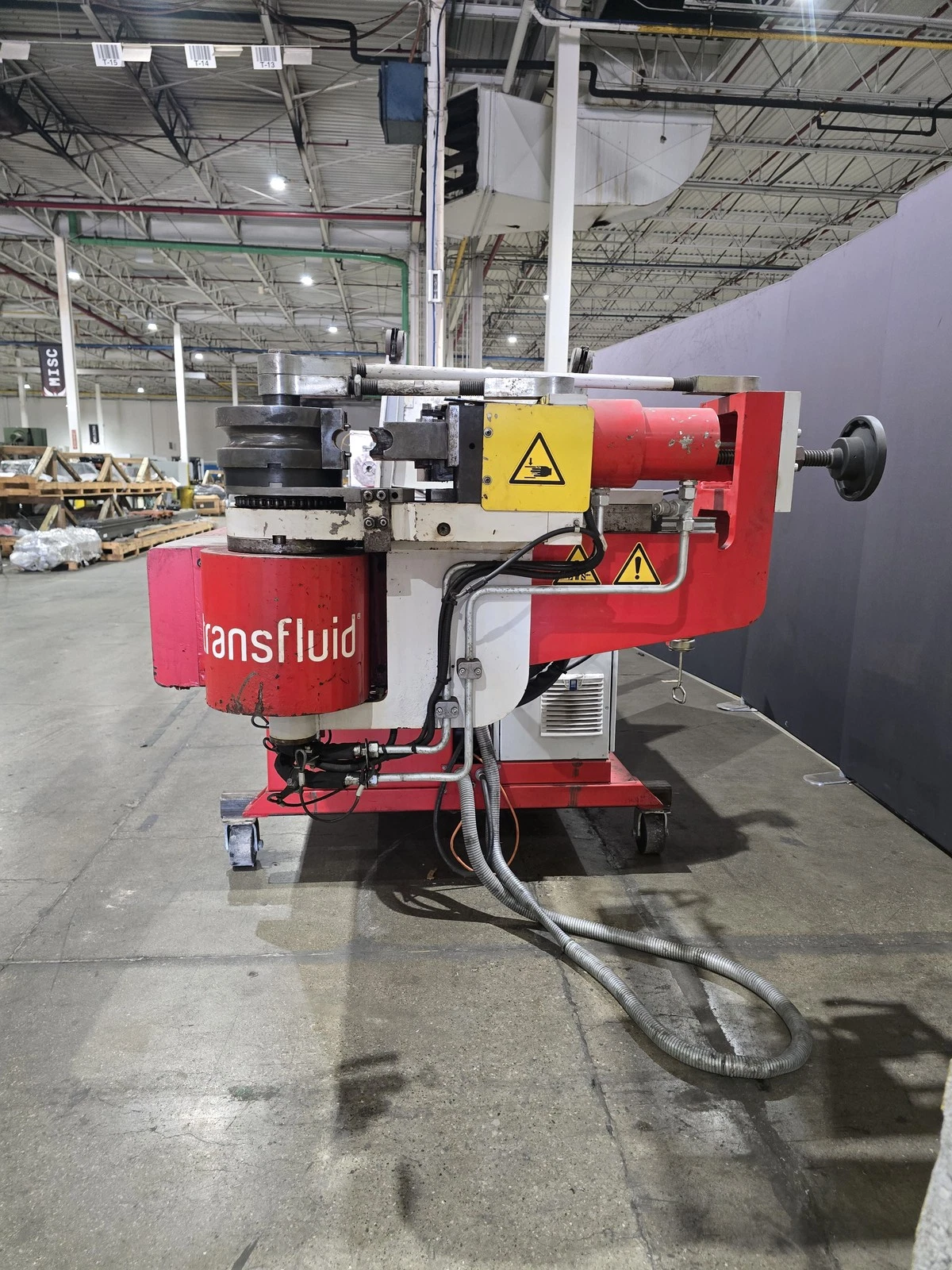

TRANSFLUID DB 2060-3A CNC-R CNC Tube & Pipe Bending Machine 20-60mm USED

Specification Table

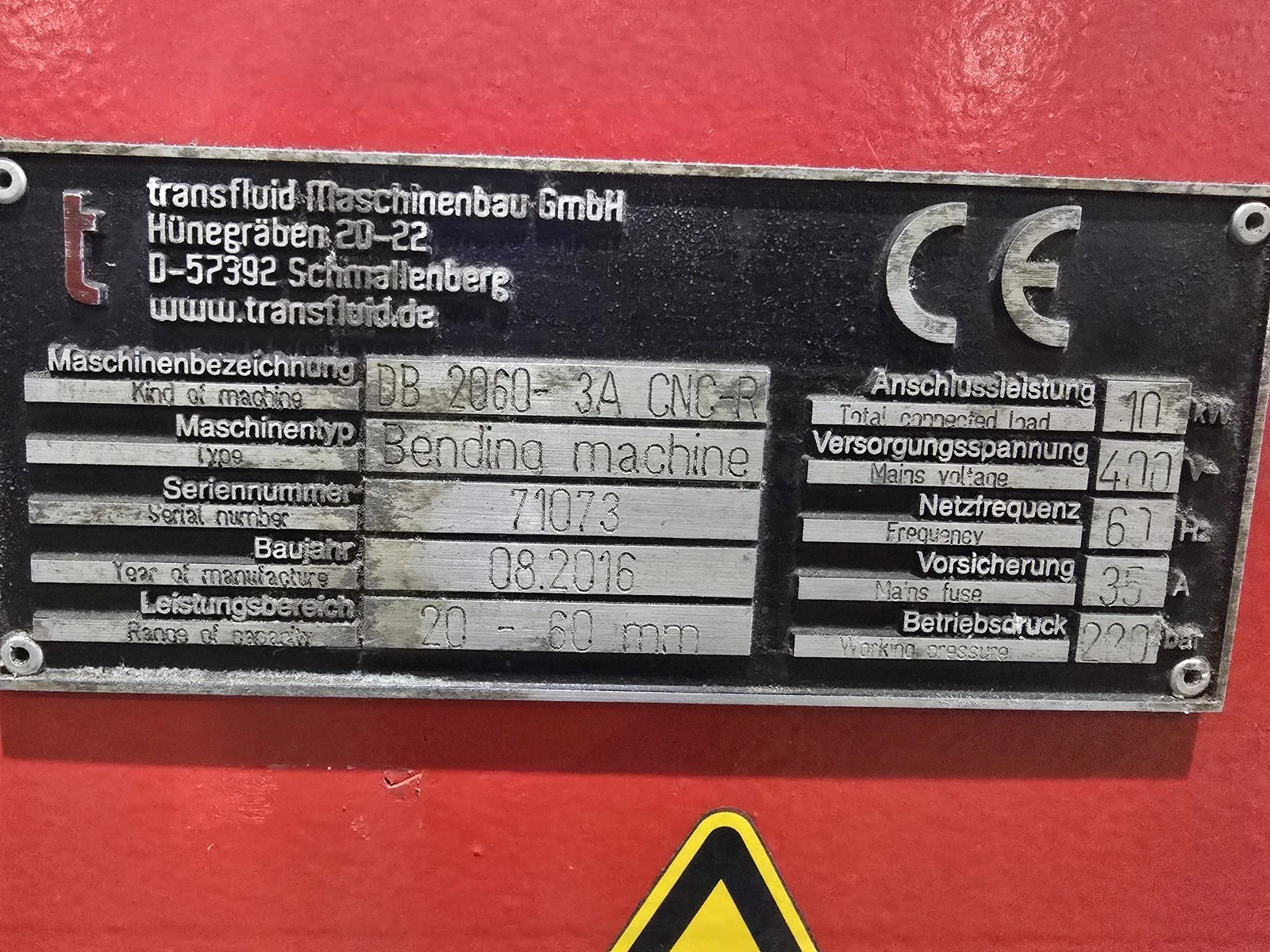

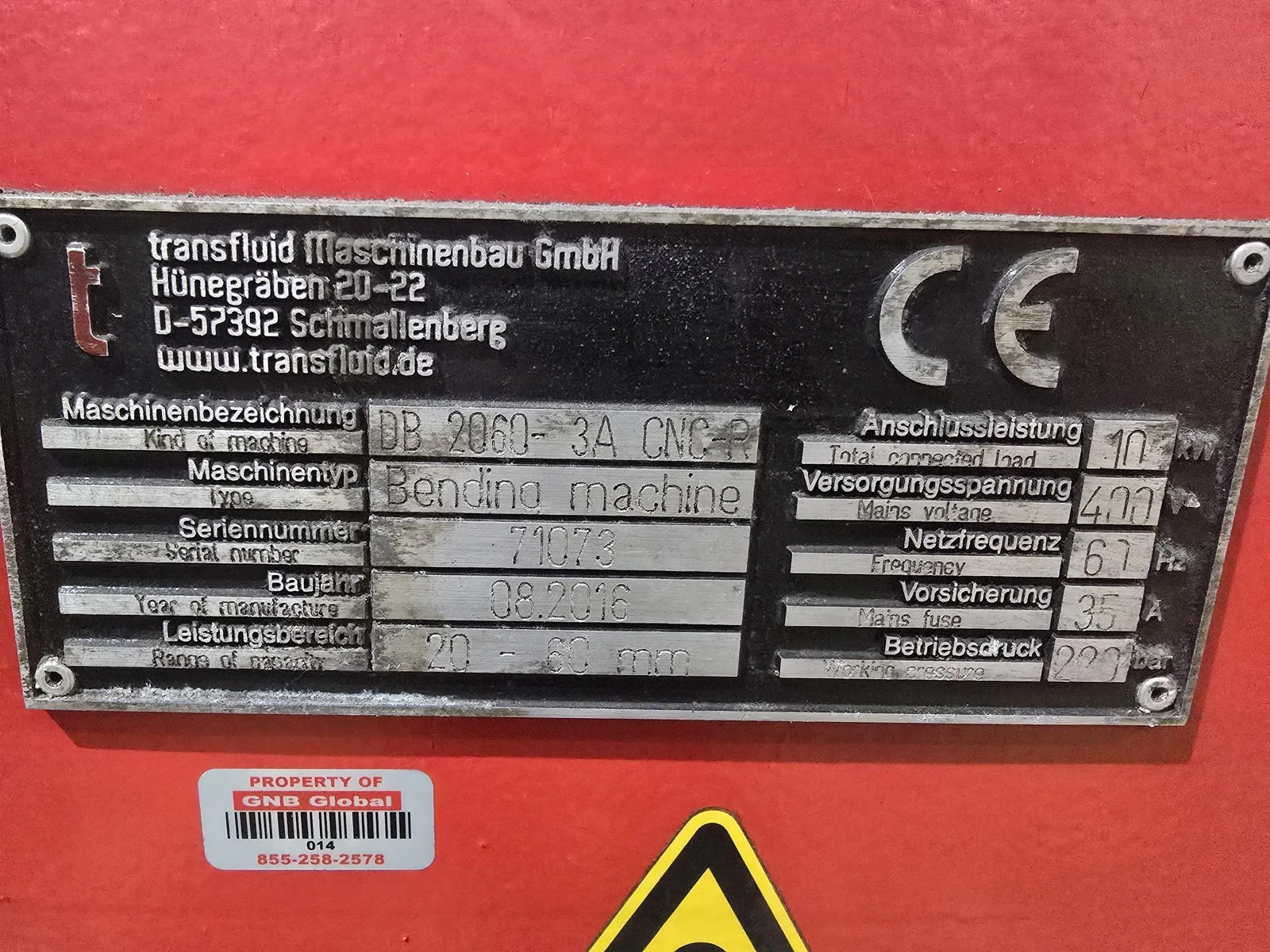

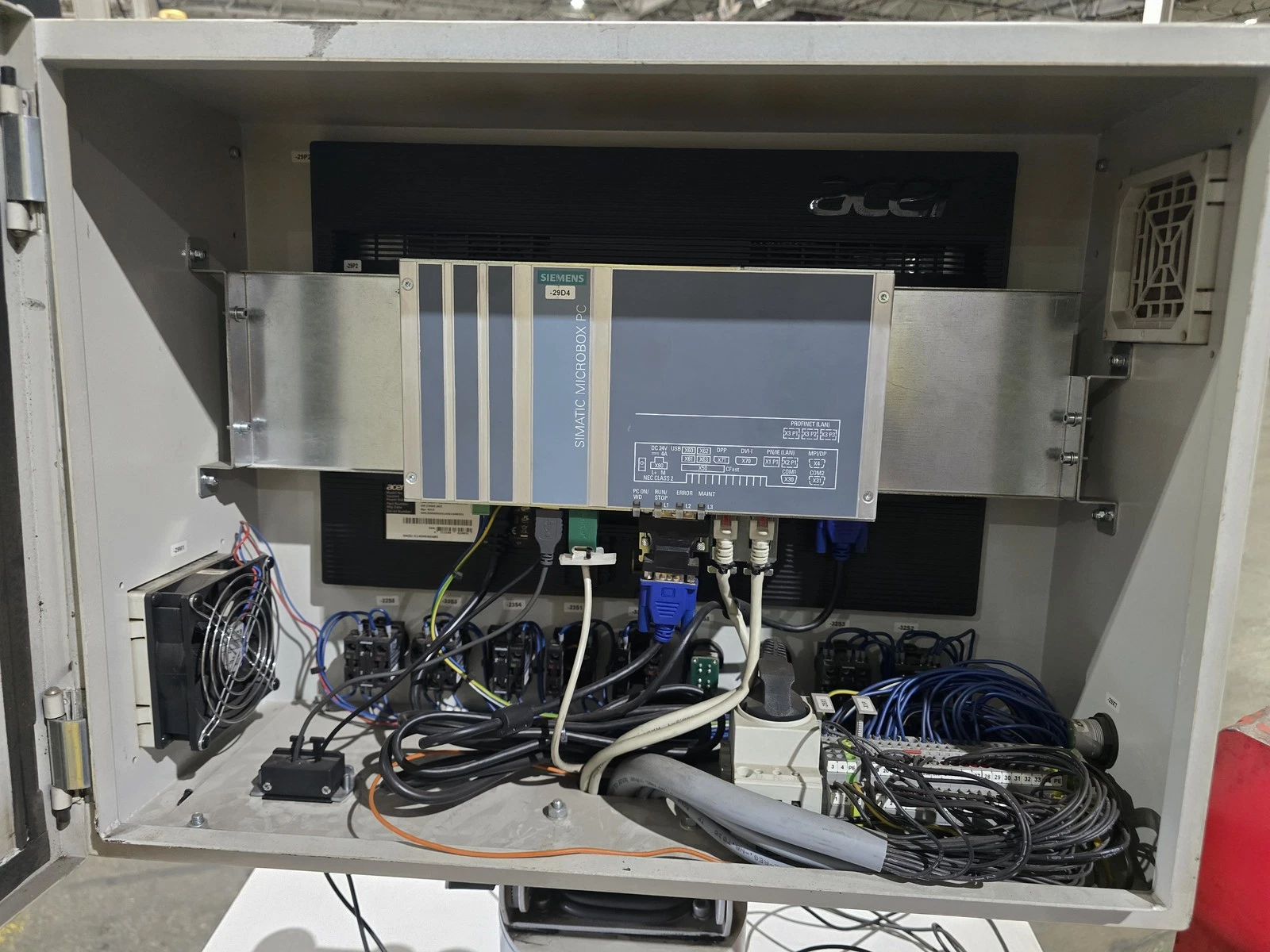

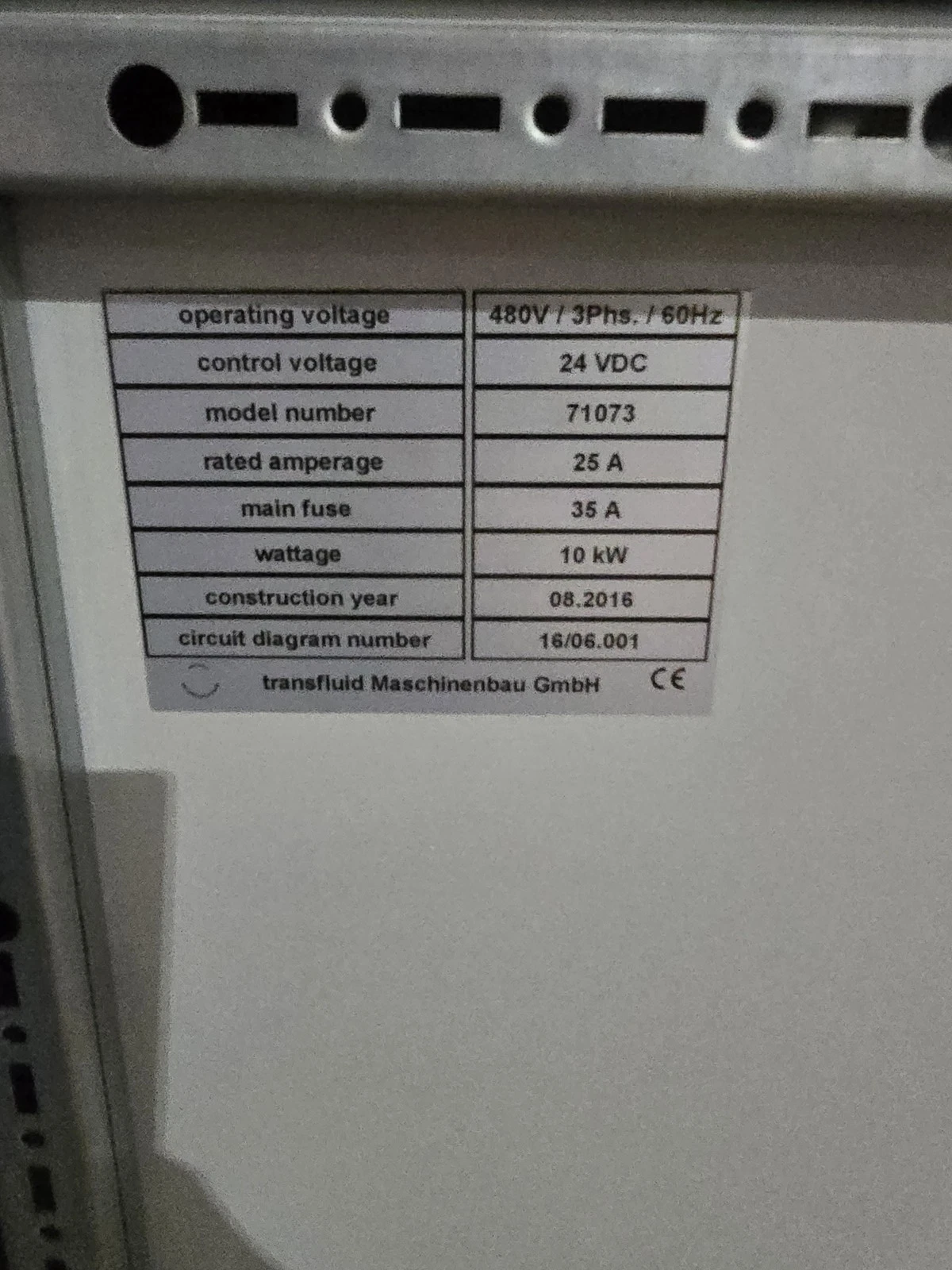

IDENTIFICATION Manufacturer:               Transfluid Maschinenbau GmbH Model:                      DB 2060-3A CNC-R Machine Type:               CNC Tube & Pipe Bending Machine Condition:                  USED Serial Number:              71073 Year of Manufacture:        08/2016 Country of Origin:          Germany CE Marked:                  Yes Circuit Diagram Number:     16/06.001 CAPACITY Material Diameter Range:    20 - 60 mm Processing Type:            Tube & Pipe Forming Material Handling:          Tube Feed and Rotation Control Production Method:          CNC Programmable Bending PROCESSING Bending Style:              Rotary Draw Bending Bending Head:               Hydraulic Clamp System:               Hydraulic Pressure Die System:        Installed Tube Feed Function:         Servo Controlled Tube Rotation Function:     Servo Controlled Multi-Axis Motion:          Present ELECTRICAL Operating Voltage:          480 VAC Phase:                      3 Phase Frequency:                  60 Hz Control Voltage:            24 VDC Connected Load:             10 kW Rated Current:              25 A Main Fuse Rating:           35 A CONTROL SYSTEM Industrial Computer:        Siemens SIMATIC Microbox PC Operator Display:           Acer Industrial Monitor Motion Platform:            Siemens SINAMICS Distributed I/O System:     Siemens SIMATIC ET 200SP Power Supply Platform:      Siemens SITOP PSU8200 Industrial Ethernet:        Present USB Connectivity:           Present Control Cabinet:            Integrated MOTION SYSTEM Servo Drive Platform:       Siemens SINAMICS Bending Axis:               Controlled Feed Axis:                  Controlled Rotation Axis:              Controlled Servo Motion Control:       Present HYDRAULIC SYSTEM Working Pressure:           220 bar Hydraulic Bending:          Present Hydraulic Clamping:         Present SAFETY SYSTEM Safety Scanner Manufacturer:     SICK Safety Scanner Model:            S30A-4011BA Protection Rating:              IP65 Supply Voltage:                 24 VDC Maximum Power Consumption:      55 W Safety Classification:          IEC 61496-1 Type 3 Safety Integrity Level:         SIL 2 Performance Level:              PL d Resolution Options:             40 mm / 70 mm / 150 mm Operating Temperature:          -10°C to +50°C Stack Light:                    Installed Emergency Stop Circuit:         Present MACHINE COMPONENTS Position Switch Manufacture
