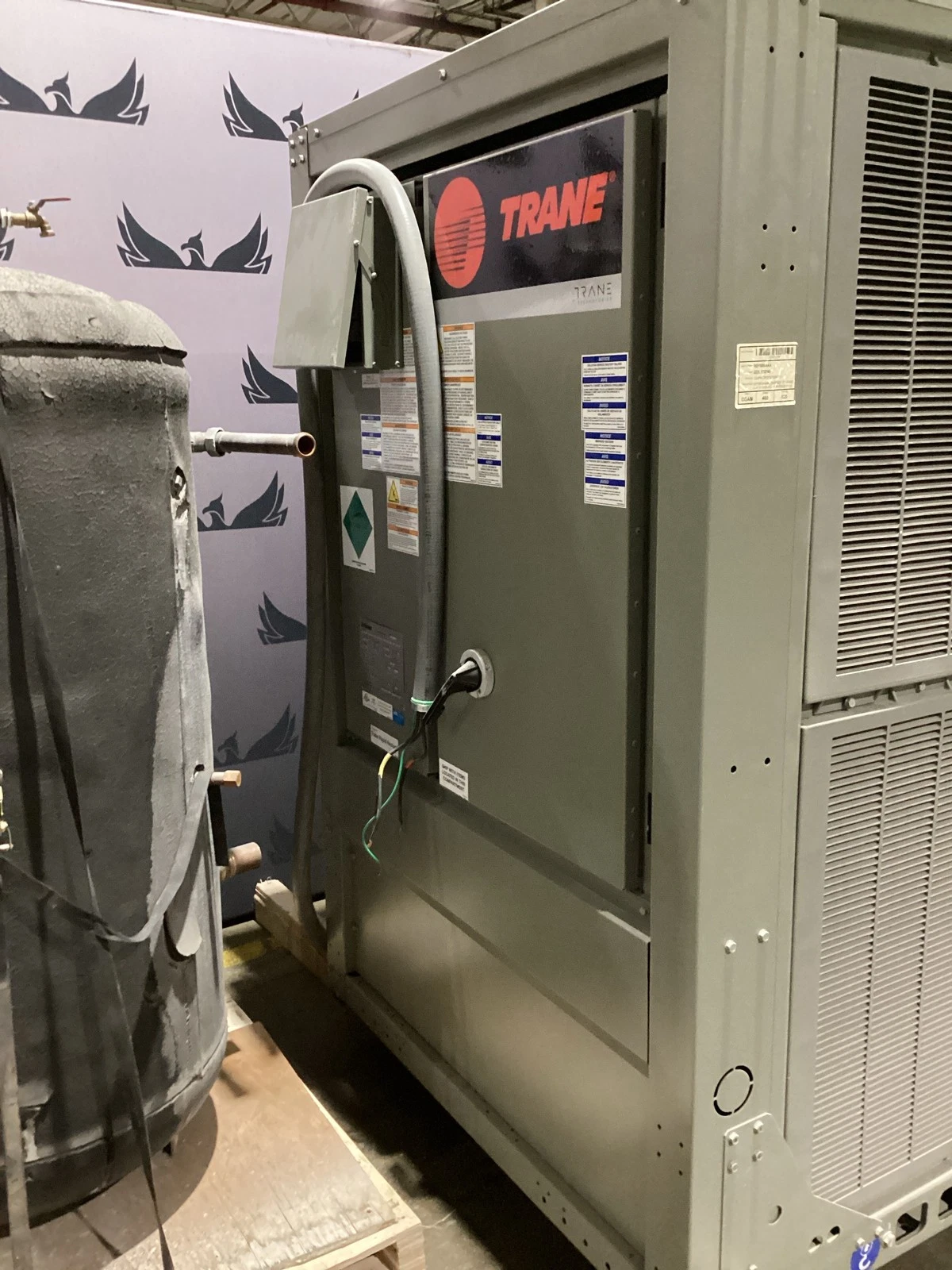

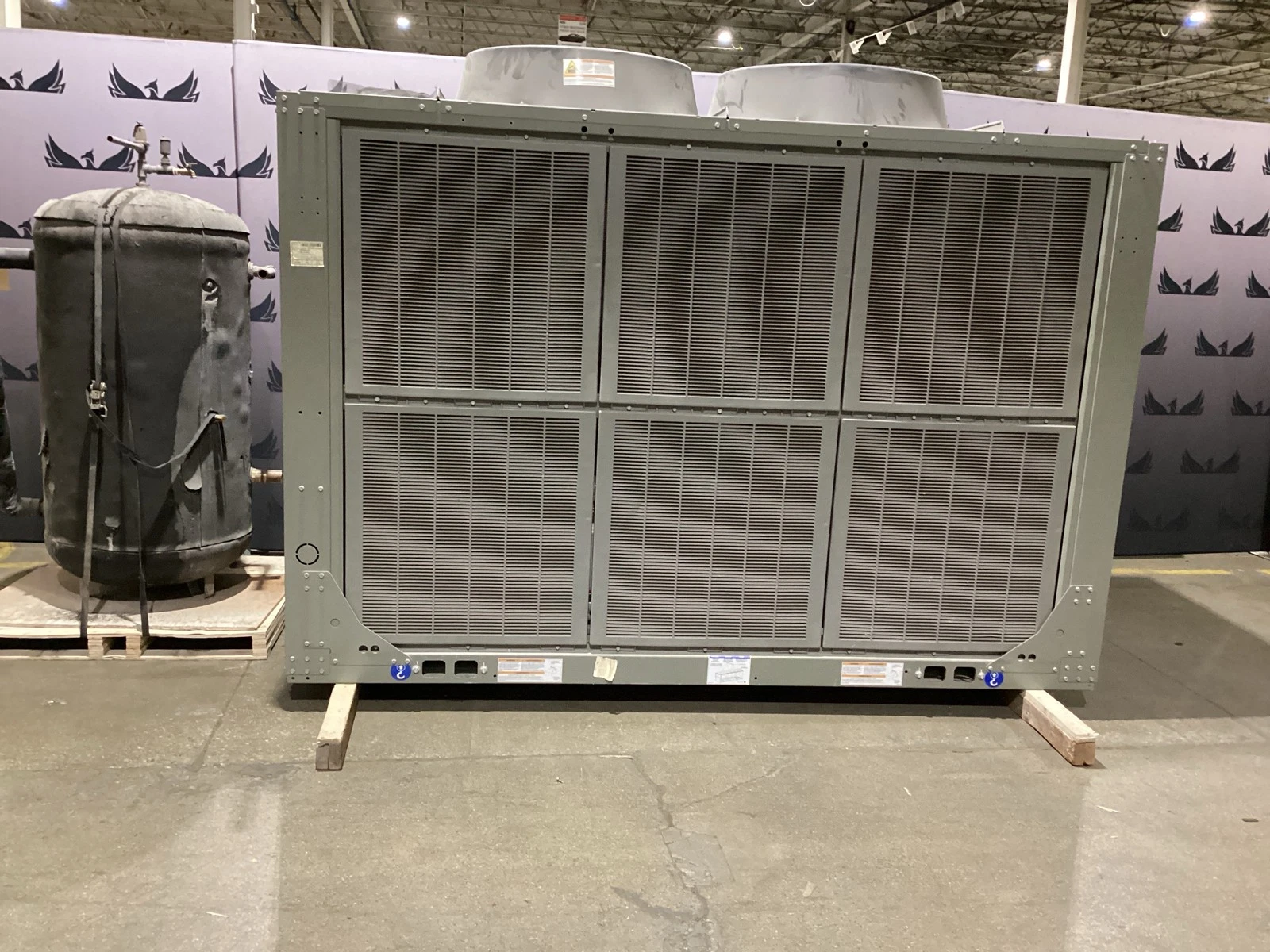

TRANE CGAM020F2Y02AXB2A1A1A1HXXA1C1AXXXXAXA3A1D1XXLXX Air Cooled Scroll Chiller USED

Specification Table

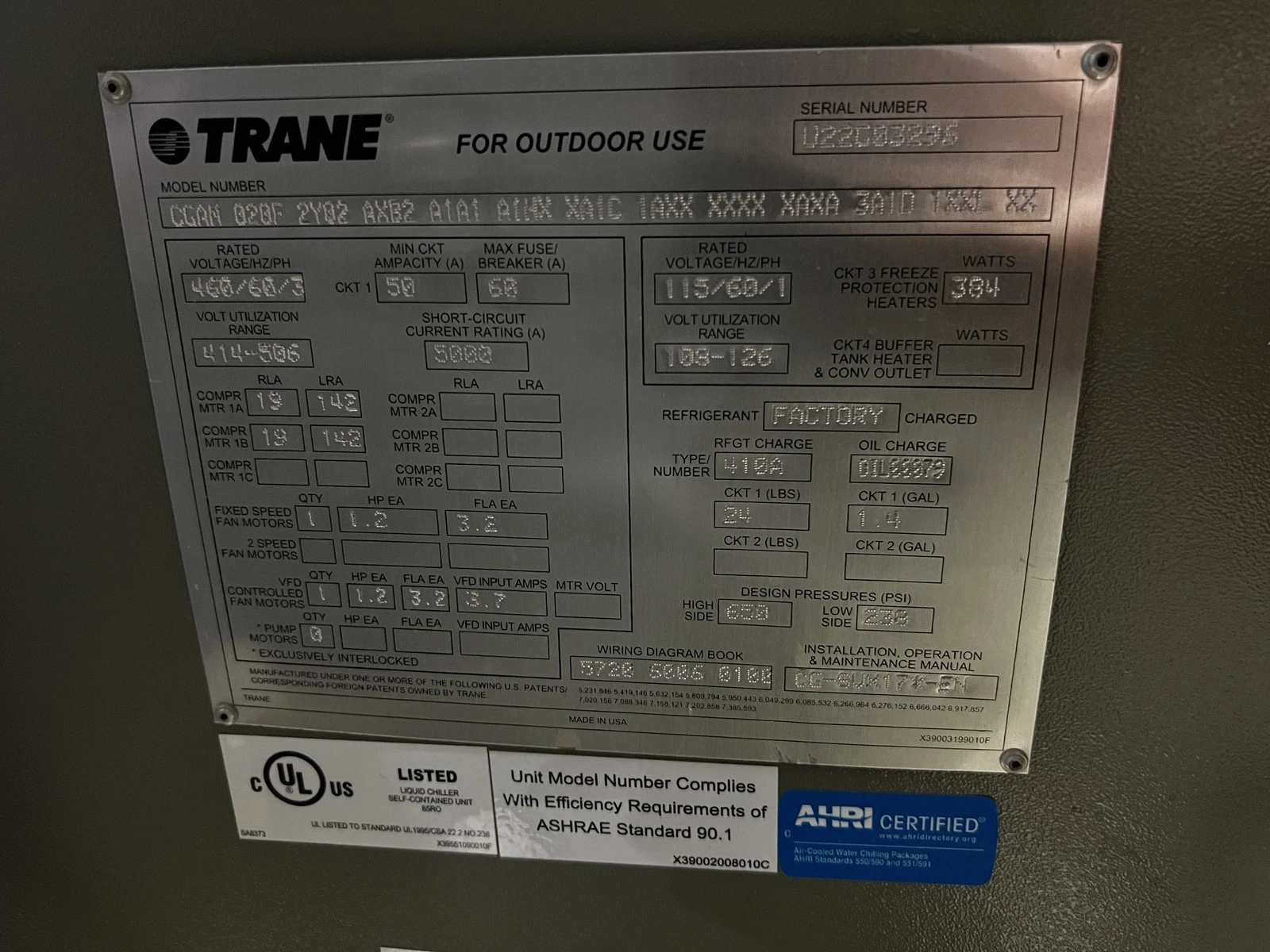

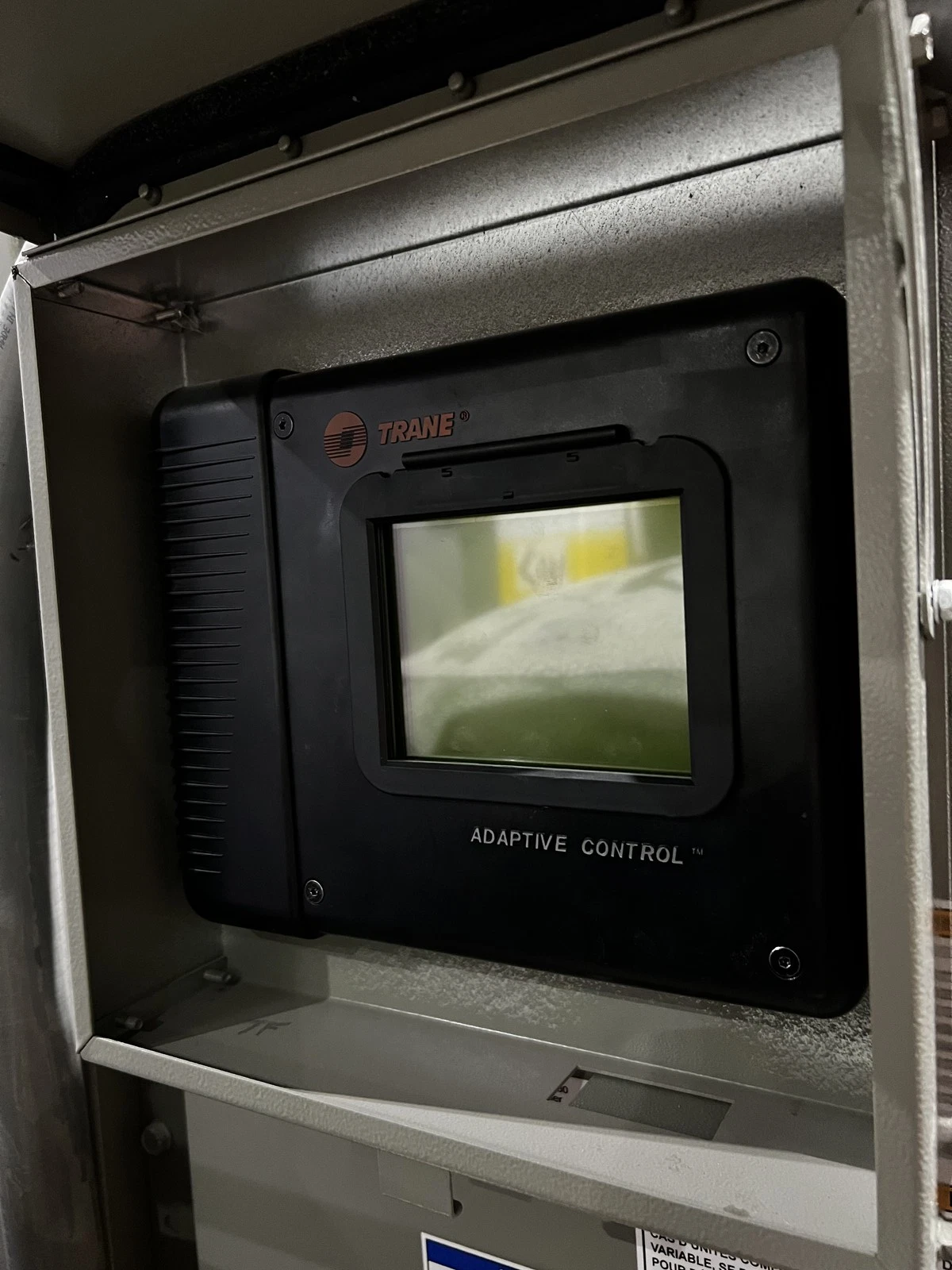

IDENTIFICATION -------------- Manufacturer: TRANE Series: CGAM Model Number: CGAM020F2Y02AXB2A1A1A1HXXA1C1AXXXXAXA3A1D1XXLXX Model Family: Air-Cooled Scroll Packaged Chiller Serial Number: U22G03296 Nominal Capacity: 20 Tons Condition: USED YOM: n/a CONFIGURATION ------------- Unit Type: High Efficiency Cooling Method: Air Cooled Compressor Type: Scroll Refrigeration Circuits: 1 Capacity Steps: 50-100% Factory Refrigerant Charge: Yes Water Connection Type: Grooved Pipe Connection Freeze Protection: Installed CONTROLS -------- Control Platform: Trane CH530 Adaptive Control: Included Operator Interface: DynaView Touchscreen Display Type: LCD Touchscreen Integrated Diagnostics: Included Time-of-Day Scheduling: Included COMMUNICATIONS -------------- Network Interface: BACnet Building Automation Integration: Supported ELECTRICAL ---------- Rated Voltage: 460 VAC Frequency: 60 Hz Phase: 3 Phase Voltage Utilization Range: 414-506 VAC Minimum Circuit Ampacity: 50 A Maximum Fuse/Breaker Rating: 60 A Short-Circuit Current Rating: 5000 A COMPRESSOR SYSTEM ----------------- Compressor Quantity: 2 Compressor Type: Hermetic Scroll Compressor 1 RLA: 19 A Compressor 1 LRA: 143 A Compressor 2 RLA: 19 A Compressor 2 LRA: 143 A CONDENSER FAN SYSTEM -------------------- Fan Quantity: 2 Fixed Speed Fan Motors: 1 VFD Controlled Fan Motors: 1 Fan Motor Horsepower: 0.5 HP Fan Motor FLA: 3.2 A VFD Input Current: 3.3 A REFRIGERATION ------------- Refrigerant Type: R410A Circuit 1 Refrigerant Charge: 24 lb Circuit 1 Oil Charge: 1.4 gal Refrigerant Isolation Valves: Installed High Side Design Pressure: 650 psi Low Side Design Pressure: 236 psi CONDENSER --------- Condenser Type: Microchannel Condenser Coil Material: Aluminum Condenser Configuration: Air Cooled EVAPORATOR ---------- Evaporator Type: Brazed Plate Heat Exchanger Water Storage Volume: 1.4 gal Minimum Flow Rate: 23.2 GPM Maximum Flow Rate: 69.0 GPM Water Connection Size: 2 in OPERATING RANGE --------------- High Ambient Range: 32°F to 125°F Wide Ambient Capability: 0°F Extreme Low Ambient Capability: -20°F CONSTRUCTION ------------ Unit Structure: Standard Enclosure Type: Water Tight Factory Insulation: Installed Factory Water Strainer: Installed CERTIFICATIONS -------------- UL Listed: Yes AHRI Certified: Yes ASHRAE 90.1 Compliant: Yes ADDITIONAL EQUIPMENT -------------------- Insulated Hydronic Vessel: Included Pressure Relief Valve: Kunkle 730-LE Pressure Relief Valve Setting: 45 PSI Pressure Relief Valve Part Number: 110123 Pressure Relief Valve Inlet Size: 3/4 in NPT Pressure Relief Valve Capacity: 103,000 BTU/hr
