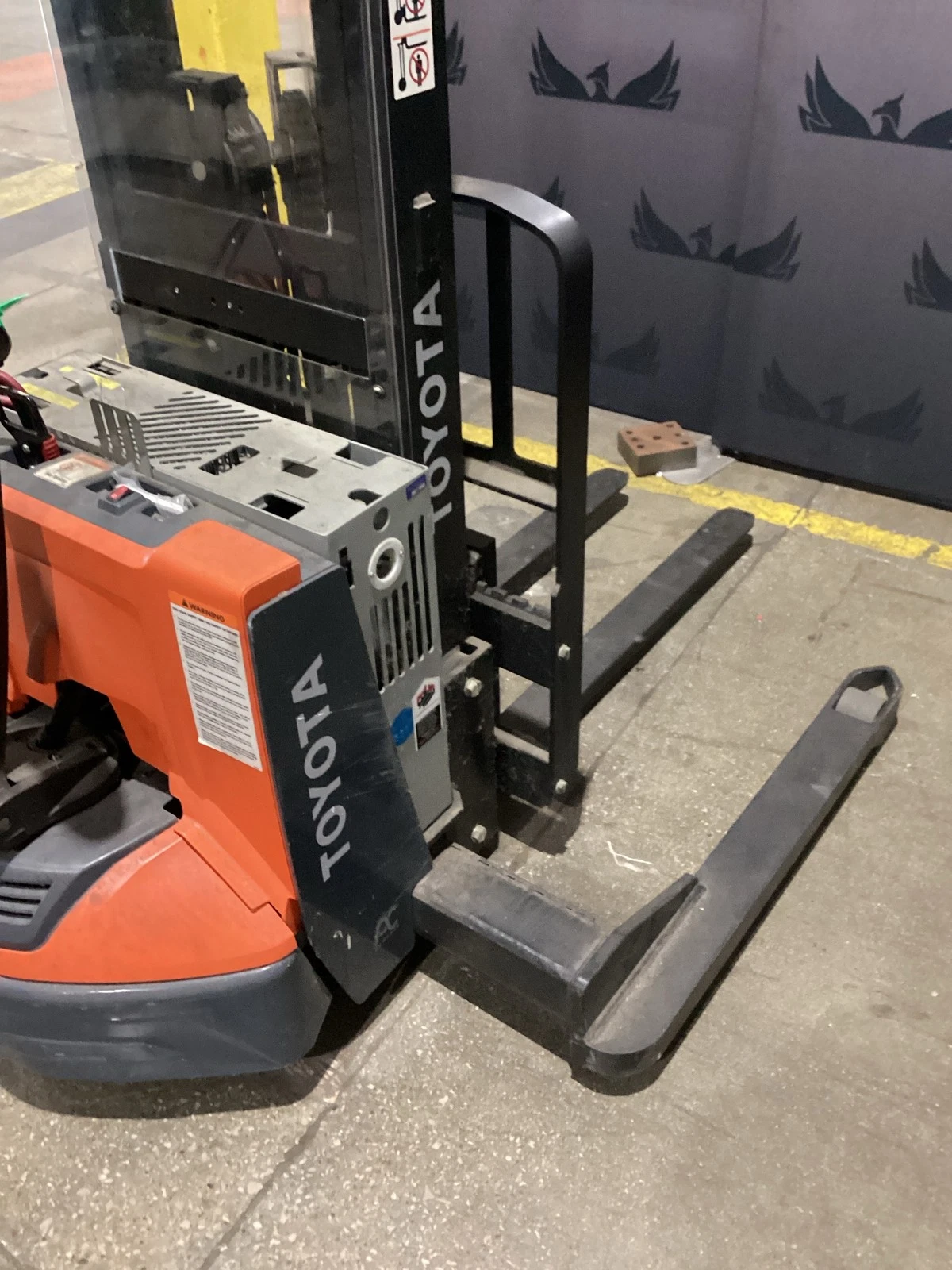

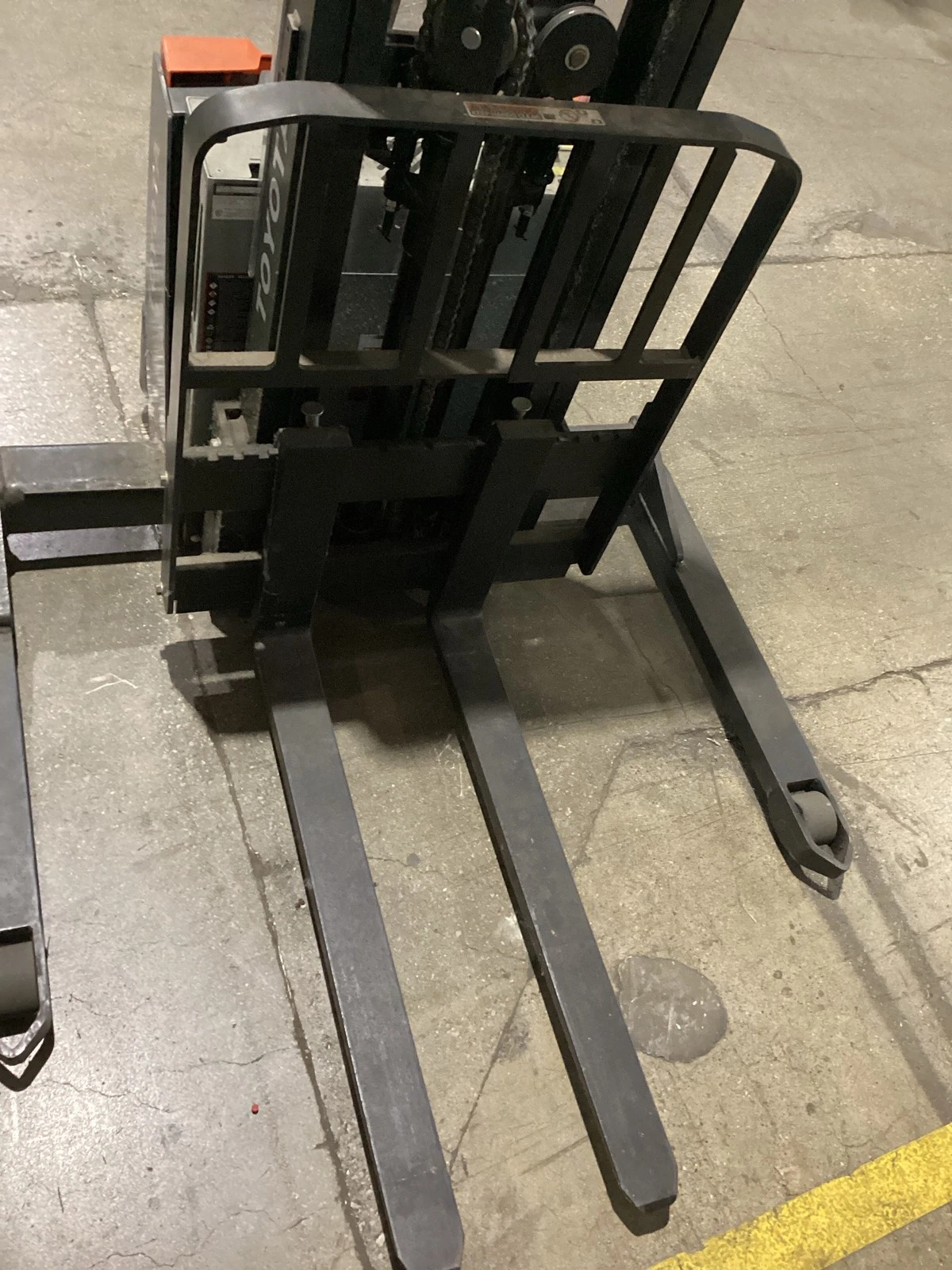

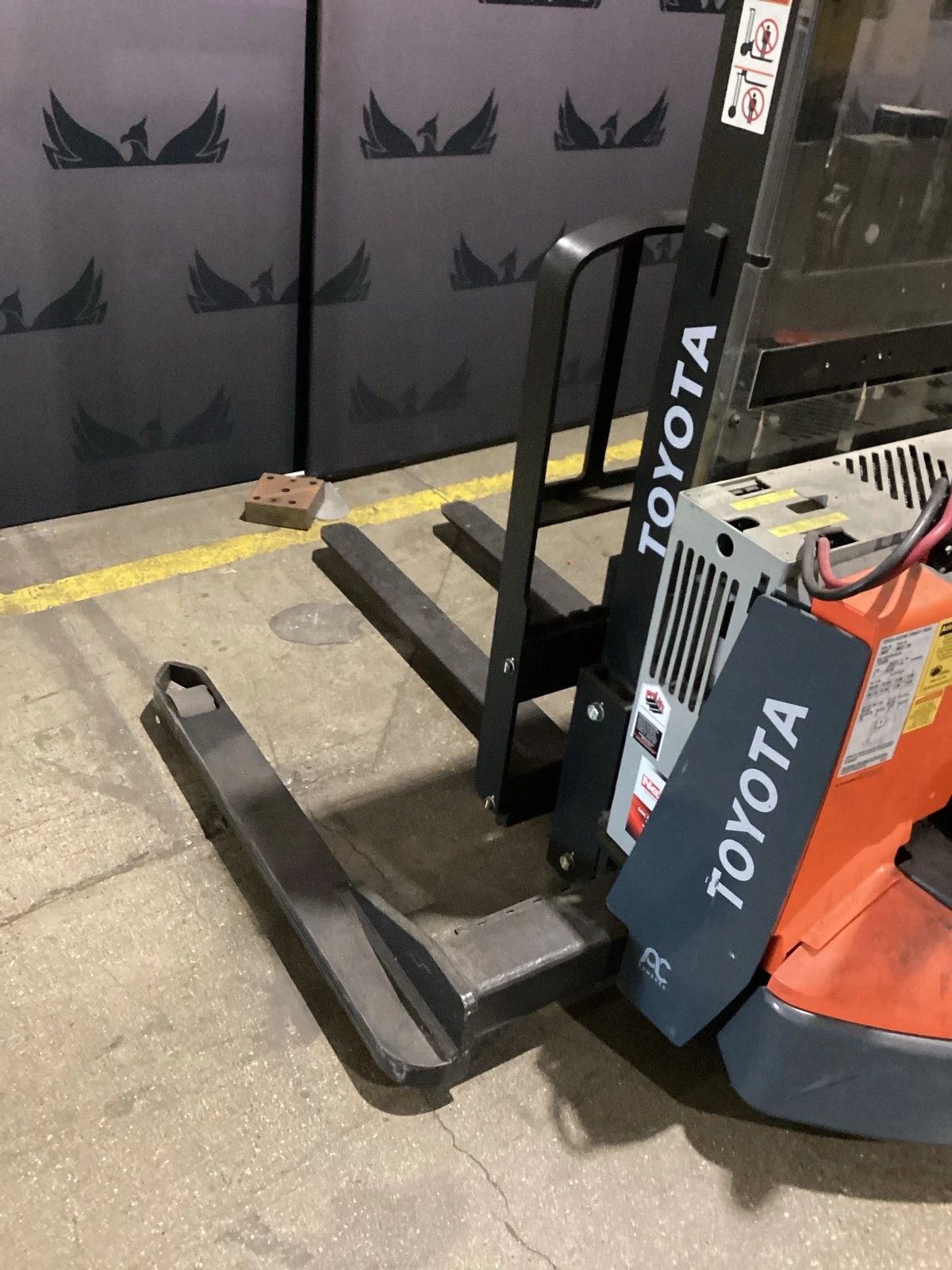

TOYOTA 8BWS13 Electric Walkie Straddle Stacker USED

Specification Table

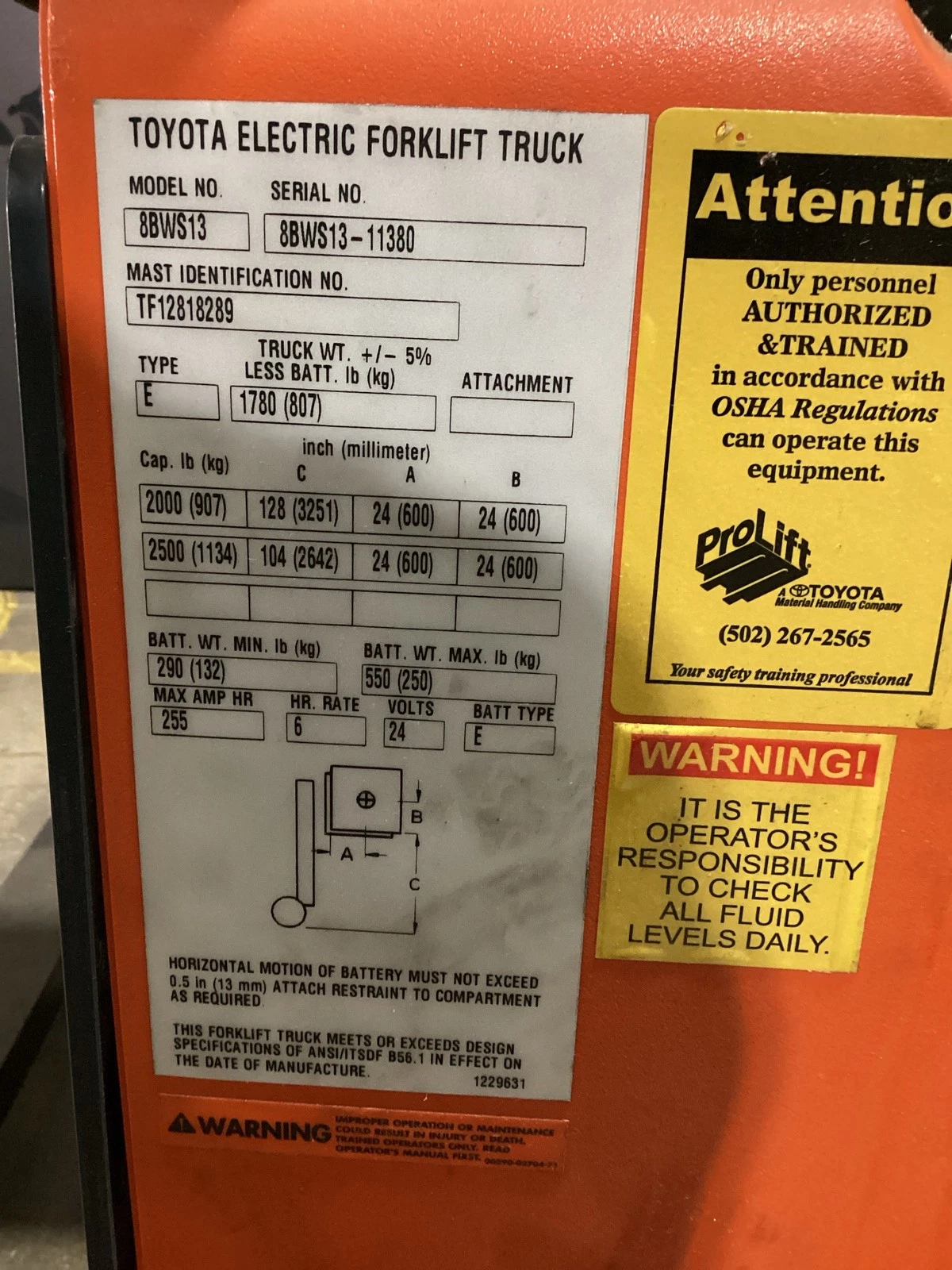

IDENTIFICATION Manufacturer: Toyota Model: 8BWS13 Serial Number: 8BWS13-11380 Equipment Type: Electric Walkie Straddle Stacker Mast Identification Number: TF12818289 Condition: USED CAPACITY DATA Capacity @ 128 in Lift Height: 2,000 lb (907 kg) Capacity @ 104 in Lift Height: 2,500 lb (1134 kg) Load Center (A): 24 in. (600 mm) Dimension (B): 24 in. (600 mm) LIFT DATA Maximum Lift Height: 128 in. (3251 mm) Alternate Lift Height Rating: 104 in. (2642 mm) ELECTRICAL System Voltage: 24 VDC Battery Type: E Maximum Battery Capacity: 255 Ah Battery Hour Rating: 6 Hr BATTERY REQUIREMENTS Minimum Battery Weight: 290 lb (132 kg) Maximum Battery Weight: 550 lb (250 kg) PHYSICAL DATA Truck Weight Less Battery: 1780 lb (807 kg) Power Type: Electric CONSTRUCTION Configuration: Walk-Behind Truck Style: Straddle Stacker Mast Guard: Installed Fork Configuration: Adjustable Straddle Legs APPLICATION DATA Pallet Handling: Yes Pallet Stacking: Yes Warehouse Operations: Yes Distribution Centers: Yes Manufacturing Facilities: Yes Material Handling: Yes
