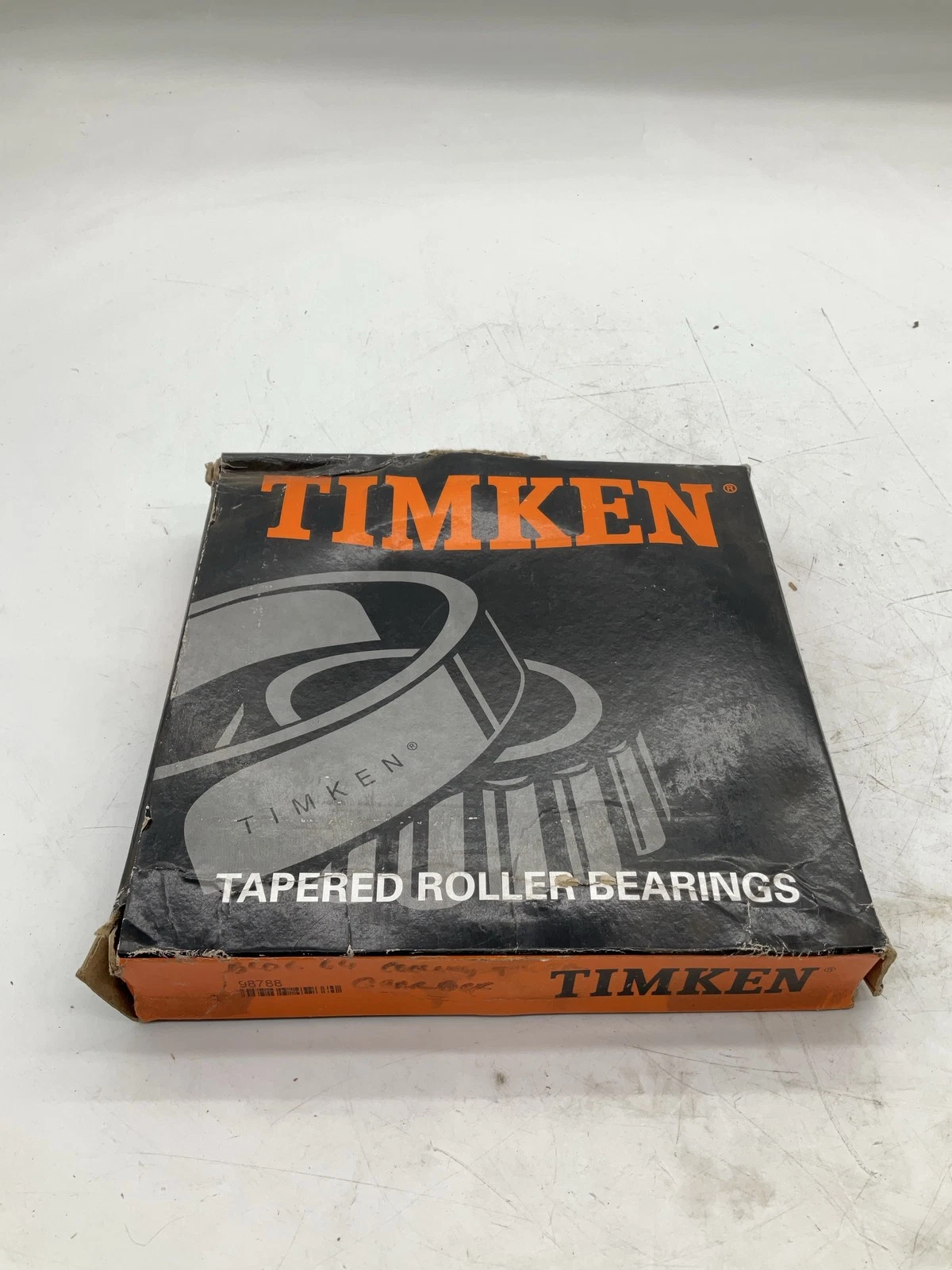

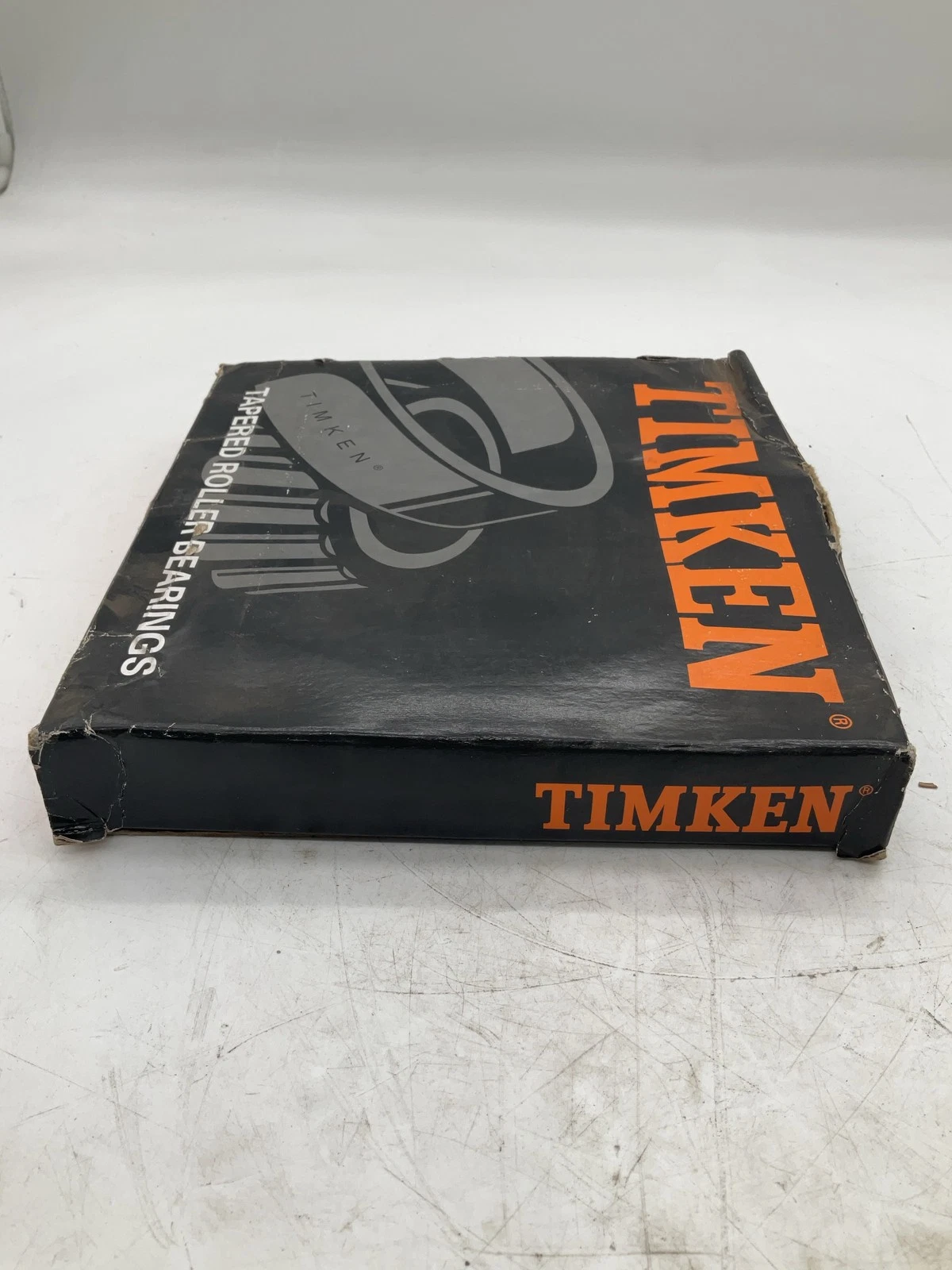

TIMKEN 98788-20024 Tapered Roller Bearing Cup NEW

Specification Table

IDENTIFICATION Manufacturer: TIMKEN Part Number: 98788-20024 Cup Number: 98788 Bearing Type: Single Cup Tapered Roller Bearing Condition: NEW UPC: 0053893459370 YOM: n/a   DIMENSIONS Outside Diameter (D): 7.8740 in Outside Diameter (D): 200.0 mm Outer Ring Width (C): 1.3750 in Outer Ring Width (C): 34.925 mm   BEARING DATA Bearing Design: Single Row Tapered Roller Component Type: Cup e Factor: 0.63 Y Factor: 0.95 Geometry Factor (Cg): 0.12   INSTALLATION DATA Maximum Housing Fillet Radius: 0.130 in Maximum Housing Fillet Radius: 3.3 mm Housing Backing Shoulder Diameter - Frontface (Da): 7.41 in Housing Backing Shoulder Diameter - Frontface (Da): 188.00 mm Housing Backing Shoulder Diameter - Backface (Db): 6.85 in Housing Backing Shoulder Diameter - Backface (Db): 173.99 mm   PHYSICAL DATA Weight: 14.9 lb Weight: 6.8 kg   APPLICATION DATA Combined Radial & Thrust Loading: Yes Industrial Gearboxes: Yes Power Transmission Equipment: Yes Material Handling Equipment: Yes Heavy Machinery: Yes Rotating Shaft Assemblies: Yes
