THK PHS-30 Rod End Bearing 30 mm ID NEW

$125.00
Availability:

1 in stock

BRAND: THK MODEL: PHS-30 CONDITION: New
SKU: IGAM3580369 Weight: 10 lbs Shipping Calculated at Checkout

1 in stock

Overview

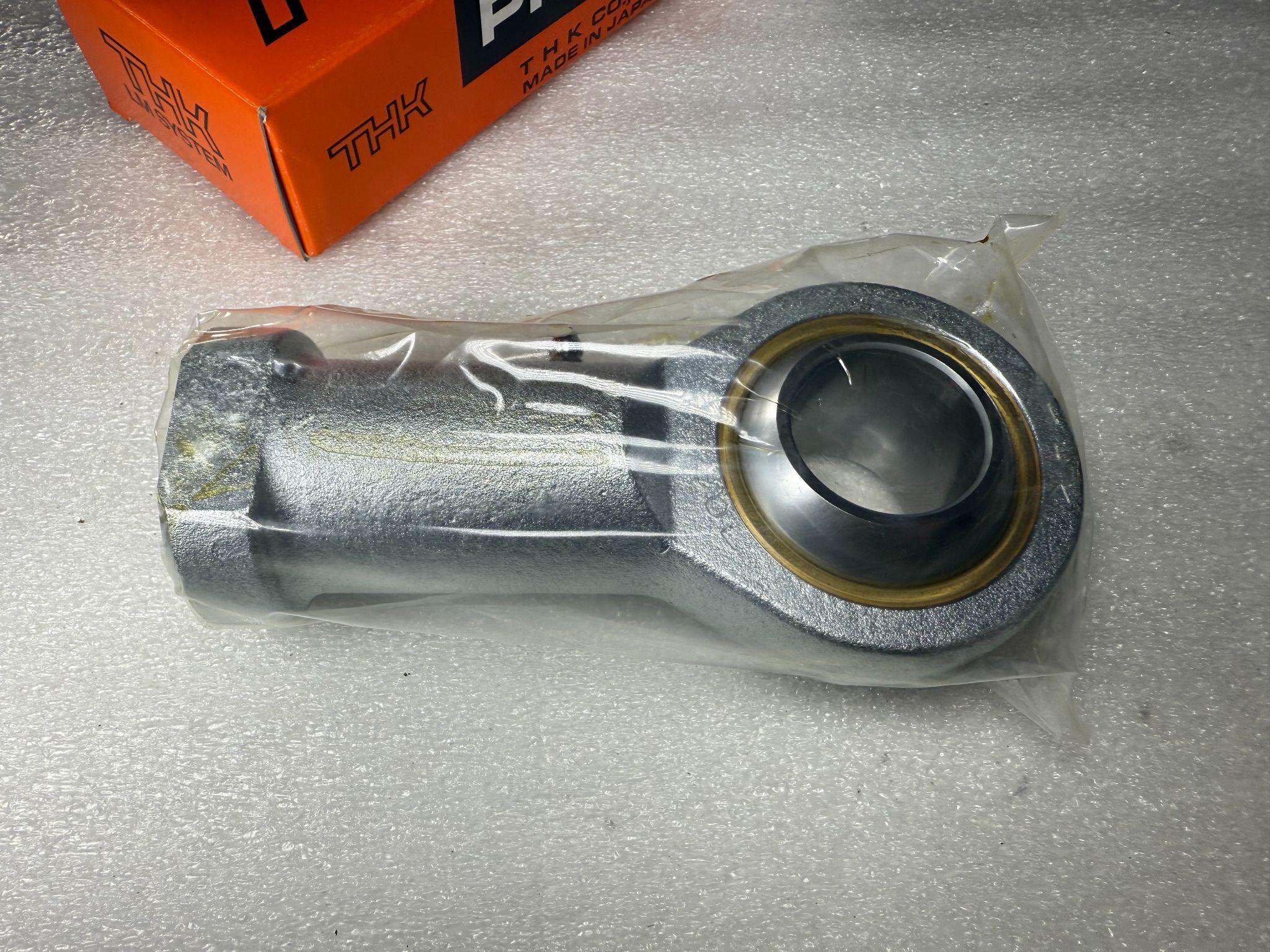

This listing is for a NEW THK PHS-30 rod end bearing. The PHS series incorporates a spherical plain bearing mounted within a female-threaded housing, allowing angular misalignment compensation while transmitting motion and force between connected mechanical components. The assembly supports linkage, actuator, cylinder, and motion transfer applications in industrial equipment and machinery.

Specification Table

IDENTIFICATION -------------- Manufacturer: THK Part Number: PHS-30 Series: PHS Condition: NEW Country of Manufacture: Japan Manufacture Date: n/a BEARING DATA ------------ Bearing Type: Rod End Bearing Bearing Style: Female Thread Bearing Arrangement: Spherical Plain Bearing Alignment Capability: Self-Aligning DIMENSIONS ---------- Bore Diameter (d): 30 mm Thread Designation: M30 x 2.0 Thread Direction: Right Hand LOAD RATINGS ------------ Dynamic Load Rating: 49.0 kN Static Load Rating: 123.0 kN CONSTRUCTION ------------ Housing Material: Carbon Steel Bearing Insert Material: Bearing Steel Bearing Surface: Spherical INSTALLATION ------------ Mounting Configuration: Female Threaded Connection Type: Mechanical Linkage Connection APPLICATION DATA ---------------- Motion Type: Oscillating and Articulating Motion Load Direction: Radial and Axial
▸ Key Features:
• Female-threaded rod end bearing design
• Self-aligning spherical bearing construction
• 30 mm bore diameter
• M30 x 2 female thread
• Relubricatable through grease fitting and lubrication passages
• Designed for oscillating motion and linkage applications
▸ Applications:
• Industrial linkage systems
• Hydraulic cylinder connections
• Automation equipment
• Motion transfer assemblies
• Mechanical control mechanisms
• Oscillating and pivoting joints
▸ Alternative Model Numbers:
PHS30
PHS-30
PHS30L
▸ Common Misspellings or Phrasing:
THK PHS30
THK PHS 30
PHS30 Rod End
PHS30 Female Rod End Bearing
THK Rod End Bearing PHS30
