TECHNOTRANS EX3.0 Process Chiller USED

$2,500.00
Availability:

1 in stock
BRAND: TECHNOTRANS MODEL: EX3.0 CONDITION: used
SKU: IGAM4380003 Weight: 960 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

This listing is for a USED Technotrans EX3.0 Process Chiller. The EX3.0 is a recirculating industrial cooling system designed to provide temperature-controlled process water for machinery, printing equipment, industrial systems, and manufacturing applications. This unit features a 36,000 BTU/hr cooling capacity, 30-gallon reservoir, 7 GPM circulation rate, R22 refrigeration system, and 230 VAC three-phase operation.

Specification Table

Power 3 hp

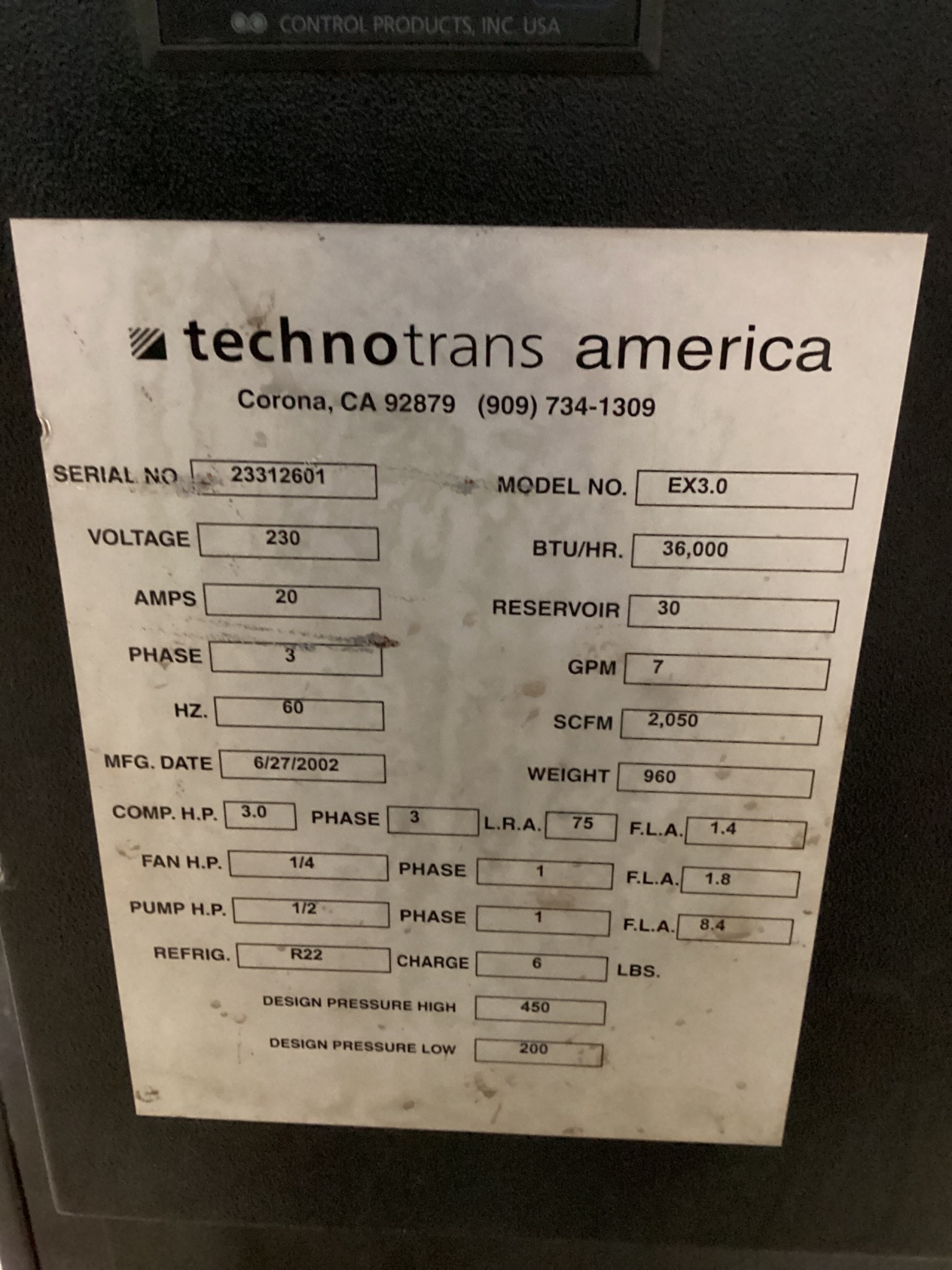

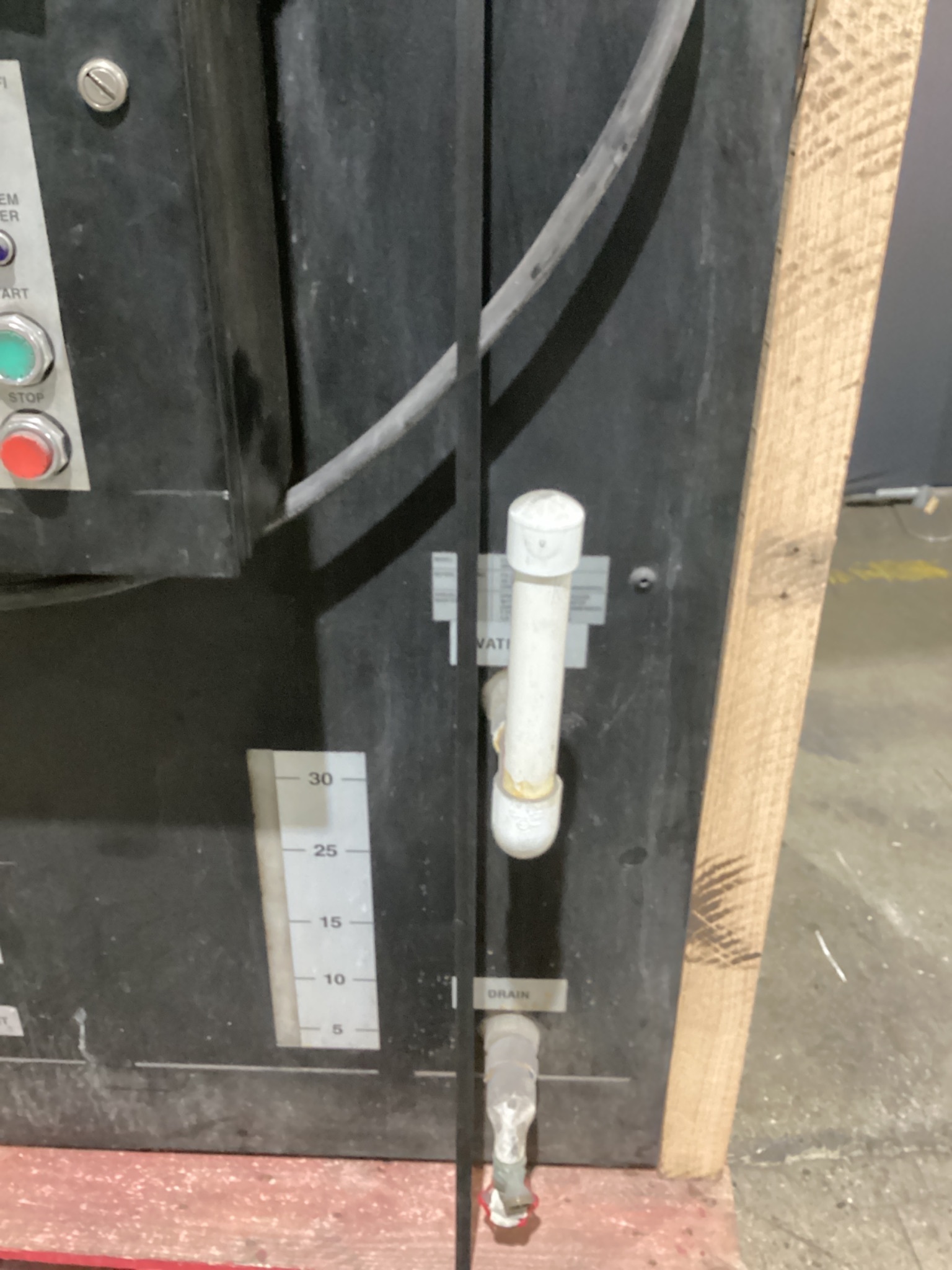

Manufacturer: technotrans america Model: EX3.0 Condition: USED Serial Number: 23312601 Equipment Type: Process Chiller Cooling Capacity: 36,000 BTU/hr Reservoir Capacity: 30 Gallons Flow Rate: 7 GPM Air Flow: 2,050 SCFM Electrical Specifications Voltage: 230 VAC Phase: 3 Frequency: 60 Hz Current: 20 A Refrigeration System Refrigerant Type: R22 Refrigerant Charge: 6 lbs Compressor Power Rating: 3.0 HP Phase: 3 Locked Rotor Amps: 75 Full Load Amps: 14 Fan Motor Power Rating: 1/4 HP Phase: 1 Full Load Amps: 1.8 Pump Motor Power Rating: 1/2 HP Phase: 1 Full Load Amps: 8.4 Pressure Ratings High Side Design Pressure: 450 PSI Low Side Design Pressure: 200 PSI Machine Features Integrated Reservoir: Present Water Level Sight Gauge: Present Water Inlet: Present Water Outlet: Present Drain Valve: Present Main Disconnect: Present Start Pushbutton: Present Stop Pushbutton: Present System Power Indicator: Present Weight: 960 lbs Manufacture Date: 06/27/2002
