SQUARE D MPZ30T2F Mini Power-Zone Unit Substation USED – AS-IS

Name: SQUARE D MPZ30T2F Mini Power-Zone Unit Substation USED – AS-IS
Brand: SQUARE D
SKU: IGAM1060258
Price: 450.0 USD
Availability: InStock

$450.00

Availability:

1 in stock

BRAND: SQUARE D MODEL: MPZ30T2F CONDITION: used

SKU: IGAM1060258 Weight: 400 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer

Get Shipping Quote

Overview

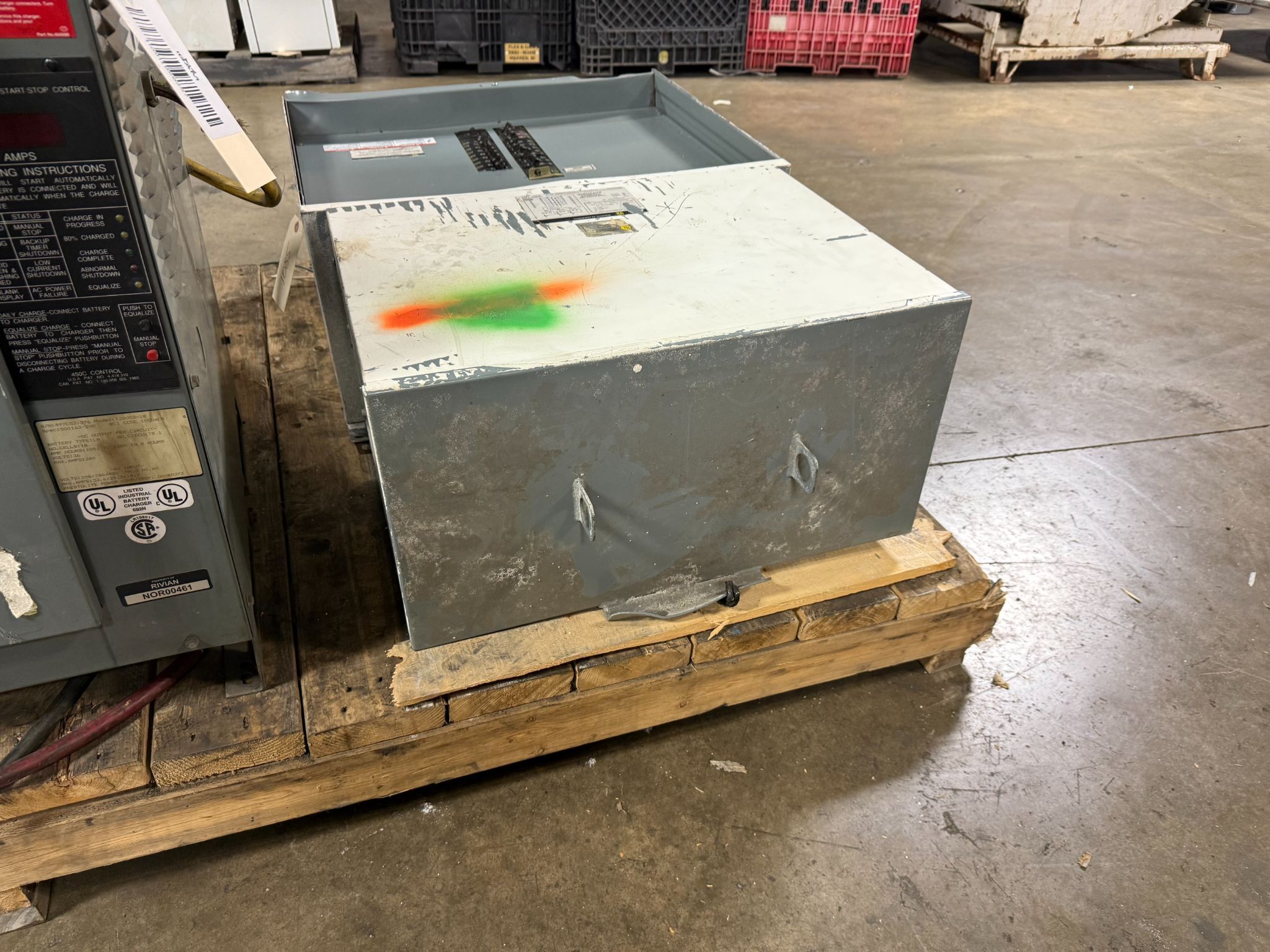

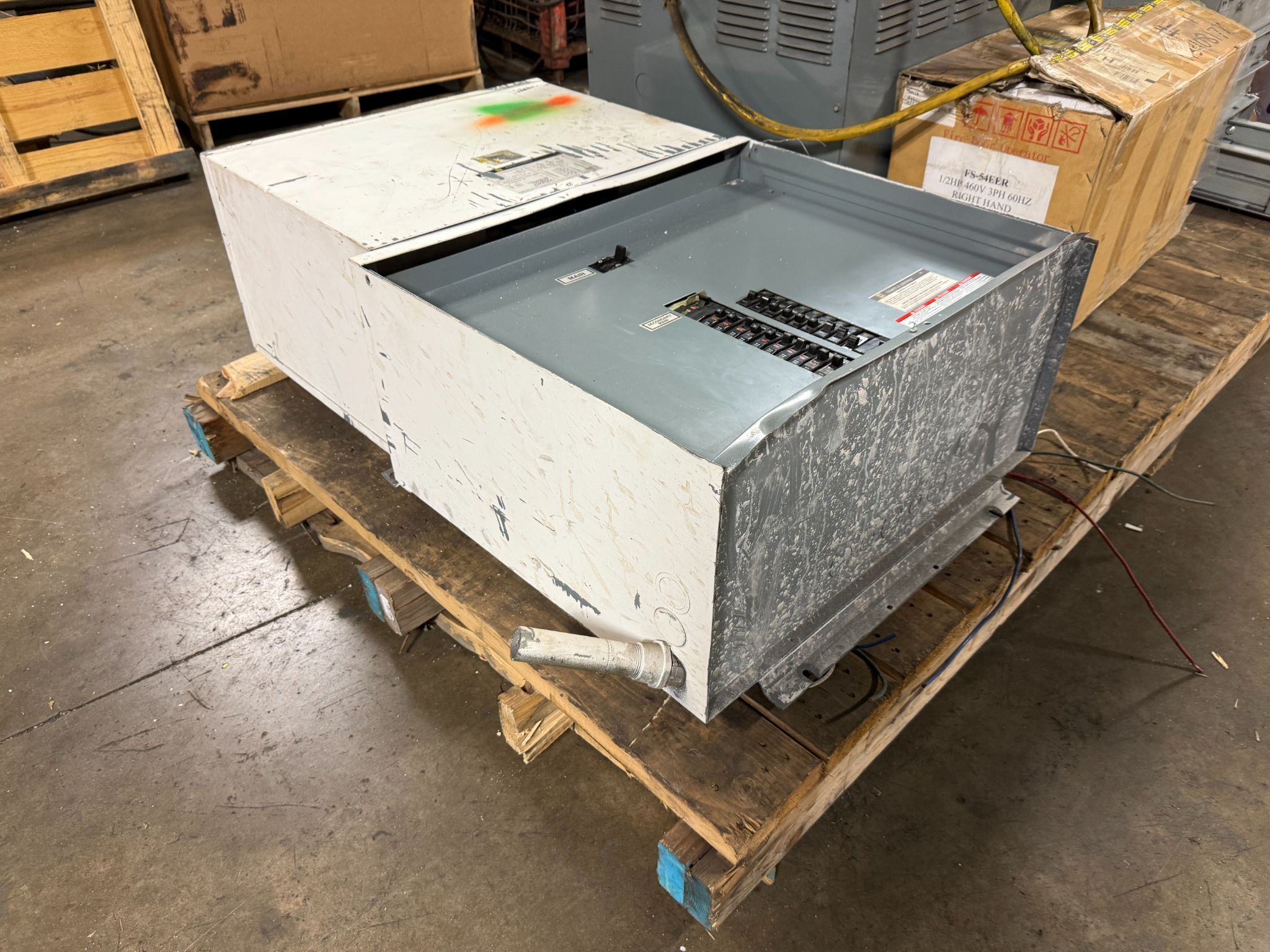

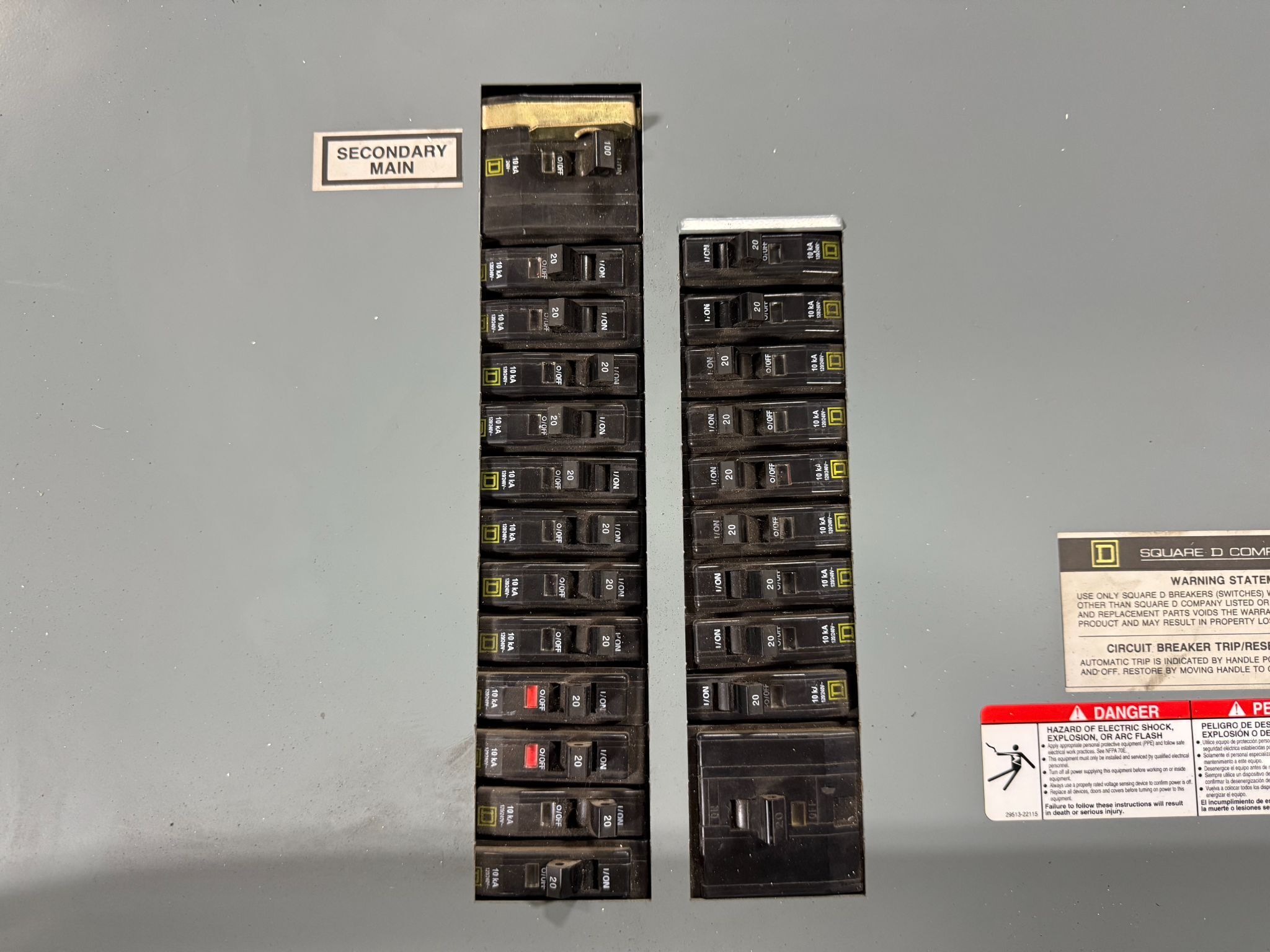

This listing is for a USED Square D MPZ30T2F Mini Power-Zone unit substation. The assembly combines a dry-type transformer and secondary distribution panel within a single enclosure to provide localized power distribution in industrial and commercial facilities. The MPZ series is commonly deployed where stepped-down power and branch circuit distribution are required near production equipment, machinery, and facility loads.

Description
Tags

Specification Table

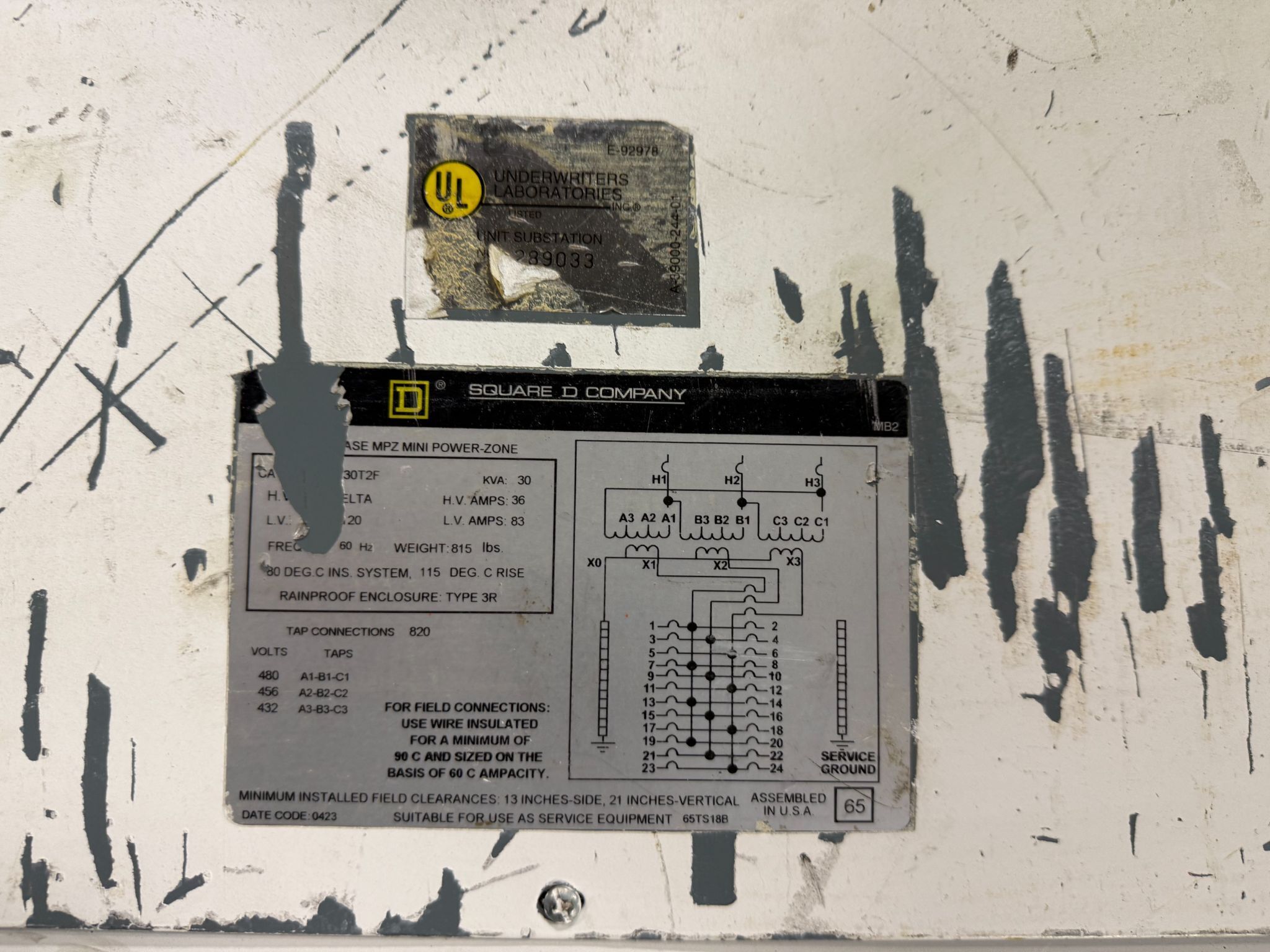

Manufacturer: Square D Model: MPZ30T2F Series: MPZ Mini Power-Zone Condition: USED Product Type: Unit Substation Configuration: Transformer and Distribution Panel Assembly Transformer Type: Dry-Type Transformer Power Rating: 30 kVA Frequency: 60 Hz Primary Voltage: 480 V Delta Secondary Voltage: 208Y/120 V Phase: Three Phase Primary Current: 36 A Secondary Current: 83 A Insulation System: 180°C Temperature Rise: 115°C Enclosure Type: NEMA Type 3R Rainproof Service Equipment Rated: Yes Tap Connection Voltages: 480 V (A1-B1-C1) 456 V (A2-B2-C2) 432 V (A3-B3-C3) Construction Standard: UL Listed Unit Substation UL File Number: E92978 Assembly Location: USA Date Code: 0423
