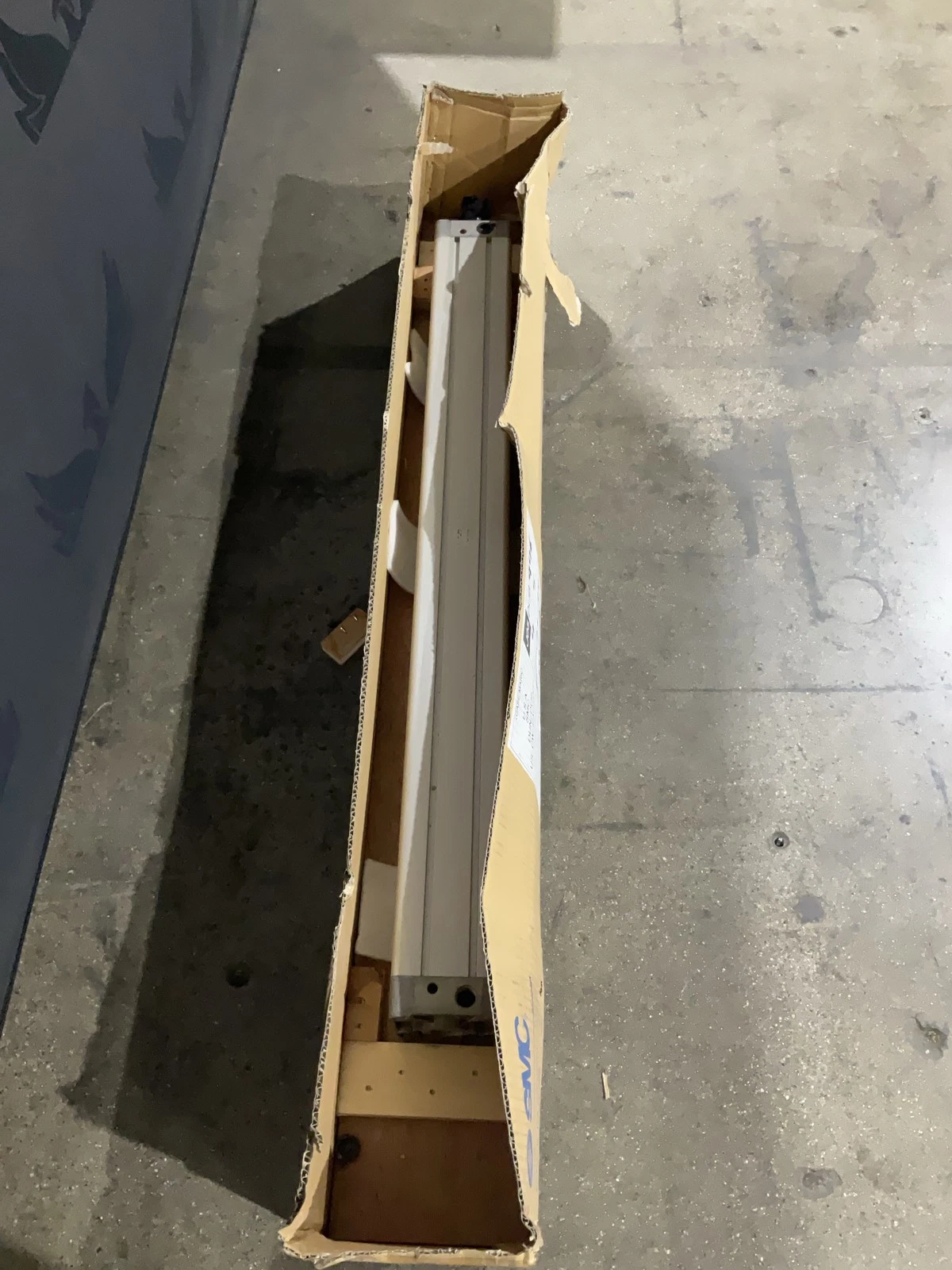

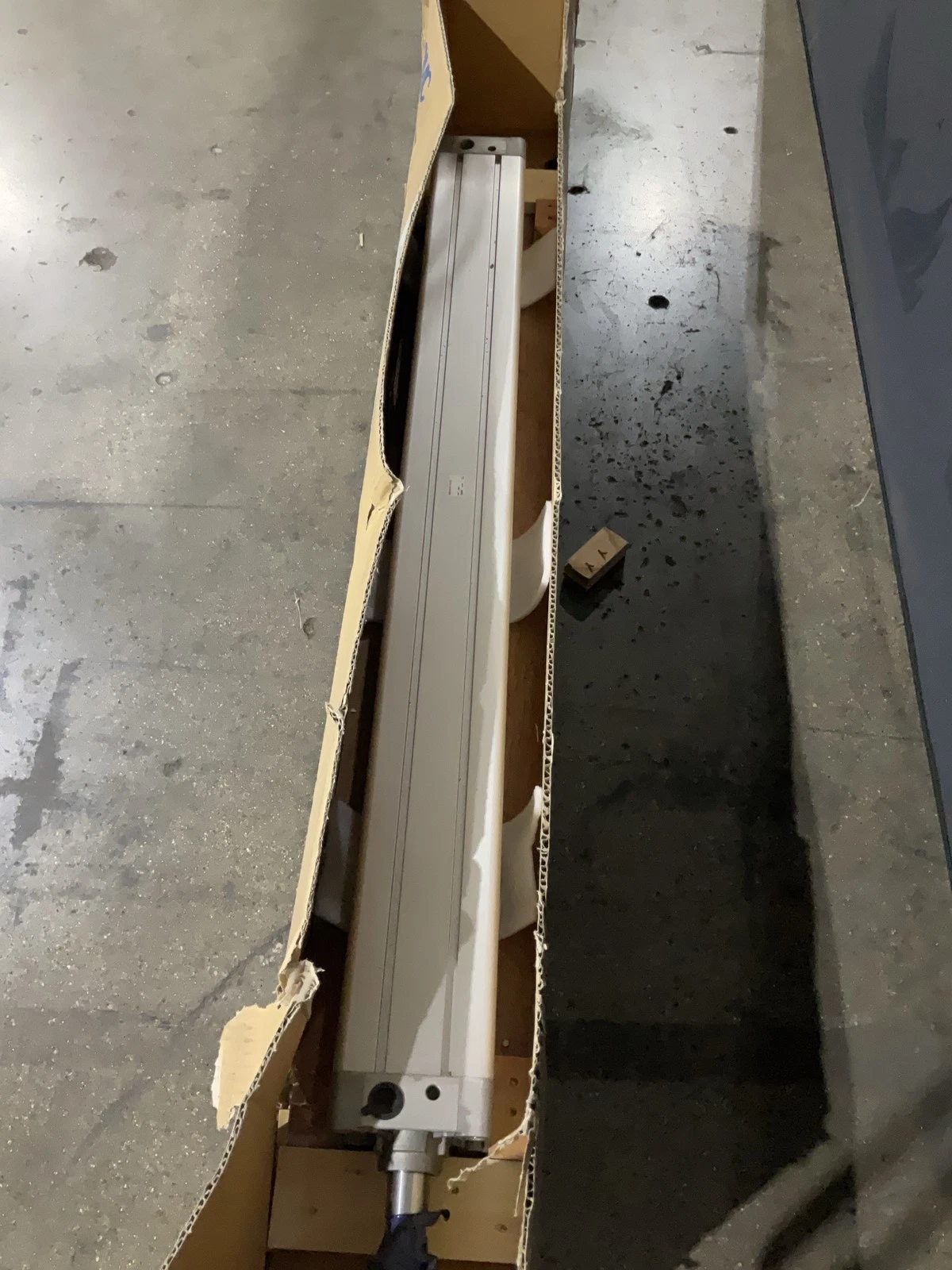

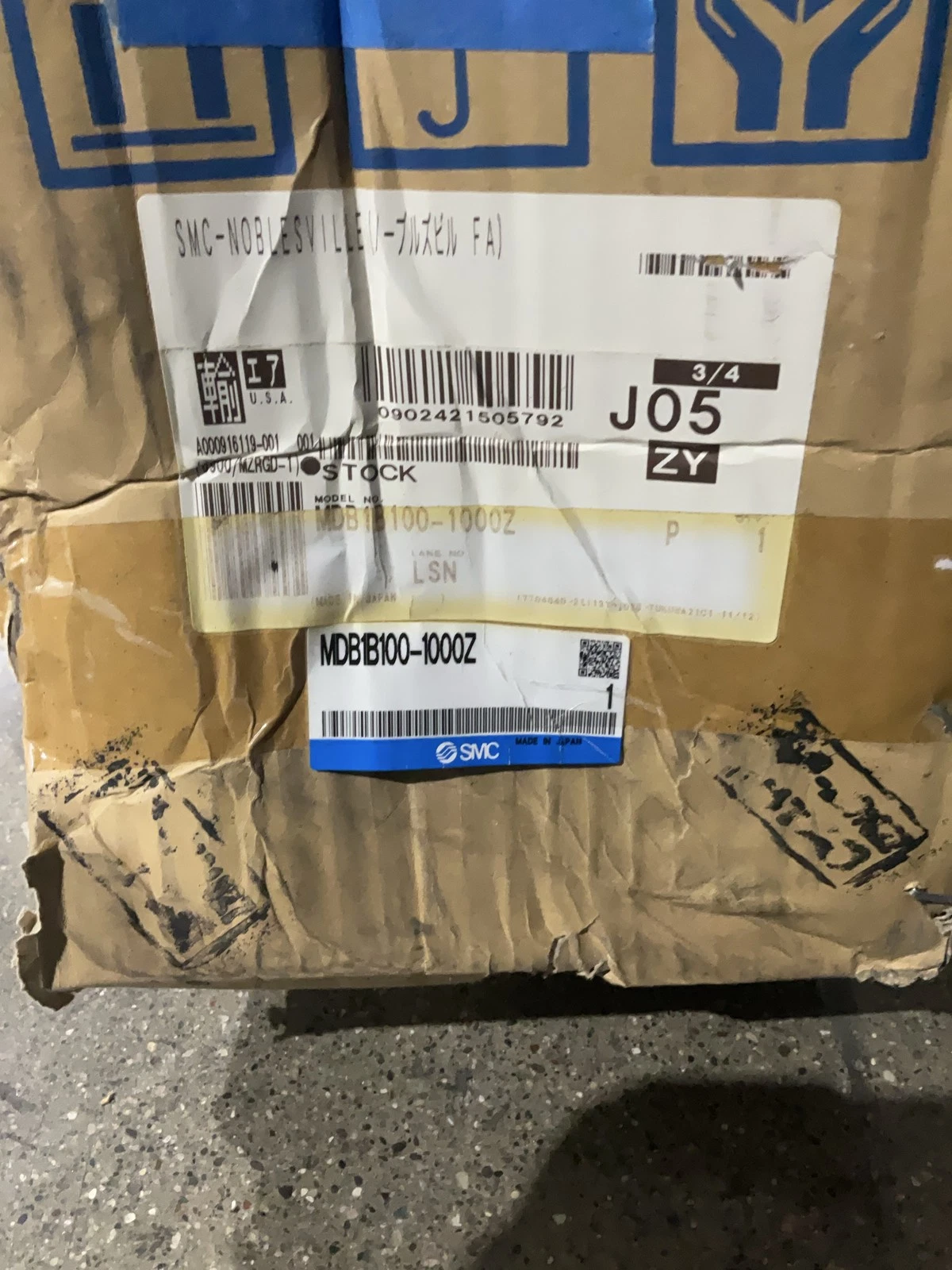

SMC MDBB1B100-1000Z Air Cylinder 100mm Bore 1000mm Stroke NEW

Specification Table

IDENTIFICATION Manufacturer: SMC Series: MB Model: MDBB1B100-1000Z Condition: NEW Country of Origin: Japan CYLINDER Cylinder Type: Pneumatic Cylinder Operation: Double Acting Rod Configuration: Single Rod Built-In Magnet: Yes BORE & STROKE Bore Size: 100 mm Stroke Length: 1000 mm PNEUMATIC Fluid: Air Proof Pressure: 1.5 MPa Maximum Operating Pressure: 1.0 MPa Minimum Operating Pressure: 0.05 MPa PERFORMANCE Piston Speed: 50-1000 mm/s Theoretical Extension Force: 7854 N @ 1.0 MPa Theoretical Retraction Force: 7147 N @ 1.0 MPa PORTS Port Size: 1/2 Rc CONSTRUCTION Cylinder Tube: Aluminum Alloy Piston Rod: Hard Chrome Plated Steel Cushion Type: Air Cushion Lubrication: Non-Lube ENVIRONMENTAL Operating Temperature (Without Auto Switch): -10°C to +70°C Operating Temperature (With Auto Switch): -10°C to +60°C MECHANICAL Rod End Thread: M26 x 1.5 ROD END DIMENSIONS Rod Diameter: 30 mm Width Across Flats: 26 mm Rod End Length: 23 mm
