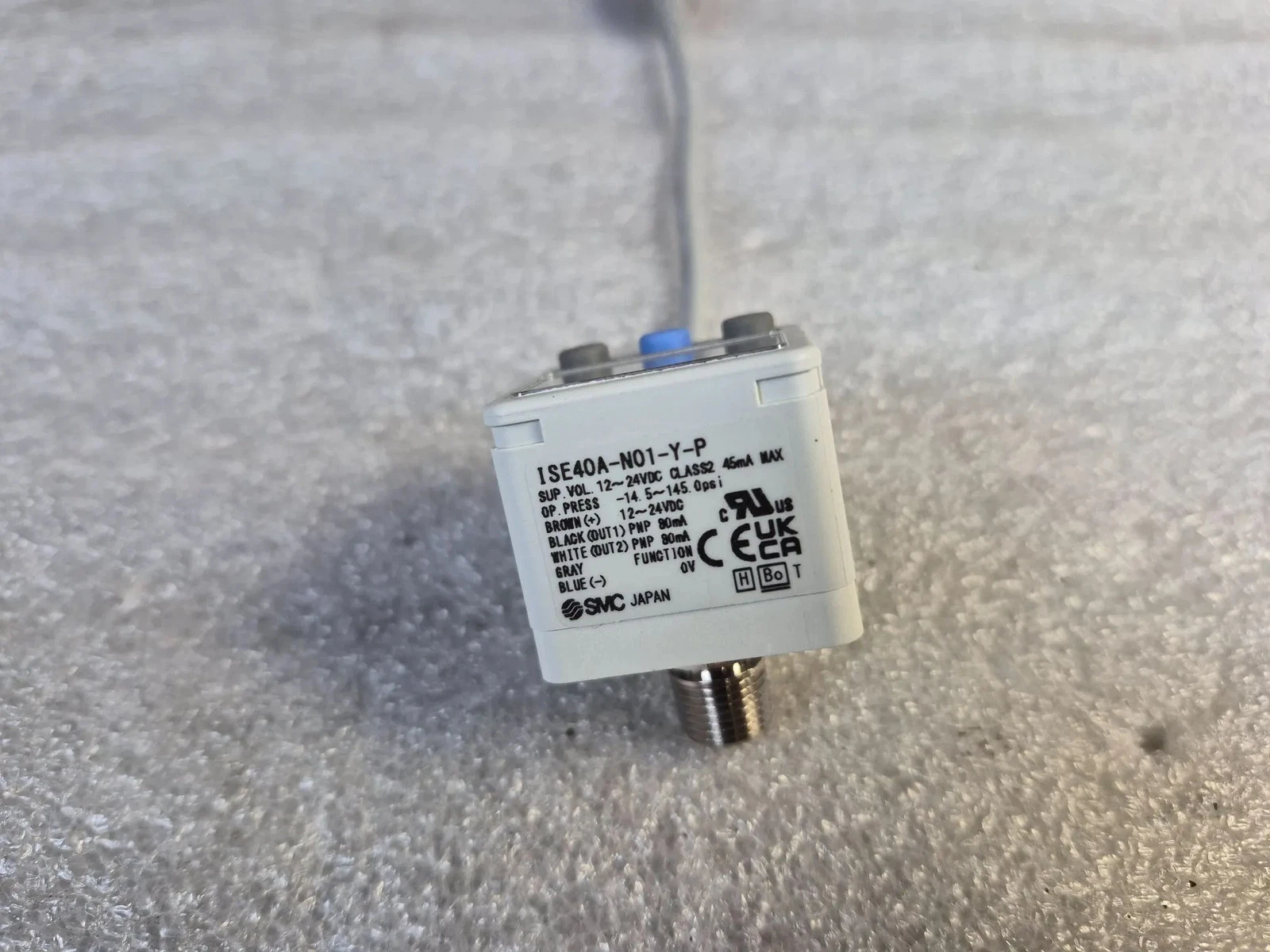

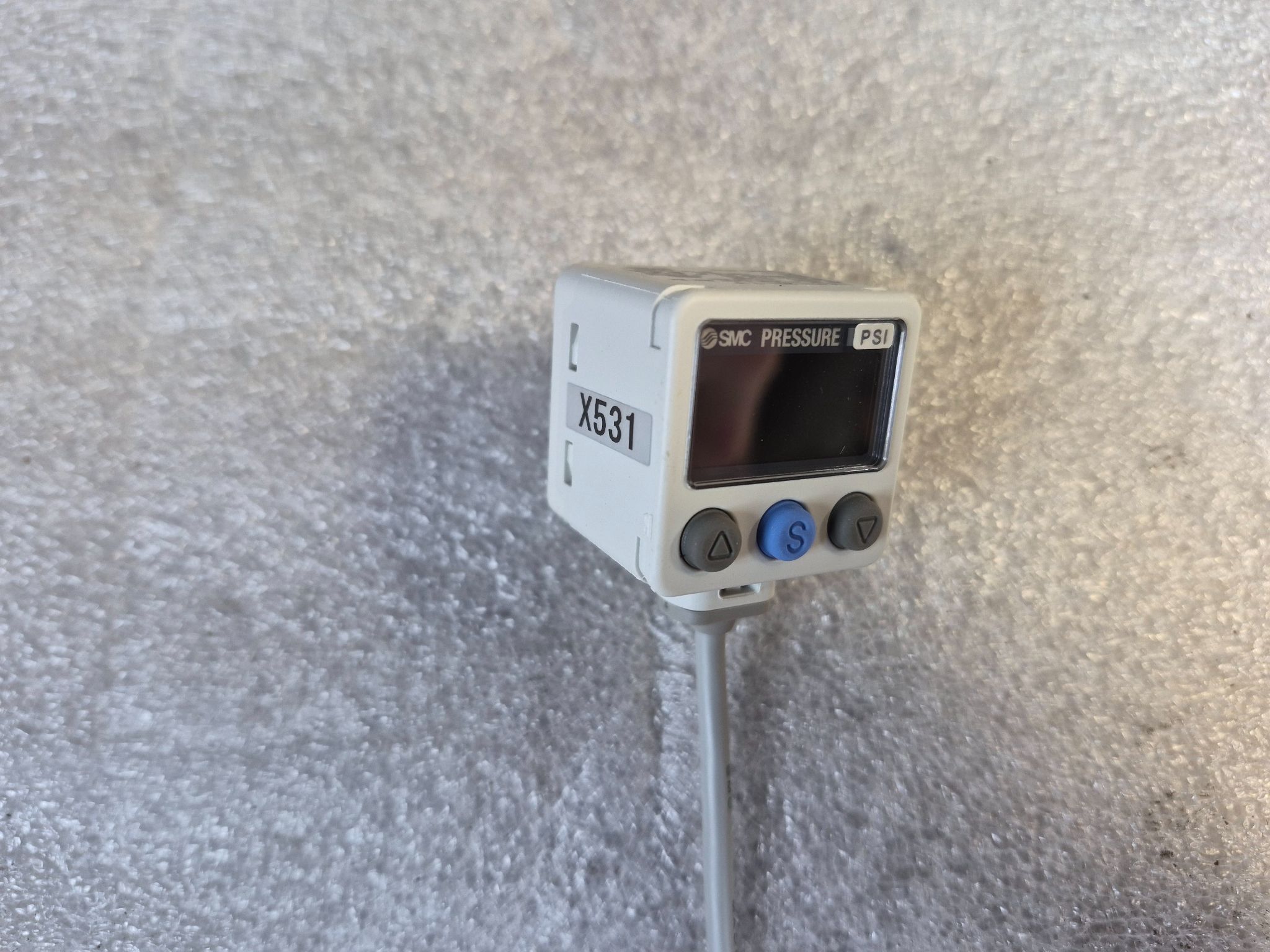

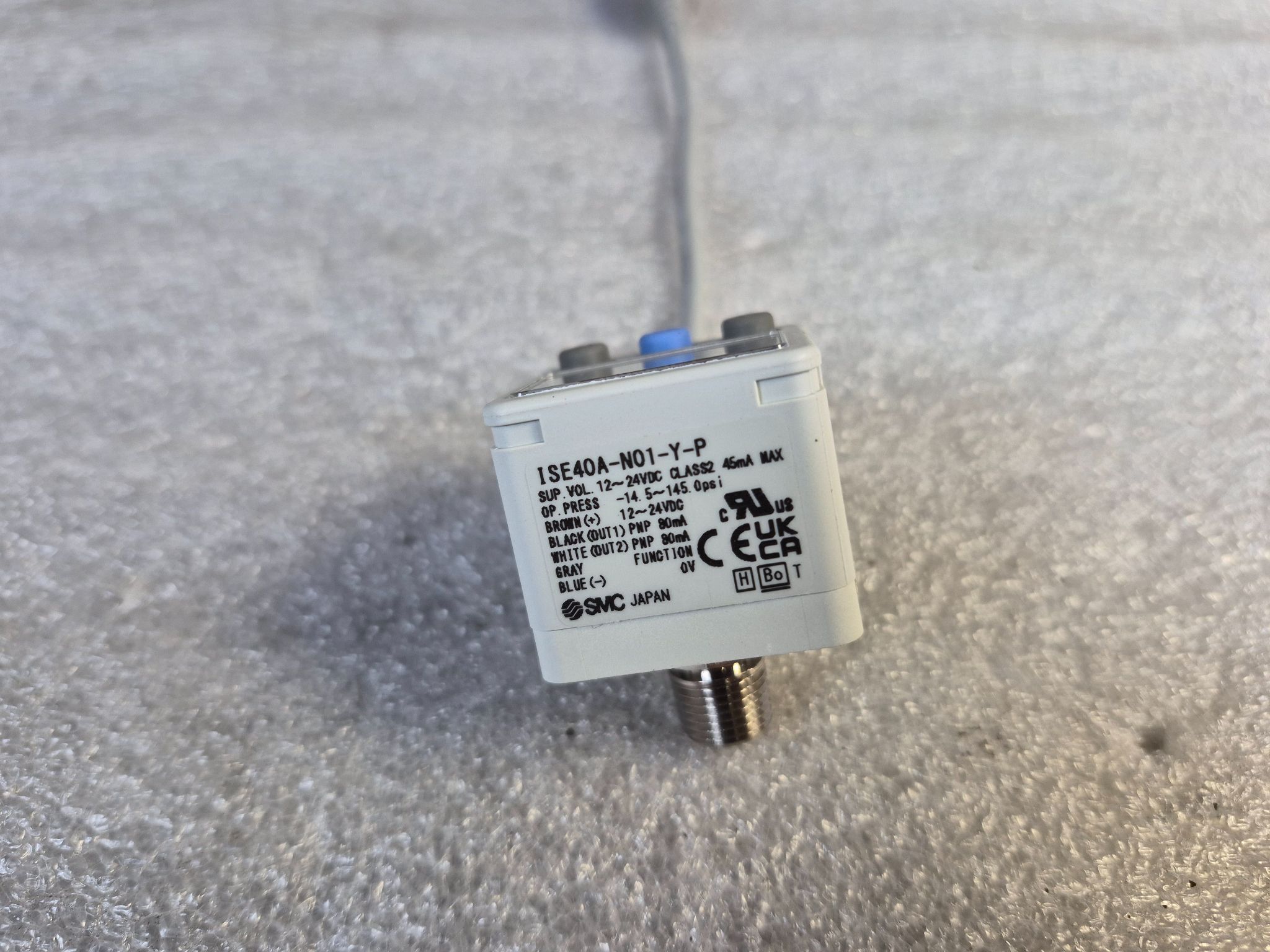

SMC ISE40A-N01-Y-P-X531 Digital Pressure Switch 12-24VDC PNP NEW

Specification Table

IDENTIFICATION Manufacturer: SMC Model / Part Number: ISE40A-N01-Y-P-X531 Base Model: ISE40A-N01-Y-P Product Family: ISE40A Product Type: Digital Pressure Switch Condition: NEW YOM: n/a Country of Manufacture: Japan   PRESSURE Sensing Function: Pressure Operating Pressure Range: -14.5 to 145.0 psi Pressure Indication: Digital Pressure Units: Selectable Unit Labels: kPa / MPa / psi / mmHg / inHg / bar / kgf/cm² Display Type: Digital   ELECTRICAL Supply Voltage: 12-24 VDC Supply Classification: Class 2 Maximum Current Consumption: 45 mA Output Type: PNP Number of Outputs: 2 OUT1 Maximum Current: 80 mA OUT2 Maximum Current: 80 mA   WIRING Brown Lead: +12-24 VDC Black Lead: OUT1 White Lead: OUT2 Blue Lead: 0 VDC Gray Lead: Function   CONTROL / INTERFACE Local Adjustment: Pushbutton Adjustment Buttons: 3 Set Button: Present Up / Down Controls: Present Output Indication: Integrated   CONNECTION / INSTALLATION Pressure Connection: Male Threaded Thread Standard: NPT Electrical Cable: Integrated Electrical Connector: Circular Installation Configuration: Direct Mount   APPROVALS / MARKINGS cURus: Recognized CE: Yes UKCA: Yes
