SMC CNA2F100TF-350-D Pneumatic Cylinder 100mm Bore 350mm Stroke USED 0

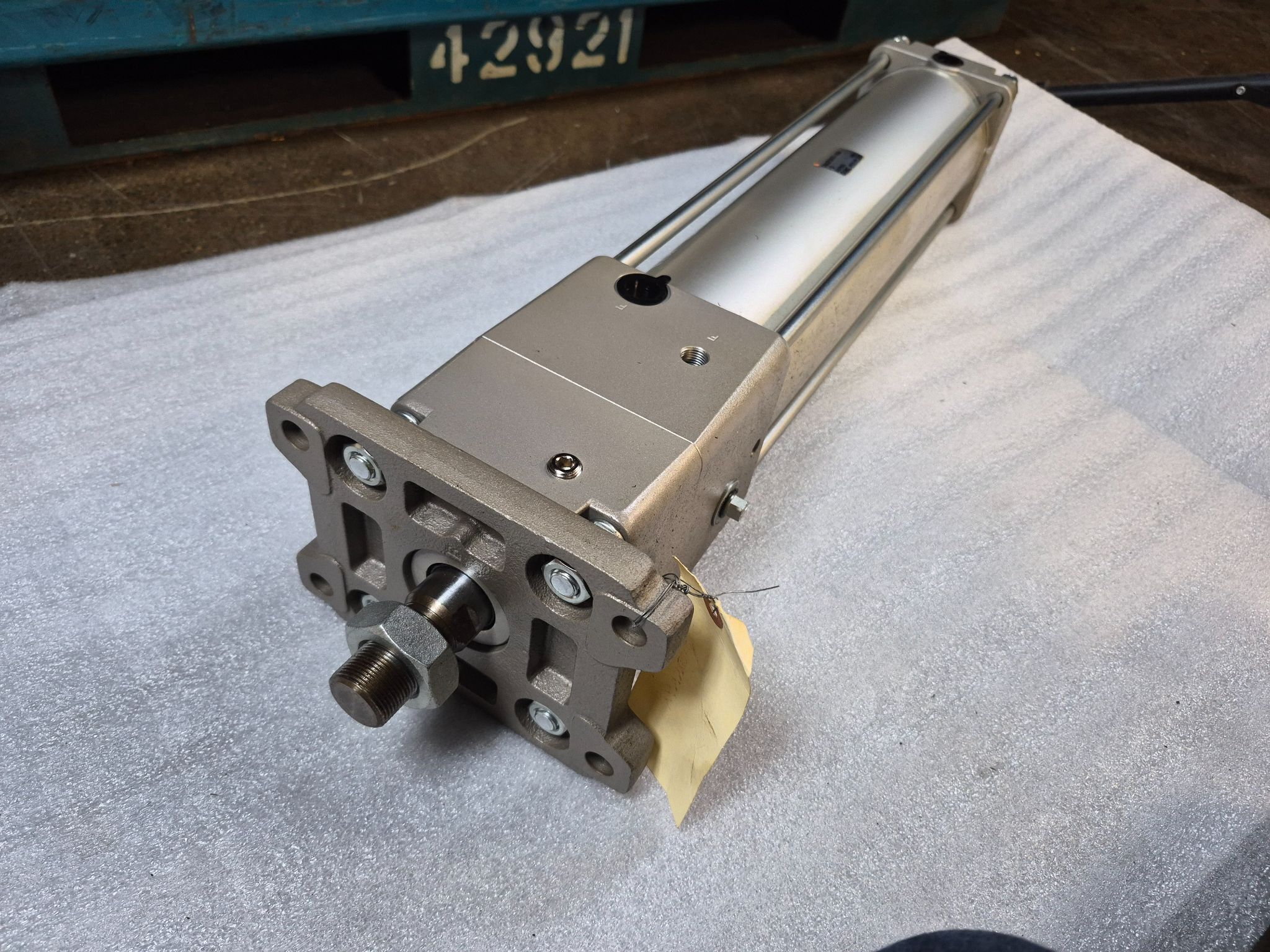

SMC CNA2F100TF-350-D Pneumatic Cylinder 100mm Bore 350mm Stroke USED 1

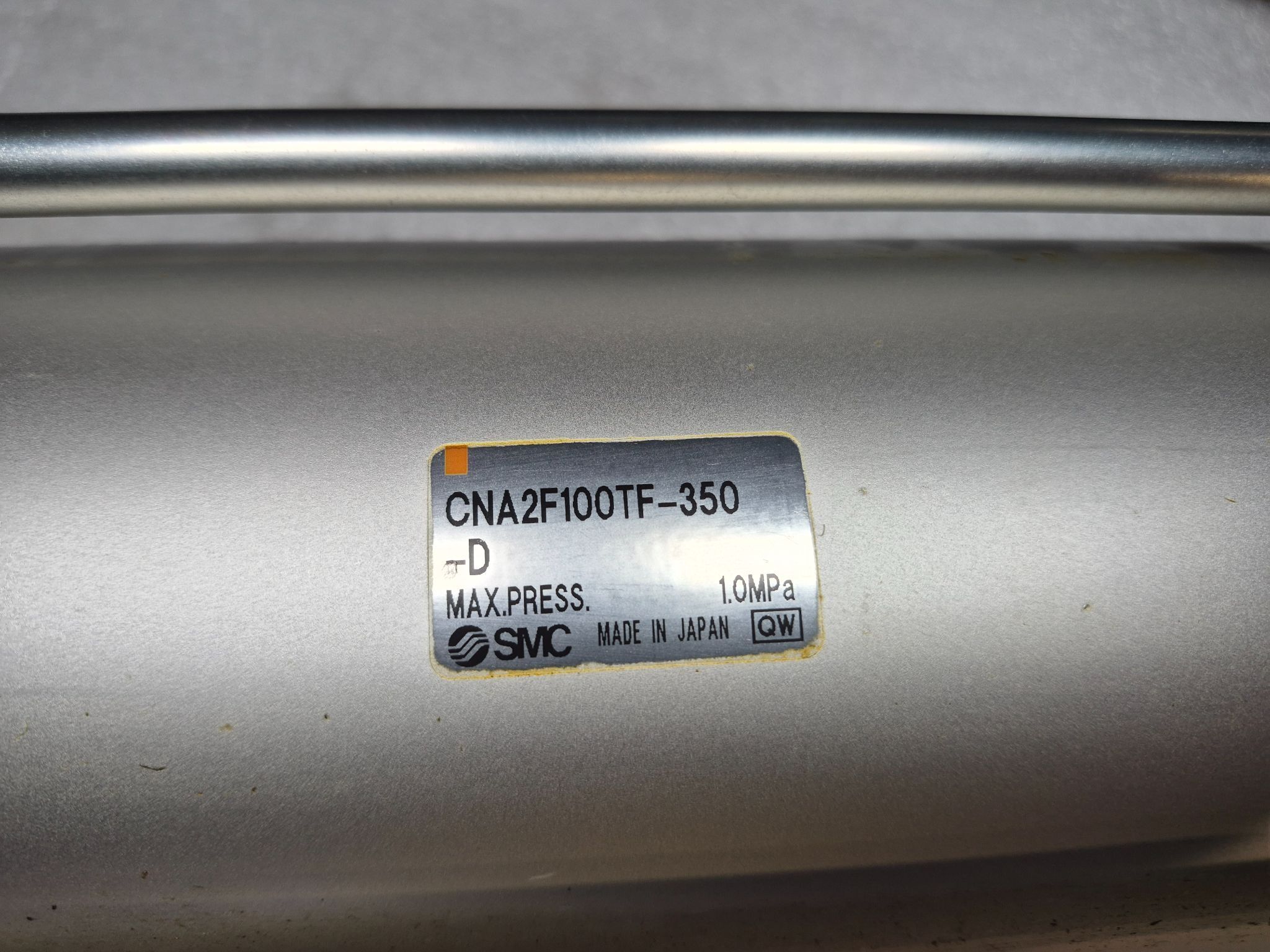

SMC CNA2F100TF-350-D Pneumatic Cylinder 100mm Bore 350mm Stroke USED 2

SOLD!

SMC CNA2F100TF-350-D Pneumatic Cylinder 100mm Bore 350mm Stroke USED

$600.00
Availability:

1 in stock
BRAND: SMC MODEL: CNA2F100TF-350-D CONDITION: used
SKU: IGAM3580073 Weight: 20 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

This listing is for a USED SMC CNA2F100TF‑350‑D pneumatic power lock cylinder. It is designed for applications requiring mid‑stroke stopping, emergency stopping, and drop prevention. This unit is a double‑acting, single‑rod tie‑rod pneumatic cylinder with an integrated mechanical locking mechanism, featuring a 100mm bore and 350mm stroke for controlled linear motion in industrial automation systems.

Specification Table

Manufacturer: SMC Corporation Series: CNA2 Power Lock Cylinder Part Number: CNA2F100TF-350-D Condition: USED Function: Pneumatic Linear Actuator with Mechanical Lock Operation: Double Acting, Single Rod Bore Size: 100 mm Stroke Length: 350 mm Maximum Operating Pressure: 1.0 MPa (145 PSI) Port Thread Type: BSPP Country of Manufacture: Japan Auto Switch Capability: Yes
▸ Key Features:
• Integrated mechanical power lock for mid-stroke and emergency stopping
• Double-acting, single-rod pneumatic operation
• 100mm bore with 350mm stroke length
• Tie-rod construction for high rigidity and long service life
• Equal holding force in both extension and retraction directions
• Locking mechanism isolated from release air to resist contamination
• Auto-switch capable for position feedback
▸ Applications:
• Vertical load holding and drop prevention systems
• Emergency stop functions in automated machinery
• Mid-stroke positioning and workpiece holding
• Industrial automation and OEM equipment
▸ Alternative Model Numbers:
CNA2F100TF-200-D
CNA2F100TF-275-D
CNA2F100TF-600-D
CDNA2F100TF-350-D
CDLA2F100-350
▸ Common Misspellings or Phrasing:
SMC CNA2F100TF350D
CNA2 power lock cylinder
SMC locking pneumatic cylinder 100mm
CNA2 series air cylinder with lock
SMC tie rod locking actuator
