SMC CNA2F100TF-275-D Pneumatic Cylinder USED 0
SMC CNA2F100TF-275-D Pneumatic Cylinder USED 1

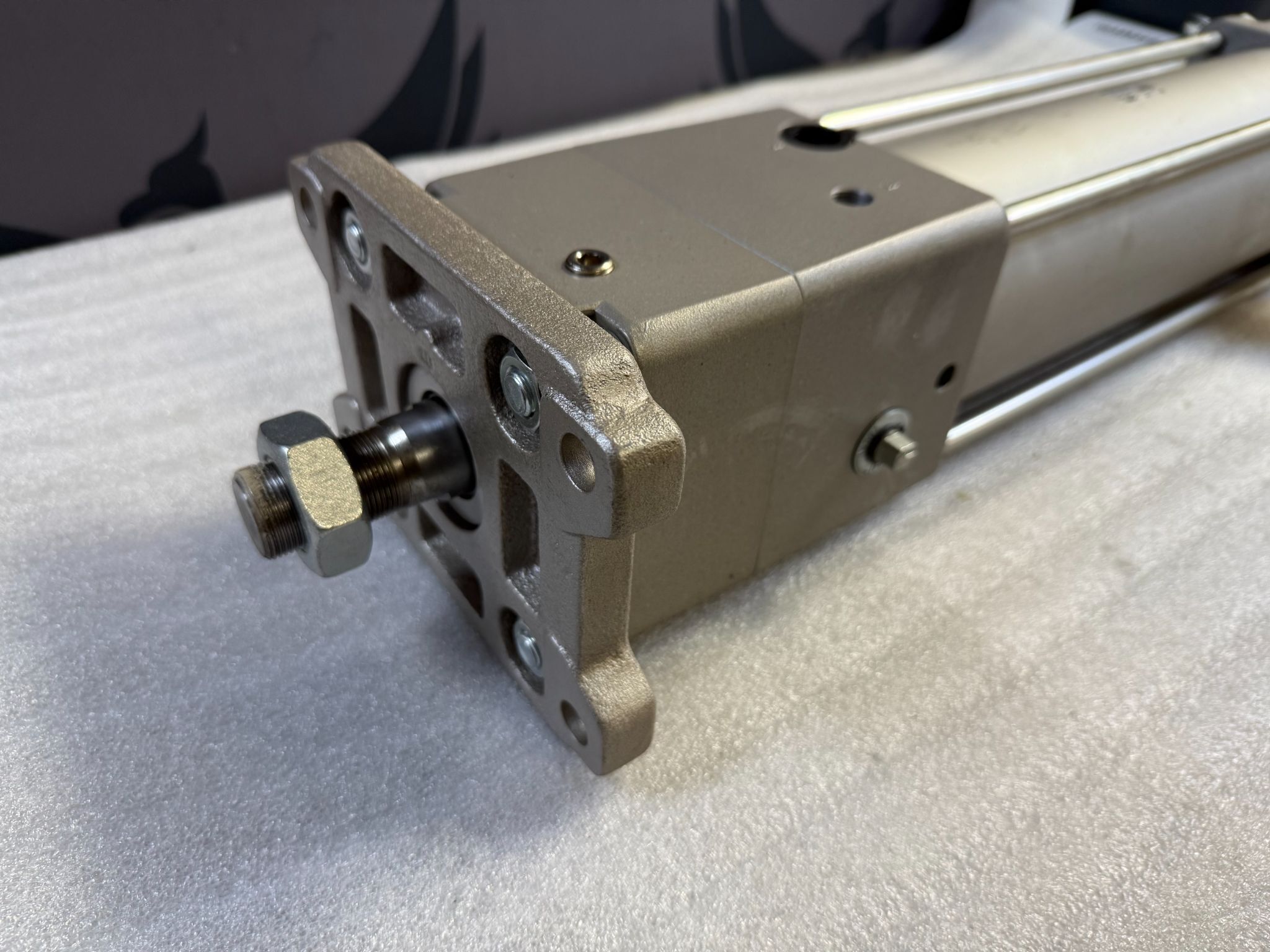

SMC CNA2F100TF-275-D Pneumatic Cylinder USED 2

SOLD!

SMC CNA2F100TF-275-D Pneumatic Cylinder USED

$595.00
Availability:

1 in stock
BRAND: SMC MODEL: CNA2F100TF-275-D CONDITION: used
SKU: IGAM3580027 Weight: 36 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

This listing is for a USED SMC CNA2F100TF-275-D pneumatic tie-rod cylinder with integrated power lock. It is designed for linear motion control applications requiring mid-stroke stopping, emergency stop capability, and load holding to prevent drop conditions. This unit is classified as a double acting, single rod pneumatic actuator with rod lock, featuring a 100 mm bore, 275 mm stroke, and a maximum operating pressure of 1.0 MPa.

Specification Table

Manufacturer: SMC Corporation Series: CNA2 Power Lock Cylinder Part Number: CNA2F100TF-275-D Condition: USED Bore Size: 100 mm Stroke Length: 275 mm Operating Method: Double Acting, Single Rod Lock Type: Spring Locking (Both Directions) Manual Override: Yes Max Operating Pressure: 1.0 MPa (145 PSI) Fluid: Compressed Air Mounting Type: Tie-Rod Construction Port Thread Type: TF (G / BSPP) Country of Manufacture: Japan

▸ Key Features:
• Double acting, single rod pneumatic cylinder with integrated power lock
• Equal holding force in both extension and retraction directions
• Spring locking mechanism suitable for emergency stop and drop prevention
• Manual override allows lock release when air supply is shut off
• Locking mechanism isolated from unlocking air to reduce contamination effects
• Tie-rod construction for durability and stable mounting accuracy
• Auto switch compatible with built-in magnet options

▸ Applications:
• Vertical load holding and drop prevention systems
• Emergency stop positioning in automated machinery
• Industrial automation and assembly equipment
• Packaging, material handling, and conveyor systems
• OEM machine builds requiring pneumatic rod locking

▸ Alternative Model Numbers:
CNA2F100TF-250-D
CNA2F100TN-275-D
CNA2F80TF-275-D
CDNA2F100TF-275-D
CNA2F100-275-D

▸ Common Misspellings or Phrasing:
SMC CNA2 100 275
CNA2F100TF275D
SMC power lock cylinder 100mm
SMC rod lock air cylinder
CNA2F100 pneumatic actuator
