Specification Table
Manufacturer: SMC Corporation
Product Type: Slim Line Pneumatic Power Clamp
Series: CKZ

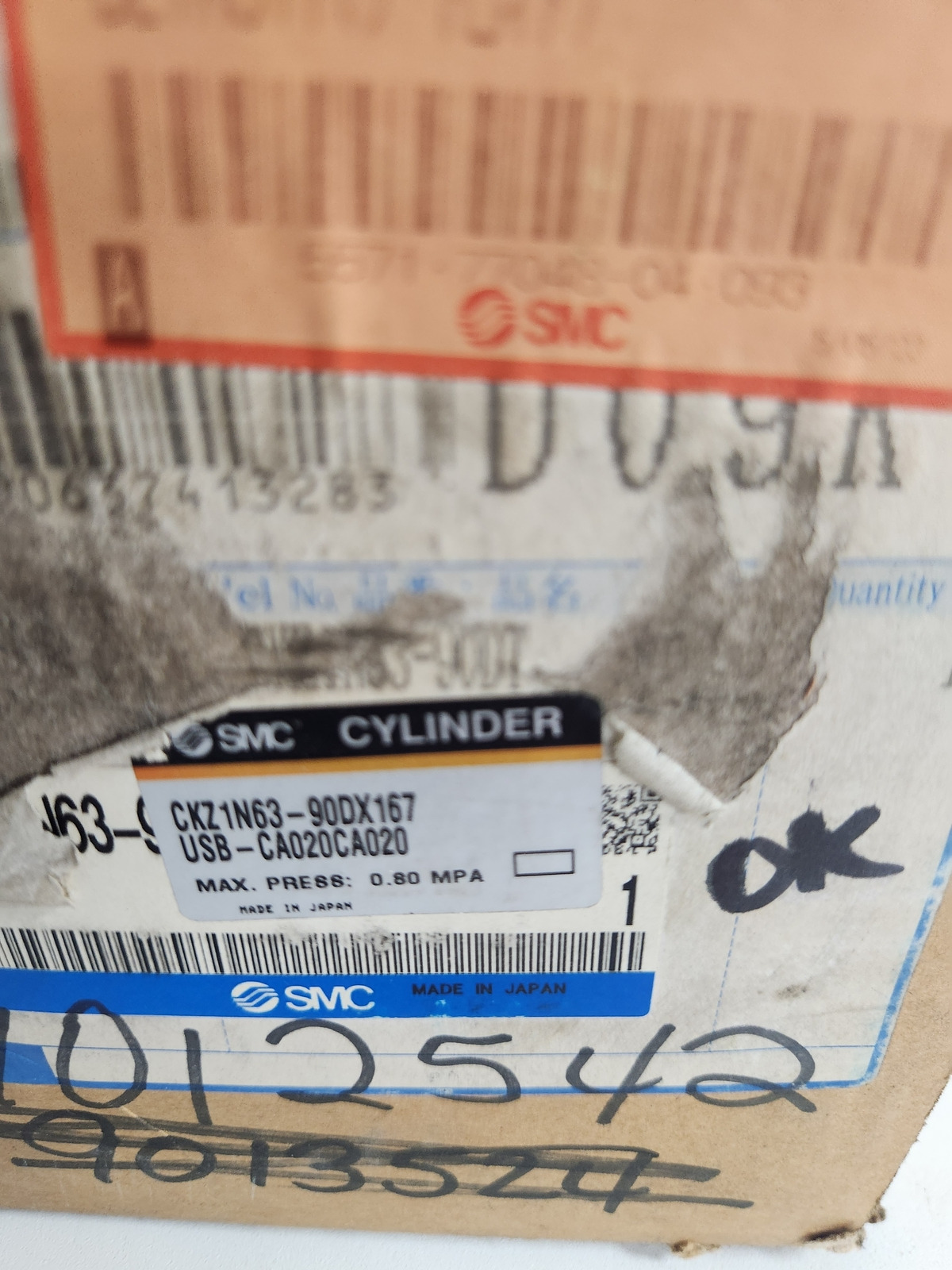

Part Number: CKZ1N63-90DX167USB-CA020CA020
Clamp Type: Pneumatic power clamp
Bore Size: 63 mm
Actuation: Double-acting pneumatic
Operating Medium: Compressed air
Maximum Pressure: 0.8 MPa
Mounting: Body-mounted clamp assembly
Configuration: Customer-specified CKZ variant
Condition: NEW
Year of Manufacture: n/a
Country of Origin: Japan
Product Specifications:
- Model Number: CKZ1N63-90DX167USB-CA020CA020
- Clamp Type: Slim Line Power Clamp
- Bore Size: 63mm
- Clamp Stroke: 90mm
- Mounting Type: USB (Universal Side Bracket)
- Sensor Compatibility: CA020 sensor interface included
- Actuation Method: Pneumatic
- Material: High-strength aluminum construction
- Operating Pressure Range: Standard for industrial pneumatic applications
- Application Industry: Automotive, manufacturing, and automation
Key Features:
- Slim & Space-Saving Design – Ideal for tight automation setups
- High Clamping Force – Ensures stable and secure gripping in industrial processes
- Pneumatic Efficiency – Operates smoothly with standard compressed air systems
- Durable & Reliable Construction – Built for long-lasting industrial applications
- Easy Integration – Designed for compatibility with robotic and automated systems
Applications:
- Automotive Manufacturing – Used in robotic welding and assembly lines
- Industrial Automation – Essential for precision holding in production environments
- Material Handling Systems – Provides stable clamping in conveyor and sorting systems
- Assembly & Fabrication – Ensures secure positioning for manufacturing processes
- Aerospace & Electronics – Supports delicate and precise component handling
Alternative model numbers include: CKZ1N63-90DX167USB-CA019CA020, CKZ1N63-90DX167USB-CA020CA021, CKZ1N63-90DX167USB-CA020CA022, CKZ1N63-90DX167USB-CA020CA023, CKZ1N63-90DX167USB-CA020CA024
Common misspellings include: CKZN163-90DX167USB-CA020CA020, CKZ1N63-90D167USB-CA020CA020, CKZ1N63-90DX167USB-C020CA020, CKZ1N63-90DX167USB-CAO20CAO20, CKZ1N63-90DX167USB-CA020CAO20
