Specification Table
Manufacturer: SMC

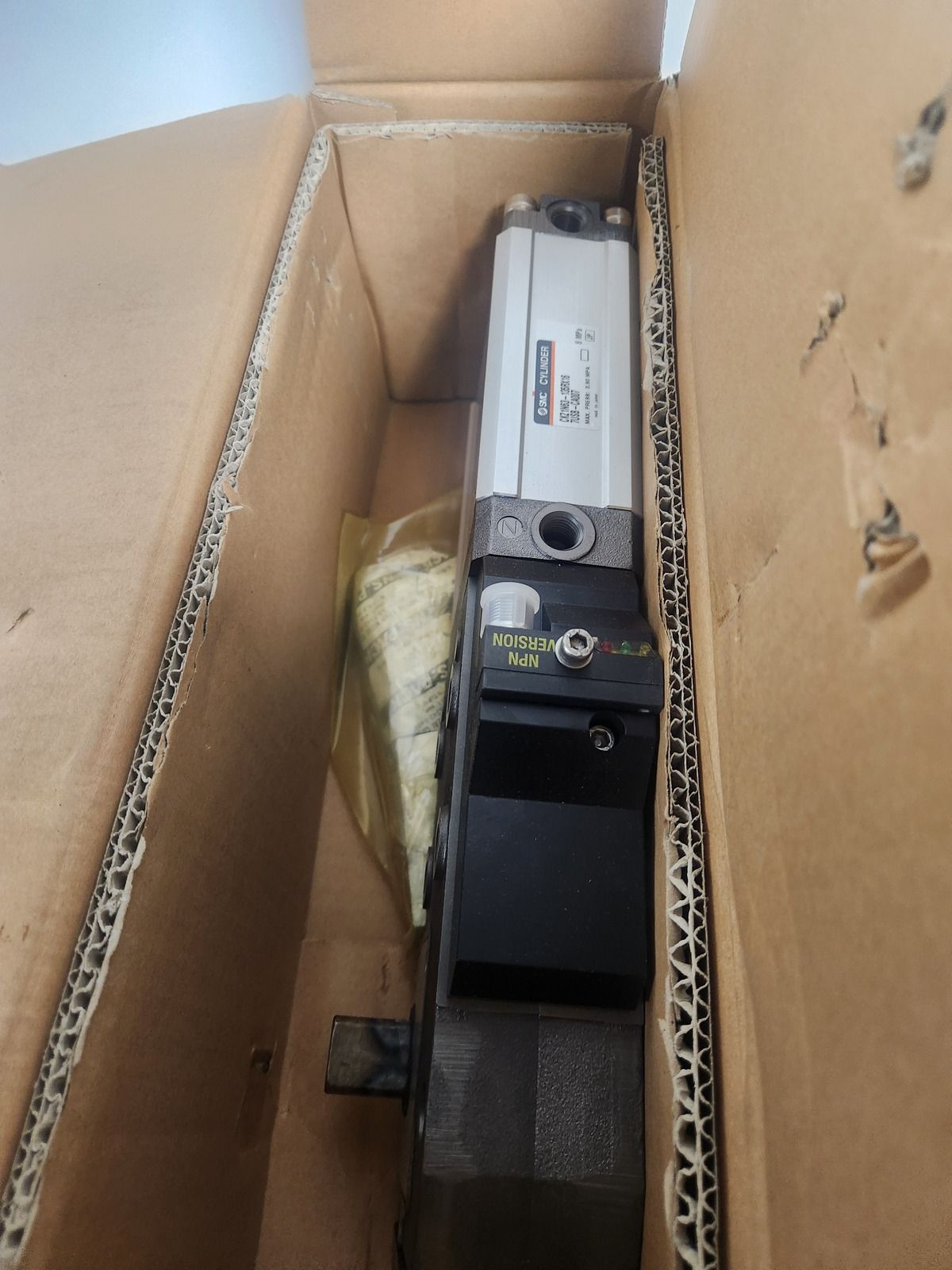

Product Line: Slim Line Power Clamp
Series: CKZ1
Part Number: CKZ1N63-135RX167USB-CA007
Condition: NEW
YOM: n/a
General Information:
Component Type: Pneumatic power clamp
Primary Application Role: Workpiece clamping in automated fixture systems
Intended Use: Industrial automation, CNC machining, OEM equipment
Mechanical / Functional:
Clamp Style: Slim line power clamp
Actuation Type: Pneumatic
Mounting Style: Fixture-mounted
Clamp Operation: Automated clamping mechanism
Configuration:
Bore Size: 63 mm
Stroke / Arm Configuration: Application-specific
Sensor Provision: Not specified
Pneumatic:
Operating Medium: Compressed air
Maximum Pressure: 0.80 MPa
Compatibility:
System Integration: Industrial automation and CNC fixture systems
Interchange / Fitment: Match CKZ1N63-135RX167USB-CA007 for direct replacement
Included:
Includes: Power clamp unit as packaged by SMC
Cosmetic Condition:
New, unused; original packaging present
Product Specifications:
- Manufacturer: SMC
- Model Number: CKZ1N63-135RX167USB-CA007
- Clamp Type: Slim Line Power Clamp
- Bore Size: 63mm
- Stroke Length: 135mm
- Actuation: Pneumatic/Hydraulic
- Clamp Arm: Right Rotation Type
- Port Size: Standard USB Port Configuration
- Mounting Type: Bracket Mount
- Body Material: High-Durability Aluminum Alloy
- Operating Pressure Range: 0.1 to 0.7 MPa
- Temperature Range: -10°C to 60°C
- Weight: Approx. 2.5 kg
Key Features:
- Compact & Slim Design: Space-efficient build for installation in tight industrial setups.
- High Clamping Force: Strong and reliable holding power for various manufacturing tasks.
- Durable Construction: Aluminum alloy body ensures longevity and corrosion resistance.
- Precision Stroke Adjustment: Offers customizable stroke length for different applications.
- Easy Installation & Maintenance: Simple mounting system with minimal maintenance requirements.
Applications:
- Automotive Manufacturing: Used for securing parts during welding, drilling, and fastening.
- Industrial Automation: Integrates seamlessly with robotic and automated clamping systems.
- Metal Fabrication: Provides firm holding in machining and welding operations.
- Electronics Assembly: Stabilizes components in precision manufacturing processes.
- General Industrial Use: Versatile for various clamping applications in production facilities.
Alternative Model Numbers Include:
CKZ1N63-135RX167USB-CA008, CKZ1N63-135RX167USB-CA009, CKZ1N63-135RX167USB-CA010, CKZ1N63-135RX167USB-CA011, CKZ1N63-135RX167USB-CA012
