Specification Table
Manufacturer: SMC Corporation
Product Type: Slim Line Pneumatic Power Clamp
Series: CKZ

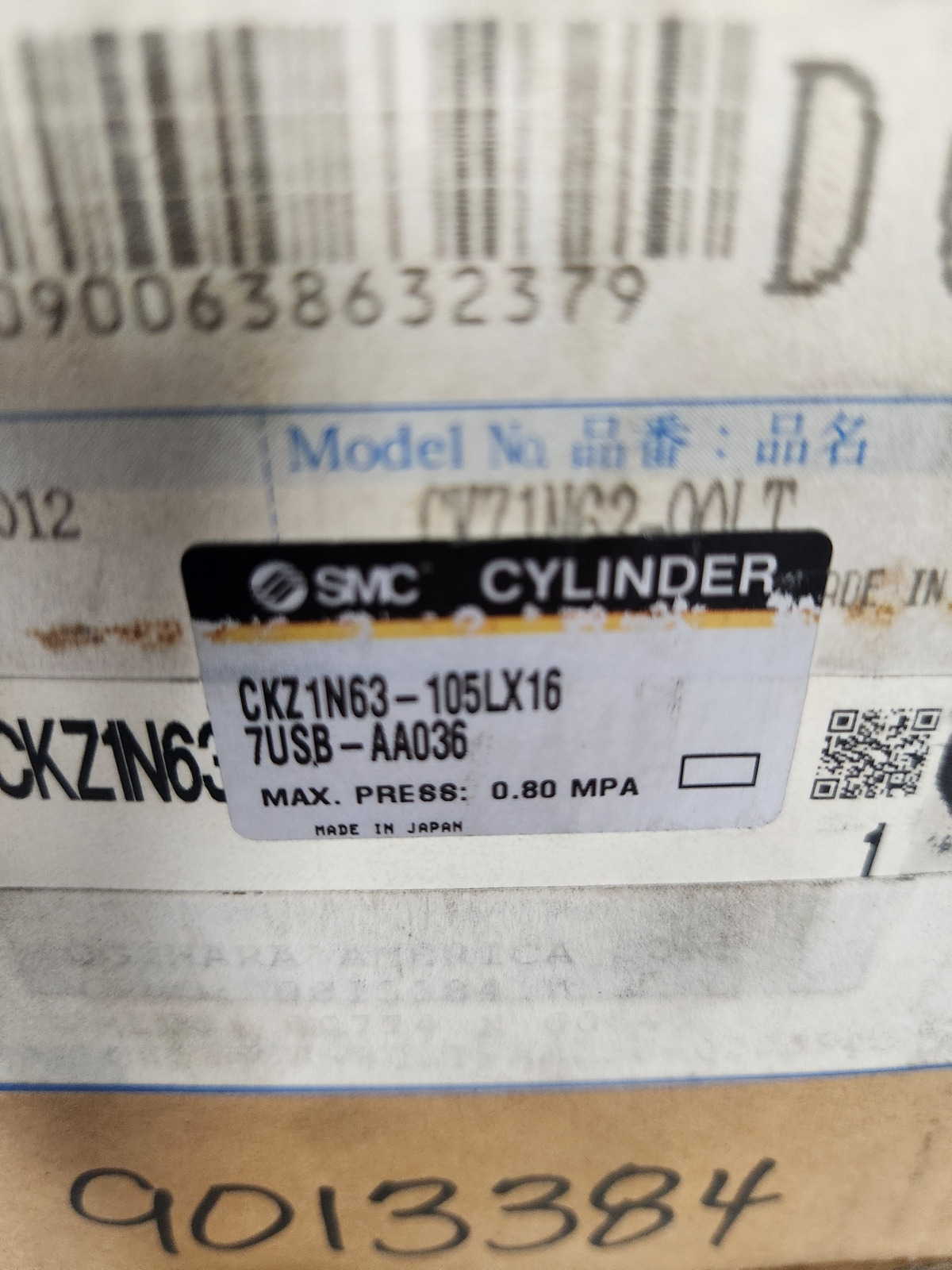

Part Number: CKZ1N63-105LX167USB-AA036
Clamp Type: Pneumatic power clamp
Bore Size: 63 mm
Actuation: Double-acting pneumatic
Operating Medium: Compressed air
Maximum Pressure: 0.8 MPa
Mounting: Body-mounted clamp assembly
Configuration: Customer-specified CKZ variant
Condition: NEW
Year of Manufacture: n/a
Country of Origin: Japan
Product Specifications
- Model Number: CKZ1N63-105LX167USB AA036
- Clamp Type: Slim Line Power Clamp
- Clamp Bore Size: 63mm
- Stroke Length: 105mm
- Operating Pressure Range: 0.1 to 1.0 MPa
- Mounting Type: Universal Side and Bottom Mounting
- Sensor Compatibility: USB sensor connection for real-time position detection
- Material: High-strength aluminum alloy with stainless steel components
- Port Size: Standard pneumatic fittings
- Temperature Range: -10°C to 60°C
Key Features
- Space-Saving Design – Slim profile for easy integration into compact automation setups.
- Strong Clamping Force – Delivers high holding power for industrial applications.
- USB Sensor Interface – Provides accurate position detection and monitoring.
- Durable and Lightweight Build – Ensures longevity without compromising efficiency.
- Multiple Mounting Options – Enables flexible installation for various system layouts.
- Smooth Pneumatic Operation – Designed for consistent and controlled clamping.
Applications
- Automated Assembly Lines – Ideal for precision part holding in high-speed manufacturing.
- Welding Fixtures – Used for securing components during welding and fabrication.
- Material Handling Systems – Ensures stability and accuracy in robotic handling.
- Automotive Manufacturing – Helps in precise alignment and secure holding during production.
- General Industrial Automation – Supports various automation processes requiring firm clamping.
