Specification Table
Manufacturer: SMC
Product Line: Slim Line Power Clamp
Series: CKZ1

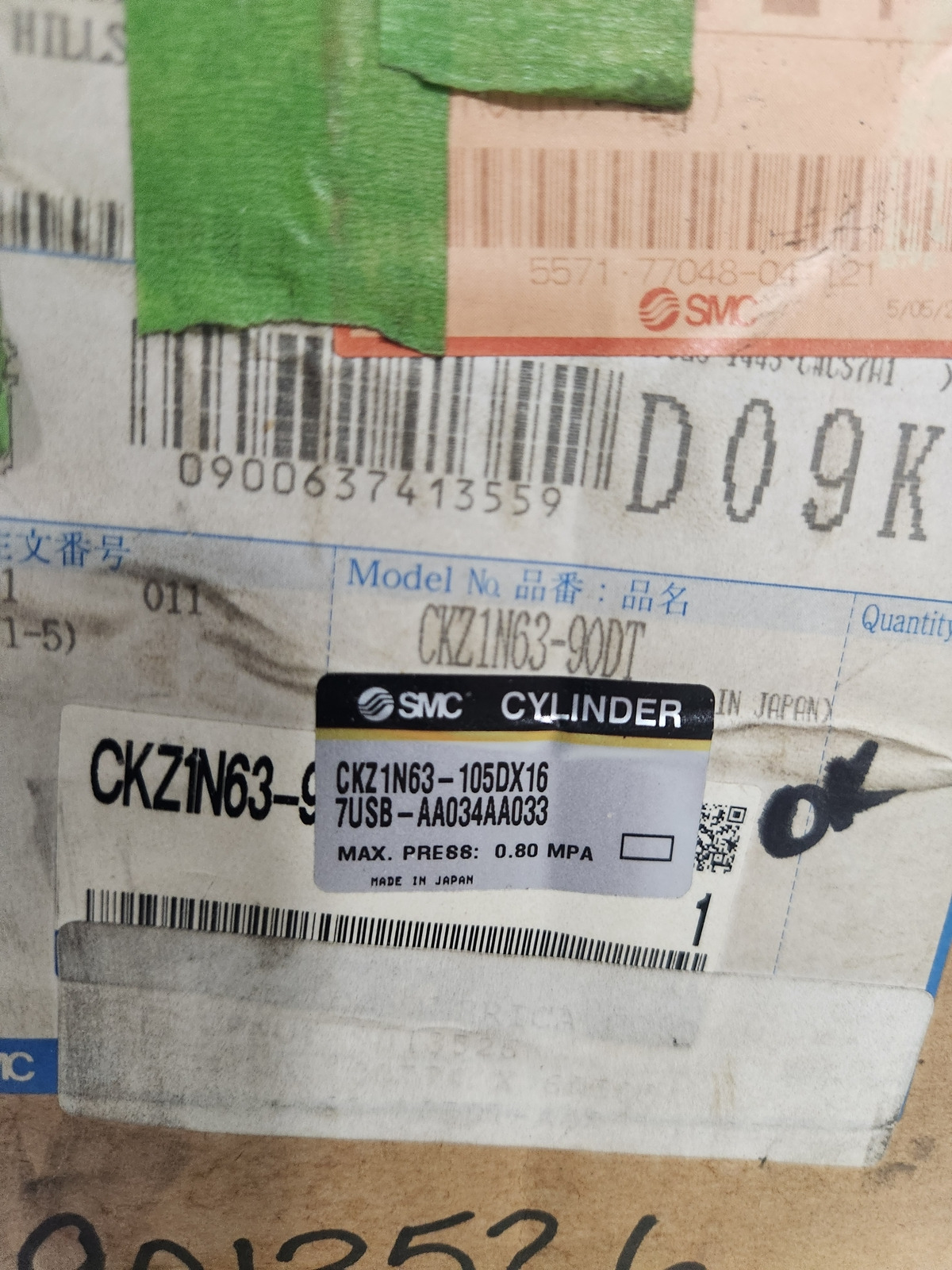

Part Number: CKZ1N63-105DX167USB AA034AA033
Condition: NEW
YOM: n/a
General Information:
Component Type: Pneumatic power clamp
Primary Application Role: Workpiece clamping in automated fixture systems
Intended Use: Industrial automation, CNC machining, OEM equipment
Mechanical / Functional:
Clamp Style: Slim line power clamp
Actuation Type: Pneumatic
Mounting Style: Fixture-mounted
Clamp Operation: Automated clamping mechanism
Configuration (from Model Code):
Bore Size: 63 mm
Stroke / Arm Configuration: Application-specific (per model code)
Sensor Provision: Not specified
Pneumatic:
Operating Medium: Compressed air
Maximum Pressure: 0.80 MPa
Compatibility:
System Integration: Industrial automation and CNC fixture systems
Interchange / Fitment: Match CKZ1N63-105DX167USB AA034AA033 for direct replacement
Included:
Includes: Power clamp unit as packaged by SMC
Cosmetic Condition:
New, unused; original packaging present
Product Specifications:
- Model Number: CKZ1N63-105dX167USB AA034AA034
- Brand: SMC Corporation
- Type: Slim-Line Power Clamp
- Condition: New (Open Box)
- Cylinder Bore Size: 63mm
- Clamp Stroke: 105mm
- Mounting Type: Standard industrial mounting options
- Material: Corrosion-resistant, heavy-duty construction
- Actuation Type: Pneumatic operation
Key Features:
- Slim & Compact Design: Optimized for space-efficient installations in automation systems.
- High Clamping Force: Provides secure and stable workpiece holding.
- Durable & Industrial-Grade: Built for continuous use in demanding environments.
- Easy Installation: Standard mounting configuration for seamless integration.
- Reliable Pneumatic Actuation: Ensures consistent operation with minimal maintenance.
Applications:
- Welding fixtures and robotic automation
- Automotive manufacturing and assembly lines
- Material handling and industrial workholding
- Metal fabrication and machining setups
- Precision clamping in automated systems
Alternative model numbers include: CKZ1N63-105DX167USB AA032AA034, CKZ1N63-105DX167USB AA034AA032, CKZ1N63-105DX167USB AA030AA034, CKZ1N63-105DX167USB AA034AA035, CKZ1N63-105DX167USB AA036AA034
Common misspellings include: CKZ1N63-105DX167USBAA034AA034, SMC CKZ1N63-105dX167 USB AA034AA034, CKZ1N63-105DX167-USB-AA034AA034, SMC CKZ1N63-105 DX167 USB AA034AA034, CKZ1N63105dX167USBAA034AA034
