Specification Table
Manufacturer: SMC
Product Line: Slim Line Power Clamp
Series: CKZ1
Part Number: CKZ1N63-105DX167USB AA032AA032
Condition: NEW
YOM: n/a
General Information:
Component Type: Pneumatic power clamp
Primary Application Role: Workpiece clamping in automated fixture systems
Intended Use: Industrial automation, CNC machining, OEM equipment
Mechanical / Functional:
Clamp Style: Slim line power clamp
Actuation Type: Pneumatic
Mounting Style: Fixture-mounted
Clamp Operation: Automated clamping mechanism
Configuration (from Model Code):
Bore Size: 63 mm
Stroke / Arm Configuration: Application-specific (per model code)
Sensor Provision: Not specified
Pneumatic:
Operating Medium: Compressed air

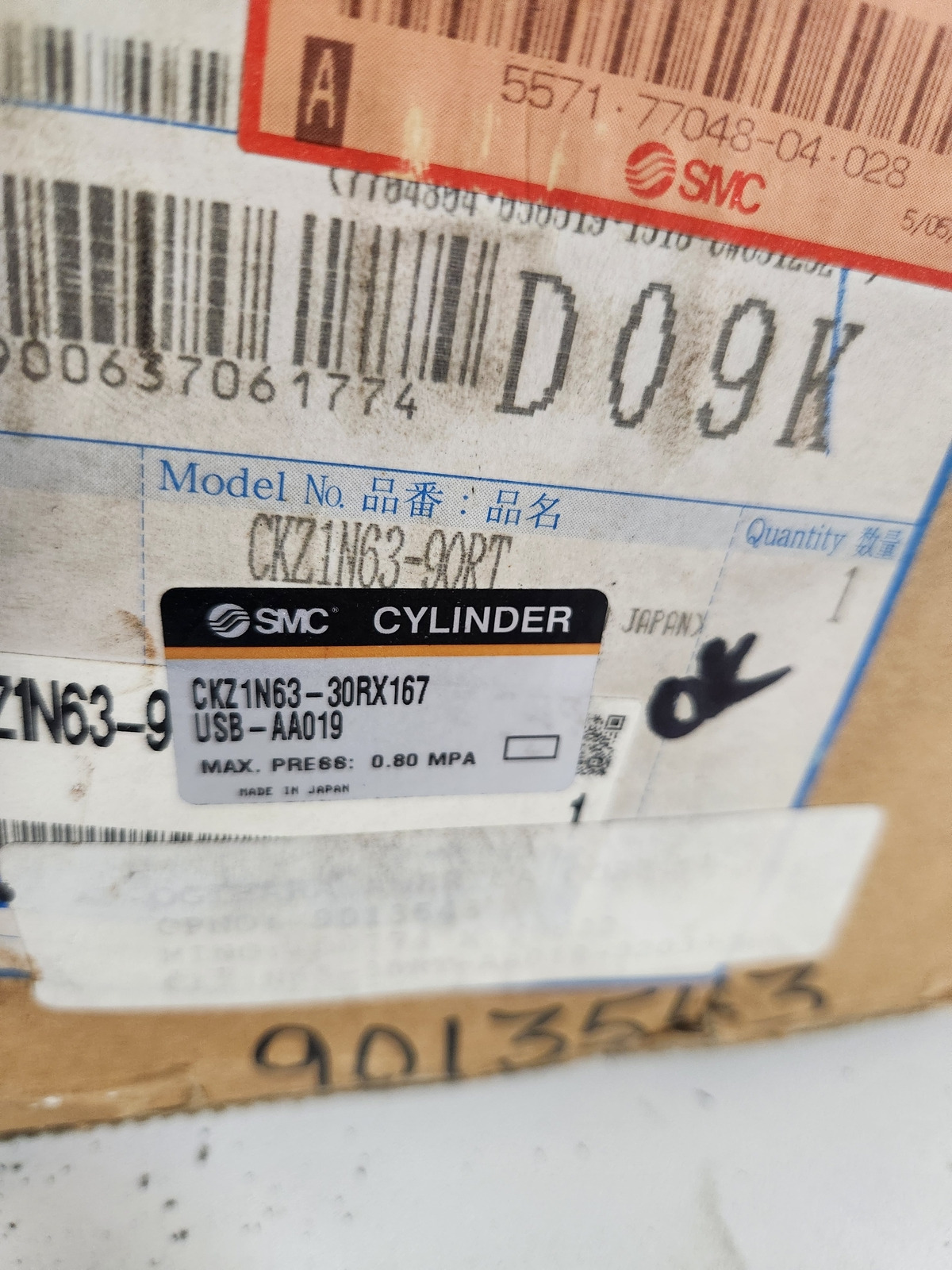

Maximum Pressure: 0.80 MPa (from box label)
Compatibility:
System Integration: Industrial automation and CNC fixture systems
Interchange / Fitment: Match CKZ1N63-105DX167USB AA032AA032 for direct replacement
Included:
Includes: Power clamp unit as packaged by SMC
Cosmetic Condition:
New, unused; original packaging present
Product Specifications:
- Model Number: CKZ1N63-105dX167USB AA032AA032
- Brand: SMC Corporation
- Type: Slim-Line Power Clamp
- Condition: New (Open Box)
- Cylinder Bore Size: 63mm
- Clamp Stroke: 105mm
- Mounting Type: Standard industrial mounting options
- Material: Heavy-duty, corrosion-resistant construction
- Actuation Type: Pneumatic operation
Key Features:
- Slim & Compact Design: Optimized for space-efficient installations in automation systems.
- High Clamping Force: Provides secure holding for various industrial applications.
- Durable & Long-Lasting: Built for continuous operation in harsh environments.
- Easy Installation: Standard mounting options for seamless integration.
- Reliable Pneumatic Actuation: Ensures consistent clamping performance with minimal maintenance.
Applications:
- Welding fixtures and robotic automation
- Automotive manufacturing and assembly lines
- Material handling and industrial workholding
- Metal fabrication and machining setups
- Precision clamping in automated systems
Alternative model numbers include: CKZ1N63-105DX167USB AA020AA032, CKZ1N63-105DX167USB AA032AA020, CKZ1N63-105DX167USB AA030AA032, CKZ1N63-105DX167USB AA032AA015, CKZ1N63-105DX167USB AA035AA032
Common misspellings include: CKZ1N63-105DX167USBAA032AA032, SMC CKZ1N63-105dX167 USB AA032AA032, CKZ1N63-105DX167-USB-AA032AA032, SMC CKZ1N63-105 DX167 USB AA032AA032, CKZ1N63105dX167USBAA032AA032
