SMC C96NF63-160C Pneumatic Cylinder w/ MWB63TF-UA Lock-Up Unit USED

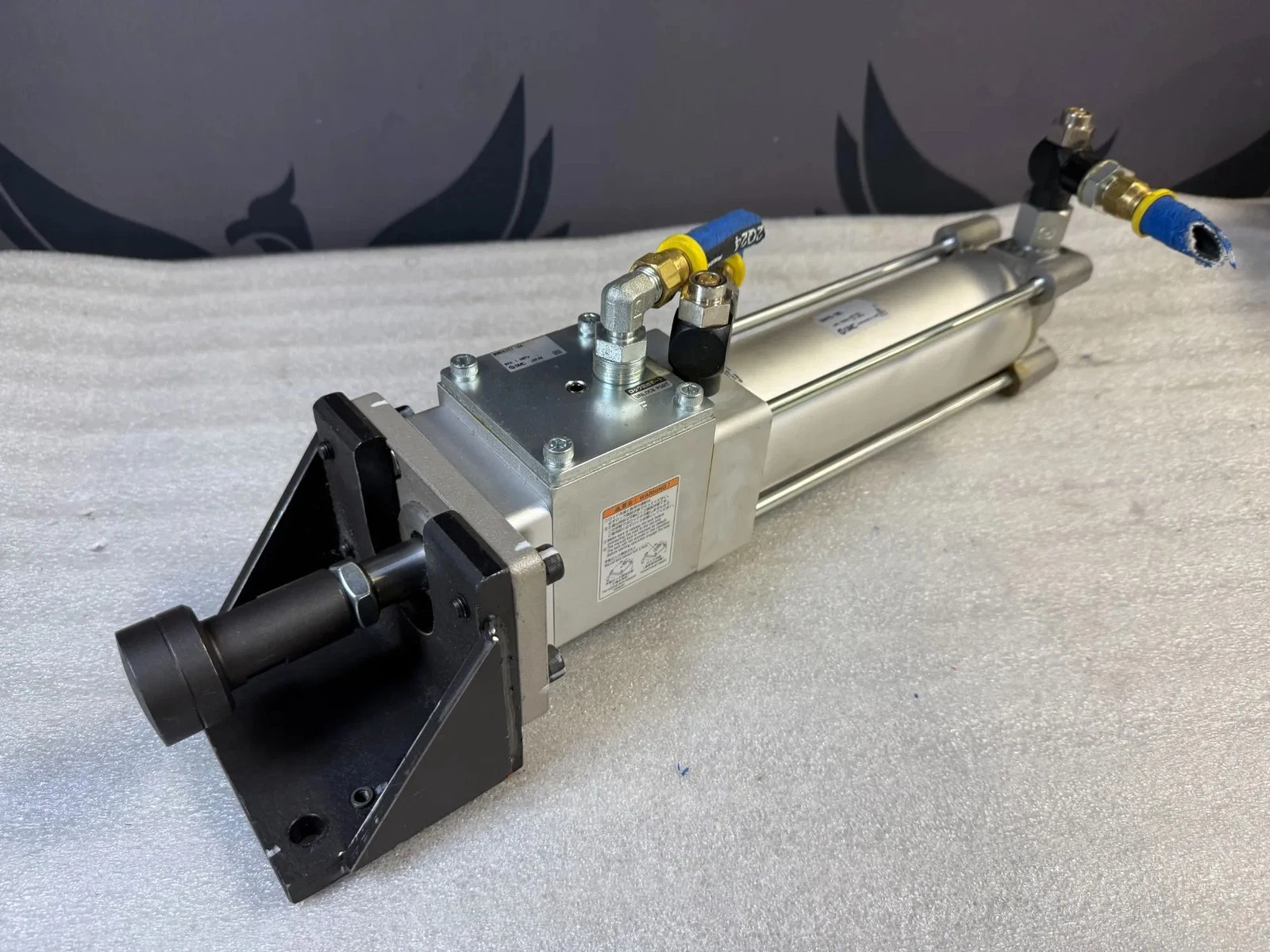

SMC C96NF63-160C Pneumatic Cylinder w/ MWB63TF-UA Lock-Up Unit USED - Image 2

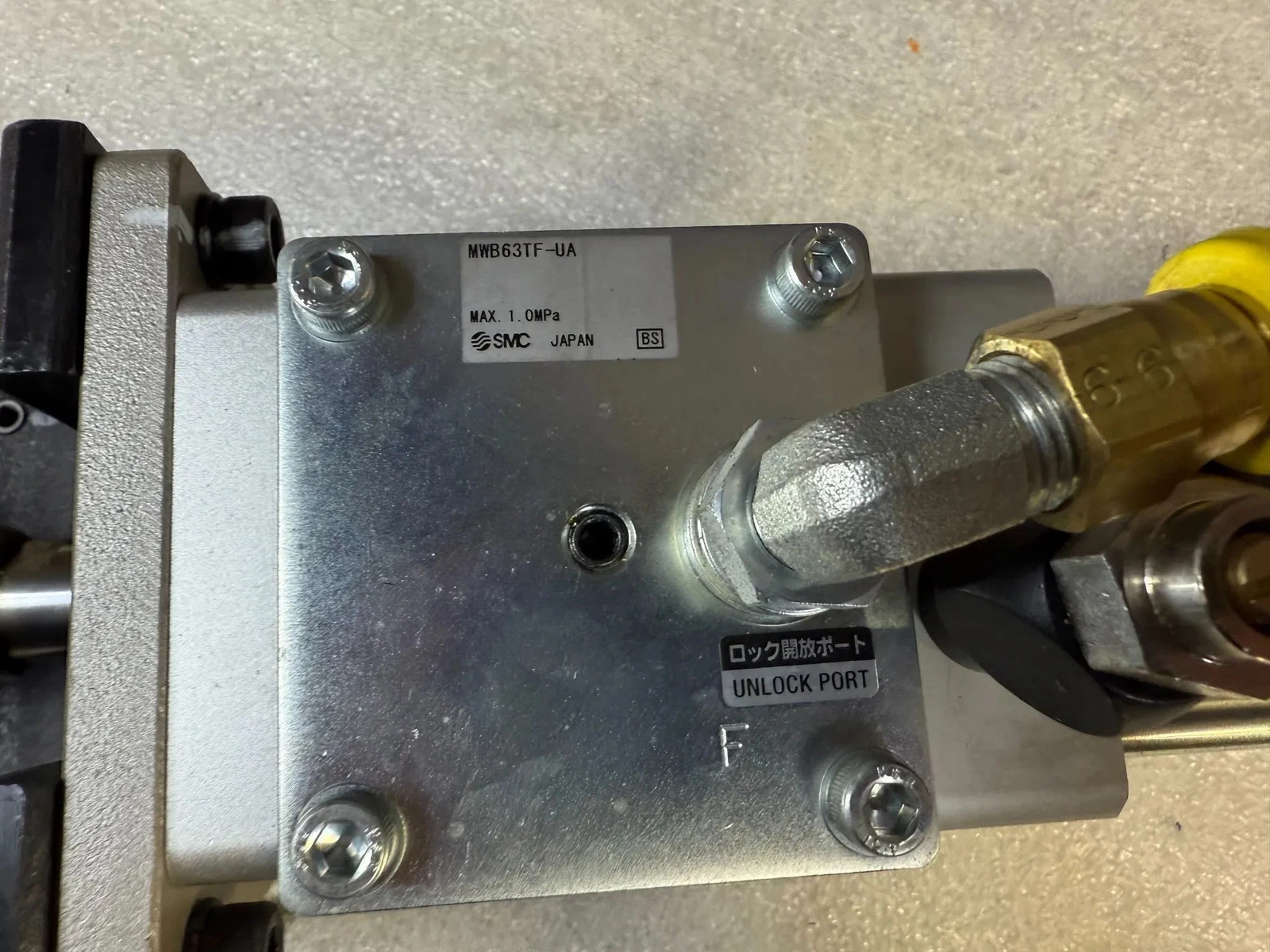

SMC C96NF63-160C Pneumatic Cylinder w/ MWB63TF-UA Lock-Up Unit USED - Image 3

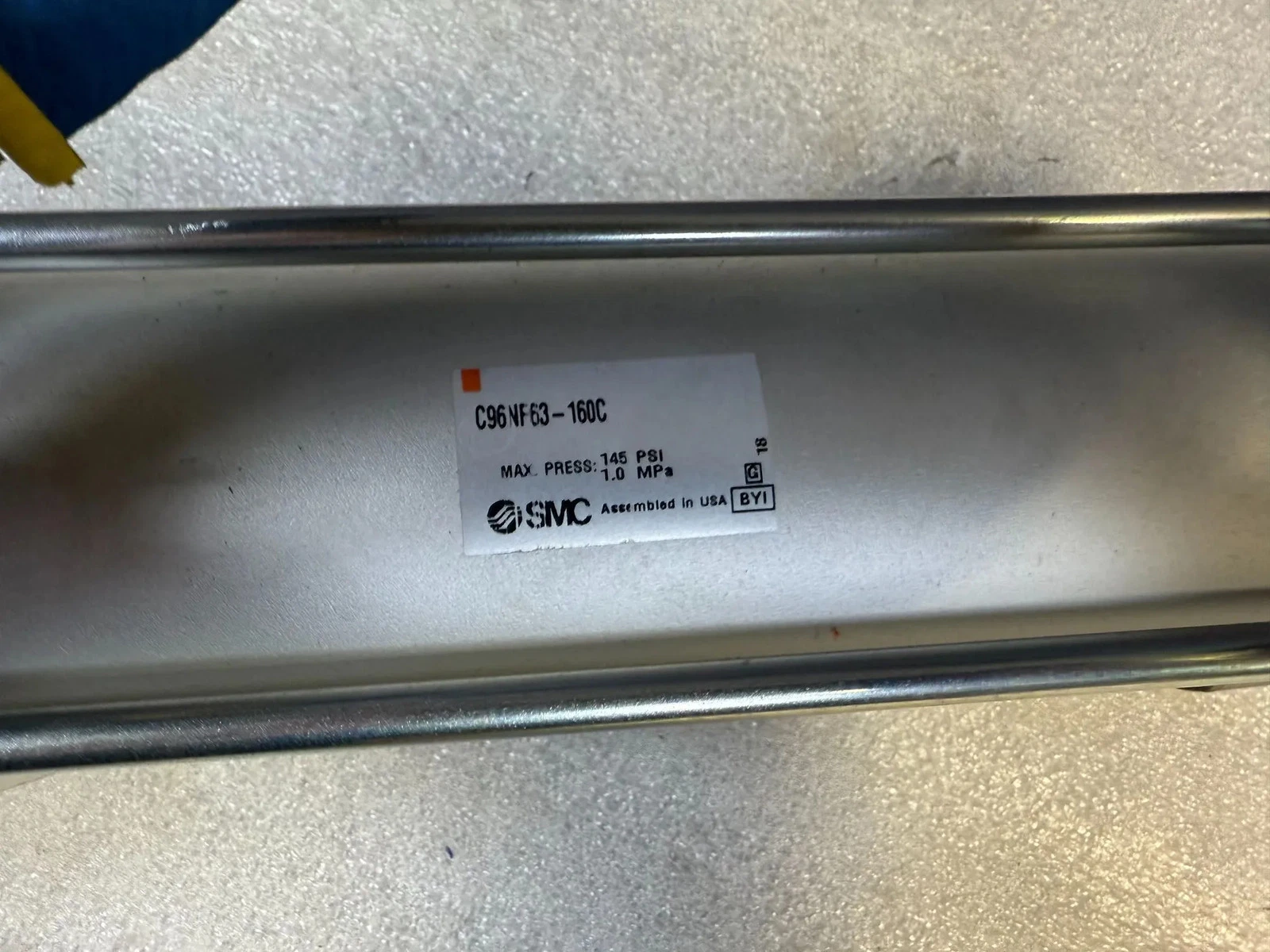

SMC C96NF63-160C Pneumatic Cylinder w/ MWB63TF-UA Lock-Up Unit USED - Image 4

SOLD!

SMC C96NF63-160C Pneumatic Cylinder w/ MWB63TF-UA Lock-Up Unit USED

$195.00
Availability:

4 in stock
BRAND: SMC MODEL: C96NF63‑160C CONDITION: Used
SKU: IGAM3220404 Weight: 25 lbs Shipping Calculated at Checkout

4 in stock

Make an offer

Overview

This listing is for a USED SMC C96NF63-160C with MWB63TF-UA lock unit. The pneumatic cylinder provides linear motion through a 63 mm bore and 160 mm stroke, while the attached lock mechanism provides rod-holding capability for the configured actuator. Maximum pressure is 1.0 MPa / 145 PSI.

Specification Table

IDENTIFICATION Manufacturer: SMC Cylinder Part Number: C96NF63-160C Lock Unit Part Number: MWB63TF-UA Cylinder Series: C96 Product Type: Pneumatic Cylinder with Lock Unit Condition: USED YOM: n/a   CYLINDER CONFIGURATION Bore Diameter: 63 mm Stroke: 160 mm Actuation: Pneumatic Cylinder Construction: Tie-Rod Rod Configuration: Single Rod Lock Unit: Included   PRESSURE Cylinder Maximum Pressure: 1.0 MPa (145 PSI) Lock Unit Maximum Pressure: 1.0 MPa   LOCK UNIT Manufacturer: SMC Model: MWB63TF-UA Function: Cylinder Rod Locking Unlock Port: Provided Lock Release: Pneumatic Lock Direction: Not specified Holding Force: Not specified   PNEUMATIC CONNECTIONS Cylinder Ports: Threaded Lock Release Port: Provided Port Thread Size: Not specified Service Media: Compressed Air   MOUNTING / CONNECTION Cylinder Mounting: Configured Mounting Hardware Rod-End Hardware: Present Pneumatic Fittings: Present Flow Controls / Fittings: Present
▸ Key Features:
• SMC C96NF series ISO pneumatic cylinder for industrial automation
• 63 mm bore and 160 mm stroke (per cylinder label C96NF63-160C)
• Integrated SMC MWB63TF-UA lock-up unit for emergency holding and safety
• Lock-up module rated for maximum 1.0 MPa operating pressure
• Designed to automatically secure cylinder position during air loss or shutdown
• Rugged construction suitable for high-duty machinery and production environments
▸ Applications:
• Industrial automation and linear actuation
• Emergency stopping and position holding on pneumatic axes
• Robotics and fixture control requiring fail-safe locking
• Pressing, clamping, and mechanical handling systems
• OEM machinery using ISO standard cylinders with safety mechanisms
▸ Alternative Model Numbers:
C96NF63-160
C96N Series ISO Cylinders
MWB63TF Lock-Up Family
C96NF63-*** Variants
SMC 63mm Bore Cylinder Assemblies
▸ Common Misspellings or Phrasing:
SMC C96-NF63-160C
C96F63-160C
MWB63TFUA
SMC Lock-Up Cylinder 63mm
C96NF63 160
