SMC C96NF100-400C Pneumatic Cylinder w/ MWB100TF-UA Lock USED

$595.00
Availability:

1 in stock

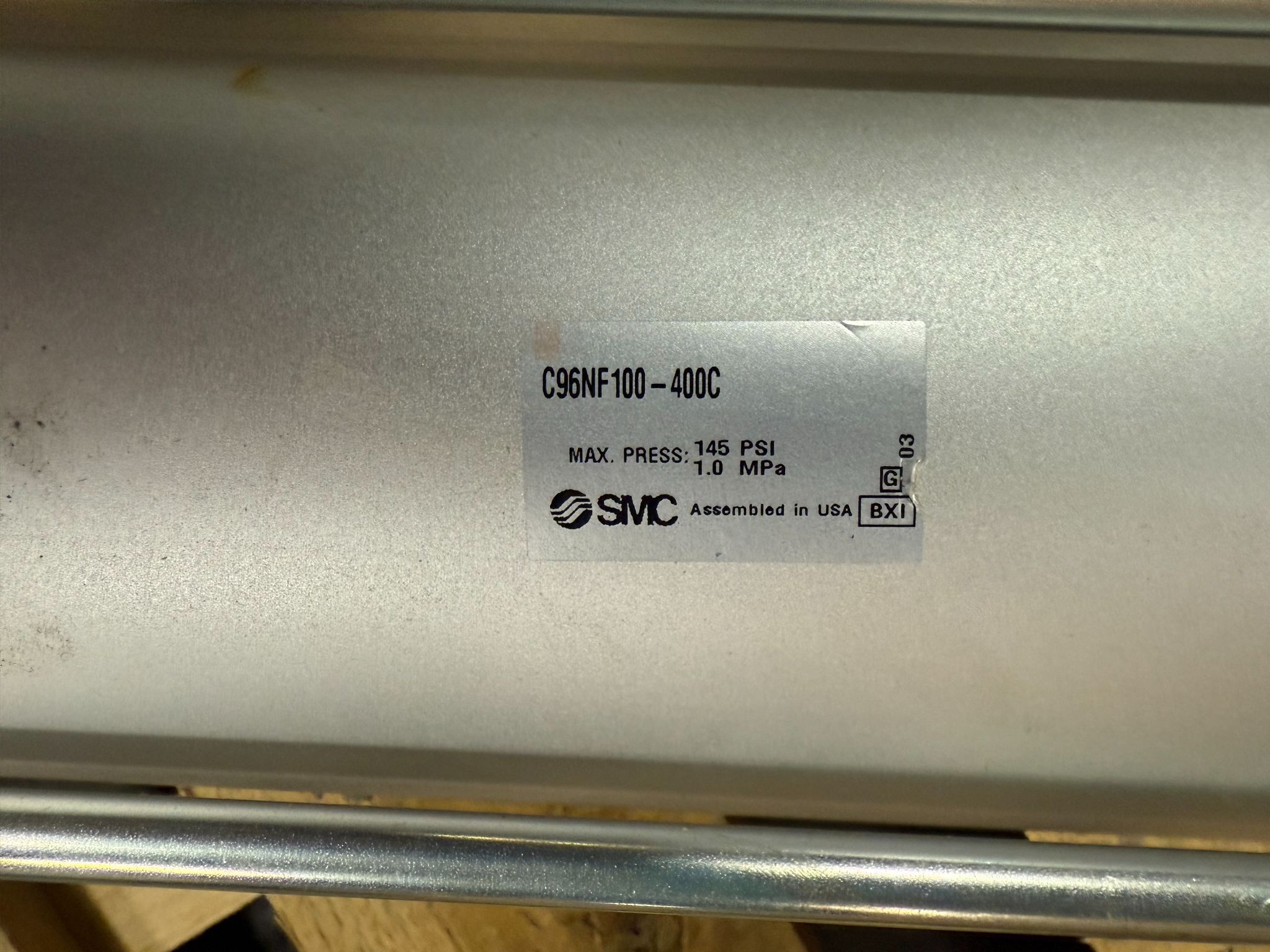

BRAND: SMC MODEL: C96NF100-400C CONDITION: used
SKU: IGAM3580026 Weight: 40 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

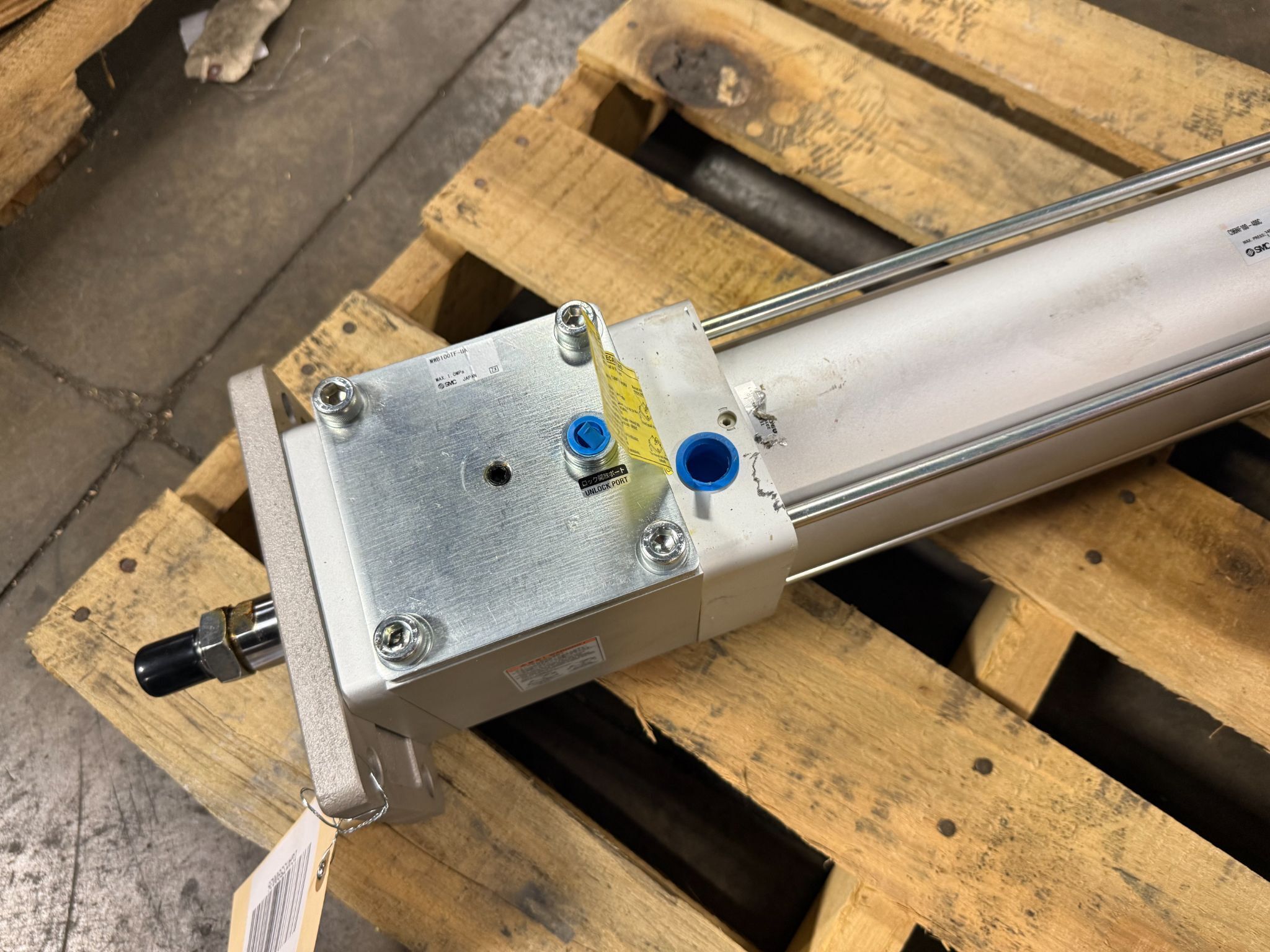

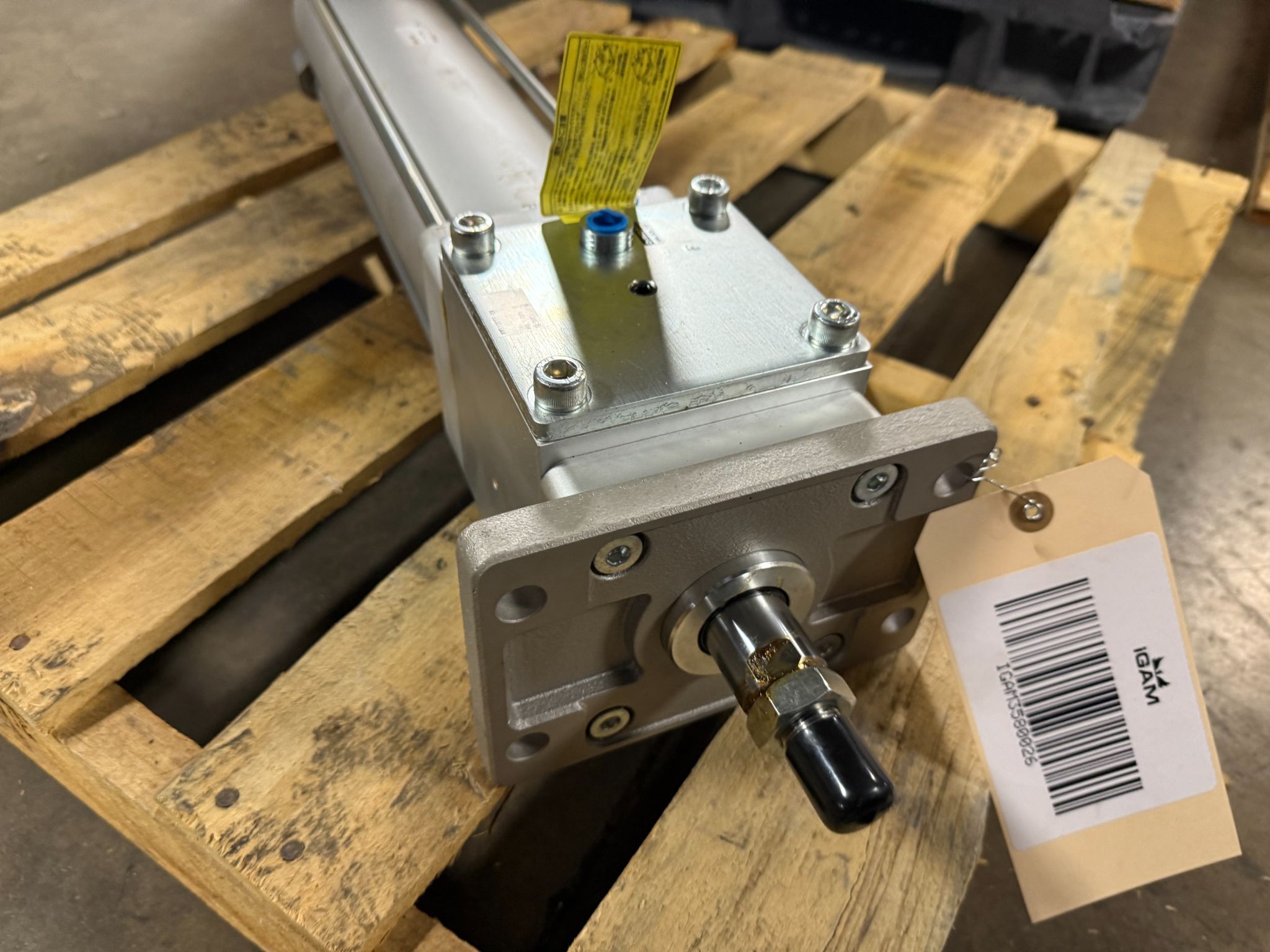

This listing is for a USED SMC C96NF100-400C pneumatic tie-rod cylinder with integrated lock unit MWB100TF-UA. It is designed for linear motion control with load holding, drop prevention, and emergency stop capability in industrial pneumatic systems. This unit is categorized as a pneumatic actuator with rod lock and supports a 100 mm bore, 400 mm stroke, ISO 15552 mounting compatibility, and a maximum operating pressure of 1.0 MPa (145 PSI).

Specification Table

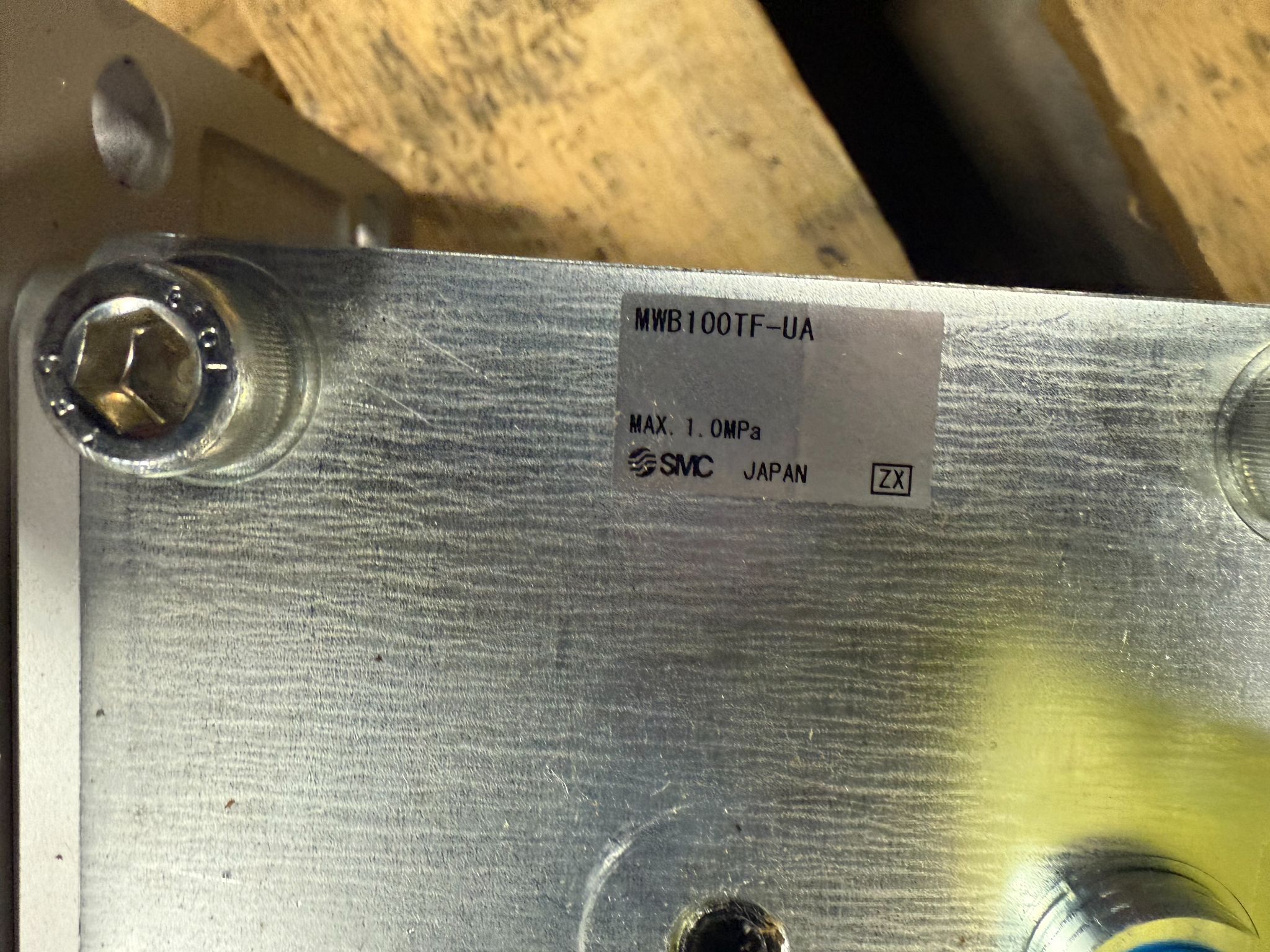

Manufacturer: SMC Corporation Series: C96N (ISO 15552) Cylinder Part Number: C96NF100-400C Lock Unit Part Number: MWB100TF-UA Condition: USED Bore Size: 100 mm Stroke Length: 400 mm Operating Method: Double Acting, Single Rod Lock Type: Exhaust Locking Max Operating Pressure: 1.0 MPa (145 PSI) Cushioning: Air Cushion / Bumper Cushion Mounting Standard: ISO 15552 Tie-Rod Port Type: G (BSPP) Country of Assembly: USA (Cylinder), Japan (Lock Unit)

â–¸ Key Features:
• ISO 15552 compliant tie-rod pneumatic cylinder design
• Integrated rod lock for load holding and drop prevention
• Double acting, single rod configuration
• Locking action via exhaust locking mechanism
• Manual lock release via hexagon wrench
• Air cushion and bumper cushion for reduced end-of-stroke noise
• Auto switch compatible mounting grooves

â–¸ Applications:
• Industrial automation and assembly machinery
• Vertical load holding and drop prevention systems
• Emergency stop positioning applications
• Packaging, material handling, and conveyor systems
• OEM machine builds using ISO standard pneumatic actuators

â–¸ Alternative Model Numbers:
C96NF100-300C
C96NF80-400C
CP96NF100-400C
MWB100-UA
MWB100TN-UA

â–¸ Common Misspellings or Phrasing:
SMC C96N 100-400
C96NF100400C
SMC 100mm pneumatic cylinder with lock
MWB100TF lock cylinder
SMC ISO cylinder with brake
