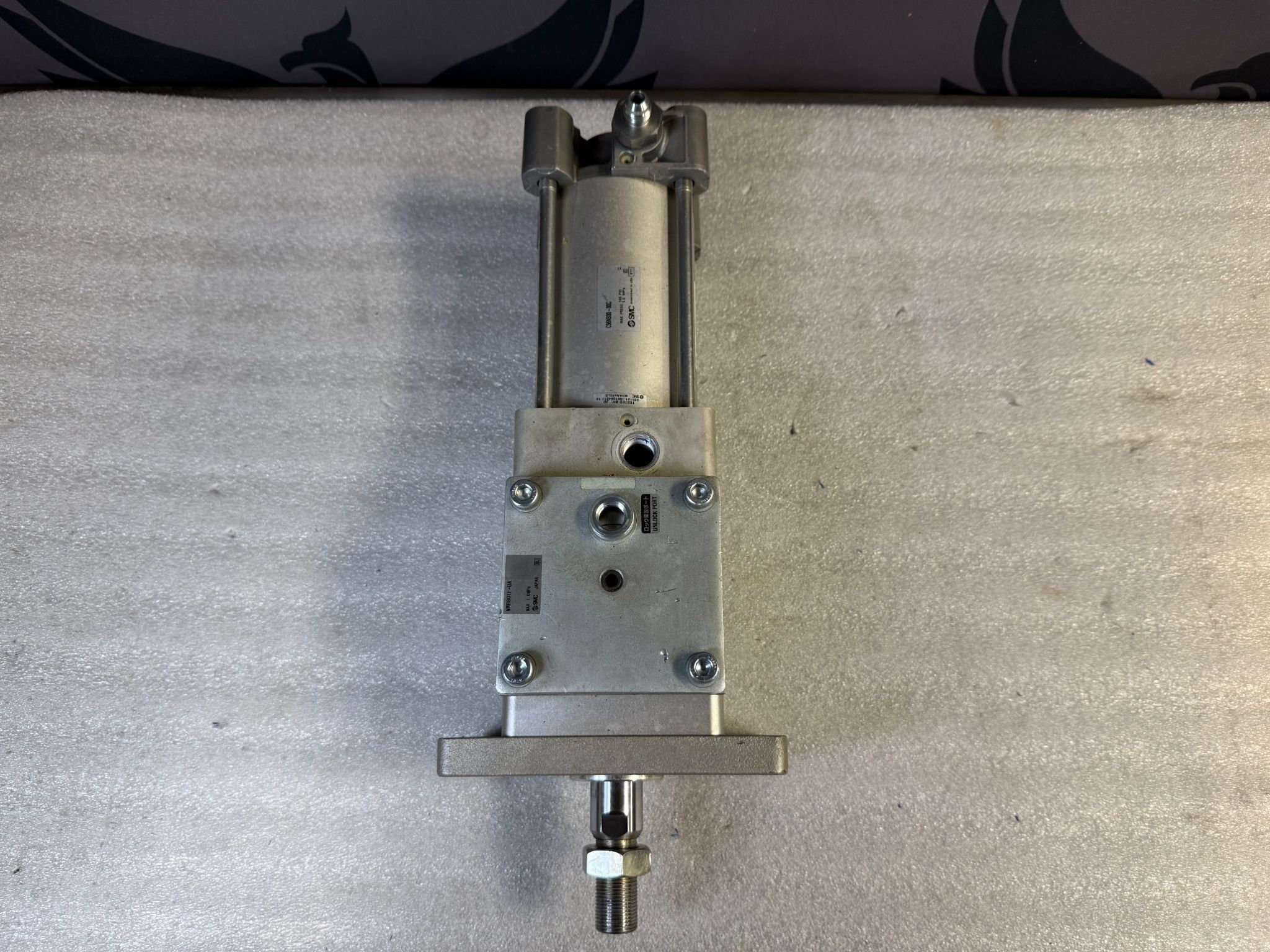

SMC C96NB80-80C Pneumatic Cylinder w/ MWB80TF-UA Lock-Up Unit USED

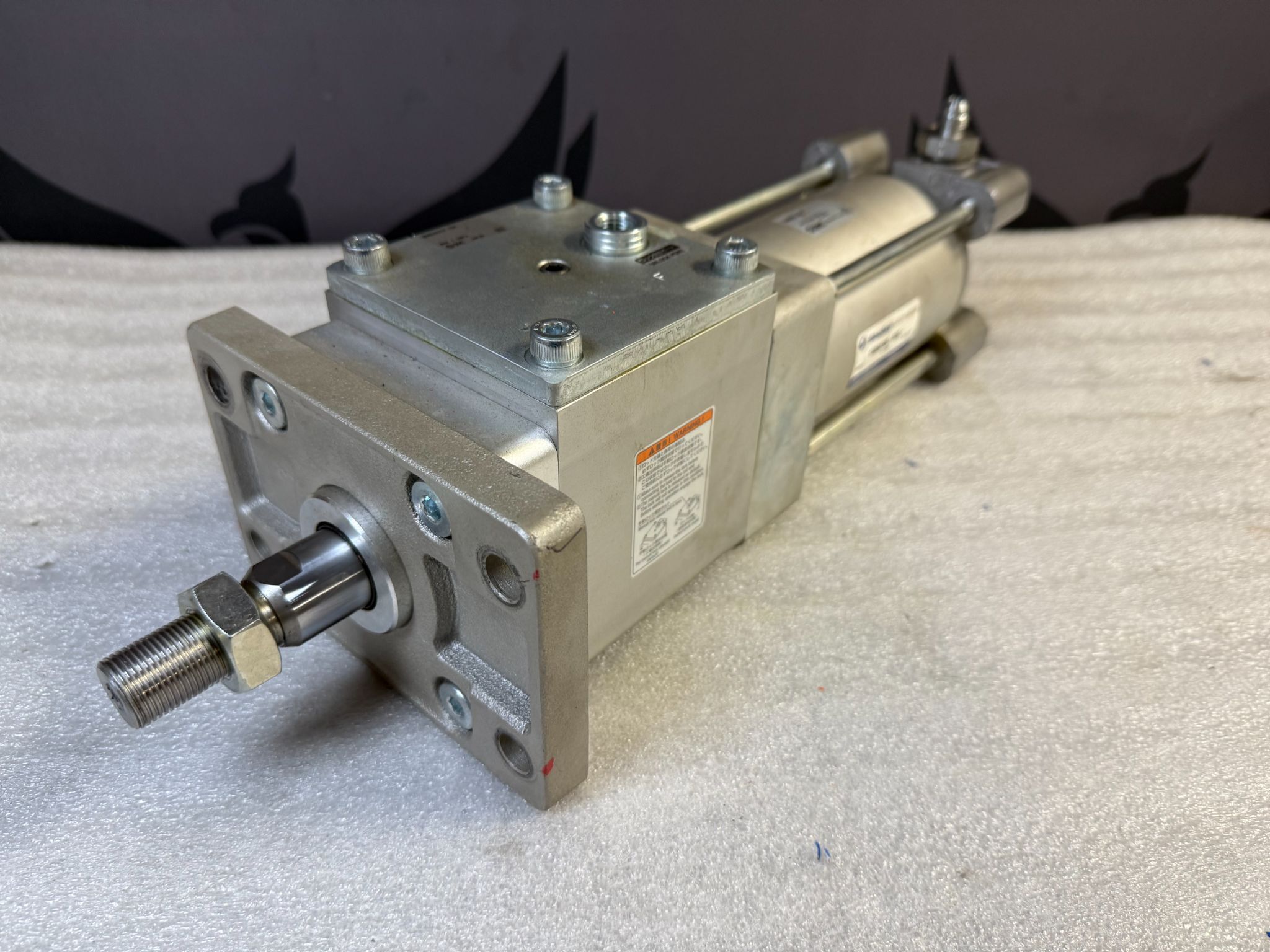

SMC C96NB80-80C Pneumatic Cylinder w/ MWB80TF-UA Lock-Up Unit USED - Image 2

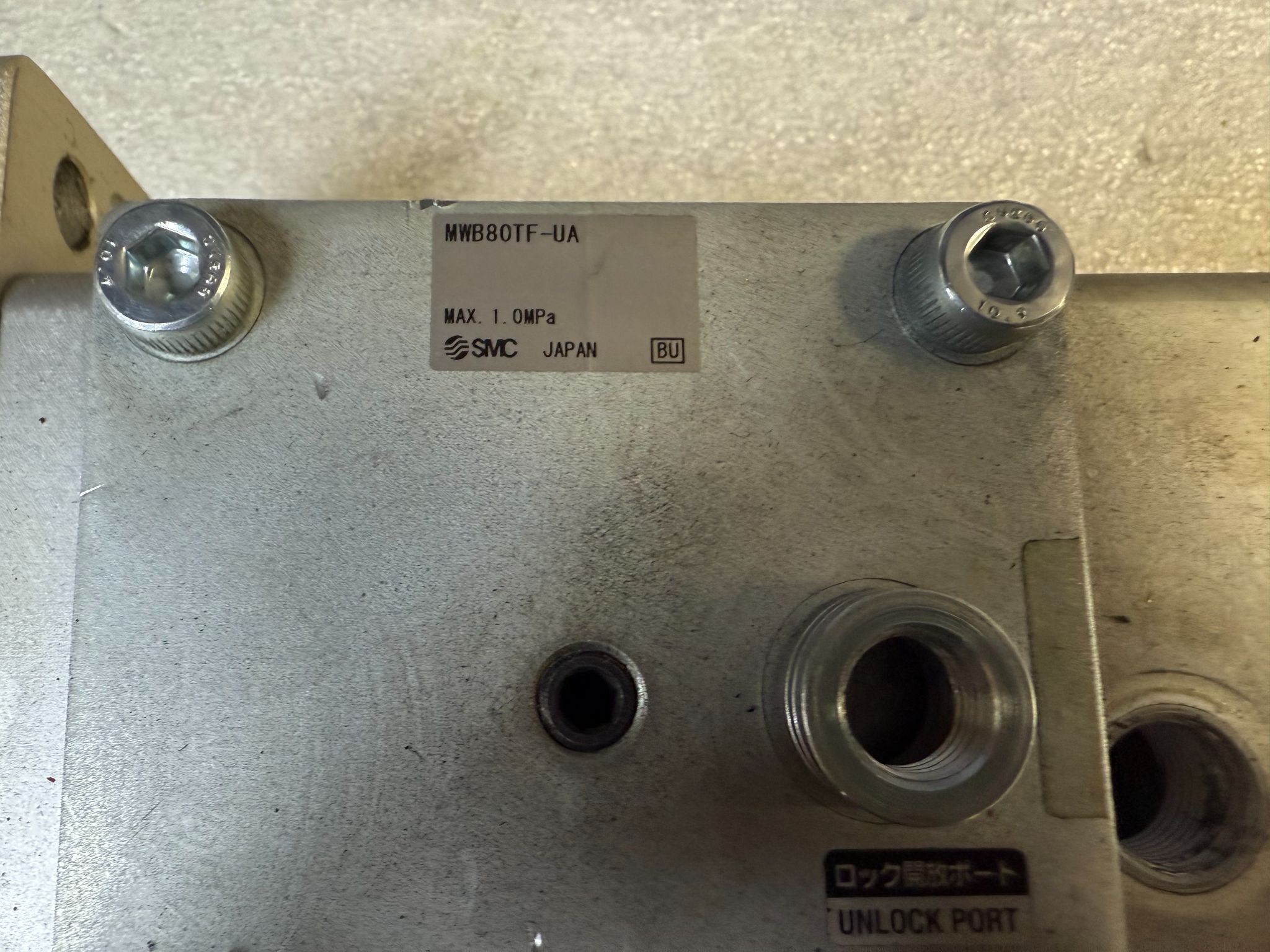

SMC C96NB80-80C Pneumatic Cylinder w/ MWB80TF-UA Lock-Up Unit USED - Image 3

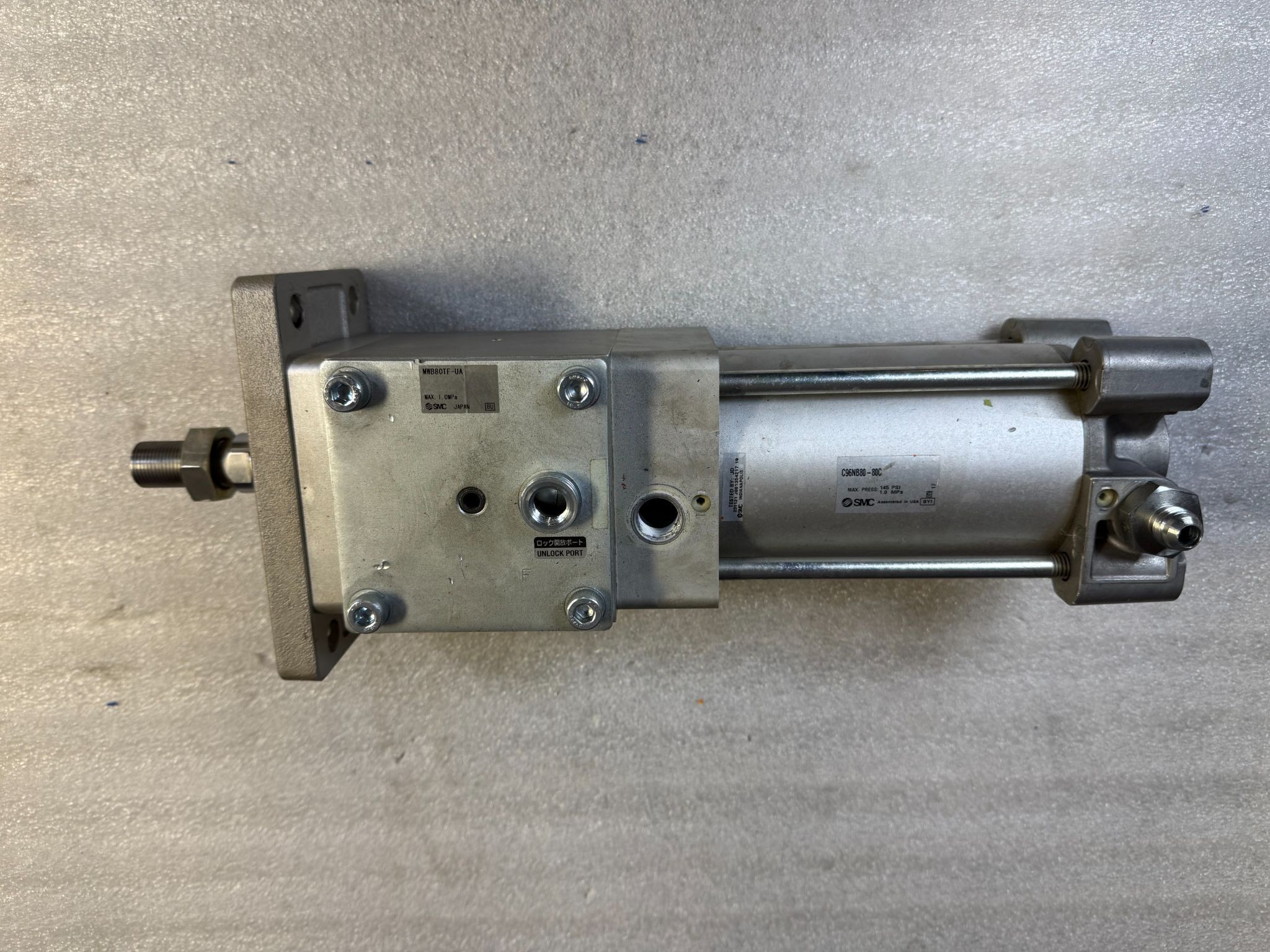

SMC C96NB80-80C Pneumatic Cylinder w/ MWB80TF-UA Lock-Up Unit USED - Image 4

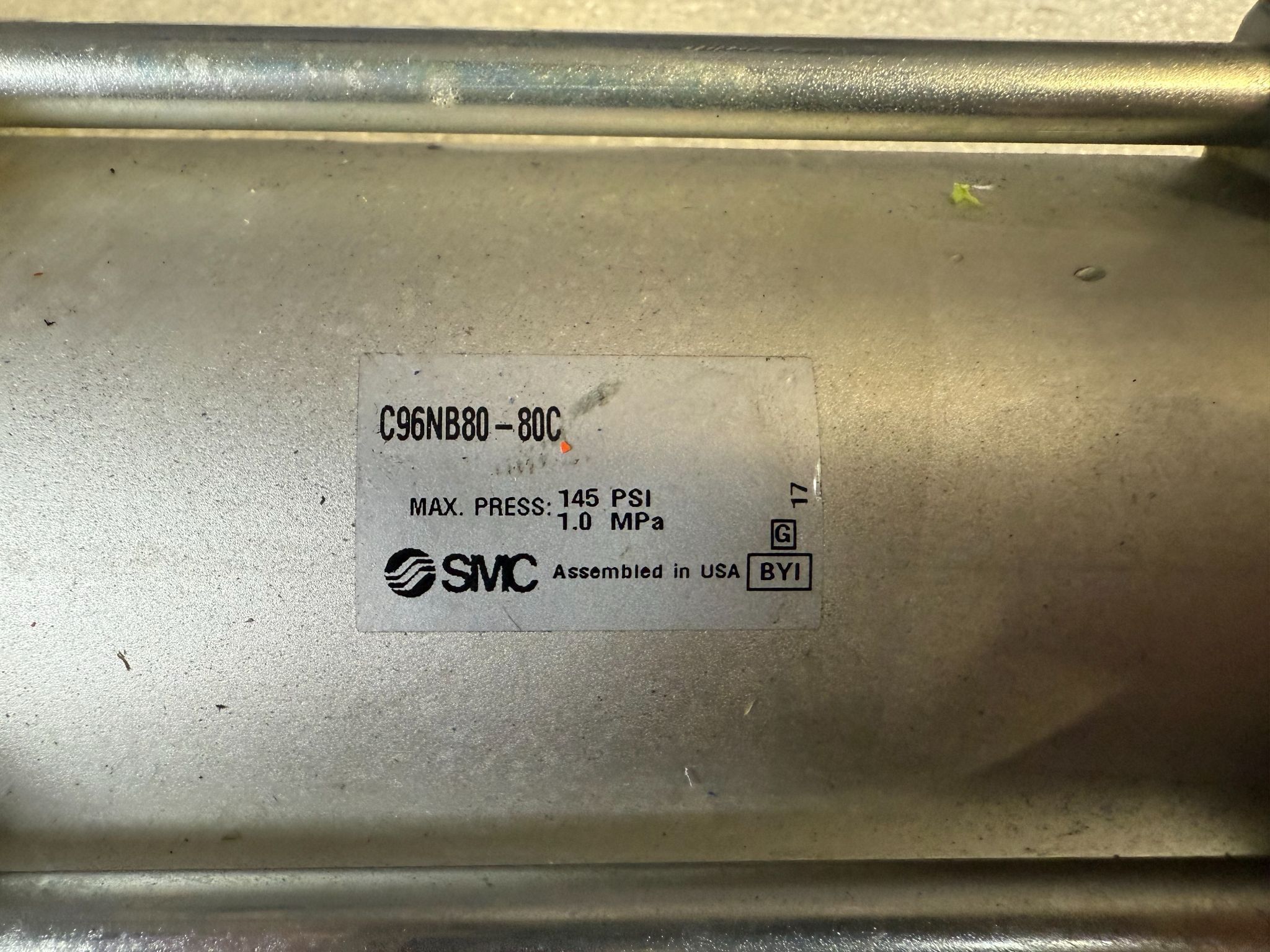

SMC C96NB80-80C Pneumatic Cylinder w/ MWB80TF-UA Lock-Up Unit USED - Image 5

SOLD!

SMC C96NB80-80C Pneumatic Cylinder w/ MWB80TF-UA Lock-Up Unit USED

$165.00
Availability:

3 in stock
BRAND: SMC MODEL: C96NB80-80C CONDITION: Used
SKU: IGAM3220405 Weight: 22 lbs Shipping Calculated at Checkout

3 in stock

Make an offer

Overview

This listing is for a USED SMC C96NB80-80C pneumatic cylinder paired with an SMC MWB80TF-UA lock-up safety unit. It is designed for heavy-duty linear actuation and secure position holding in industrial automation systems. This unit is categorized as a pneumatic cylinder assembly and includes the following capabilities 80 mm bore, 80 mm stroke, 1.0 MPa maximum pressure rating, and a mechanical lock-up mechanism designed to hold the rod position during air loss or emergency stop events.

Specification Table

IDENTIFICATION Manufacturer: SMC Cylinder Part Number: C96NB80-80C Product Family: C96 Product Type: Pneumatic Cylinder With Lock Unit Lock Unit Part Number: MWB80TF-UA Condition: USED YOM: n/a Cylinder Assembly Origin: USA Lock Unit Origin: Japan CYLINDER Actuation: Pneumatic Motion Type: Linear Maximum Pressure: 1.0 MPa / 145 psi Cylinder Construction: Tie Rod Piston Rod: Single Rod Rod End: Male Threaded Bore Size: Not specified Stroke: Not specified LOCK UNIT Lock Unit Model: MWB80TF-UA Maximum Pressure: 1.0 MPa Lock Function: Rod Holding / Locking Unlock Method: Pneumatic Unlock Port: Present Lock Direction: Not specified PNEUMATIC Operating Medium: Compressed Air Cylinder Ports: Present Lock Release Port: Present Port Size: Not specified Operating Pressure: Not specified CONNECTION / INSTALLATION Cylinder Mounting: Flange Rod Connection: Male Threaded Lock Unit Mounting: Integrated Pneumatic Connections: Threaded CONSTRUCTION Cylinder Body: Metal Tie Rods: Metal Lock Housing: Metal Rod Material: Metal
▸ Key Features:
• SMC C96N-series ISO cylinder designed for heavy-duty industrial actuation
• 80 mm bore and 80 mm stroke as indicated by model C96NB80-80C
• Integrated SMC MWB80TF-UA lock-up unit for emergency position holding
• Rated for up to 1.0 MPa / 145 PSI maximum pressure
• Lock-up module provides fail-safe holding during air loss or shutdown
• Suitable for high-cycle machinery, automation stations, and OEM equipment builds
▸ Applications:
• Industrial automation requiring controlled linear motion
• Safety-critical equipment with position-holding requirements
• Robotics, clamping, and precision motion assemblies
• High-force actuation in manufacturing operations
• OEM machinery using ISO-standard pneumatic cylinders
▸ Alternative Model Numbers:
C96NB80-80
C96N Series 80mm Cylinders
MWB80TF Lock-Up Series
C96N Family Variants
SMC 80mm ISO Cylinder Assemblies
▸ Common Misspellings or Phrasing:
C96NB80 80C
C96N-B80-80C
MWB80TFUA
SMC 80mm Lock-Up Cylinder
C96NB80-8OC (O vs 0)
