SKF BTW 100 CTN9/SPW33 Angular Contact Thrust Bearing NEW 0

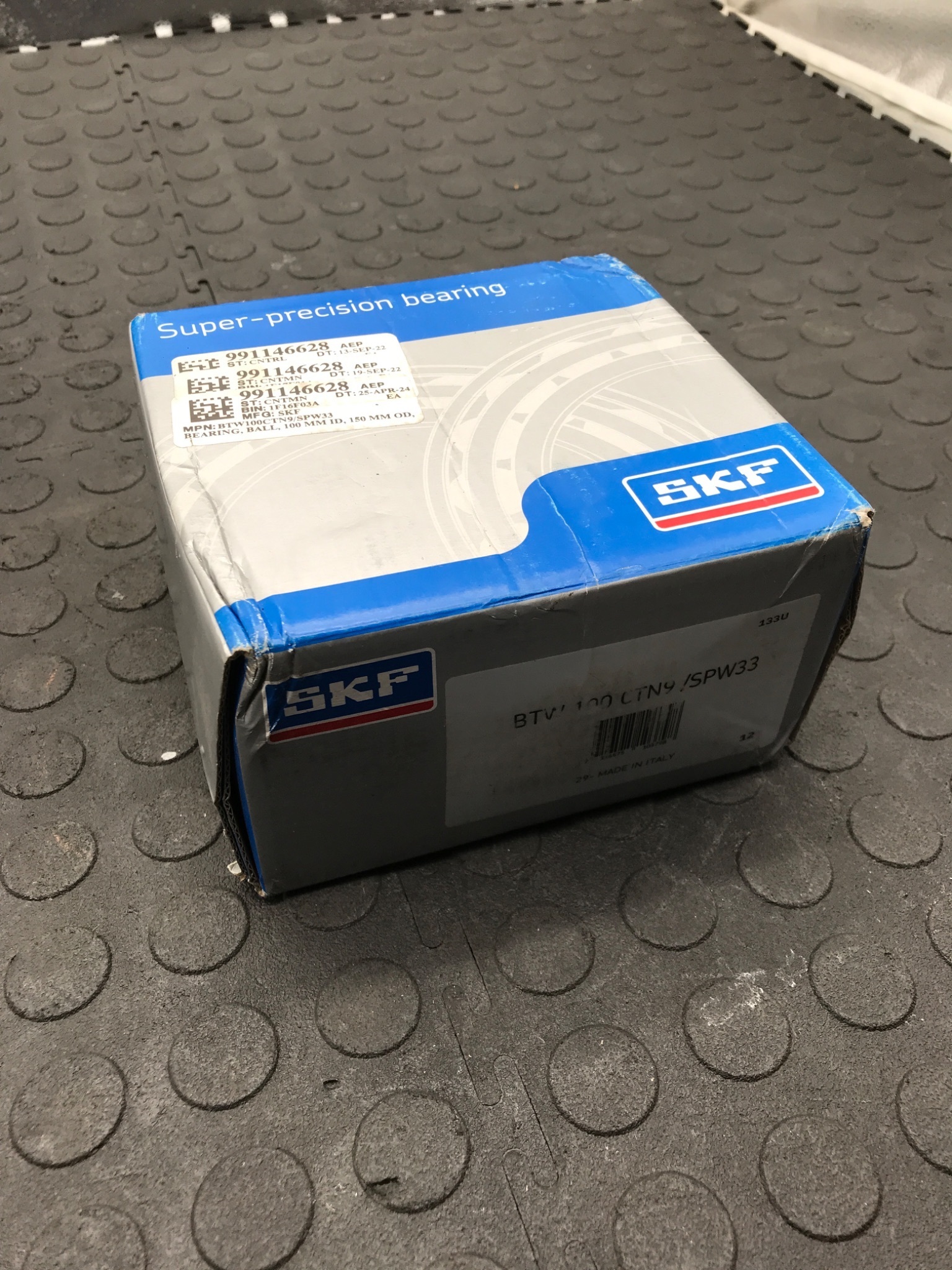

SKF BTW 100 CTN9/SPW33 Angular Contact Thrust Bearing NEW 1

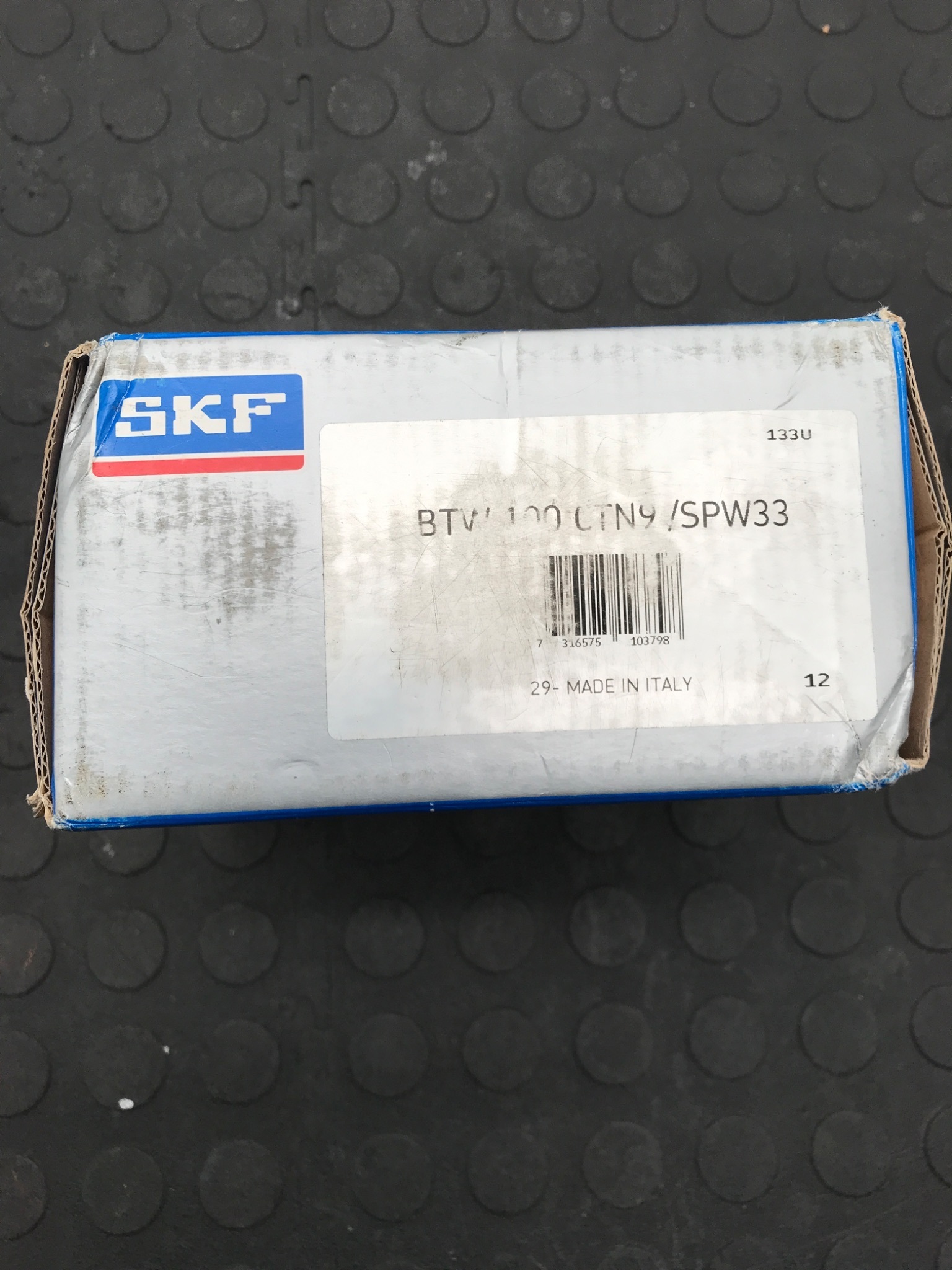

SKF BTW 100 CTN9/SPW33 Angular Contact Thrust Bearing NEW 2

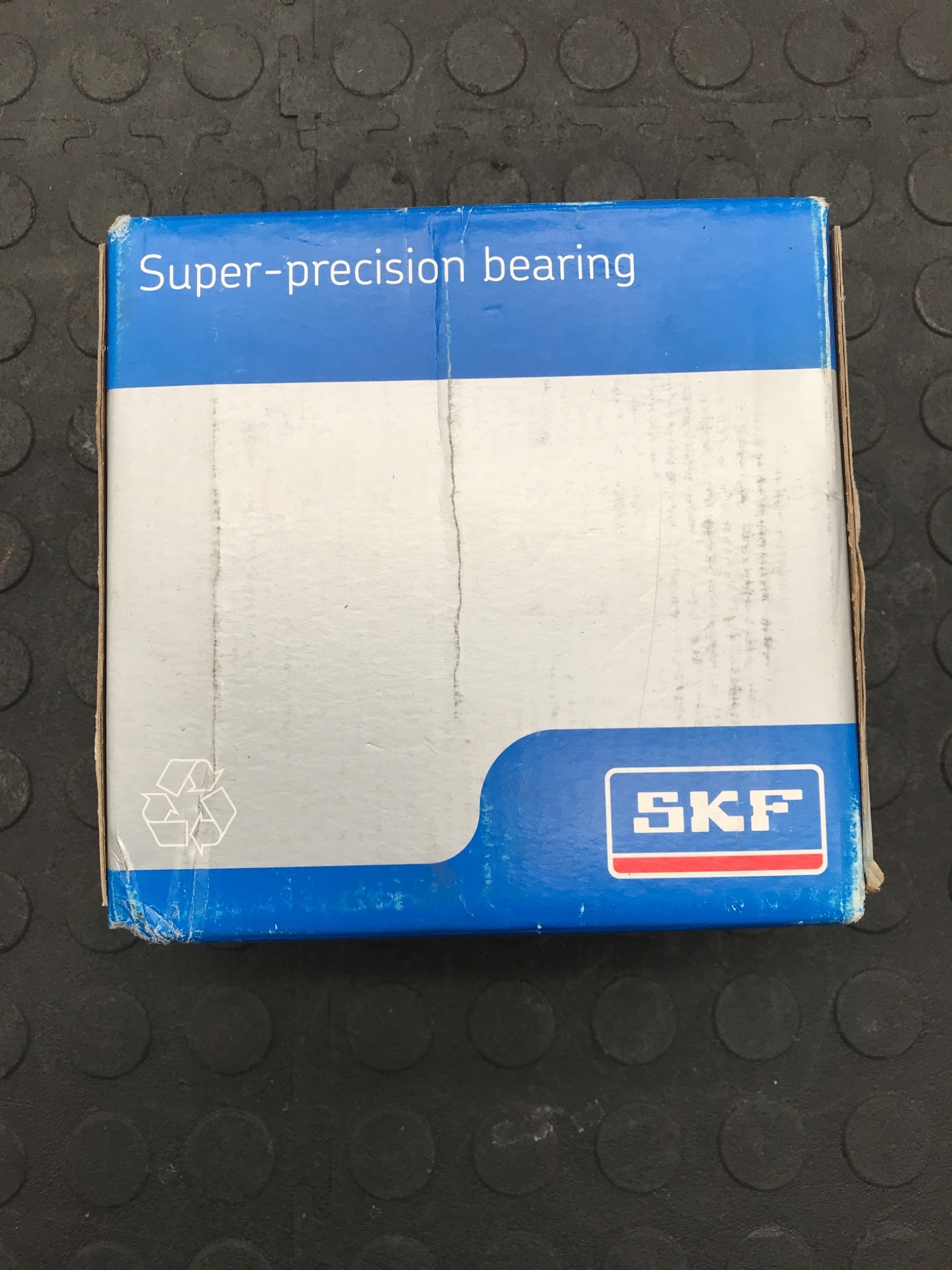

SKF BTW 100 CTN9/SPW33 Angular Contact Thrust Bearing NEW 3

SOLD!

SKF BTW 100 CTN9/SPW33 Angular Contact Thrust Bearing NEW

$1,350.00
Availability:

2 in stock
BRAND: SKF MODEL: BTW 100 CTN9 / SPW33 CONDITION: used
SKU: IGAM3540030 Weight: 6 lbs Shipping Calculated at Checkout

2 in stock

Make an offer

Overview

This listing is for a NEW SKF BTW 100 CTN9/SPW33 super‑precision angular contact thrust ball bearing. It is designed to support high axial loads in both directions with maximum system rigidity, commonly used in machine tool spindle assemblies and other high‑precision motion systems. This unit is a double‑direction angular contact thrust bearing featuring special precision (SP) accuracy, a 60‑degree contact angle, and W33 lubrication grooves in the outer ring for improved lubrication performance.

Specification Table

Manufacturer: SKF Series: BTW Super‑Precision Series Part Number: BTW 100 CTN9/SPW33 Condition: NEW YOM: n/a Bearing Type: Double Direction Angular Contact Thrust Ball Bearing Bore Diameter: 100 mm Outside Diameter: 150 mm Overall Height: 60 mm Contact Angle: 60° Number of Rows: 2 Cage Type: TN9 Polyamide Cage Precision Class: SP (Super Precision) Lubrication Feature: W33 (Groove and 3 lubrication holes) Dynamic Load Rating: 59.2 kN Static Load Rating: 193 kN Limiting Speed (Grease): 5,000 RPM Limiting Speed (Oil‑Air): 6,000 RPM Country of Origin: Italy
▸ Key Features:
• Super‑precision double direction angular contact thrust ball bearing

• Designed to accommodate high axial loads in both directions

• 60° contact angle for maximum axial stiffness and rigidity

• Special Precision (SP) tolerance class for machine tool applications

• TN9 molded polyamide cage for reduced friction and high‑speed capability

• W33 lubrication groove with three holes in the outer ring
▸ Applications:
• Machine tool spindle bearing arrangements

• Precision rotary tables and indexing units

• CNC machining centers

• High‑accuracy positioning and motion control systems

• Industrial equipment requiring high axial rigidity
▸ Alternative Model Numbers:
BTW 100 CTN9/SP

BTW100CTN9/SPW33

234420 TN9/SP

234420M/SP

562020
▸ Common Misspellings or Phrasing:
SKF BTW100 CTN9 Bearing

BTW 100 CTN9 SPW33

SKF Super Precision Thrust Bearing 100mm

SKF Angular Contact Thrust Bearing

BTW100CTN9SPW33
