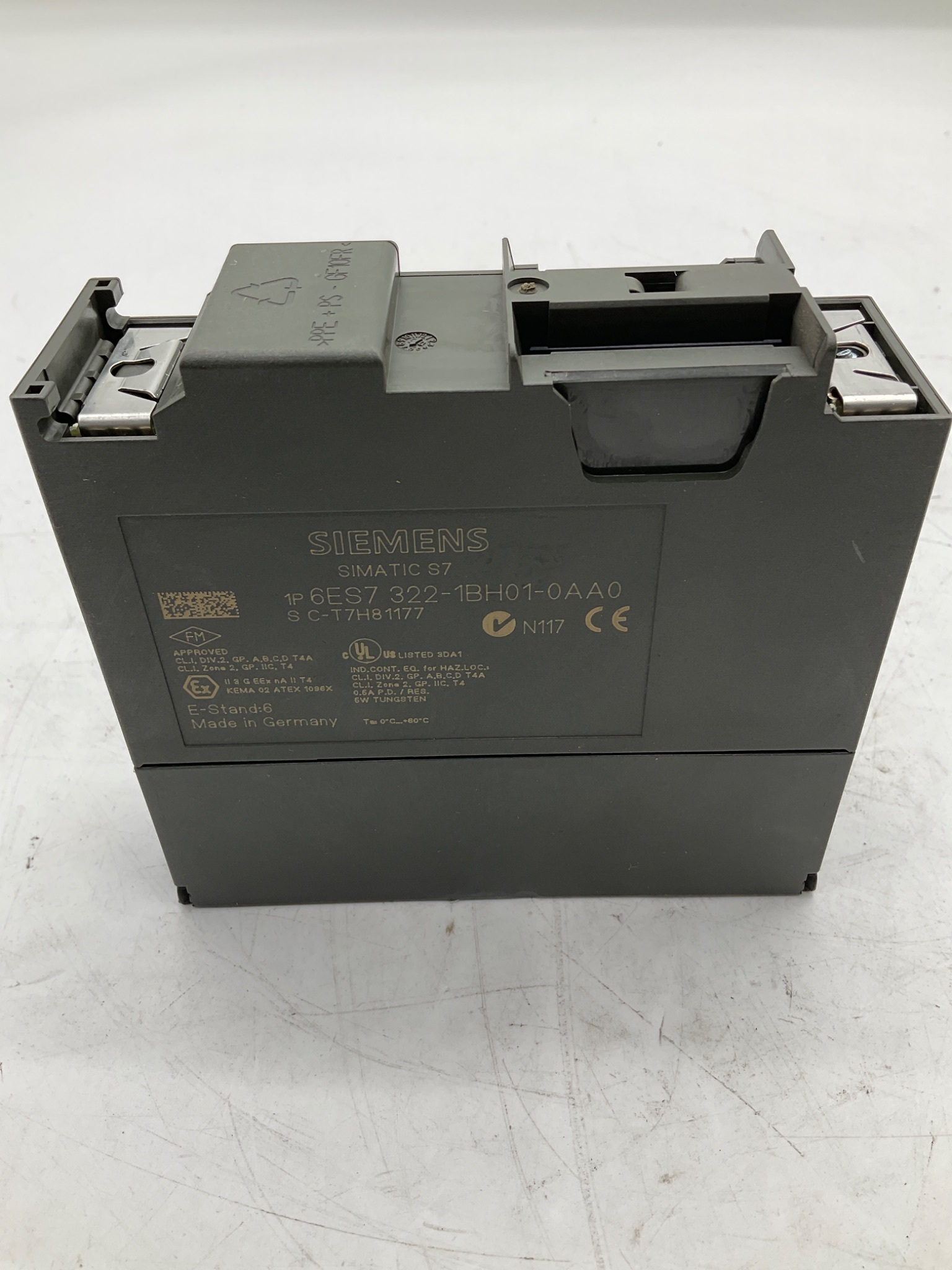

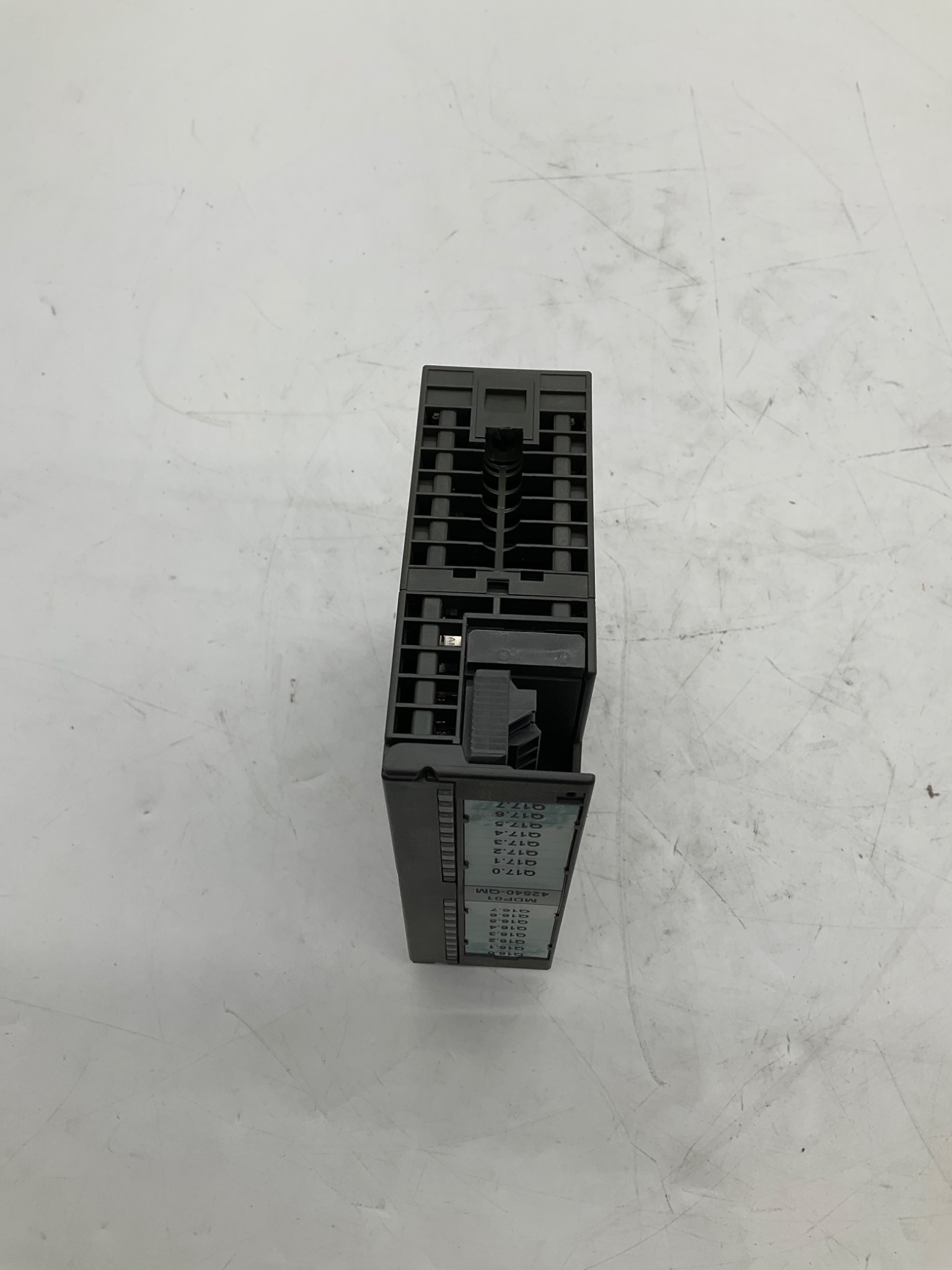

SIEMENS 6ES7322-1BH01-0AA0 SIMATIC S7-300 SM322 16DO 24VDC 0.5A Output Module USED

Specification Table

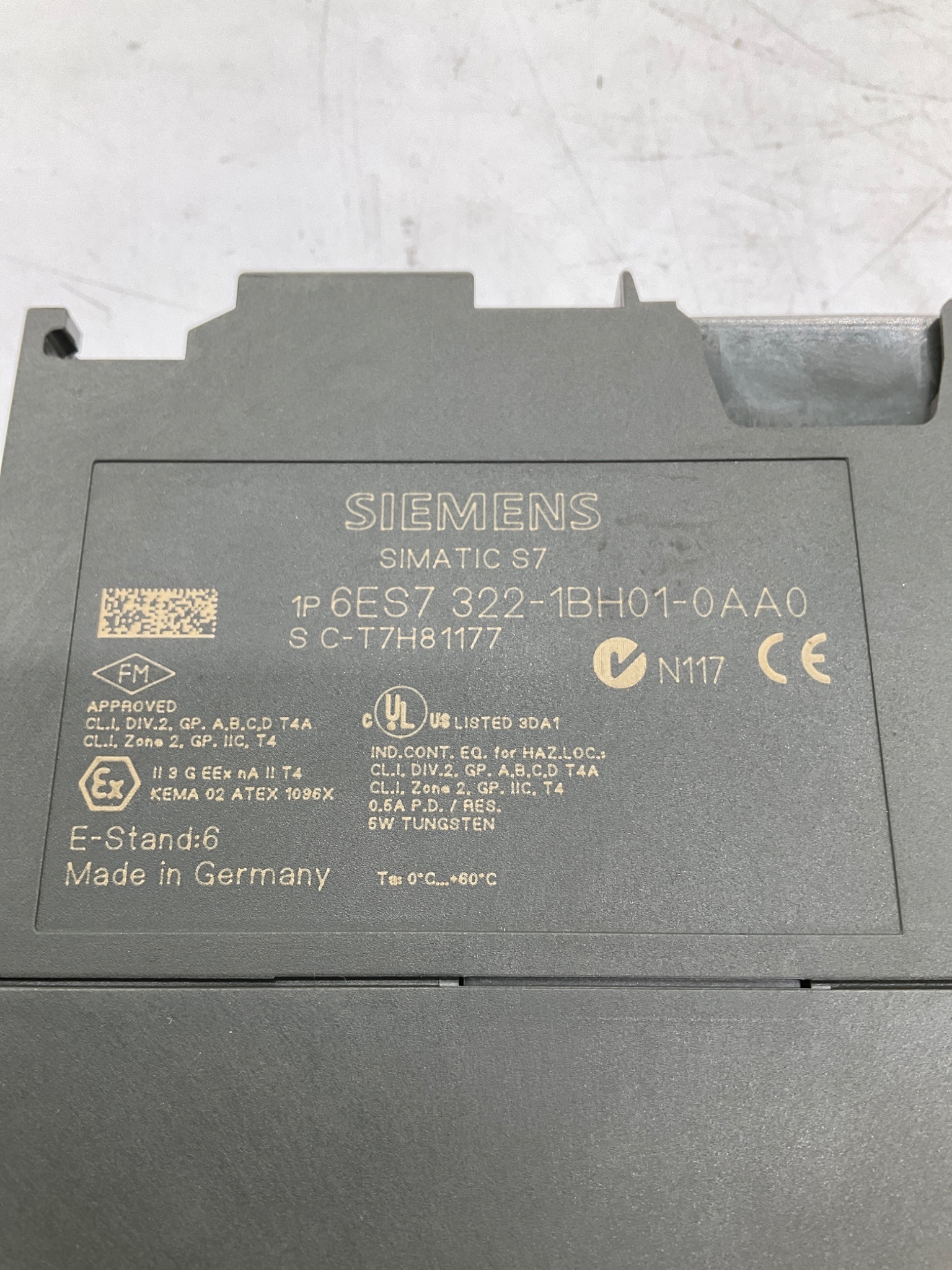

IDENTIFICATION Manufacturer: Siemens Part Number: 6ES7322-1BH01-0AA0 Product Family: SIMATIC S7 PLC Platform: S7-300 Module Designation: SM322 Product Type: Digital output module Condition: USED Hardware Revision: E-Stand 6 YOM: n/a Country of Manufacture: Germany Unit Identification: SC-T7H81177   OUTPUT CONFIGURATION Output Type: Digital Number of Outputs: 16 Output Voltage: 24 VDC Output Current Rating: 0.5 A Channel Groups: 2 groups of 8 outputs Channel Designations: 0 through 7 per group Status Indication: Individual channel LEDs   FUNCTION / SYSTEM Primary Function: Discrete load switching PLC System: SIMATIC S7-300 Module Class: Signal module Module Designation: SM322   INSTALLATION / CONNECTION Installation Format: S7-300 modular PLC Field Connection: Front connector Front Connector: Present Connector Designation: X1 Connector Pin Count: 20 Module Retention: Integrated mounting hardware   ENVIRONMENTAL Operating Temperature: 0 to +60 °C   HAZARDOUS LOCATION FM Approval: Present Division Classification: Class I, Division 2 Gas Groups: A, B, C, D Temperature Class: T4A Zone Classification: Class I, Zone 2 Zone Gas Group: IIC Zone Temperature Class: T4   ATEX Equipment Category: II 3 G Protection Designation: EEx nA II T4 Certificate: KEMA 02 ATEX 1086 X   APPROVALS / COMPLIANCE cULus Listing: Present UL Classification: Industrial Control Equipment UL Marking: 3DA1 CE Marking: Present Australian Marking: N117
