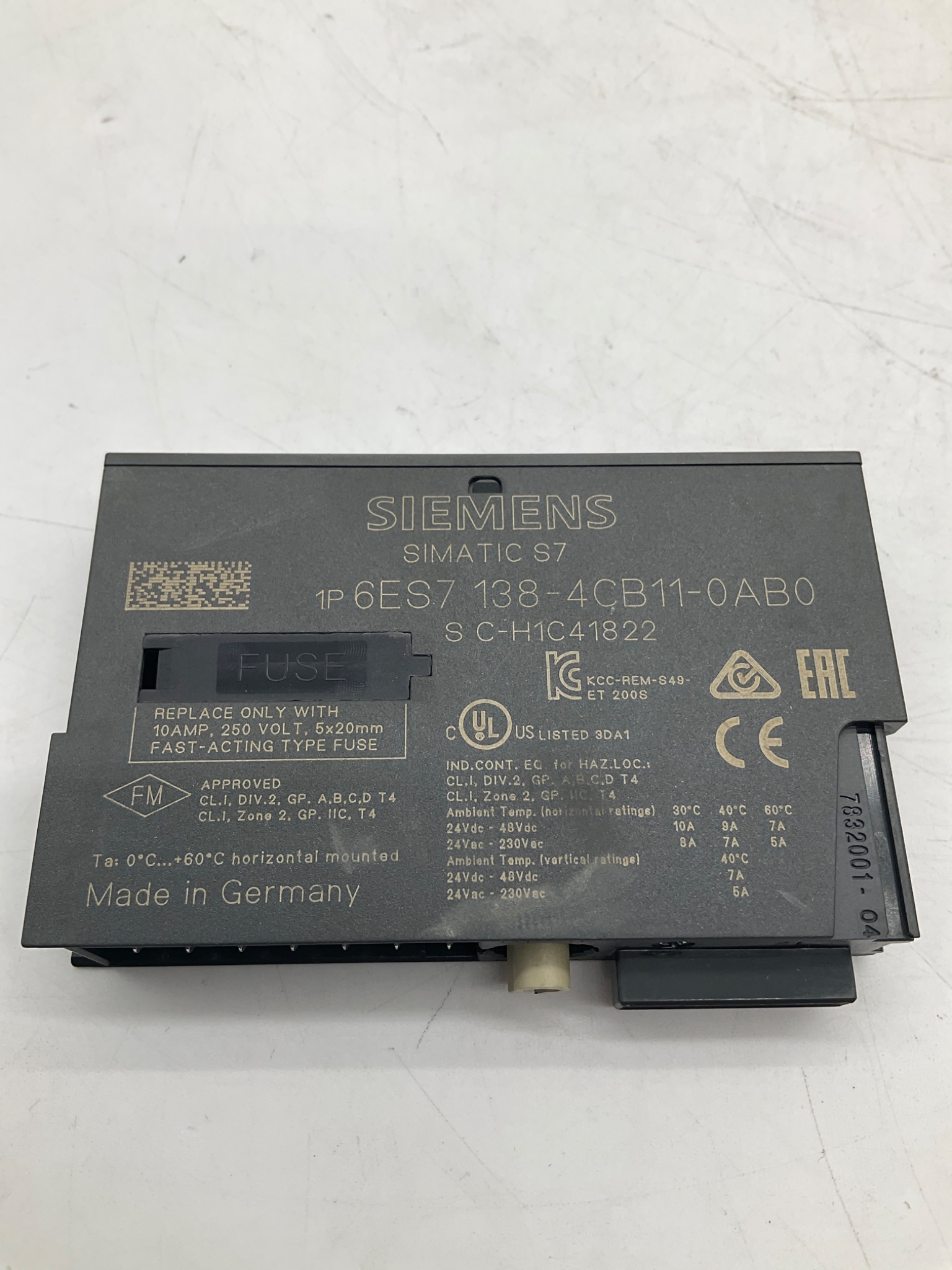

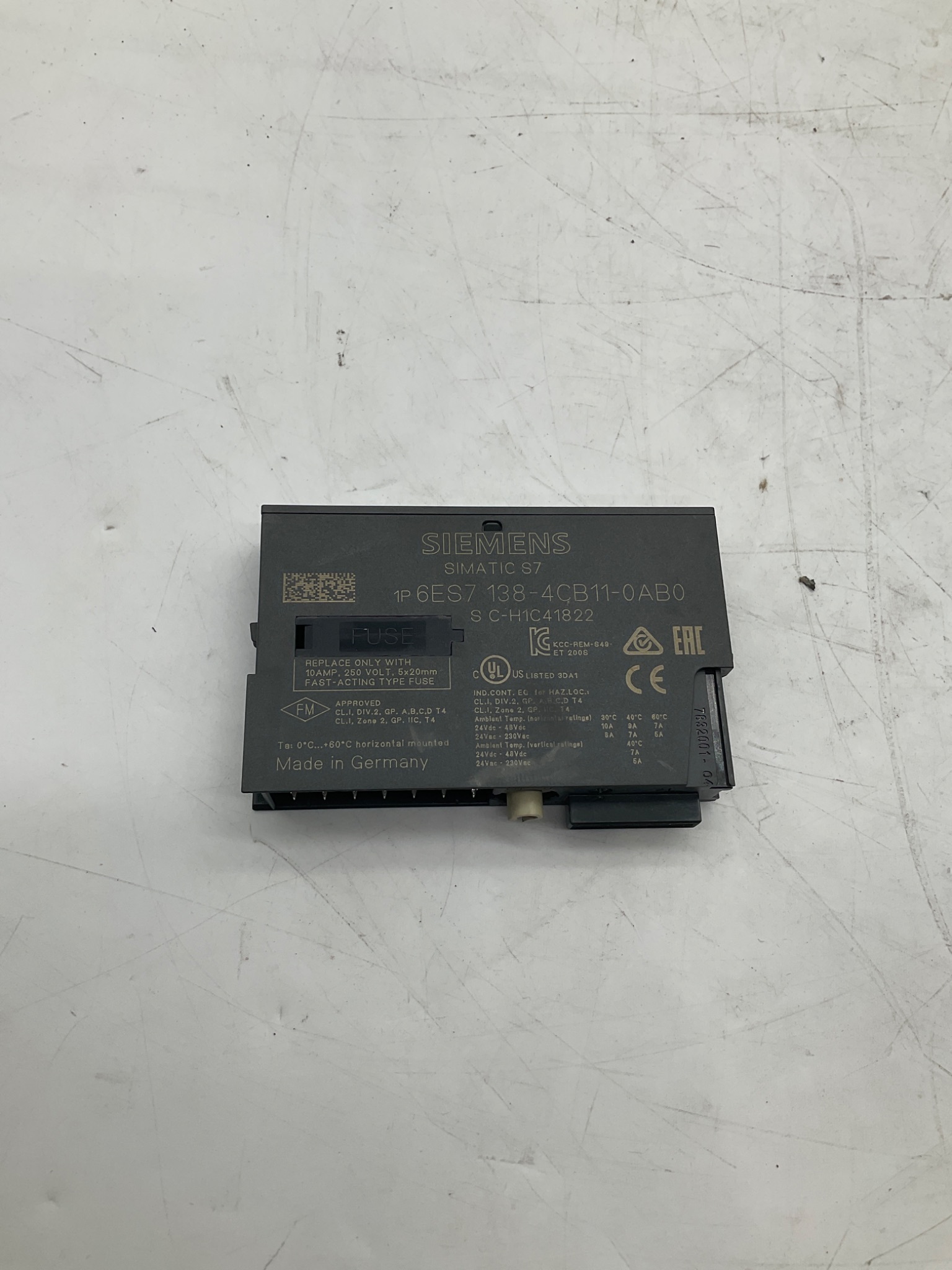

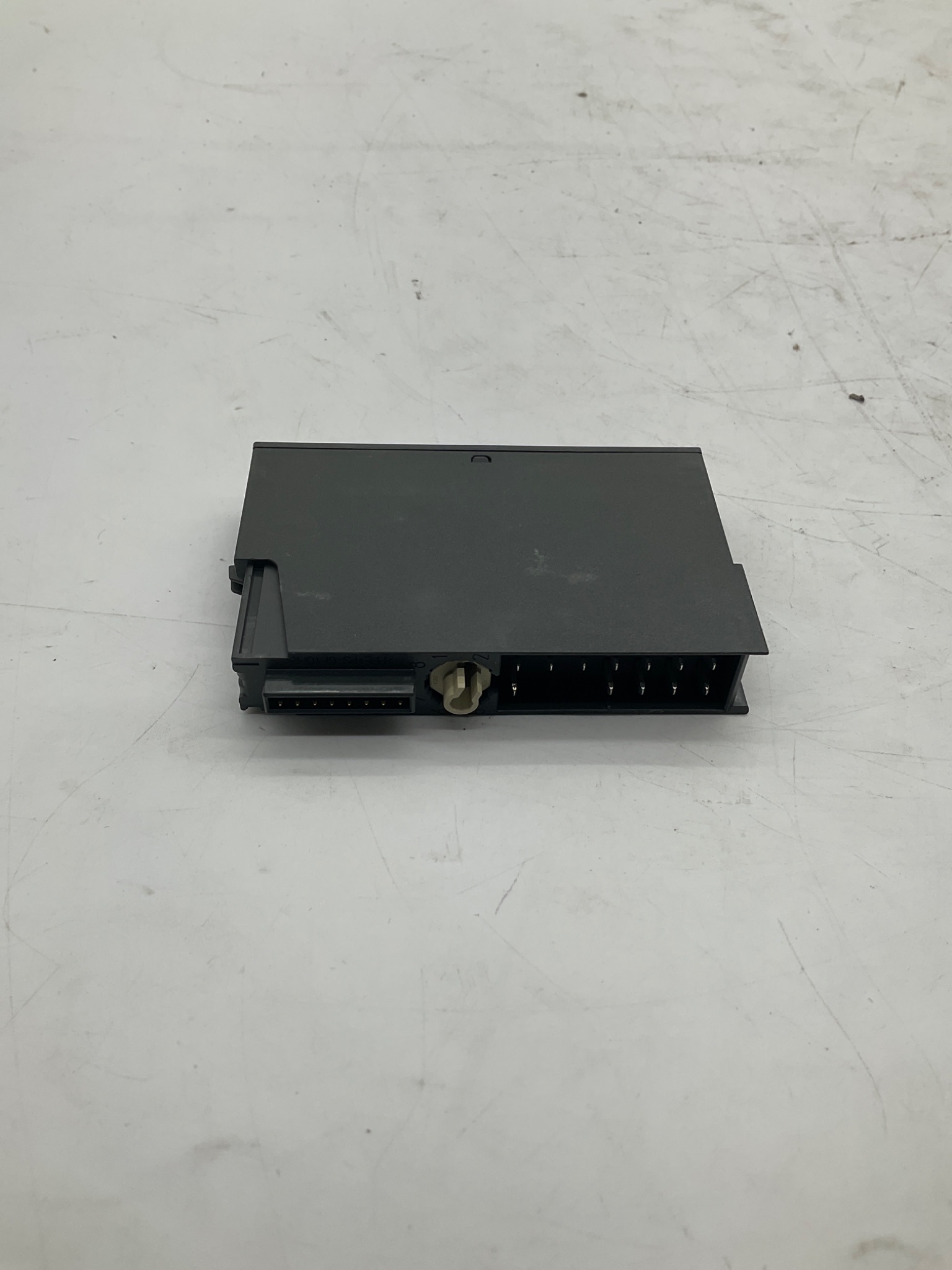

SIEMENS 6ES7138-4CB11-0AB0 SIMATIC ET 200S PM-E Power Module USED

Specification Table

IDENTIFICATION Manufacturer: Siemens Part Number: 6ES7138-4CB11-0AB0 Product Family: SIMATIC Distributed I/O Family: ET 200S Module Designation: PM-E Product Type: Power module Condition: USED YOM: n/a Country of Manufacture: Germany Unit Identification: C-H1C41822   FUNCTION / SYSTEM Primary Function: Load-voltage power module System Application: ET 200S distributed I/O Potential Group Function: Power supply / monitoring Fuse Protection: Integrated   ELECTRICAL DC Voltage Range: 24 to 48 VDC AC Voltage Range: 24 to 230 VAC   CURRENT RATINGS - HORIZONTAL Ambient Temperature: 30 °C 40 °C 60 °C 24-48 VDC: 10 A 9 A 7 A 24-230 VAC: 8 A 7 A 5 A   CURRENT RATINGS - VERTICAL Maximum Ambient Temperature: 40 °C 24-48 VDC: 7 A 24-230 VAC: 5 A   FUSE Fuse Type: Fast-acting Fuse Rating: 10 A Fuse Voltage Rating: 250 V Fuse Dimensions: 5 x 20 mm Fuse Access: Integrated front fuse holder   STATUS / INDICATION Power Indicator: PWR Fuse / Group Status: FSG   ENVIRONMENTAL Operating Temperature Horizontal Mounting: 0 to +60 °C Maximum Temperature Vertical Mounting: 40 °C   HAZARDOUS LOCATION FM Approval: Present Classification: Class I, Division 2 Gas Groups: A, B, C, D Temperature Class: T4 Zone Classification: Class I, Zone 2 Zone Gas Group: IIC Zone Temperature Class: T4   INSTALLATION / CONSTRUCTION Module Format: ET 200S modular I/O Mounting Orientation: Horizontal / vertical Fuse Location: Front accessible System Installation: ET 200S station   APPROVALS / COMPLIANCE cULus Listing: Present UL Category: Industrial Control Equipment UL Designation: 3DA1 FM Approval: Present CE Marking: Present EAC Marking: Present KC Marking: Present KC Registration: KCC-REM-S49-ET 200S RCM Marking: Present
